• design pressure internal 4 bar + full vacuum @ -29/185 degrees C (9100 liter),
• jacket 10 bar + full vacuum @ -29/185 degrees C (165 liter),
• fixed bed design,
• 6.5-13 rpm shaft speed,
• driven by 10/6.6kw 3/50/415 volt, 1500/750 rpm EExd IIB T4 motor via a reduction gearbox,
• reversing agitator for discharging,
• packed gland,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 4kw, 3/50/415 volt 1500 rpm EExd IIB T4 motor,
• side discharge with hydraulic valve,
• 304L stainless steel half pipe coil jacket on straight side,
• carbon steel half pipe coil jacket on filter base,
• slurry outlet with a 100/80mm SCHUF valve,
• weld dished top, weld flat bottom,
• 2.8m diameter x 1050mm straight side,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• mounted on feet with load cells,
• design code: ASME VIII DIV I ED 89 + ADD 90,

system includes

• (1) 340 Nm3/hr 316L stainless steel Apovac PMZK 3817 D3x6 vacuum pump skid, manufactured by Sulzer, skid includes (1) 340 Nm3/hr 316L stainless steel PMZK 3817 D3x6 vacuum pump, manufactured by Sulzer Burkhardt, serial #52771, (1) 6.7 square meter 316L stainless steel tube and shell heat exchanger (liquid ring cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 10 square meter 316L stainless steel tube and shell heat exchanger (exhaust gas cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 5 square meter 316L stainless steel heat exchanger (N2 Heater), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 190 liter 316L stainless steel pressure tank (condensate receiver), manufactured by Kasag, pressure -1/4 barg @ 50 degrees C,
• (1) 60m3/hr @ 13.6m head 316 stainless steel centrifugal pump (P1), manufactured by Girdlestone, type 12CSD2G, serial #53451, size 80-50-175, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor, sealless type, mounted on a baseplate,
• (1) 10m3/hr @ 26m head PFA lined centrifugal pump (P2), manufactured by Richter, type PCK/F 32-160, serial #917493/3/3, 2900 rpm, 147mm diameter impellor, driven by 5.5kW, 3/50/415 volt, 2900 rpm EEx de IIB T4 motor, mechanical seal, mounted on a baseplate

• design pressure internal 4 bar + full vacuum @ -28.8/185 degrees C (12800 liter),
• jacket 10 bar + full vacuum @ -28.8/185 degrees C (140 liter),
• internals mirror polished to 0.4um Ra,
• fixed bed design,
• 3.2m diameter x 1.2m straight side,
• bottom discharges,
• shaft with internal bellows,
• shaft driven by 30kw 3/50/400 volt IP55 EExd IIB T4 motor via a 210:1 ratio reduction gearbox,
• shaft speed 1.43-10.7 rpm,
• mechanical seal with lubricator,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 7.5kw 3/50/400 volt IP55 EExd IIB T4 motor,
• jacket on straight side and bottom filter bed,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• design code: 97/23/CE (supported by ASME VIII DIV 1 Ed 2000),
• Note: Side Discharge Valve Not Included

(1) centrifugal pump, driven by 11/12.5kW 3/50-60/690-400/660-380/415-440 volt, 2936/2929/2942/3526 rpm EEx de IIB T4 B3 ATEX motor,

• design pressure internal 4 bar + full vacuum @ -29/185 degrees C,
• jacket 10 bar + full vacuum @ -29/185 degrees C,
• fixed bed design,
• 5.8-11.8 rpm shaft speed,
• driven by 18/9.9kw 3/50/415 volt 1500-750 rpm EEx de IIB T4 motor via a reduction gearbox,
• reversing agitator for discharging,
• packed gland,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 4kw, 3/50/415 volt 1500 rpm EExd IIB T4 motor,
• 304L stainless steel half pipe coil jacket on straight side,
• carbon steel half pipe coil jacket on filter base,
• side discharge with hydraulic valve,
• slurry outlet with a 100/80mm SCHUF valve,
• internal wash ring/spray bar,
• weld dished top, weld flat bottom,
• 3.2m diameter x 1060mm straight side,
• side inspection manway with cover and davit,
• design code: ASME VIII DIV 1 ED.89 + ADD 90,

system includes

• (1) 340 Nm3/hr 316L stainless steel Apovac PMZK 3817 D3x6 vacuum pump skid, manufactured by Sulzer, skid includes: (1) 340 Nm3/hr 316L stainless steel vacuum pump, manufactured by Sulzer, driven by 37kW, 3/50/415 volt, 975 rpm EEx de IIB T4 motor, (1) 6.7 square meter 316L stainless steel tube and shell heat exchanger (liquid ring cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 10 square meter 316L stainless steel tube and shell heat exchanger (exhaust gas cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 5 square meter 316L stainless steel tube and shell heat exchanger (N2 Heater), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 190 liter 316L stainless steel pressure tank (condensate receiver), manufactured by Kasag, pressure -1/4 barg @ 50 degrees C,
• (2) 316L stainless steel centrifugal pumps, manufactured by Girdlestone, type 12CABC2G, 16 bar @ 20 degrees C, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor,

• pressure jacketed Nutsche filter body only,
• design pressure internal 4 bar + full vacuum @ -28.8/185 degrees C (12800 liter),
• jacket 10 bar + full vacuum @ -28.8/185 degrees C (150),
• jacket on straight side and bottom filter bed,
• fixed bed design,
• hydraulic raise and lower mechanism on drive,
• drive gearbox type R-FV/400, serial #M101, 207:1 ratio, 24kW input power, 1500 rpm input speed,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• design code: 97/23-CE, ASME VIII DIV 1, ED.98 ADD.2000

• design pressure internal 4 bar + full vacuum @ -29/185 degrees C (9100 liter),
• jacket 10 bar + full vacuum @ -29/185 degrees C (165 liter),
• fixed bed design,
• bottom discharge
• 6.5-13 rpm shaft speed,
• driven by 10/6.6kw 3/50/415 volt, 1440/725 rpm EExd IIB T4 motor via a reduction gearbox,
• reversing agitator for discharging,
• packed gland,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 4kw, 3/50/415 volt 1500 rpm EExd IIB T4 motor,
• 304L stainless steel jacket on straight side,
• carbon steel half pipe coil jacket on filter base,
• slurry outlet with a 100/80mm SCHUF valve,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• design code: ASME VIII DIV I ED 89 + ADD 90,

(1) 60m3/hr @13.7m head 316 stainless steel centrifugal pump, manufactured by Girdlestone, type 12GSD2G, serial #58645, size 80-50-175, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor, mounted on a baseplate,

(1) 10m3/hr @ 26m head 316 stainless steel centrifugal pumps, manufactured by Richter, type PCK/F 32-160, serial #917493/3/1, 2900 rpm, 147mm diameter impellor, driven by 5.5kW, 3/50/415 volt, 2900 rpm EEx de IIB T4 motor, mounted on a baseplate,

• design pressure internal 4 bar + full vacuum @ -29/185 degrees C (5400 liter),
• jacket 10 bar + full vacuum @ -29/185 degrees C (120 liter),
• 304L stainless steel half pipe coil jacket on straight side and filter base,
• 7.3-14.6 rpm shaft speed,
• driven by 10/6.6kw 3/50/415 volt 1440/750 rpm EExd IIB T4 motor via a reduction gearbox,
• reversing agitator for discharging,
• packed gland, s
• haft with Hydraulic raise/lower mechanism, clamped bottom filter bed with raise/lower mechanism, both driven by a hydraulic power pack with a 7.5kw, 3/50/415 volt 1447/1454 rpm EExd IIB T4 motor via a reduction gearbox,
• side discharge with hydraulic valve,
• slurry outlet with a 80/80mm SCHUF valve,
• filter bed on wheels for cleaning,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• design code: ASME VIII DIV ED 89 + ADD 90,

(1) 316L stainless steel centrifugal pump, manufactured by Girdlestone, type 12CSD2G, serial #59209, size 3" x 2" x 175, max working pressure 16 bar @ 20 degrees C, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB TA motor, mounted on a baseplate,

(1) 316L stainless steel centrifugal pump, manufactured by Girdlestone, type 10AO3H, serial #53531, size 20 X 40 x 175, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB TA motor, mounted on a baseplate,

• design pressure internal -1/4 bar @ -28/185 degrees C,
• jacket -1/10 bar @ -28/185 degrees C,
• jacket on straight side and on bottom filter bed,
• fixed bed design,
• shaft driven by 27/16kw 3/50/400 volt ATEX II 2G/D EEx de II T4 motor,
• shaft speed 3.5 to 7.1 rpm,
• flowserve gas type mechanical seal,
• internal bellows on shaft,
• Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 7.5kW 3/50/400 volt ATEX II2G/D EEx de IIB T4 motor,
• side discharge with hydraulic valve,
• internal spray bar,
• side inspection manway with cover and davit,
• design code: ASME VIII DIV 1, Ed.2004 + add.05 C.C.2523 + PED 97/23/CE,

(1) 15 m3/hr @ 21.38m head 316 stainless steel centrifugal pump, manufactured by HMD Sealless Pumps, type GSI 65-50-160 D-A4, serial #827182, asset #10006291, 140mm diameter impellor, 2900 rpm, NPSH 2.76m, magnetic drive, driven by 3kw 3/50/400 volt 2900 rpm IP55 Eex de IIB T4 motor, 75mm suction, 50mm discharge

• design pressure internal 4 bar + full vacuum @ -29/185 degrees C (12500 liter),
• jacket 10 bar + full vacuum @ -29/185 degrees C (225 liter),
• 5.8-11.8 rpm shaft speed,
• shaft driven by 18/9.9 kw, 3/50/415 volt, 1500/750 rpm, EExd IIB T4 motor via a 125:1 ratio reduction gearbox,
• reversing agitator for discharging,
• packed gland,
• shaft with Hydraulic raise/lower mechanism driven by an hydraulic power pack, powerpack driven by 4kw, 3/50/415 volt, 1500 rpm EExd IIB T4 motor,
• 304L stainless steel half pipe coil jacket on straight side,
• carbon steel half pipe coil jacket on bottom filter bed,
• fixed bed design,
• side bottom discharge with a 100/80mm SCHUF valve,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• designed code ASME VIII DIV 1 ED 89 & 90,
• Note: Does not include side discharge valve

(1) 60m3/hr @ 13.6m head 316 stainless steel centrifugal pump, manufactured by Girdlestone, type 12CSD2G, serial #53452, size 80-50-175, driven by 7.5kW, 3/50/415 volt 2890 rpm EEx de IIB T4 motor, mounted on a baseplate,

• design pressure internal 4 bar + full vacuum @ -28.8/185 degrees C (10000 liter),
• jacket 10 bar + full vacuum @ -28.8/185 degrees C (125 liter),
• CE02 0062,
• internals polished to 0.4um Ra,
• half pipe coil jacket on straight side and bottom,
• filter bed with filter clothe,
• fixed bed design,
• driven by 20/11kw 3/50/400 volt 1470/730 rpm IP55 EEx de IIB T4 motor via 185: 1 ratio gearbox,
• shaft speed 4-8 rpm,
• reversing agitator,
• Flowserve mechanical seal with lubricator pot
• shaft with bellows,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 7.5kw, 3/50/400 volt IP55 EEx d IIB T4 motor, bottom discharge,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• mounted on feet with load cells,
• design code: 97/23/CE ASME VIII DIV 1 ED 98 ADD 2000,

(1) 66m3/hr @ 19.74m head 316L stainless steel centrifugal pump, manufactured by HMD Sealless Pumps, type GSI 100x80x160H EA6, serial #PU822864, 180mm diameter impellor, driven by 11/12.5kw, 3/50-60/690-400/660-380/415-440 volt 2936/2929/2942/3526 rpm Eex d IIB T4 ATEX motor, mounted on a baseplate,

• design pressure internal 4 bar + full vacuum @ -29/185 degrees C (12800 liter),
• jacket 10 bar + full vacuum @ -29/185 degrees C (150 liter),
• classification: ATEX Ex II 2GD II B c Tx, II 2G IIB c Tx, CE 13700575,
• fixed bed design,
• shaft with bellows,
• shaft speed 3.5-7.1 rpm,
• driven by 27/16kw, 3/50/400 volt ATEX II 2G/D EEx de IIB T4 motor,
• Flowserve gas type mechanical seal,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack,
• side discharge with hydraulic valve,
• internal spray bar with nozzles,
• side inspection manway with cover and davit,
• slurry discharge with SCHUF pneumatic double acting actuated valve,
• design code: ASME VIII DIV 1 97/23/CE,

(1) 15 m3/hr @ 8.4m head 316 stainless steel centrifugal pump, manufactured by CP Pumpen Ag, serial #07-00784/55975, type MKP 65-40-160, pressure 16 bar @ -40/205 degrees C, differential pressure 0.6 bar, NPSH 1.1m, driven by 1.5kW, 3/50/400 volt 1450 rpm IP55 EEx de II BT4 ATEX motor, magnetic drive, openings suction 62mm, discharge 32mm, mounted on a baseplate

• design pressure internal 4 bar + full vacuum @ -29/185 degrees C (5400 liter),
• jacket 10 bar + full vacuum @ -29/185 degrees C (120 liter),
• 304L stainless steel coil jacket on straight side and bottom filter base,
• 7.3-14.6 rpm shaft speed,
• driven by 10/6.6kw 3/50/415 volt, 1500/750 rpm EExd IIB T4 motor via a reduction gearbox,
• reversing agitator for discharging,
• packed gland,
• shaft with Hydraulic raise/lower mechanism, bottom filter bed with raise/lower mechanism, both driven by a hydraulic power pack, powerpack driven by 4kw, 3/50/415 volt 1430 rpm EExd IIB T4 motor,
• side discharge with hydraulic valve,
• slurry outlet with a 80/80mm SCHUF valve,
• filter bed on wheels for cleaning,
• side inspection manway with cover and davit,
• design code: ASME VIII DIV 1 ED. 89 + A.90,

(1) 60m3/hr @ 13.6m head 316L stainless steel centrifugal pump, manufactured by Girdlestone, type 12CSD2G, serial #53453, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor, mechanical seal, mounted on a baseplate,

(1) centrifugal pump, manufactured by Chemquip Fluid Engineers, type PCK/F32-160, serial #546336/8/2, 2900 rpm, 147mm diameter impellor, driven by 5.5kW, 3/50/415 volt, 2900 rpm EEx de IIB T4 motor, mechanical seal, mounted on a baseplate

Skid mounted with hydraulic assisted head removal.

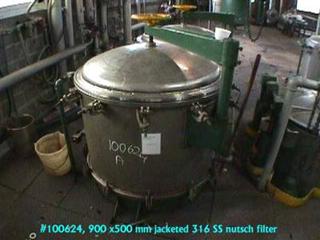

pressure filter Internal (330 ltr) Jacket (35 ltr) Raise/lower mechanism, max lifting 200 mm

Stainless type is austenitic but close to 304. 120 Liter tank.

5570 liter jacketed tumbling pressure Nutsche filter internal pressure -1/2 bar @ 50/134 degrees C, jacket -1/2 bar @ 50/134 degrees C (339 liter) with hydraulic open/close assist hydraulic driven raker agitator driven by a hydraulic powerpack the whole filter rotates for discharge via a hydraulic motor driven by the same powerpack

internal (185liter), jacket (48liter) 316L stainless steel jacket on straight side and bottom dish filter plate with manual raise/lower mechanism, TUV certified

Internal 185 litre Jacket 48 litre stainless steel jacket on straight side and bottom dish filter plate with manual raise/lower mechanism TUV certified

600 L carbon steel jacket on straight side only TUV certified

Side discharge 500mm dia Raker driven by 6 PS, 3/50/500 volt 1480 rpm motor W/Von Roll Type PLR65 gear reducer. Hydraulic lift driven by 0.3 KW 3/50/500 volt motor. W/(2) polypropylene hinged covers1-100mm center btm outlet.

Top head movable w/davit. Top load/unload design

Top load/unload design Top half (slurry holder), 300mm deep, open top with (2) removable lids. Bottom half (vacuum/filtrate receiver), 300mm deep Single mesh filter plate between top/bottom sections

2376 liter stainless steel agitated, jacketed tumbling pressure Nutsche filter internal pressure -1/2 bar @ 50/134 degrees C, jacket -1/2 bar @ 50/134 degrees C (150 liter) nged bolt dished bottom with hydraulic open/close assist hydraulic driven raker agitator driven by a hydraulic powerpack, the whole filter rotates for discharge via a hydraulic motor, driven by the same powerpack,
