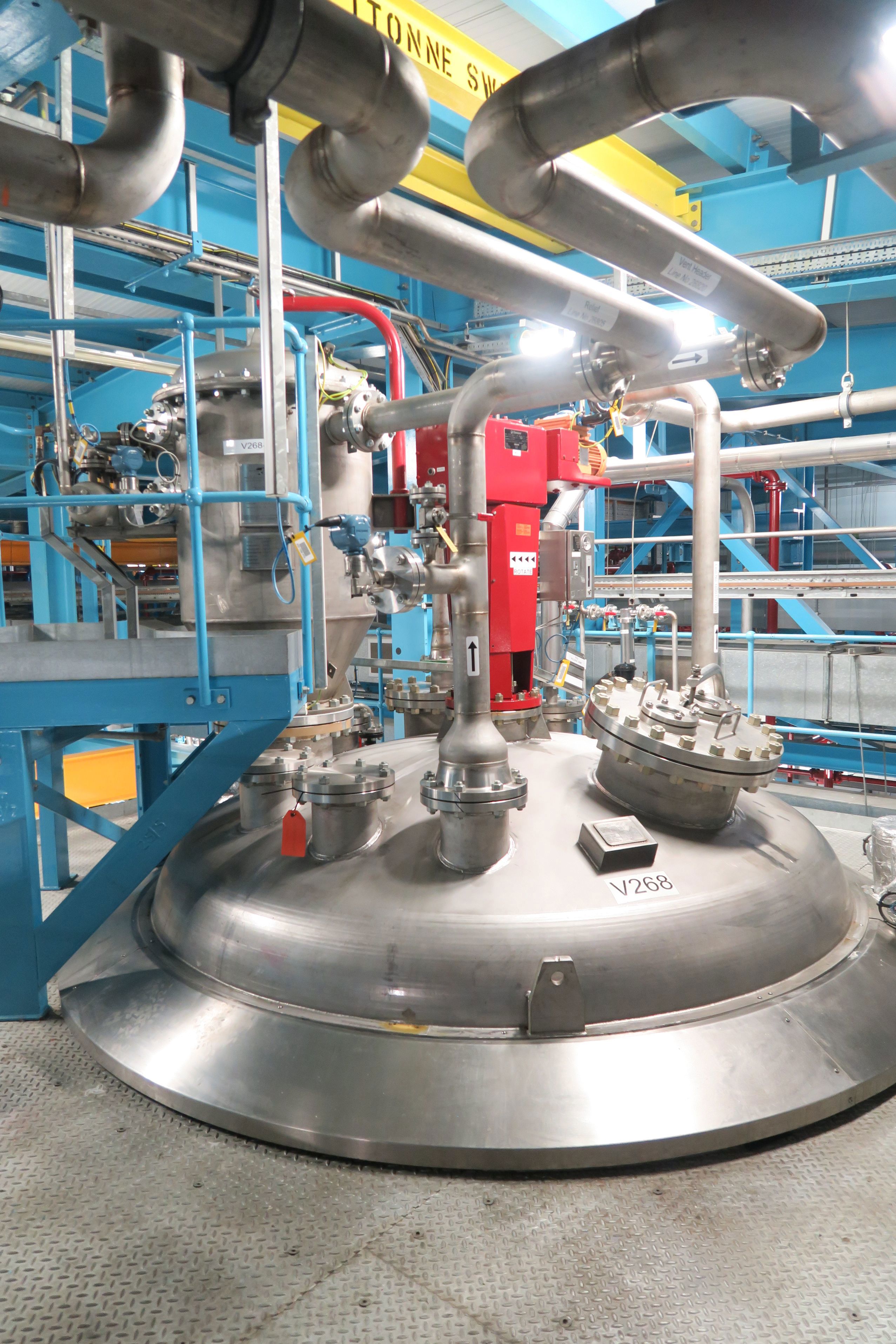

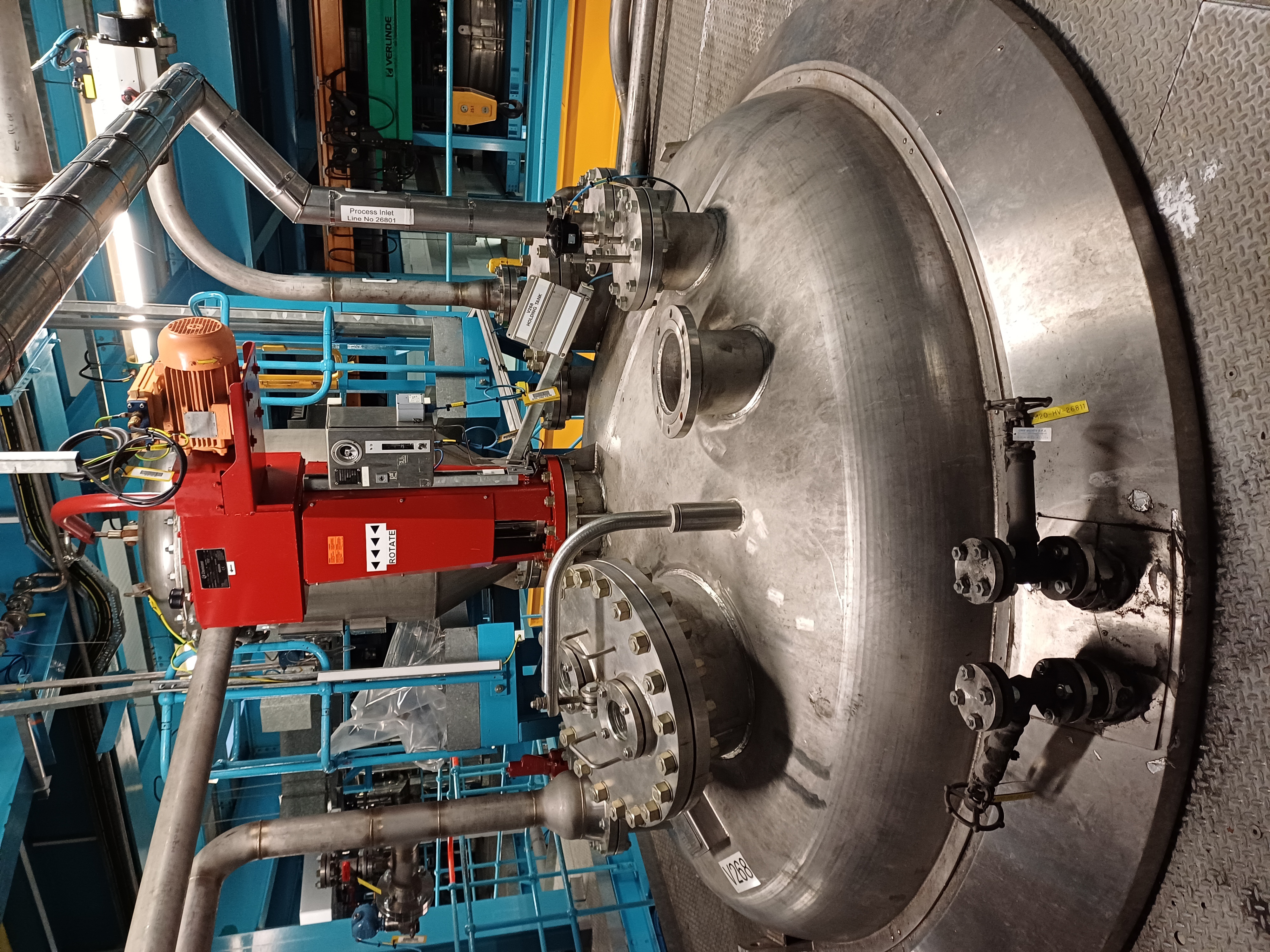

Stainless Steel 316L H.Pontifex & sons ltd Batch-Type Agitated Reactor - IPP# 242815

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: H.Pontifex & sons ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 19,000 L (5,000 gallons)

Internal Pressure: 6 bar (87 psi)

• 16000 liter working volume

• design pressure internal 6 barg + full vacuum @ -29/185 degrees C,

• jacket 10 barg + full vacuum @ -20/185 degrees C

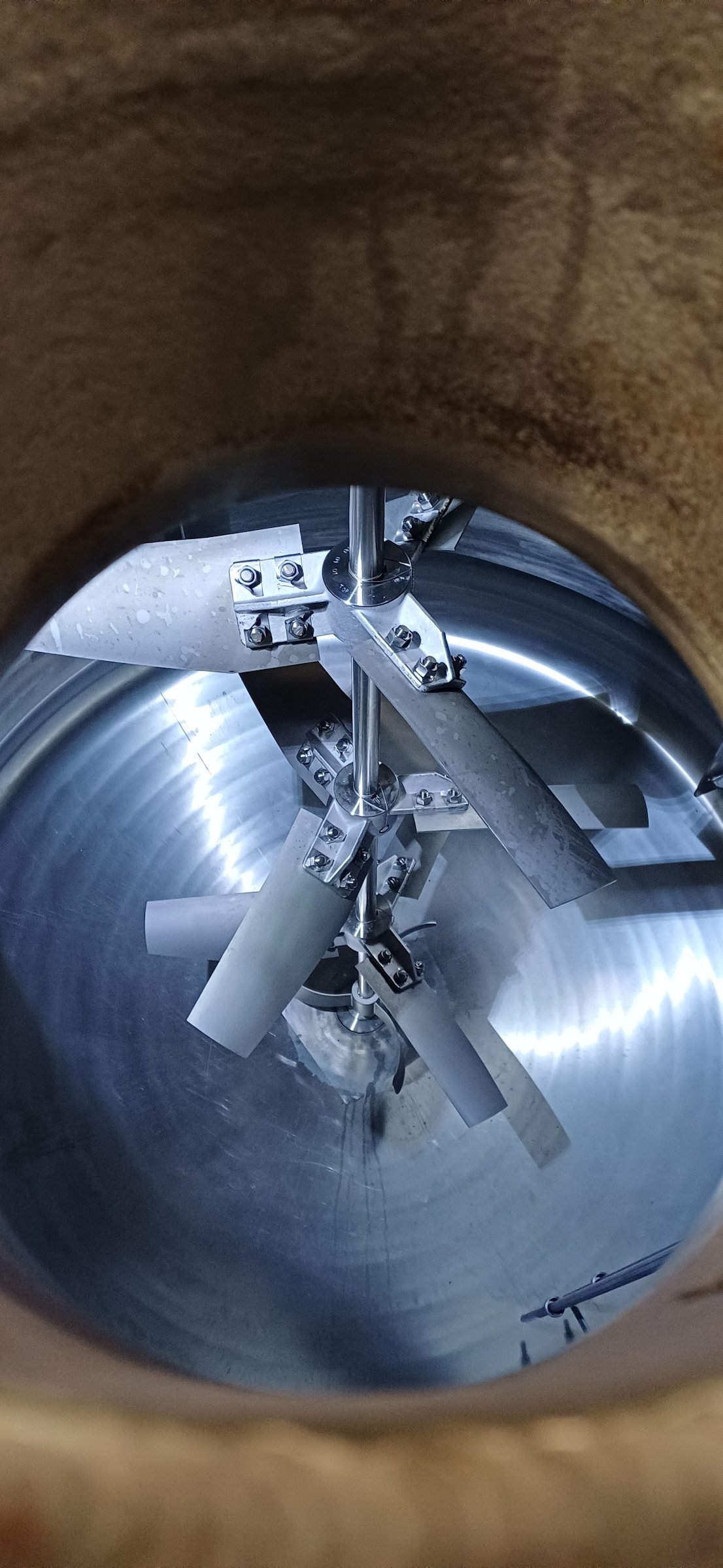

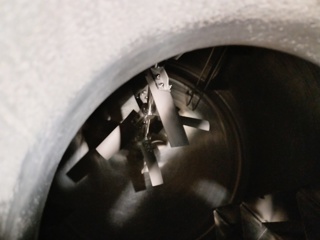

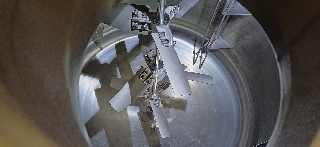

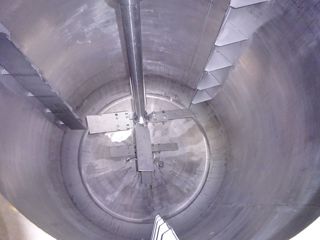

• 3-sets of 3-blade pitched paddles and 3-blade retreat curved on bottom of shaft

• mixer speed 9-45 rpm

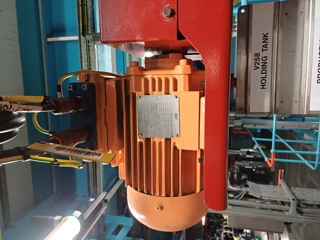

• drive is Ex II 2GD CB IIB T3/3G/2D CBK IIB T3,

• design code: PD5500 ; 2006 : CAT 2 P.E.R 1999 Module G CAT IV

  reactor with

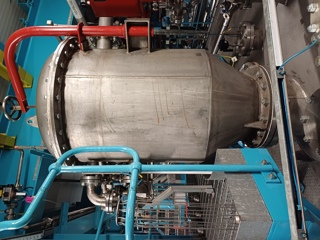

• (1) 316L stainless steel Pennaire dust filter, type B9C-2-6.OPC TRL-S, serial #06-RJF-35, design pressure 6 barg + full vacuum @ -25/185 degrees C, bolt dished top, weld coned bottom, Design code: PD5500 : 2003 CAT 2

Internal Full Vacuum: Yes. Internal Temperature: 185 °C (365 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 185 °C (365 °F). Jacket Material of Construction: Stainless Steel 316L. Orientation: Vertical. Agitation: Yes. Diameter: 2,800 mm (110.2 in). Straight Side Length: 2,200 mm (86.6 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: H.Pontifex & sons ltd

Condition: Used

Material: Duplex 2205

Capacity (Design): 20,000 L (5,300 gallons)

Internal Pressure: 15 bar (217.6 psi)

• MOC is Duplex 2205
• Design pressure internal 15 barg + full vacuum @ 170 degrees C, jacket 7.4 barg + full vacuum @ 180 degrees C.
• Agitation system driven by 7.5kW, 3/50/380-415/660-720 volt 975 rpm Ex motor.
• Internal baffle plates on sidewall, 316L stainless steel limpet coil jacket on straight side and bottom dish.
• Design code PD5500:2003:CAT 2.

Internal Full Vacuum: Yes. Internal Temperature: 170 °C (338 °F). Jacket Pressure: 7.4 bar (107.3 psi). Jacket Temperature: 180 °C (356 °F). Jacket Material of Construction: Stainless Steel 316L. Orientation: Vertical. Agitation: Yes. Diameter: 2,600 mm (102.4 in). Straight Side Length: 2,800 mm (110.9 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Dynamite Nobel

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 6,900 L (1,800 gallons)

Internal Pressure: 6 bar (87 psi)

• 6000 liter working volume
• EExde IIB T4 motor
• mechanical seal with lubricator
• TUV certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 8.5 bar (123.3 psi). Jacket Temperature: 300 °C (572 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,800 mm (70.9 in). Straight Side Length: 2,200 mm (85.8 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Dynamite Nobel

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 3,100 L (819 gallons)

Internal Pressure: 8 bar (116 psi)

• design pressure internal 8 bar + Vacuum @ 200 degrees C,
• jacket 8 bar @ 250 degrees C (300ltr),
• mechanical seal with lubricator,
• top and bottom dish 16mm thick, straight side 14mm thick,
• jacket straight side 16mm thick, bottom dish 12mm thick,
• TUV certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 250 °C (482 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 930 mm (36.6 in). Support Type: Lugs.
