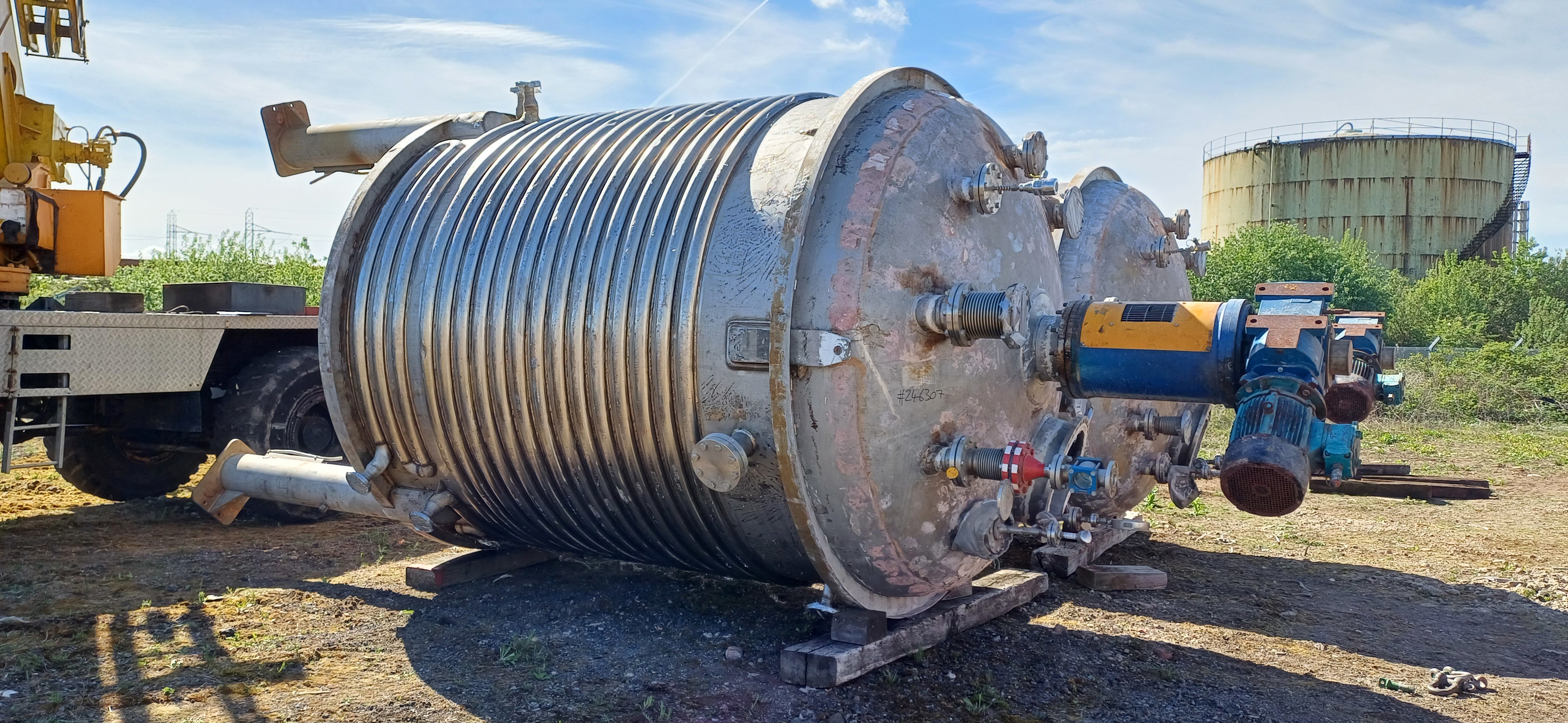

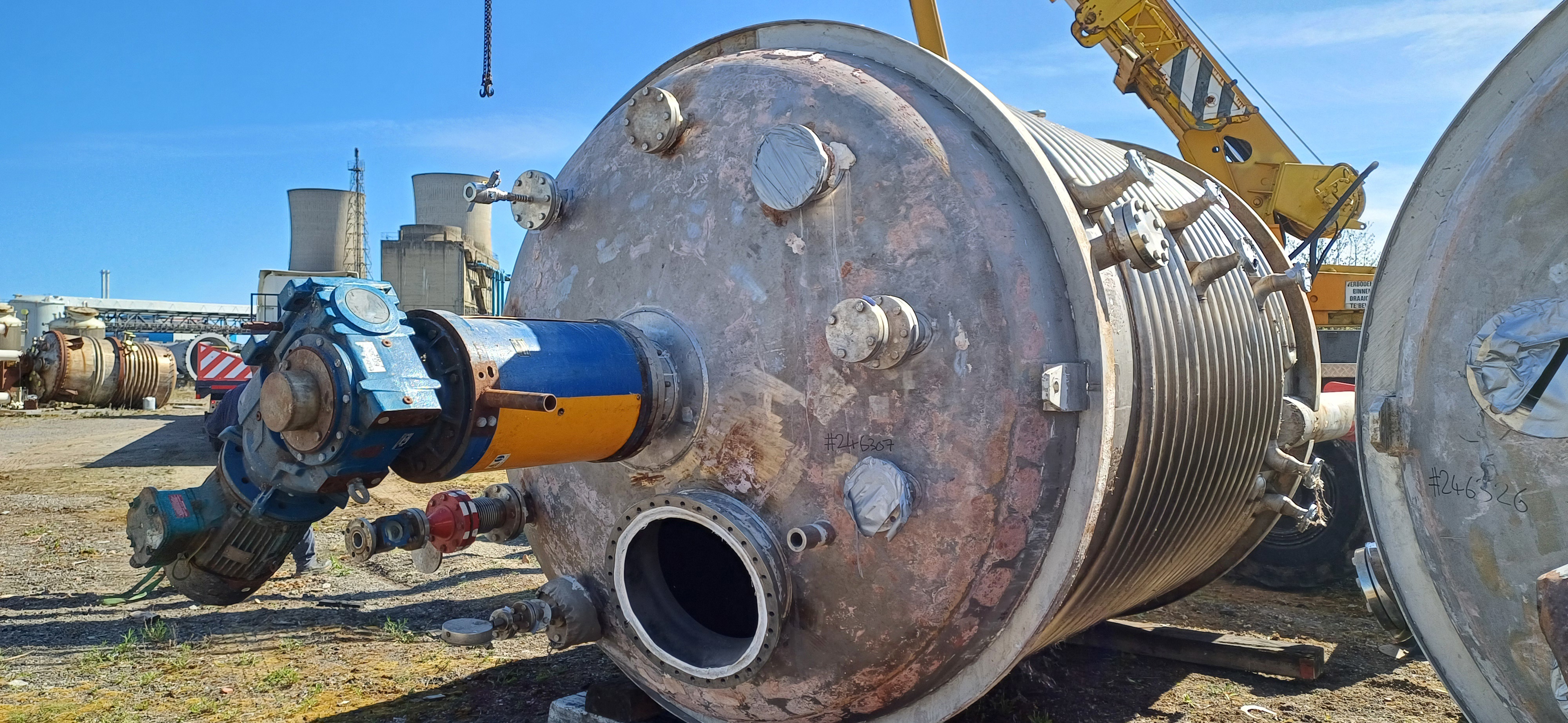

Name: Duplex H. Pontifex & Sons LTD. Batch-Type Agitated Reactor
Brand: H.Pontifex & sons ltd
SKU: 246307

Overview

Type:

Reactor

Subtype:

Batch-Type Agitated

Manufacturer:

H.Pontifex & sons ltd

Condition:

Used

Material:

Duplex 2205

Capacity (Design):

20,000 L (5,300 gallons)

Pressure Vessel

Internal Pressure:

15 bar (217.6 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

170 °C (338 °F)

Jacket/Internal Coil

Jacket Pressure:

7.4 bar (107.3 psi)

Jacket Temperature:

180 °C (356 °F)

Jacket Type:

Half Pipe/Limpet

Jacket Material of Construction:

Stainless Steel 316L

Dimensions

Orientation:

Vertical

Diameter:

2,600 mm (102.4 in)

Straight Side Length:

2,800 mm (110.9 in)

Agitation System

Agitation:

Yes

Impeller Type:

Pitch Blade

Agitation Seal Type:

Packing

Agitator Details:

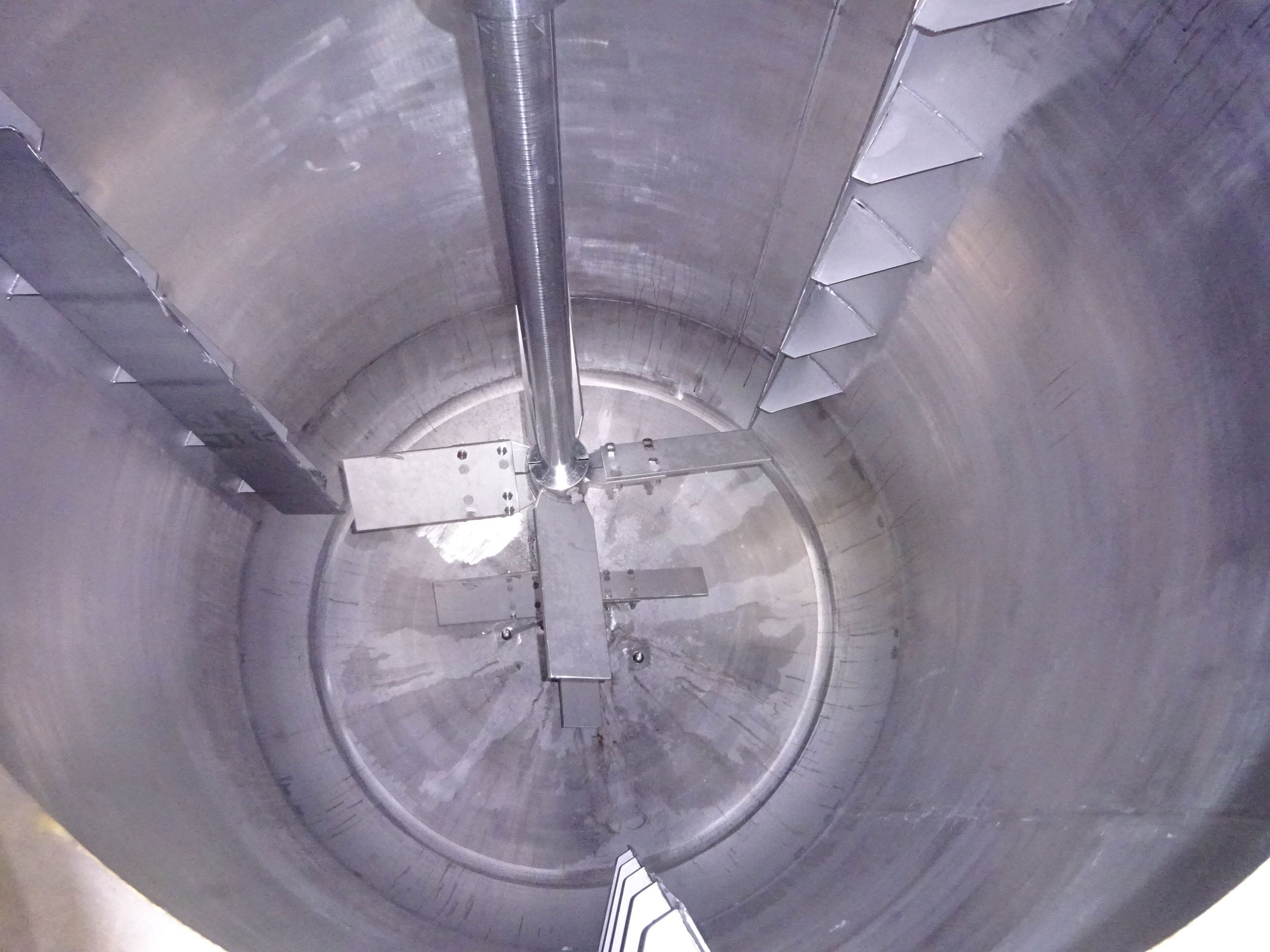

2-sets of 4-blade pitched paddles

Drive Power:

7.5 kW (10.1 HP)

Motor Power:

7.5 kW (10.1 HP)

Baffle Details:

3-internal baffle plates

Heads

Top Head Type:

Hemi

Top Head Material:

Duplex 2205

Bottom Head Type:

Hemi

Bottom Head Material:

Duplex 2205

Other Specifications

Manway:

Yes

Support Type:

Legs

Inlets & Outlets

Nozzle Schedule:

top head with 1-550mm manway, 2-150mm, 6-100mm, straight side 2-100mm, 1-50mm, side jacket 10-50mm, bottom: 1-100mm (discharge), 1-100mm, 2-50mm, 2-50mm (jacket)

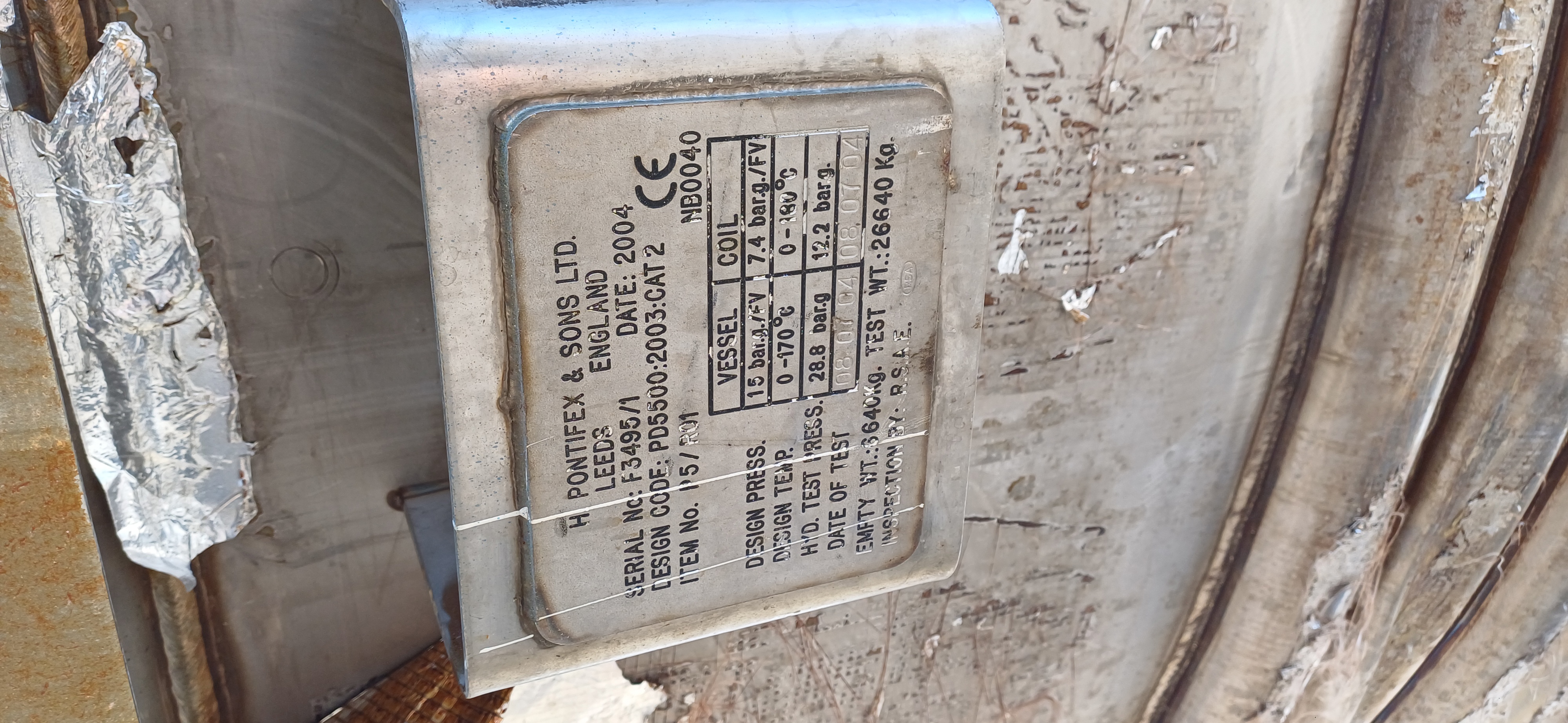

Additional Info:

MOC is Duplex 2205
Design pressure internal 15 barg + full vacuum @ 170 degrees C, jacket 7.4 barg + full vacuum @ 180 degrees C.
Agitation system driven by 7.5kW, 3/50/380-415/660-720 volt 975 rpm Ex motor.
Internal baffle plates on sidewall, 316L stainless steel limpet coil jacket on straight side and bottom dish.
Design code PD5500:2003:CAT 2.
