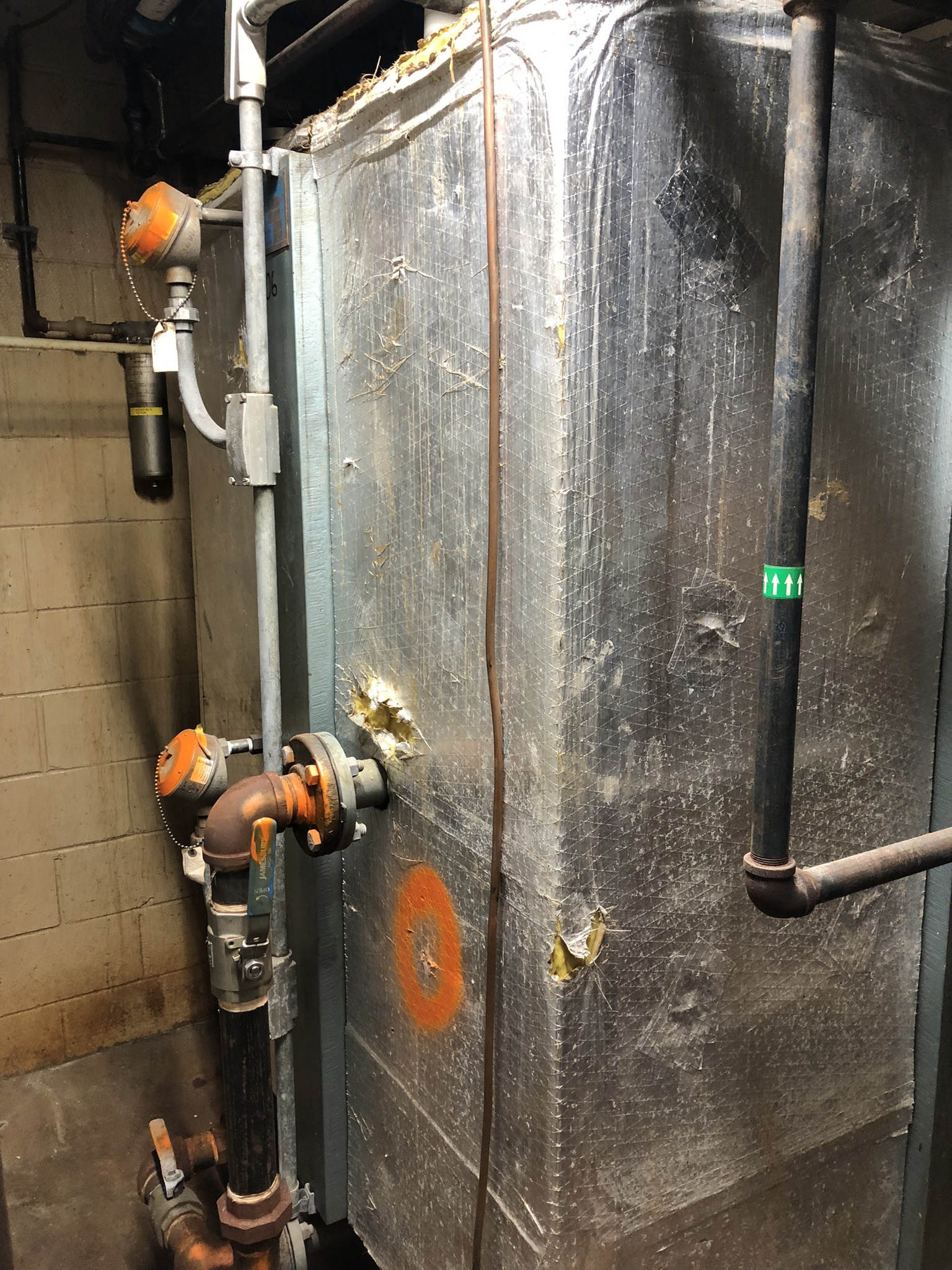

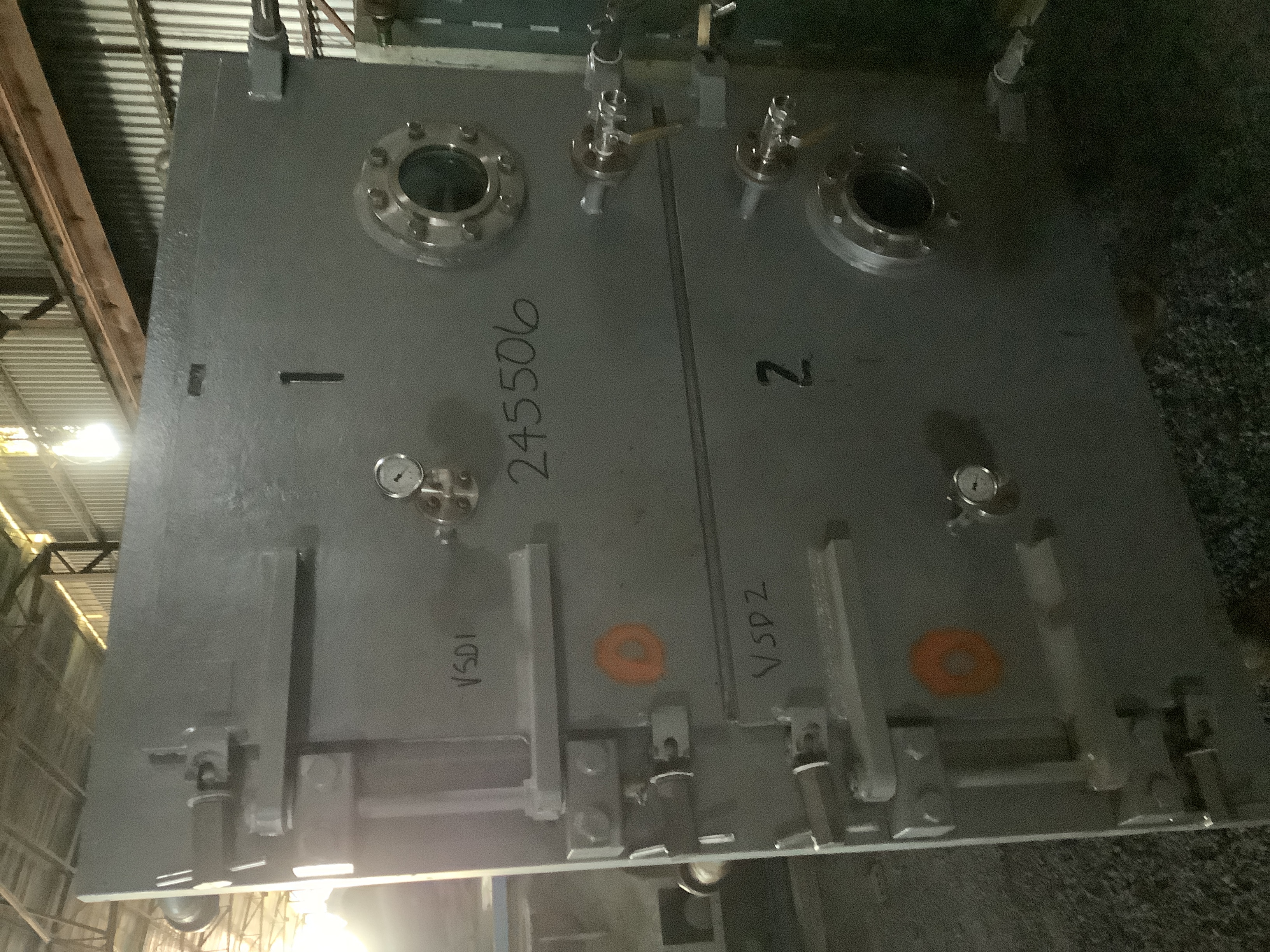

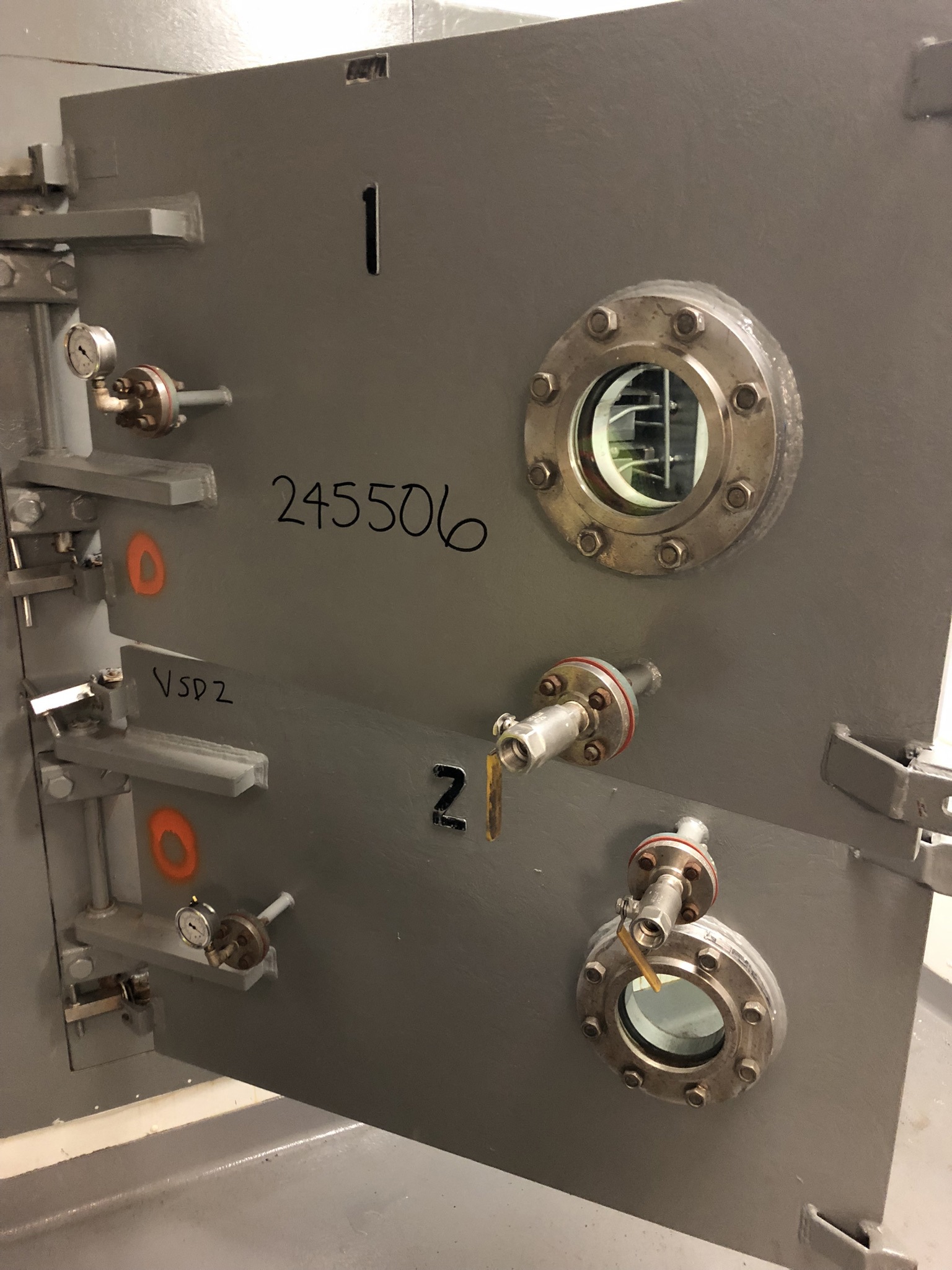

Dryer-Shelf United McGill 9E-10 SP Stainless Steel 316 - IPP# 245506

Type: Dryer-Shelf

Manufacturer: United McGill

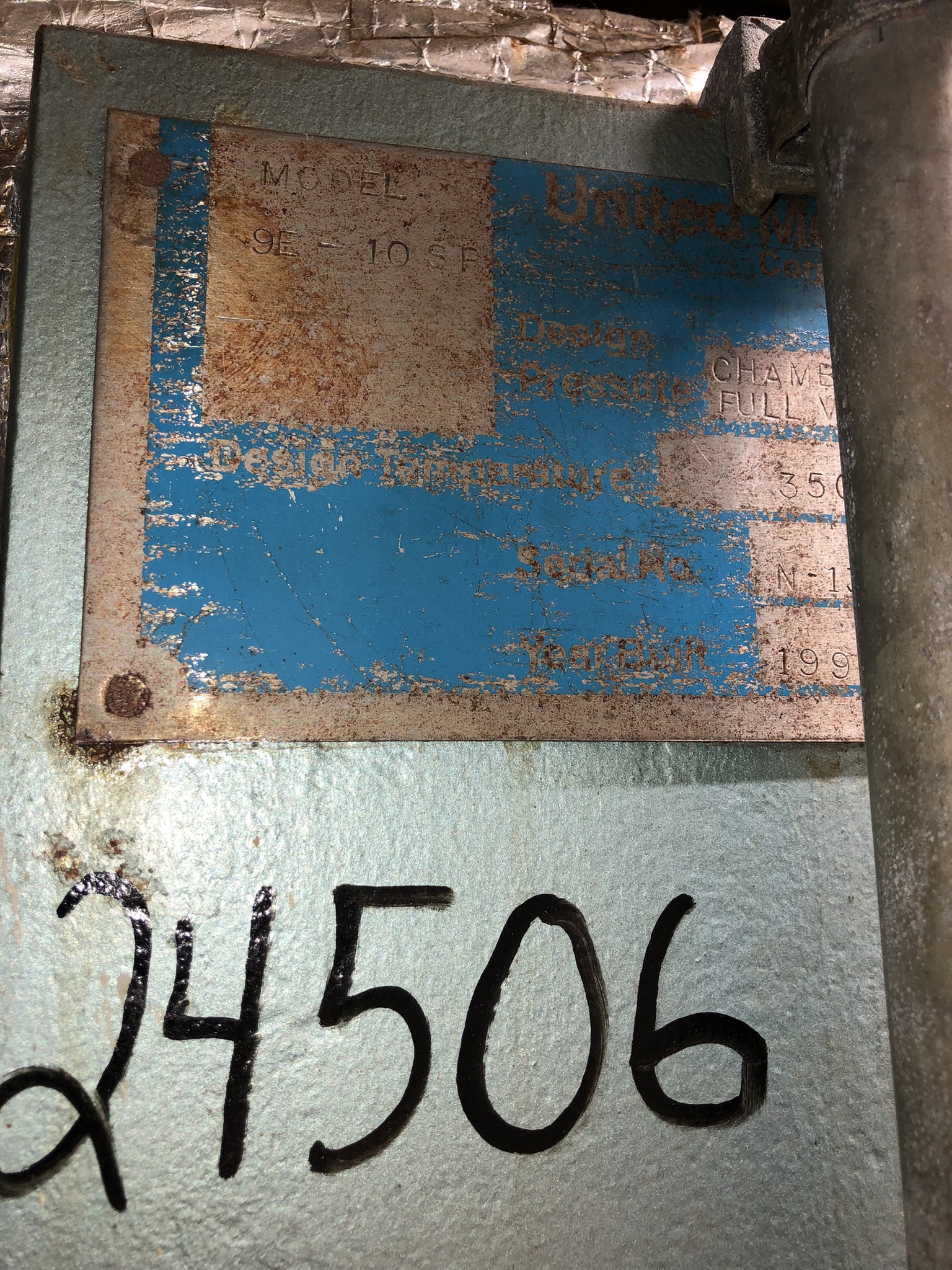

Model: 9E-10SP

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 11.3 m² (122 ft²)

Vacuum Rated: Yes

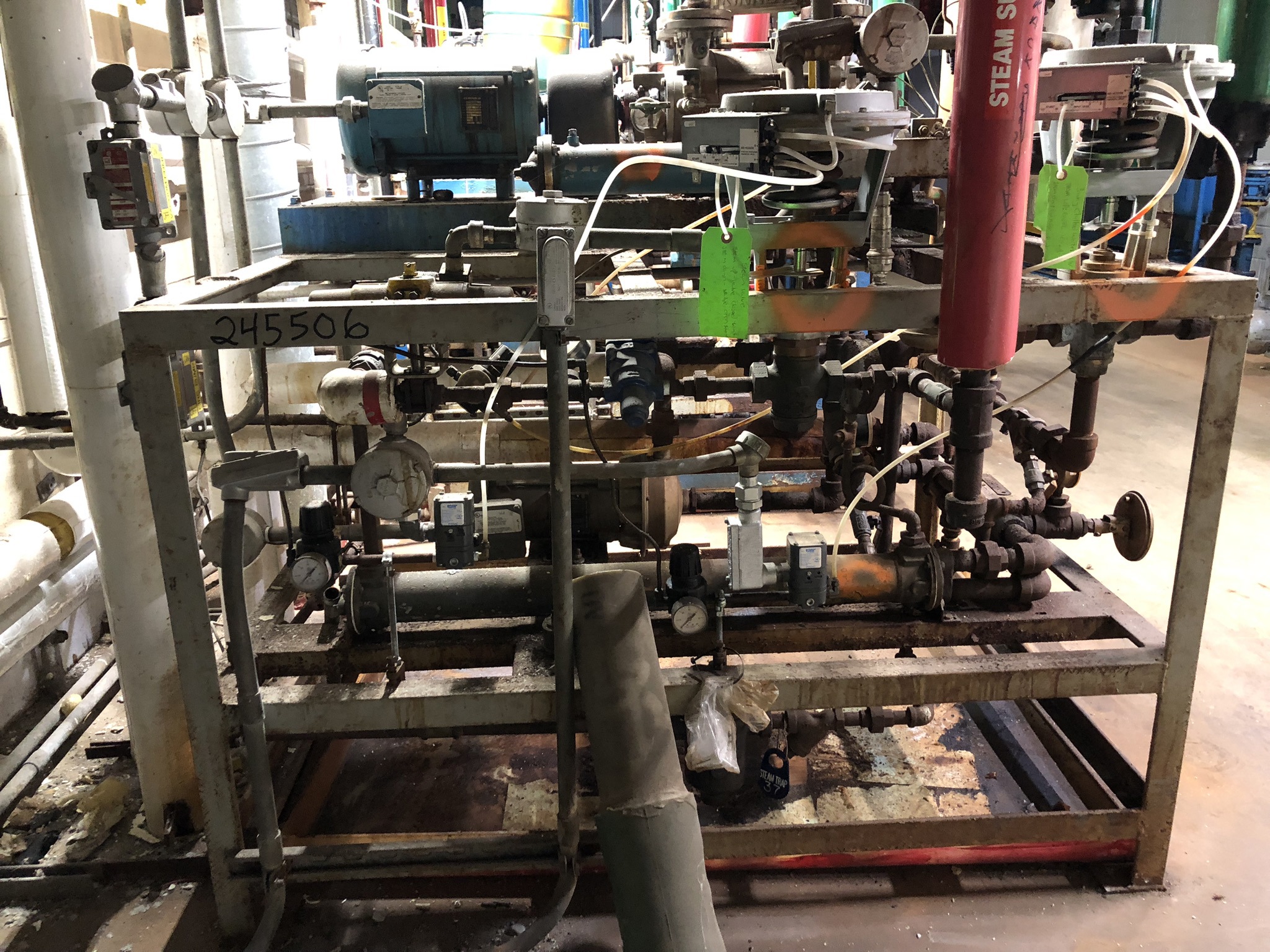

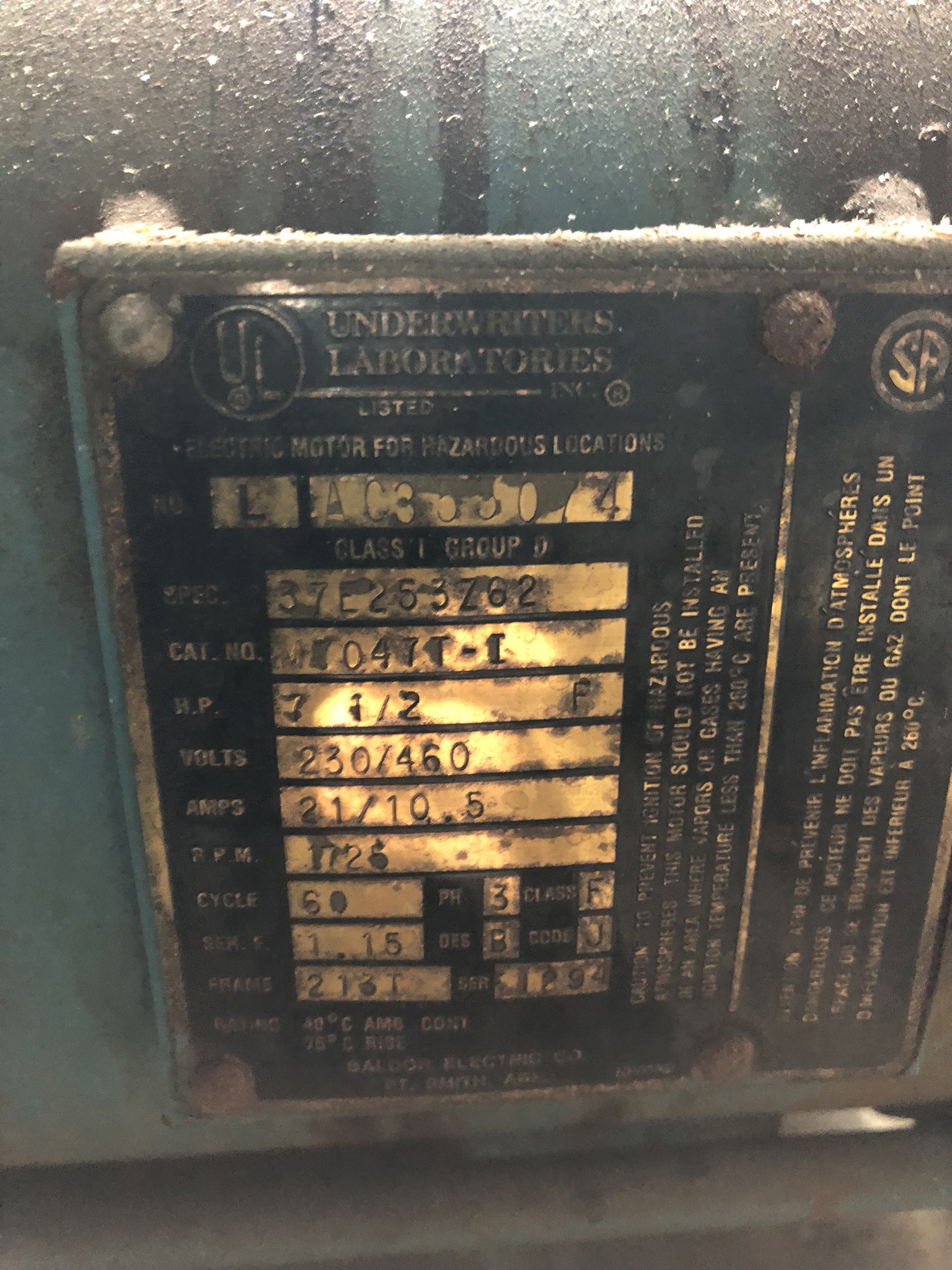

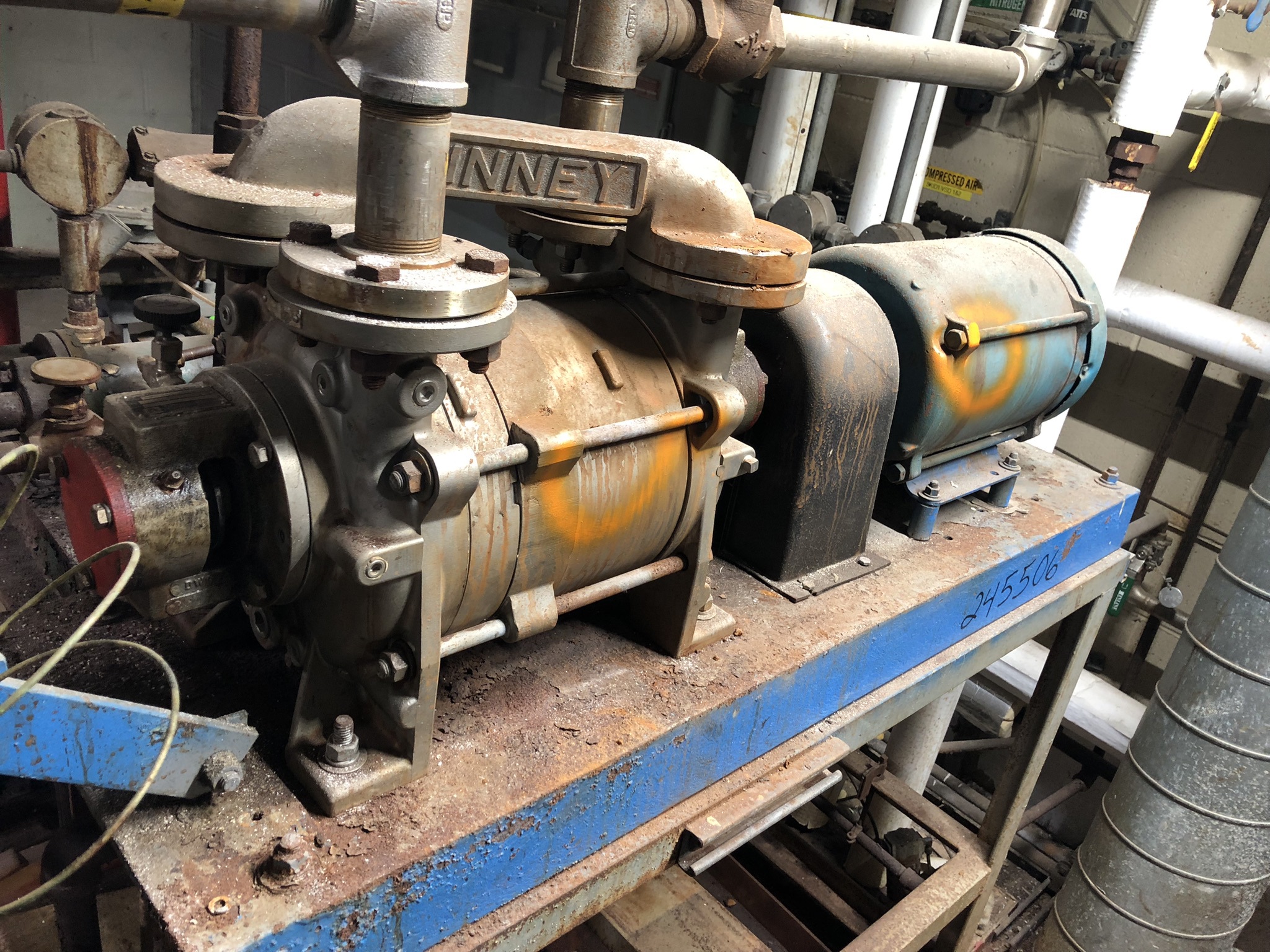

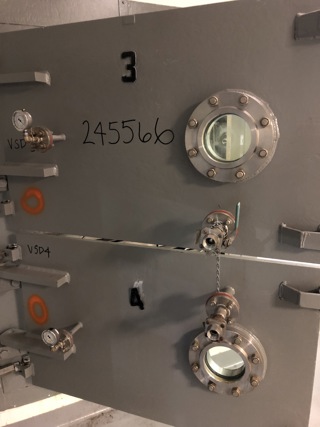

• See parts tab 245566.01--Vacuum pump skid, with a 304 SS Kinney Liquid ring vacuum pump Model KLRC-100, KC53 PN # 9-03484, serial # 100230401-1, rated for 139 CFM, 1,5" inlets & outlets, Direct driven by a Baldor 7.5 HP AC motor rated for Hazardous Locations. No. A-168221, 230/460- 60Hz. UL Listed.

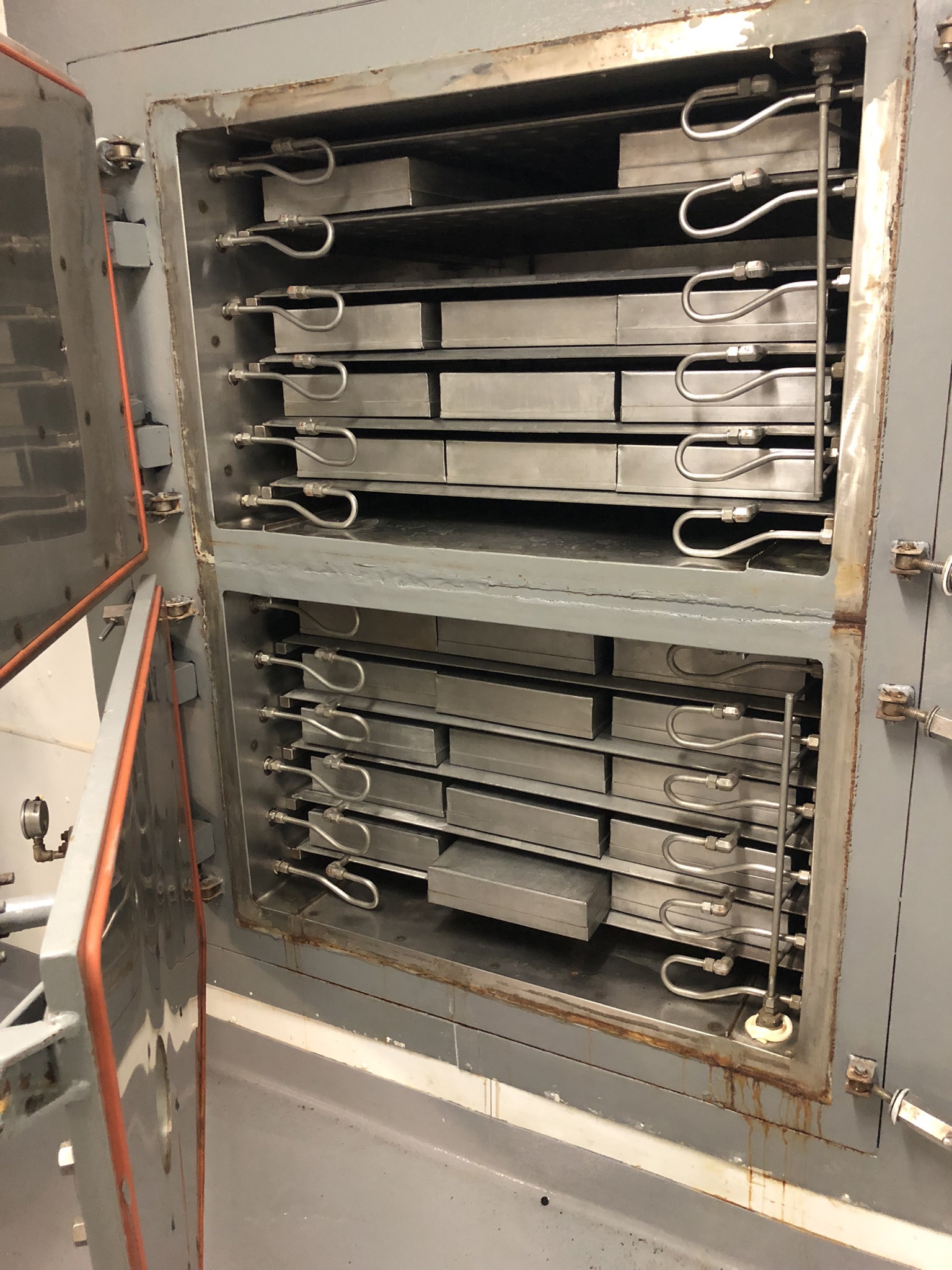

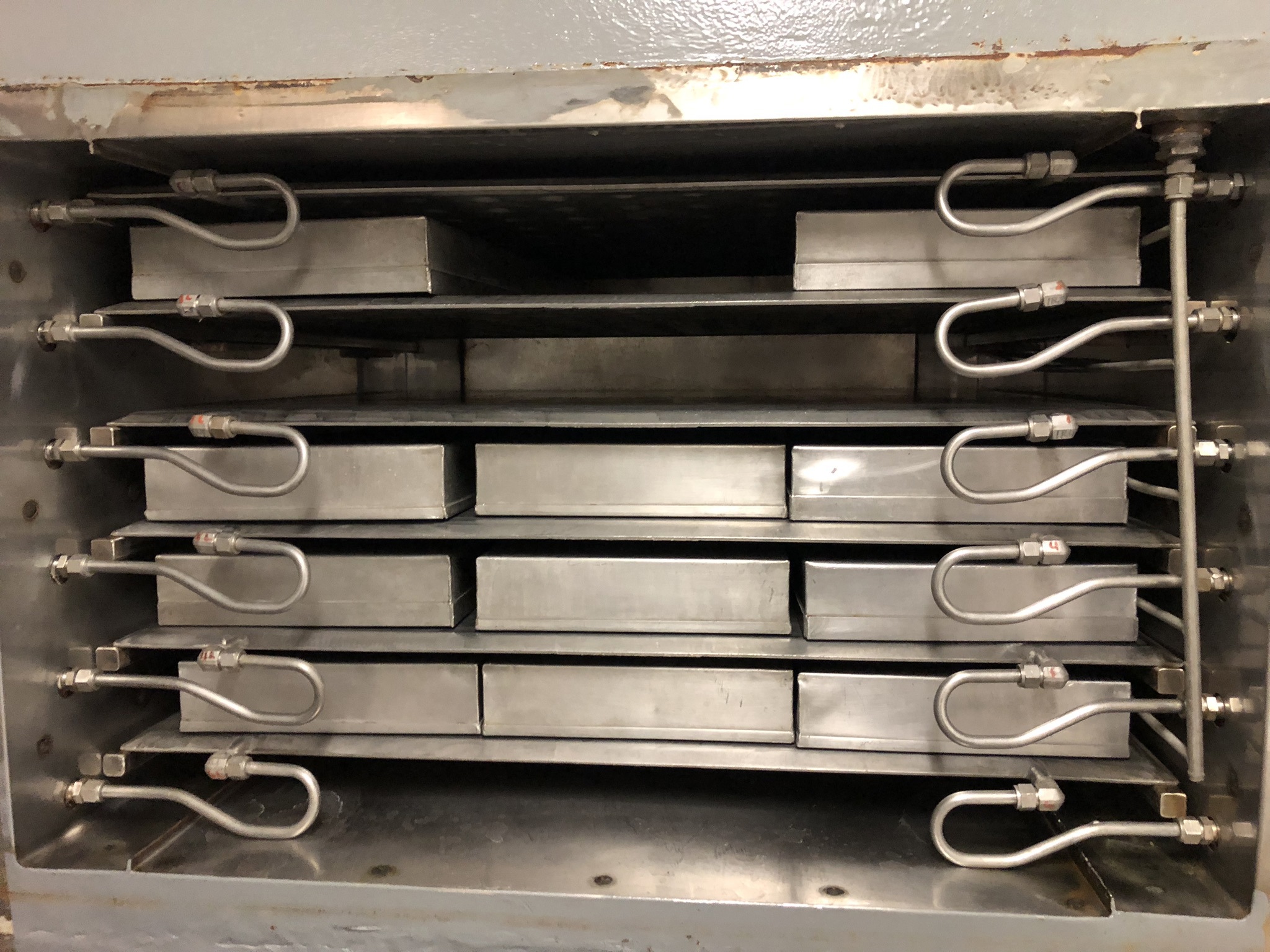

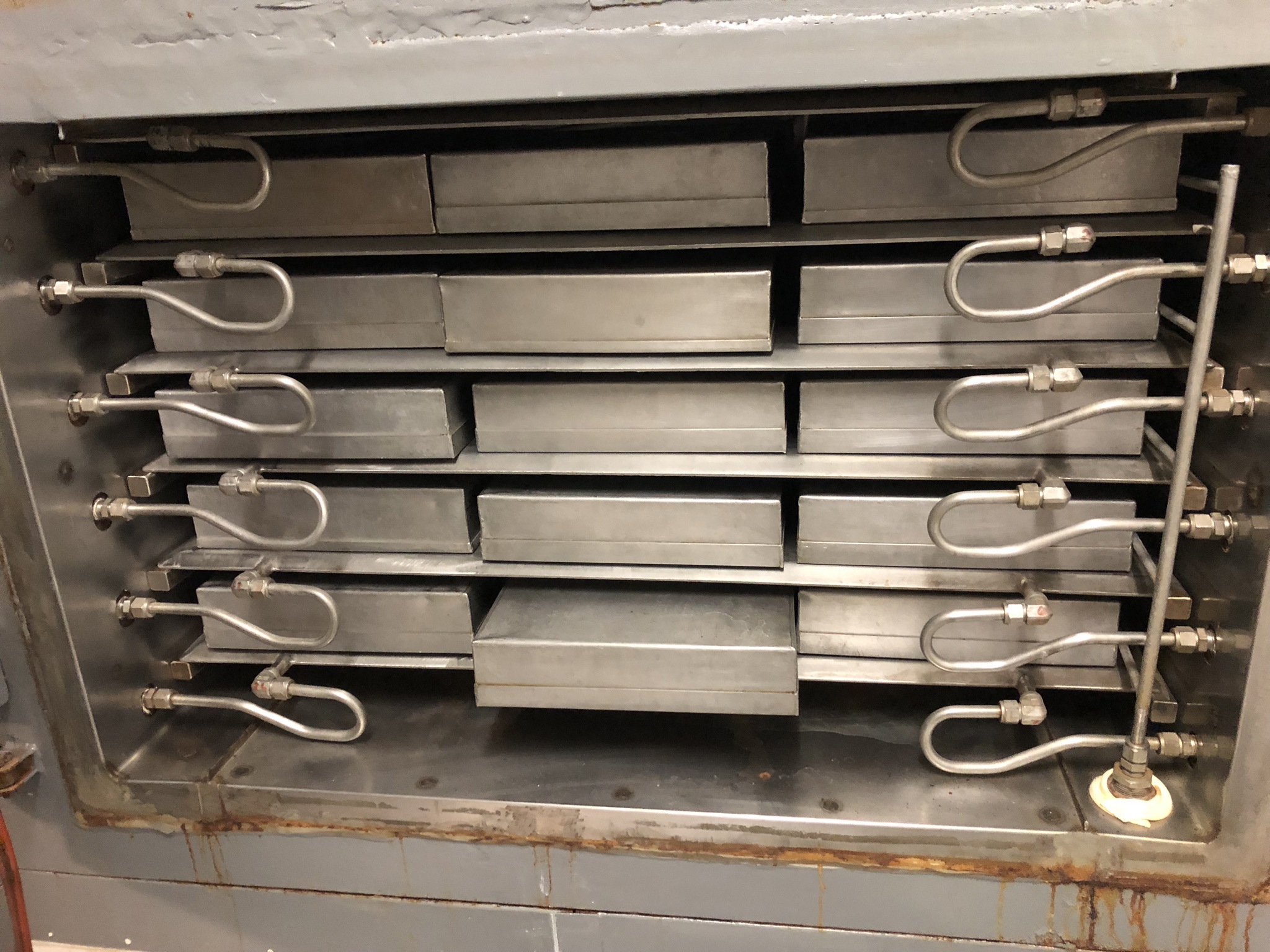

Number of Shelves: 10. Shelf Pressure: 3.45 bar (50 psi). Shelf Temperature: 177 °C (350 °F). Chamber Height: 2,032 mm (80 in). Chamber Width: 1,118 mm (44 in). Chamber Length: 1,016 mm (40 in). Orientation: Vertical. Temperature: 177 °C (350 °F). Number of Pans: 30. Pan Capacity: 0.748 m3 (26.4 ft3).

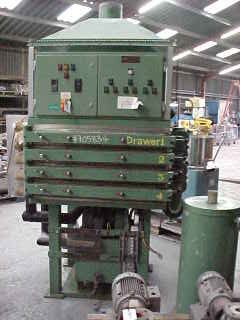

Type: Dryer-Shelf

Manufacturer: Calmic (William Boulton)

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 4 m² (43.1 ft²)

Vacuum Rated: Yes

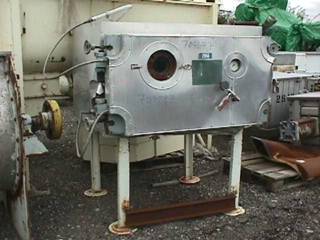

vacuum shelf dryer system,
oil heated,
(2) 470mm wide x 930mm long x 40mm deep stainless steel trays,
built on control panel with heater, circulation pump, vacuum pump and thermal reset trip, unit with (1) oil circulation pump driven by 1 hp, 3/50/360/440 volt, 1420 rpm motor, (1) carbon steel single stage vacuum pump, manufactured by General engineering ltd, driven by 3 kw, 3/50/220-240/380-415 volt, 1420 rpm motor

Number of Shelves: 4. Shelf Length: 930 mm (36.6 in). Shelf Width: 470 mm (18.5 in). Chamber Height: 40 mm (1.57 in). Chamber Width: 470 mm (18.5 in). Chamber Length: 930 mm (36.6 in). Number of Pans: 2. Pan Capacity: 0.035 m3 (1.23 ft3).

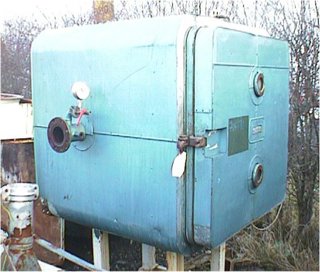

Type: Dryer-Shelf

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 4.46 m² (48 ft²)

Vacuum Rated: Yes

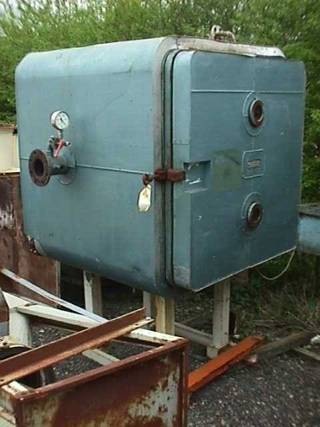

vacuum shelf dryer.
shelves cored for steam heating.
Distance between shelves 3".
Hinged front door with swing bolt closure.
Also 1-4" sight glass.
Unit with full insulation.
Openings: vacuum 1-2 1/2"; steam 2-1 1/4", 4-3/4".

Number of Shelves: 4. Shelf Length: 1,041 mm (41 in). Shelf Width: 1,067 mm (42 in). Chamber Height: 1,702 mm (67 in). Chamber Width: 1,524 mm (60 in). Chamber Length: 1,524 mm (60 in). Orientation: Vertical. Temperature: 100 °C (212 °F). Number of Pans: 0.

Type: Dryer-Shelf

Manufacturer: Leybold

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 9.75 m² (105 ft²)

Number of Shelves: 9

vacuum shelf dryer.
shelves cored for steam heating,
Distance between shelves 3".
Hinged front door with swing bolt closure.
Also 2-3" sight glasses.
Unit full insulation.
Openings: vac 1-4", 2-2"; steam 4-3/4".

Shelf Length: 1,016 mm (40 in). Shelf Width: 1,067 mm (42 in). Orientation: Vertical. Number of Pans: 0.
