Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420

  • Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420 Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420
  • Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420 Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420
  • Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420 Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420
  • Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420 Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420
  • Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420
  • Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420
  • Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420
  • Hastelloy B Tube, Head & Carbon Steel Shell Heat Exchanger - IPP# 246420
Overview
Heat Exchanger
Shell and Tube
Sociere A.D.M
Used
Hastelloy - B
Capacity
24.8 m² (266.9 ft²)
460 L (121.5 gallons)
213 L (56.3 gallons)
Dimensions
Vertical
2,000 mm (78.7 in)
Shell
36 bar (522 psi)
247 °C (476.6 °F)
Carbon Steel
600 mm (23.6 in)
Tube
2 bar (29 psi)
247 °C (476.6 °F)
Hastelloy - B
Hastelloy - B
1
Straight Tube
228
19.1 mm (0.75 in)
2,000 mm (78.7 in)
Other Specifications
Yes
Hastelloy - B
Additional Information

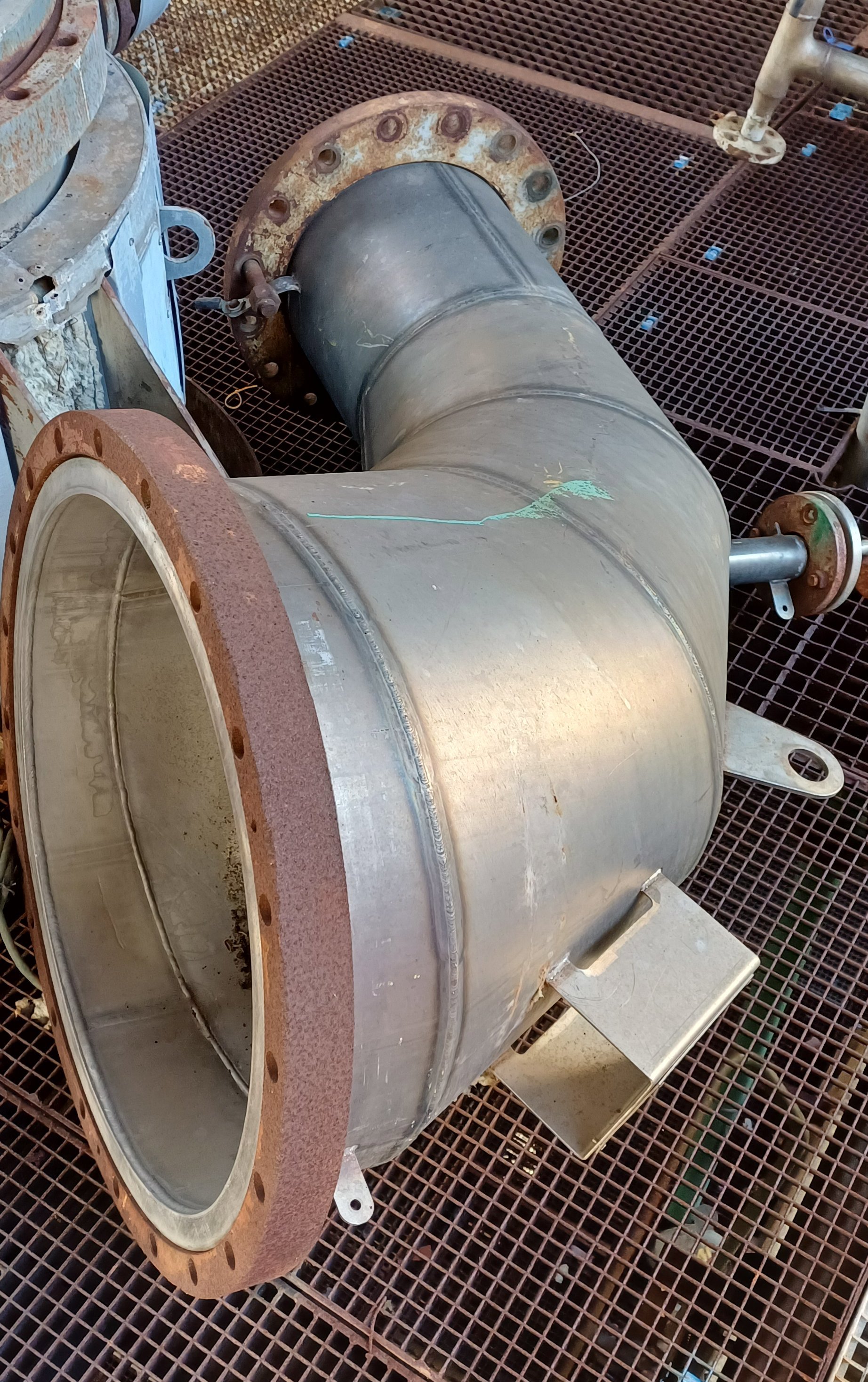

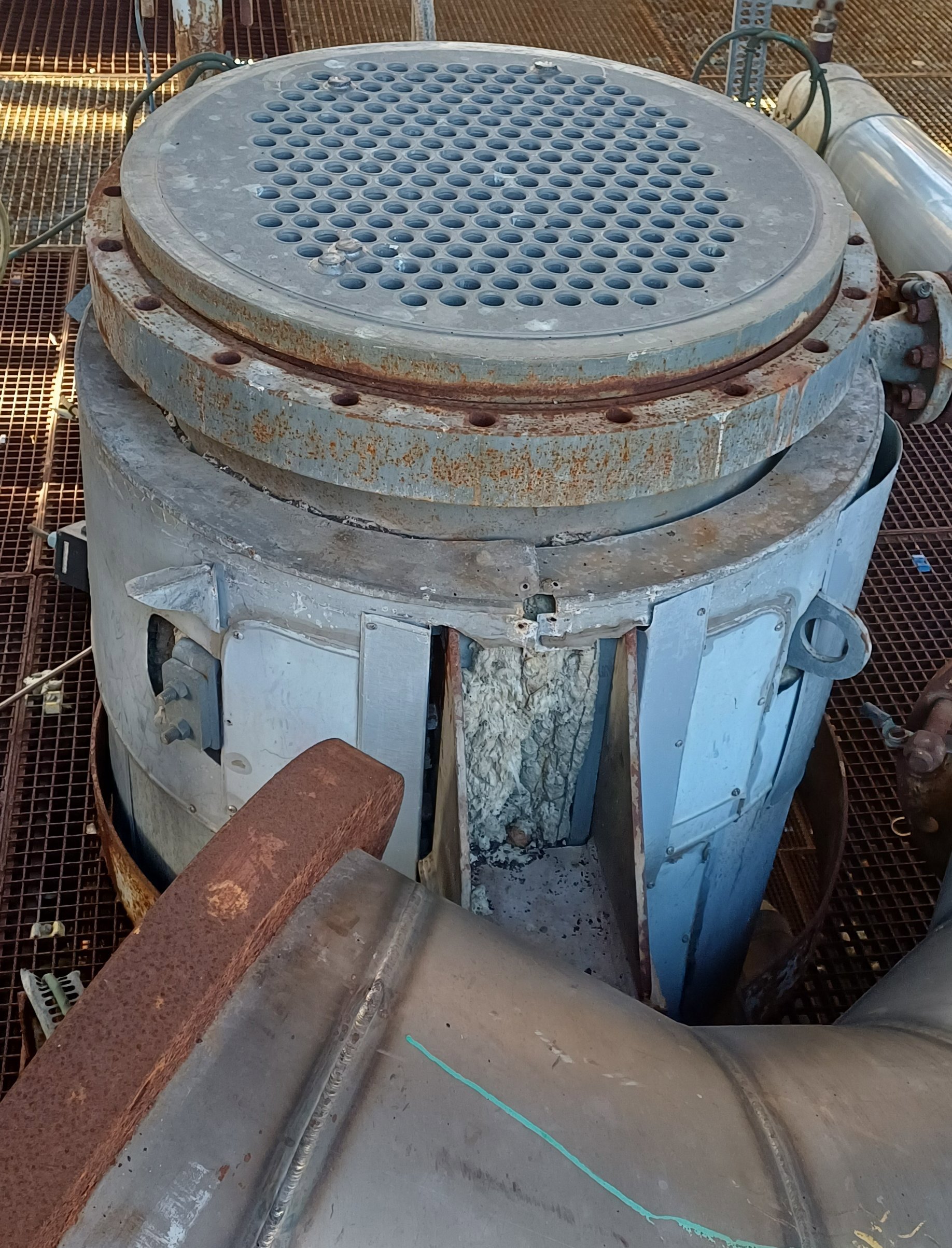

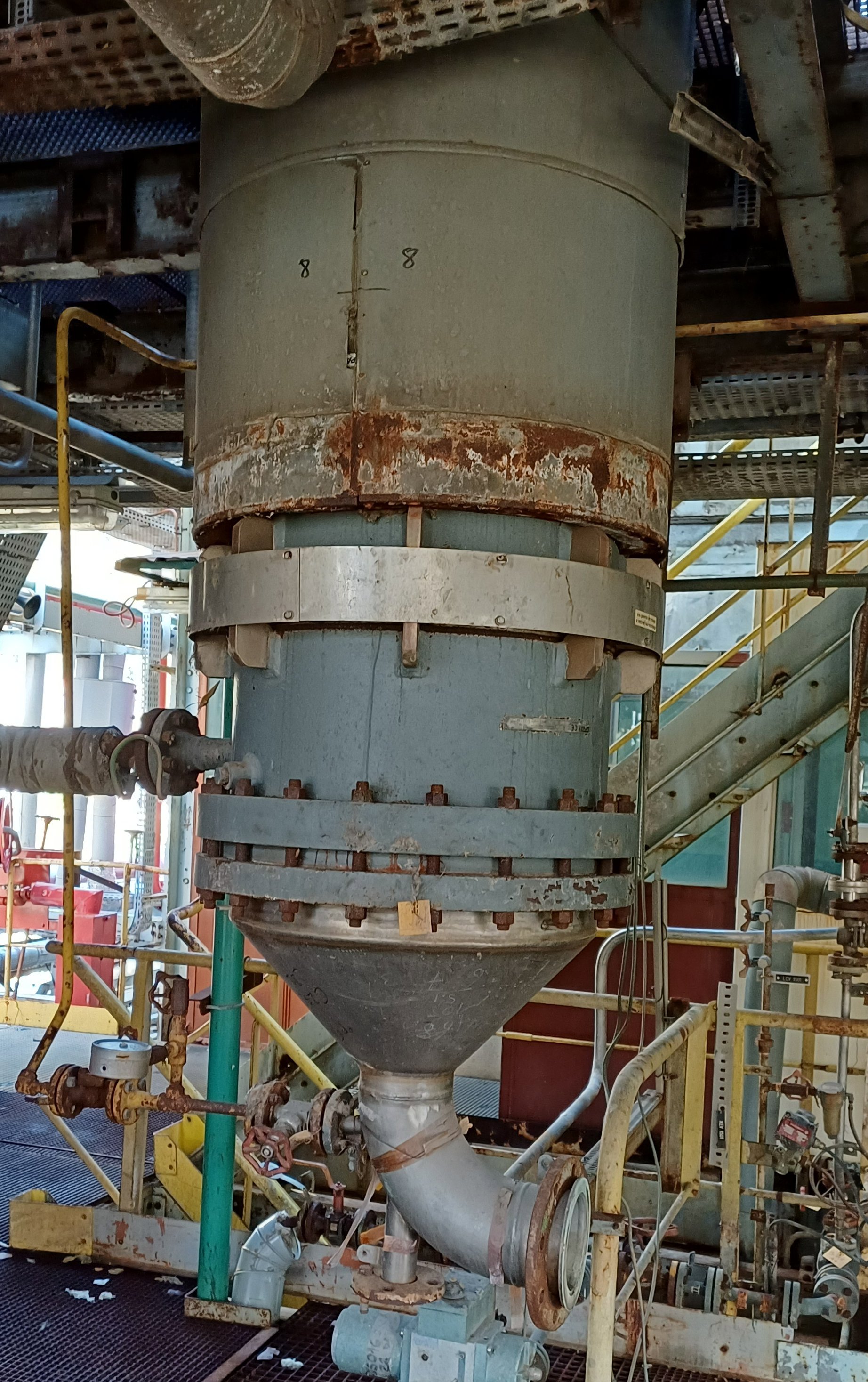

approx 24.8 square meter, design pressure tube side 2 bar + vacuum @ 247 degrees C, shell 36 bar @ 247 degrees C, top head is a right angled pipe, bottom head is bolt cone reducer,

Similar Equipment

Hastelloy - B Clad Cosmos Minerals AEL Shell and Tube Heat Exchanger

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Cosmos Minerals

Model: AEL

Condition: Used

Material: Hastelloy - B

Clad: Yes

Heat Transfer Surface Area: 30.8 m² (331 ft²)

Orientation: Horizontal

15.25" diameter x 1.5" thick. (2) Hastelloy B heads. Alloy 600 expansion joint n the shell.

Shell Pressure: 18.6 bar (270 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 18.6 bar (270 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - B. Tubesheet Material: Hastelloy - B. Vacuum: Yes. Shell Diameter: 406.4 mm (16 in). Head Material: Hastelloy - B. Length: 6,000 mm (237 in). Tube Number: 64. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,000 mm (237 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Openings include Tube side: (2) 6"; shell side (1) 4"; (1) 2". .
