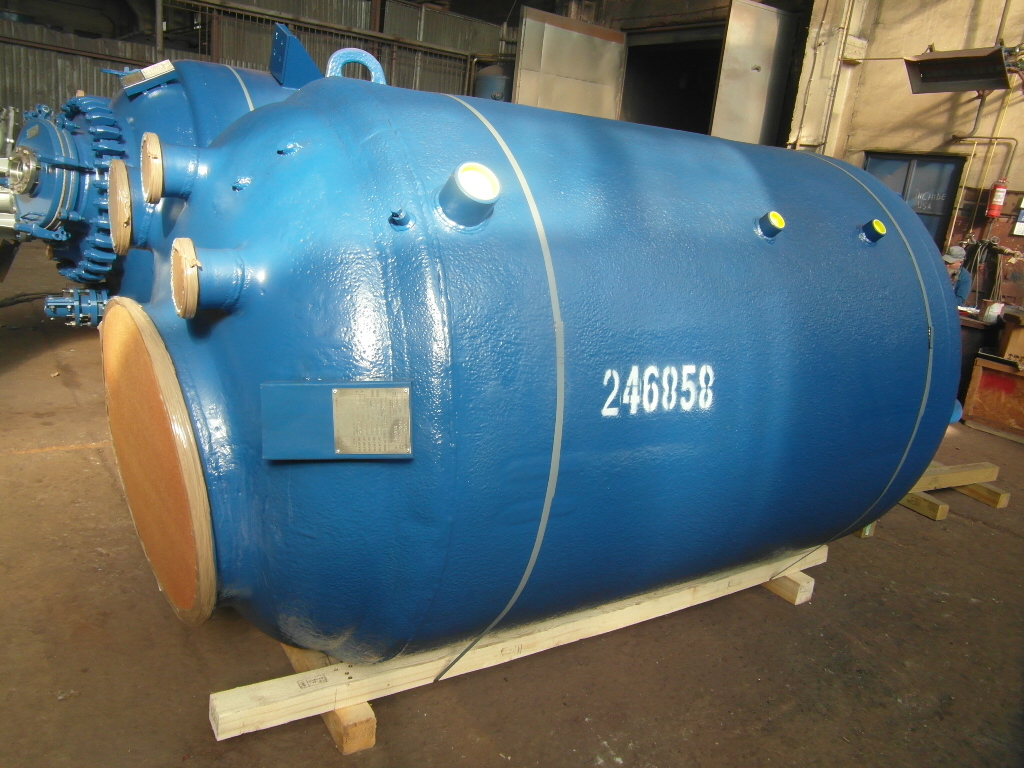

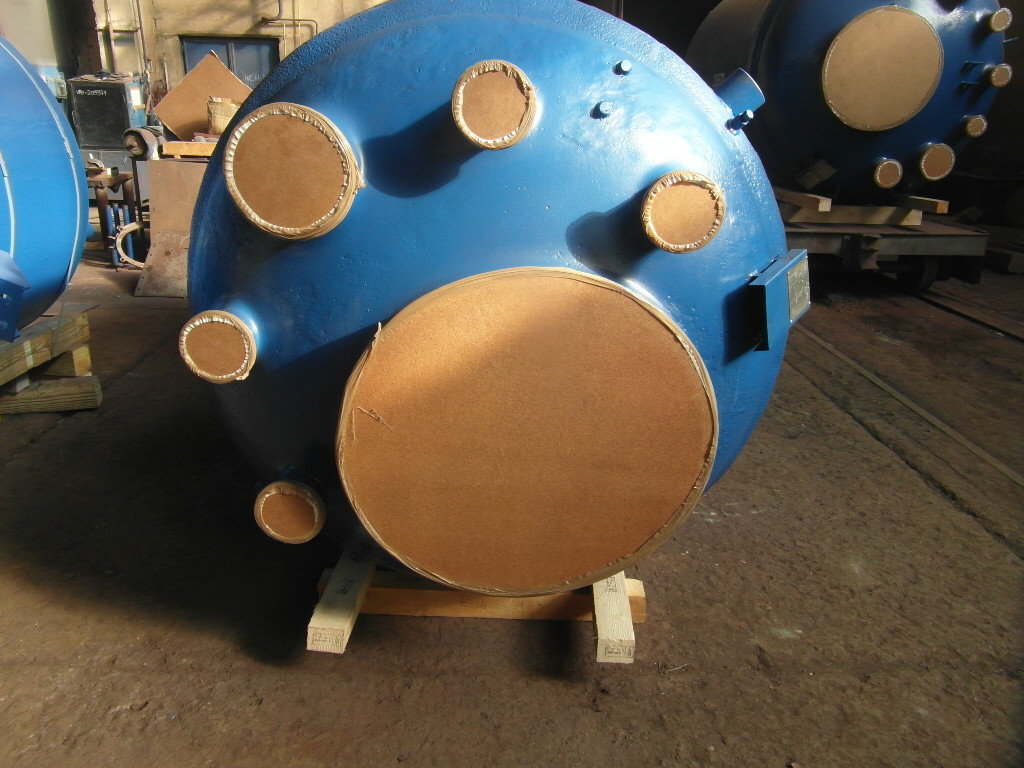

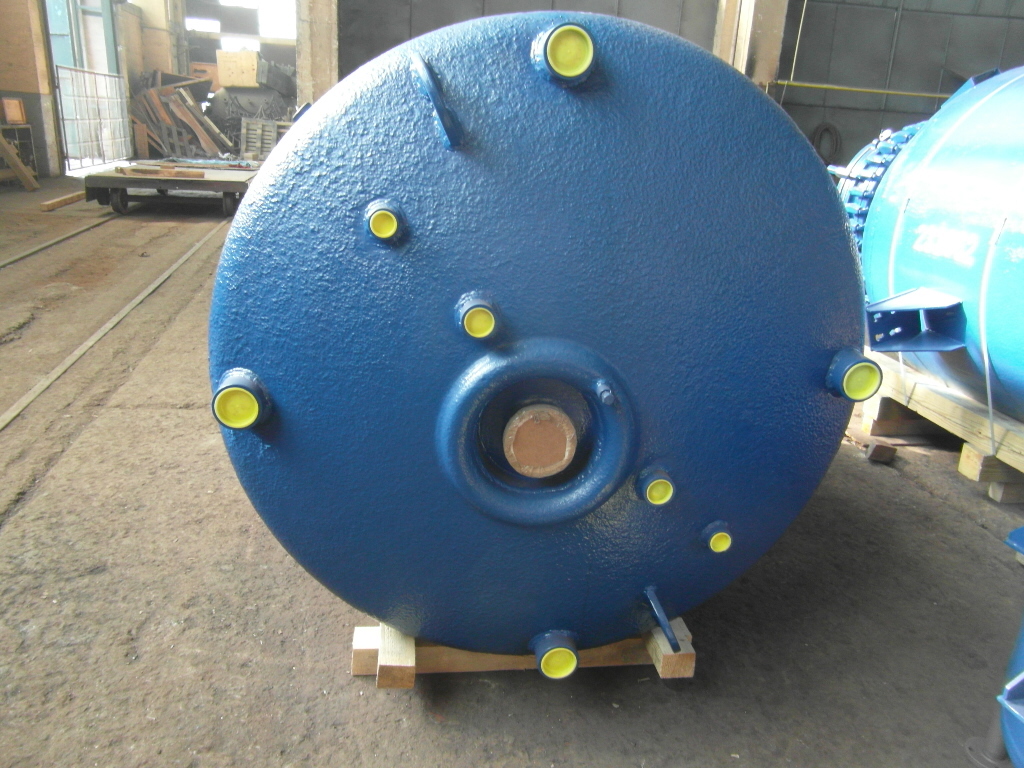

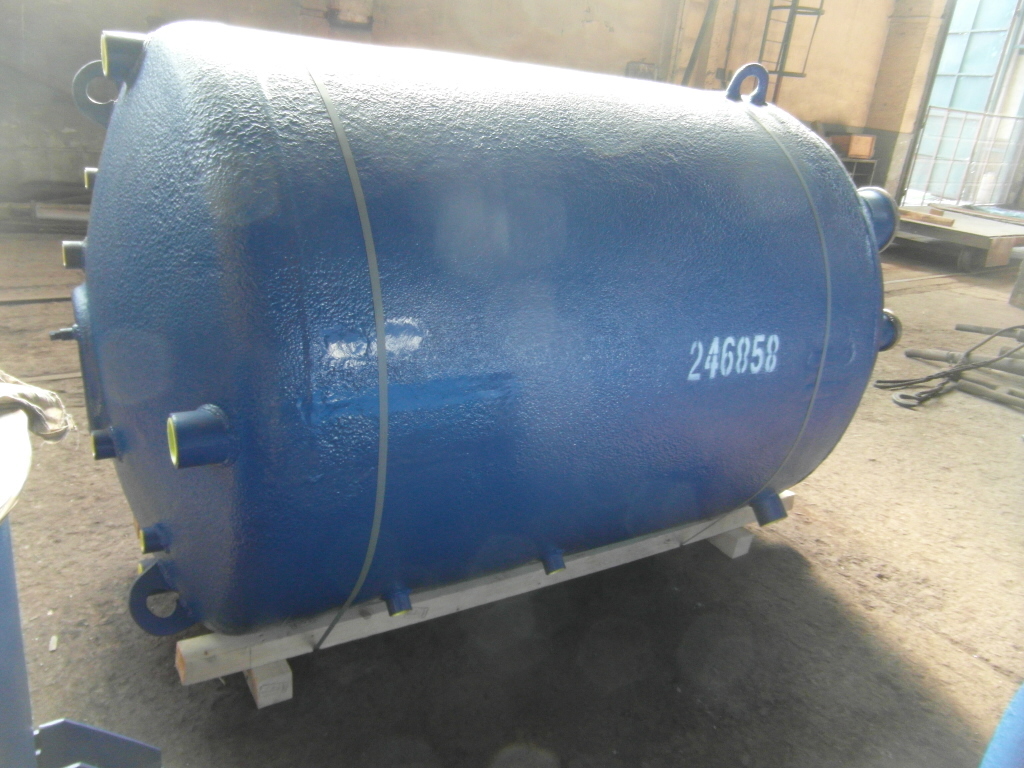

Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858

  • Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858 Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858
  • Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858 Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858
  • Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858 Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858
  • Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858 Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858
  • Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858
  • Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858
  • Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858
  • Glasslined Pfaudler RA60 Batch Type Body Only Reactor - IPP# 246858
Overview
Reactor
Batch Type Body Only
Pfaudler
RA60
Re-glassed
Glasslined
3,800 L (1,000 gallons)
Glass Lined
Yes
Pressure Vessel
6.9 bar (100 psi)
Yes
232.2 °C (450 °F)
Jacket/Internal Coil
5.2 bar (75 psi)
176.7 °C (350 °F)
Standard
Carbon Steel
Dimensions
Vertical
1,500 mm (60 in)
1,900 mm (75 in)
Heads
Dish
Glasslined
Dish
Glasslined
Inlets & Outlets
30" main cover, (1) 8" , (4) 4"
Other Specifications
Legs
Glass Details
Full Fire Polish (FF)
Very Clean (VC)
Additional Information
  • This is a bare body.
