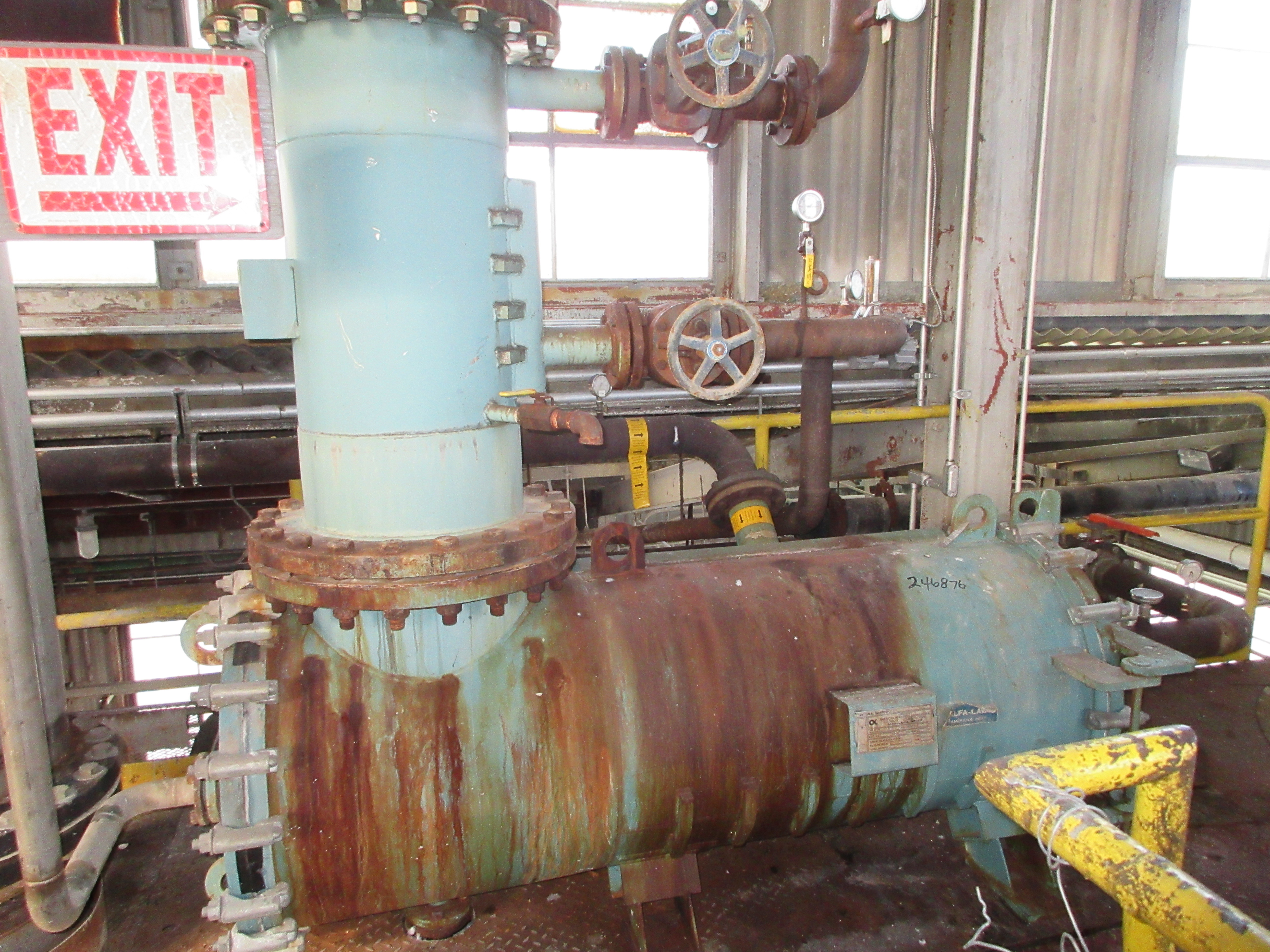

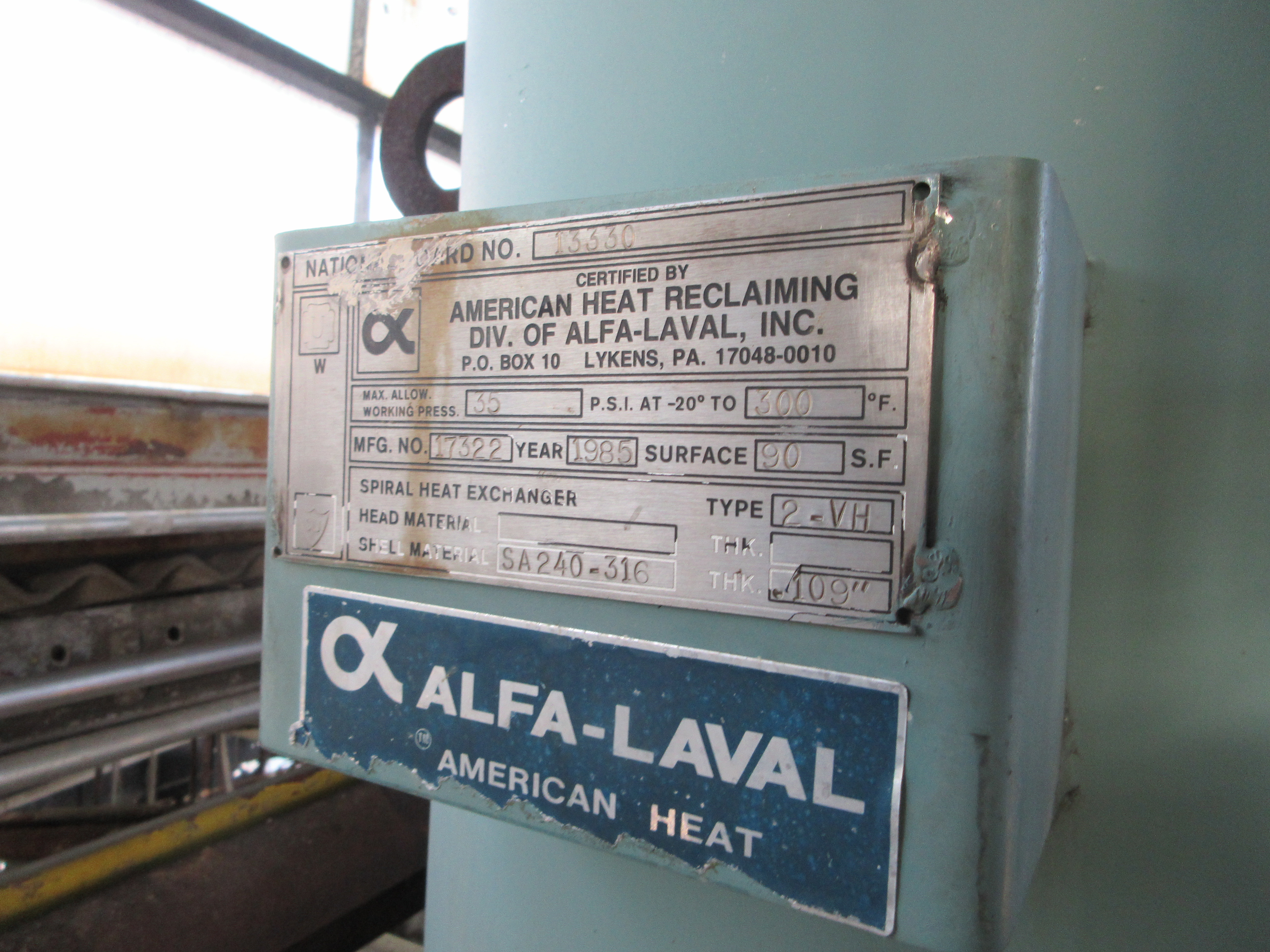

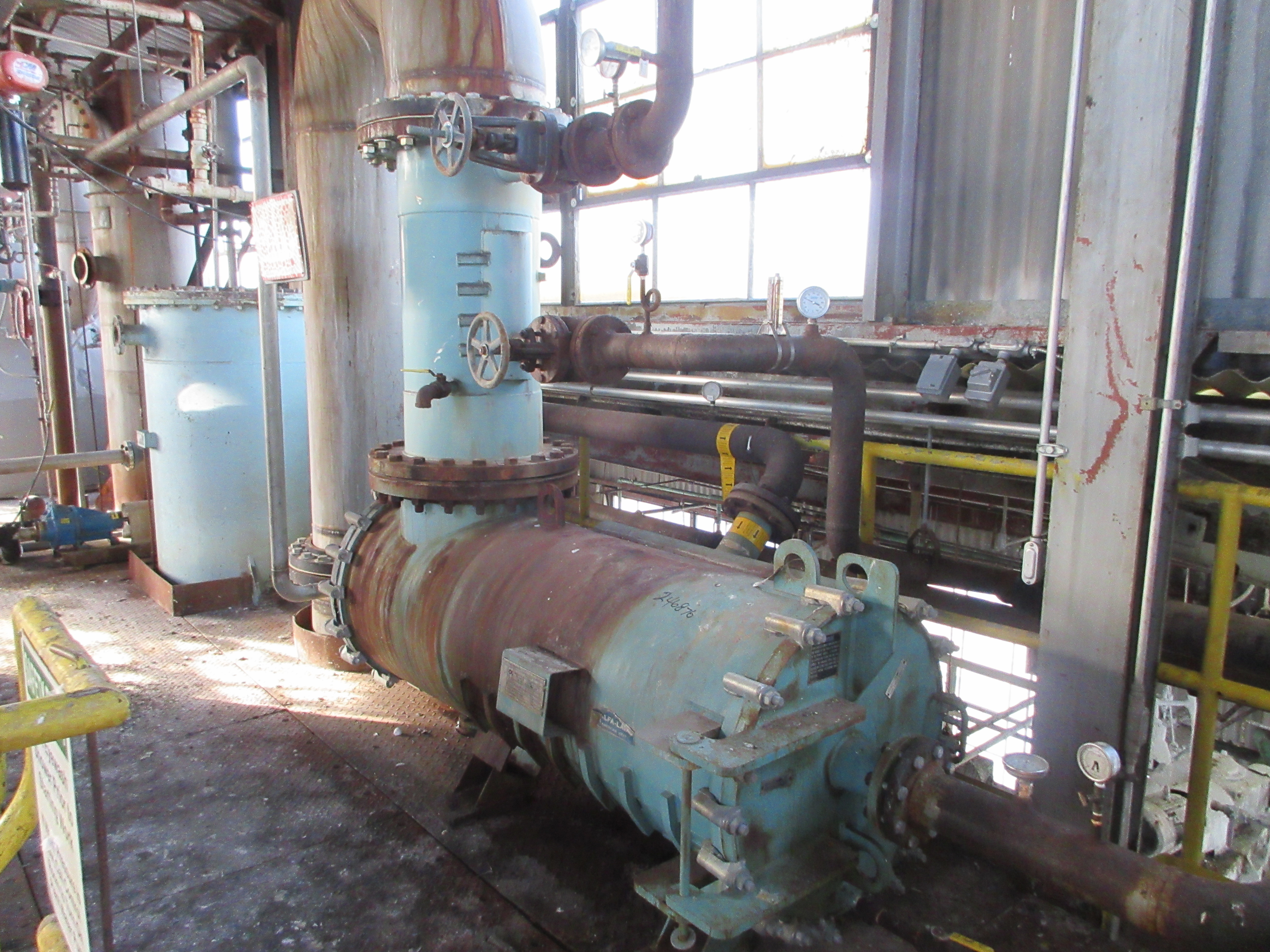

Mounted with Alfa Laval, 90 Sq.Ft., 316 SS NB # 13330 35 psi at 300 degrees F., serial # 17322 spiral heat exchanger. Total condensing surface area is 360 Sq. Ft. Note ** 90 sq. ft. price is $13,500.00 can be sold separate . 270 sq. ft price is $ 40,500.00 can be sold separate .
Type: Heat Exchanger
Subtype: Spiral
Manufacturer: Alfa Laval
Model: Spiral
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 134.7 m² (1,450 ft²)
Shell Pressure: 4.5 bar (65 psi)
Heads are CS faced with 316 L SS
Shell Temperature: 93.3 °C (200 °F). Shell Material: Stainless Steel 316. Shell Diameter: 1,250 mm (50 in). Head Material: Carbon Steel. Length: 1,850 mm (72 in). Nozzle Schedule: Inlet 24", vent 10", Two 6", one 3", drain 1". Cold-side Pressure: 4.5 bar (65 psi). Cold-side Temperature: 93.3 °C (200 °F). Hot-side Pressure: 4.5 bar (65 psi). Hot-side Temperature: 93.3 °C (200 °F). Spiral Material: Stainless Steel 316L.
Type: Heat Exchanger
Subtype: Spiral
Manufacturer: Alfa Laval
Model: I H
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 58.5 m² (630 ft²)
Shell Pressure: 7 bar (101.5 psi)
duty 0.37MW, spacing channel A 8, channel B 12, channel A volume 220 liter, channel B 400 liter,
design code ASME VIII DIV 1 Edition 1992
Shell Temperature: 170 °C (338 °F). Shell Material: Stainless Steel 316. Shell Diameter: 1,700 mm (66.9 in). Head Material: Stainless Steel 316. Length: 300 mm (11.8 in). Cold-side Pressure: 7 bar (101.5 psi). Cold-side Temperature: 170 °C (338 °F). Hot-side Pressure: 13 bar (188.5 psi). Hot-side Temperature: 170 °C (338 °F). Spiral Material: Stainless Steel 316.
Type: Heat Exchanger
Subtype: Spiral
Manufacturer: Alfa Laval
Condition: Used
Material: Alloy 20
Heat Transfer Surface Area: 9.3 m² (100 ft²)
Shell Pressure: 10.3 bar (150 psi)
AL6XN product contact (cover faced with ALX6N) vertical spiral heat exchanger Heads =0.86" thick shell =0.135" thick. with welded bottom cone and clamped top
Shell Temperature: 232.2 °C (450 °F). Shell Material: Alloy 20. Vacuum: Yes. Shell Diameter: 431.8 mm (17 in). Head Material: Carbon Steel. Length: 1,750 mm (69 in). Nozzle Schedule: Nozzle schedule as follows: one 10" inlet, Two 2" outlets, one 2" inlet, one 1" drain.. Cold-side Pressure: 10.3 bar (150 psi). Cold-side Temperature: 232.2 °C (450 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 232.2 °C (450 °F). Spiral Material: Alloy 20.
Type: Heat Exchanger
Subtype: Spiral
Manufacturer: Amer Heat Reclaiming
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 1.39 m² (15 ft²)
Nozzle Schedule: 1" inlets and outlets
