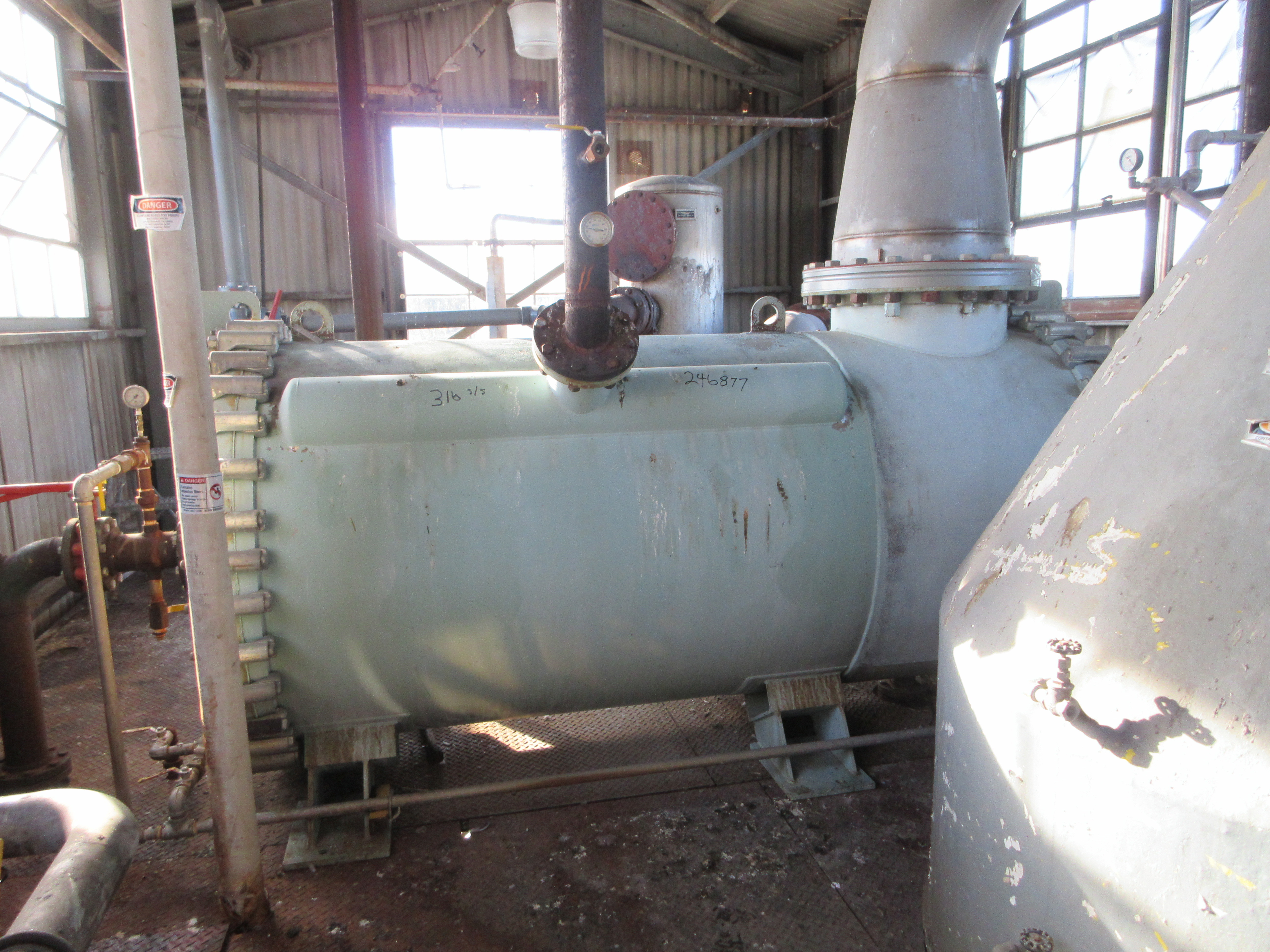

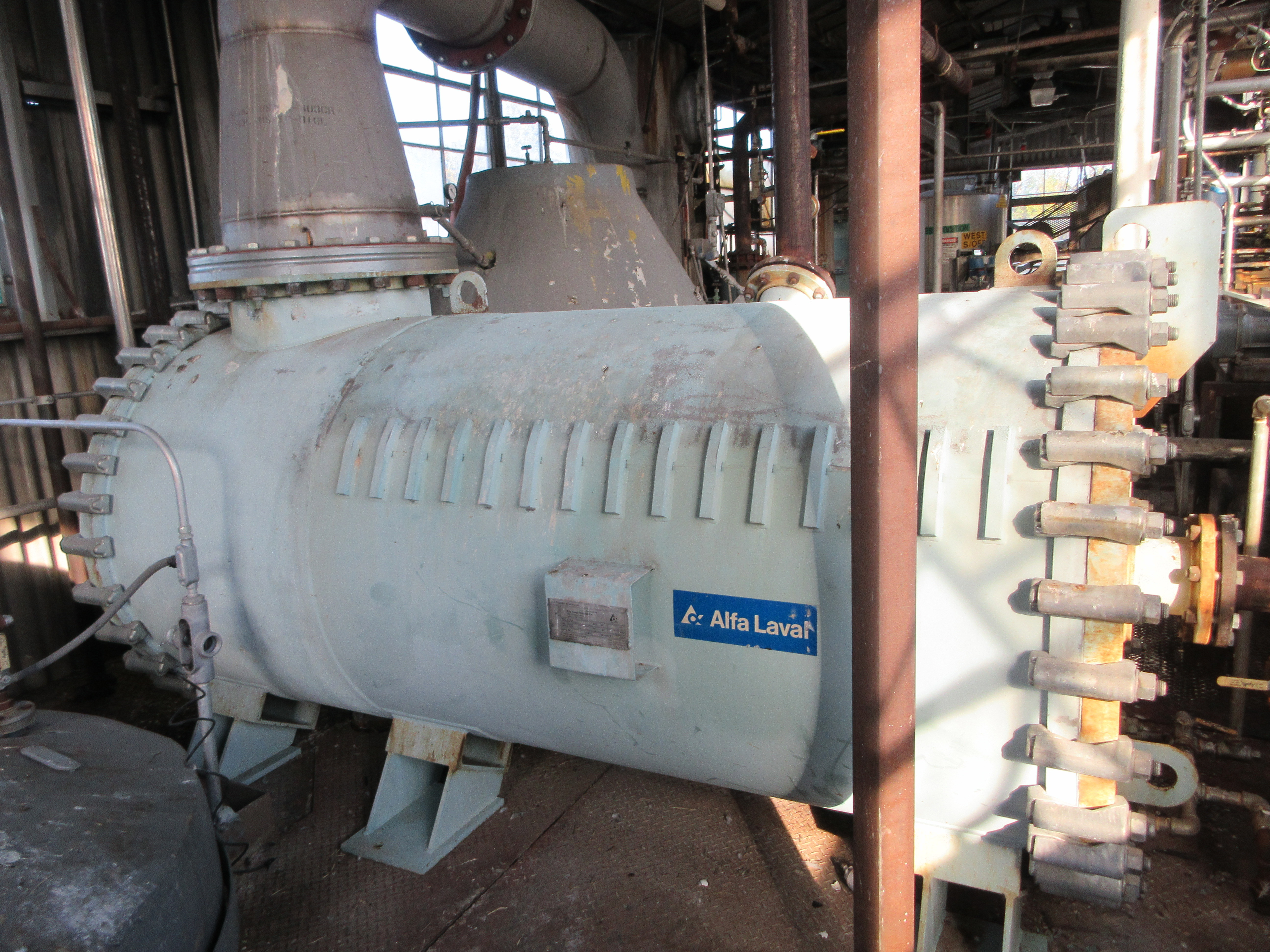

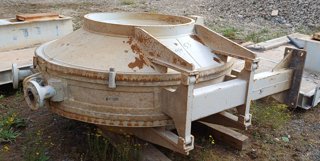

Stainless Steel 316 Alfa Laval Spiral Spiral Heat Exchanger - IPP# 246877

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: Spiral

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 25.1 m² (270 ft²)

Shell Pressure: 3.8 bar (55 psi)

Mounted with Alfa Laval, 90 Sq.Ft., 316 SS NB # 13330 35 psi at 300 degrees F., serial # 17322 spiral heat exchanger. Total condensing surface area is 360 Sq. Ft. Note ** 90 sq. ft. price is $13,500.00 can be sold separate . 270 sq. ft price is $ 40,500.00 can be sold separate .

Shell Temperature: 148.9 °C (300 °F). Shell Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 685.8 mm (27 in). Head Material: Carbon Steel. Length: 2,235 mm (88 in). Nozzle Schedule: One 20", Two 4",Two 2", One 1" . Cold-side Pressure: 3.8 bar (55 psi). Cold-side Temperature: 148.9 °C (300 °F). Hot-side Pressure: 3.8 bar (55 psi). Hot-side Temperature: 148.9 °C (300 °F). Spiral Material: Stainless Steel 316.

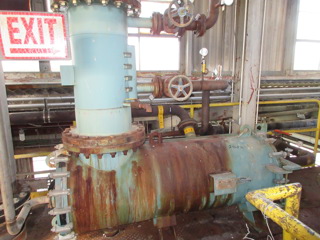

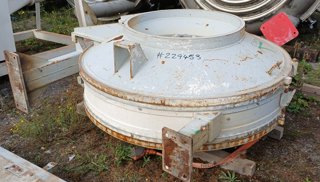

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Condition: Used

Material: Alloy 20

Heat Transfer Surface Area: 9.3 m² (100 ft²)

Shell Pressure: 10.3 bar (150 psi)

AL6XN product contact (cover faced with ALX6N) vertical spiral heat exchanger Heads =0.86" thick shell =0.135" thick. with welded bottom cone and clamped top

Shell Temperature: 232.2 °C (450 °F). Shell Material: Alloy 20. Vacuum: Yes. Shell Diameter: 431.8 mm (17 in). Head Material: Carbon Steel. Length: 1,753 mm (69 in). Nozzle Schedule: Nozzle schedule as follows: one 10" inlet, Two 2" outlets, one 2" inlet, one 1" drain.. Cold-side Pressure: 10.3 bar (150 psi). Cold-side Temperature: 232.2 °C (450 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 232.2 °C (450 °F). Spiral Material: Alloy 20.

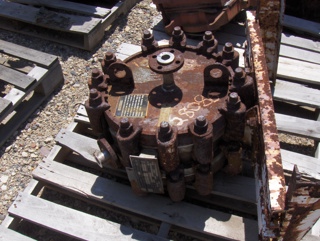

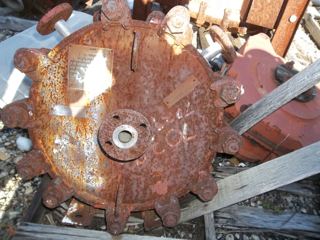

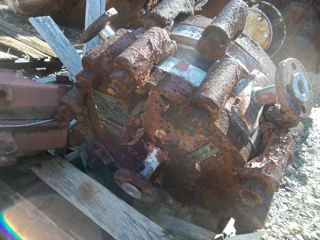

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Amer Heat Reclaiming

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 1.39 m² (15 ft²)

Nozzle Schedule: 1" inlets and outlets

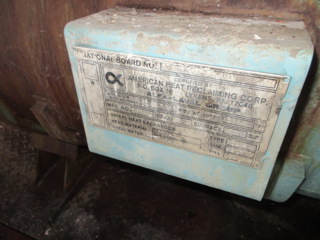

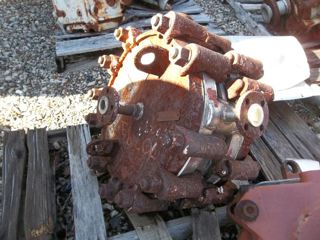

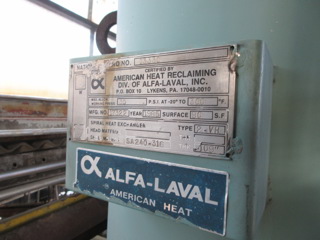

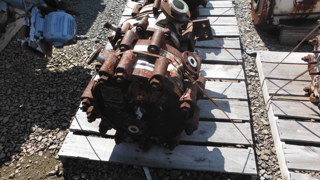

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: American Heat Reclaiming

Model: 1H

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 1.39 m² (15 ft²)

Shell Material: Stainless Steel 316

inner pass is .25" x 6", 14'5" long; cold side outer pass is .25" x 6", 15'4" long.

Head Material: Stainless Steel 316. Nozzle Schedule: 1" inlets and outlets.. Spiral Material: Stainless Steel 316.
