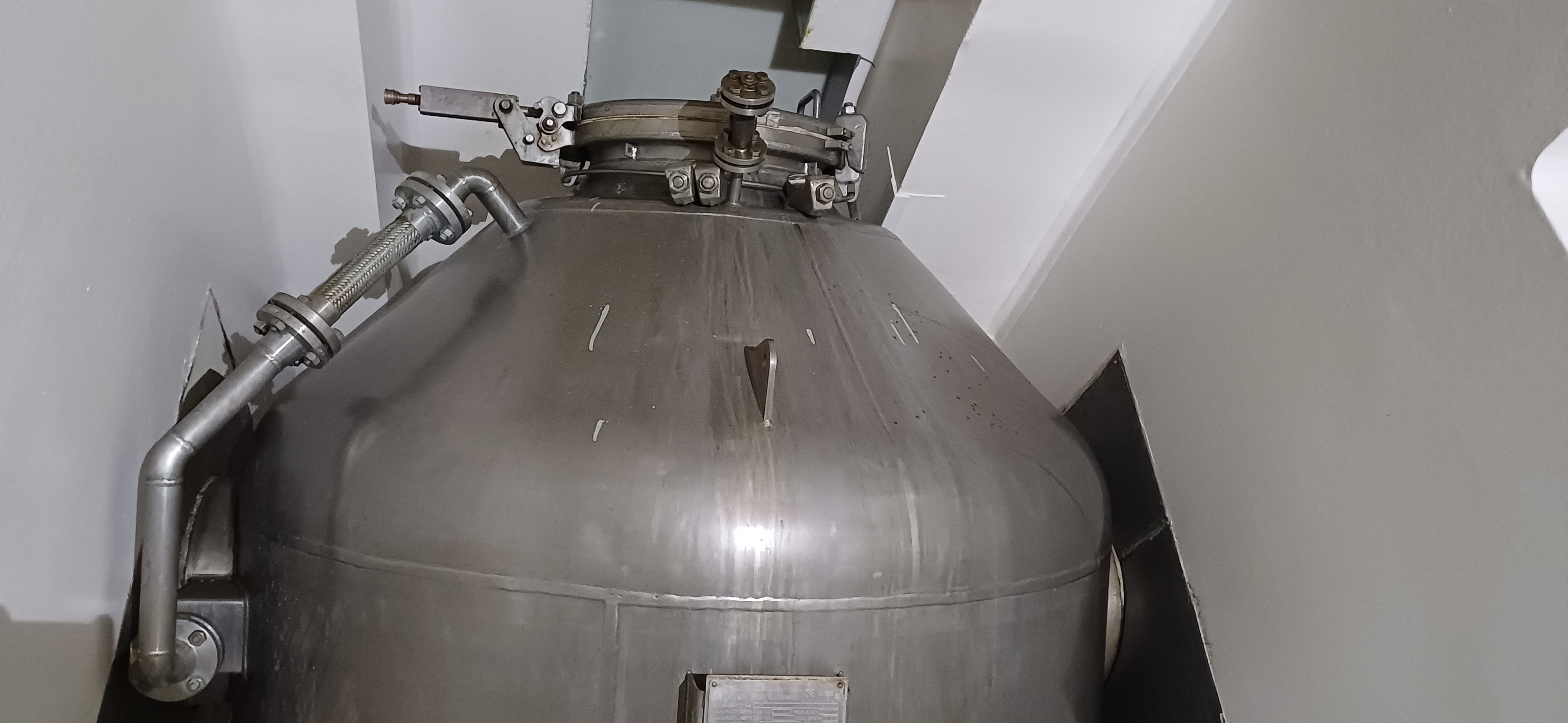

Hastelloy - C22 Pfaudler CD60 Dryer-Twin Shell & Double Cone - IPP# 247059

  • Hastelloy - C22 Pfaudler CD60 Dryer-Twin Shell & Double Cone - IPP# 247059 Hastelloy - C22 Pfaudler CD60 Dryer-Twin Shell & Double Cone - IPP# 247059
  • Hastelloy - C22 Pfaudler CD60 Dryer-Twin Shell & Double Cone - IPP# 247059 Hastelloy - C22 Pfaudler CD60 Dryer-Twin Shell & Double Cone - IPP# 247059
  • Hastelloy - C22 Pfaudler CD60 Dryer-Twin Shell & Double Cone - IPP# 247059
  • Hastelloy - C22 Pfaudler CD60 Dryer-Twin Shell & Double Cone - IPP# 247059
Overview
Dryer-Twin Shell & Double Cone
Pfaudler
CD60
Used
Hastelloy - C22
Capacity
1.7 m3 (60 ft3)
Other Specifications
2.3 bar (33.4 psi)
200 °C (392 °F)
Yes
Jacket
3.1 bar (45 psi)
200 °C (392 °F)
Additional Information
  • Hastelloy jacketed double cone dryer/blender,
  • design pressure internal 2.3 bar + full vacuum @ -29/200 degrees C,
  • jacket 3.1 bar @ -29/200 degrees C,
  • approx 1.6m diameter x 400mm straight side x 850mm high top and bottom cone sections,
  • gear driven by an hydraulic powerpack with a reduction gearbox,
  • rotary union joint,
  • feed pipe,
  • mounted on 2-'A' frames,

Similar Equipment

Glasslined Pfaudler Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Pfaudler

Condition: Re-glassed

Material: Glasslined

Capacity Design: 0.07 m3 (2.6 ft3)

Capacity Operating: 0.05 m3 (1.6 ft3)

(Reglassed @ UGE facility ). Glass #5015 W/Hastelloy C vac arm inside w/packing Openings: top 1-10" w/cover; btm 1-10" w/cover varidrive reducer, max output 154 rpm, min output 15.4 rpm Control panel with start/stop switches

Vessel Pressure: 2.1 bar (30 psi). Vessel Temperature: 232.2 °C (450 °F). Jacket Pressure: 5.5 bar (80 psi). Jacket Temperature: 176.7 °C (350 °F). Full Vacuum: Yes.

Glasslined Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity Design: 1.13 m3 (40 ft3)

Capacity Operating: 0.85 m3 (30 ft3)

48" dia shell 18" charge port (no cover), 8" discharge (no valve). Bare body only.

Vessel Pressure: 2.1 bar (30 psi). Vessel Temperature: 343.3 °C (650 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 176.7 °C (350 °F). Full Vacuum: Yes.

0.57 m3 (20 ft3) Glasslined Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Pfaudler

Model: MT400-XPL

Condition: Used

Material: Glasslined

Capacity Design: 0.57 m3 (20 ft3)

Capacity Operating: 0.4 m3 (14 ft3)

double cone vacuum dryer internal pressure -1/+6 bar @ -10/+200 degrees C (448 liter), jacket -1/+6 bar @ -10/+200 degrees C (110 liter),

Vessel Pressure: 6 bar (87 psi). Vessel Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Full Vacuum: Yes.

3 m3 (107 ft3) Glasslined Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Pfaudler

Model: 72-45 CDSB

Condition: Re-glassed

Material: Glasslined

Capacity Design: 3 m3 (107 ft3)

Capacity Operating: 1.98 m3 (70 ft3)

25 PSI with FV internal Bull and pinion gear 230/460 volt gear head motor with electric brake 5 rpm rotation for a 1.08 rpm bucket rotation.
Mechanical seal on shaft, Hastelloy 276-C vacuum arm. 18" carge prort with cover Unit includes a SS load platform, with the platform mounted on hydraulic cylinders that lift the platform out of the way during dryer cycle.

Vessel Pressure: 2.1 bar (30 psi). Vessel Temperature: 343.3 °C (650 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 176.7 °C (350 °F). Full Vacuum: Yes.
