Used twin shell and double cone dryers for sale: gentle batch drying for powders and heat-sensitive materials

Browse used, secondhand and surplus twin shell dryers from IPP – in stock and ideal for uniform, low-shear drying

Save time and money with IPP’s ready-to-ship twin shell and double cone dryers for chemicals, pharma and food-grade applications

Featured Twin Shell & Double Cone Dryers

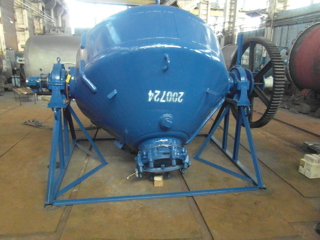

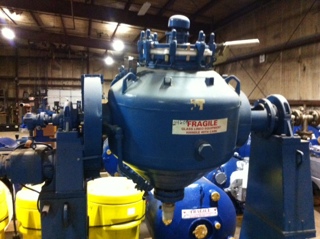

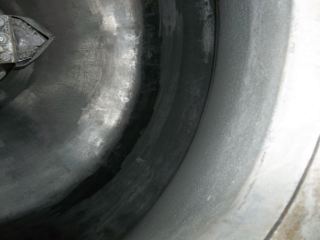

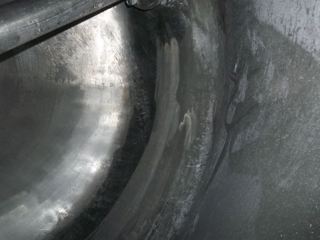

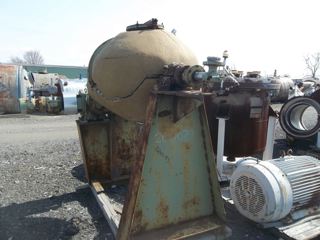

Glasslined Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Pfaudler

Condition: Re-glassed

Material: Glasslined

Capacity Design: 2.8 m3 (100 ft3)

Capacity Operating: 1.98 m3 (70 ft3)

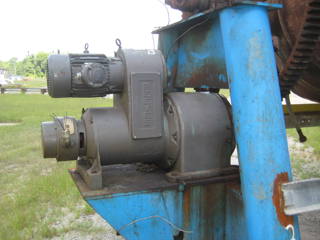

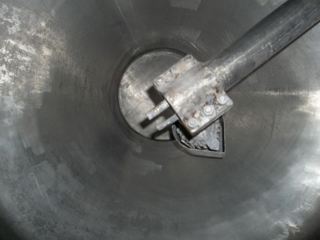

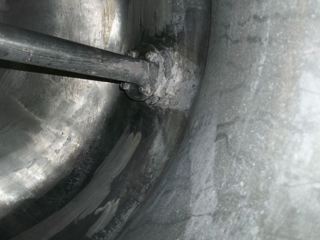

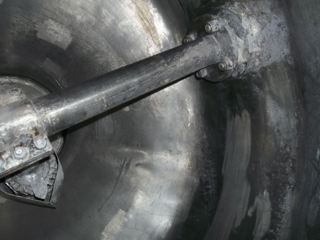

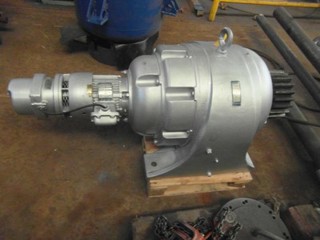

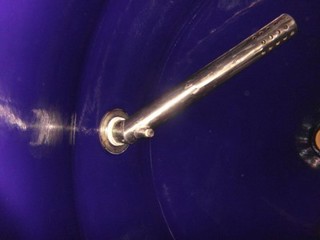

standard 6' diameter bucket with 18" diameter manway and 8" diameter outlet with 9 to 45 rpm on bucket with Hastelloy vacuum arm with stuffing box. With bull and pinion Reconditioned gear box, driven by 3HP XP class 1, div 2 , 3 phase, 60HZ, 230, 460 Volt motor with electric 10 ft-lbs. brake.

Vessel Pressure: 2.1 bar (30 psi). Vessel Temperature: 232.2 °C (450 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 176.7 °C (350 °F). Full Vacuum: Yes.

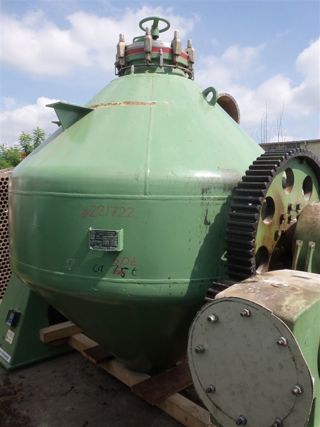

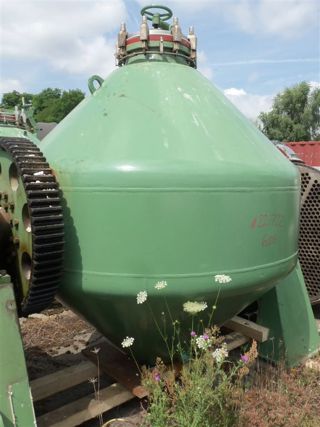

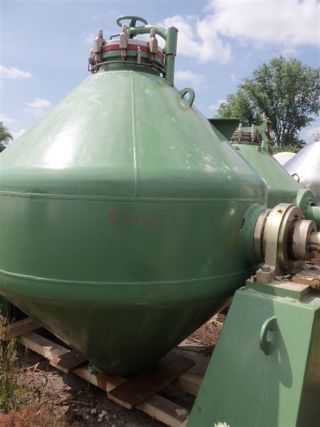

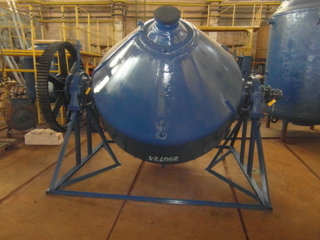

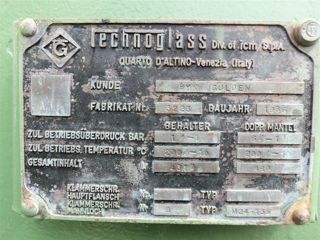

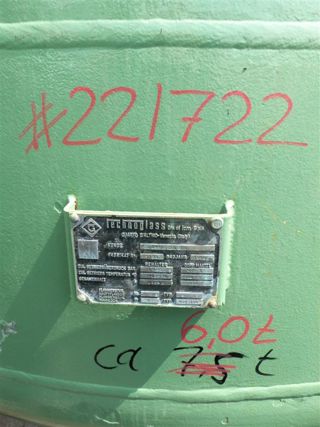

Glasslined Technoglass DA-4000l Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Technoglass

Model: DA-4000l

Condition: Used

Material: Glasslined

Capacity Design: 4 m3 (141.3 ft3)

Capacity Operating: 3 m3 (105.9 ft3)

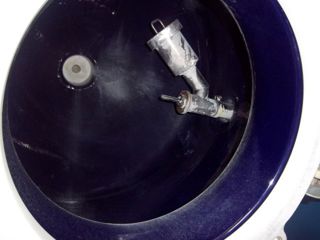

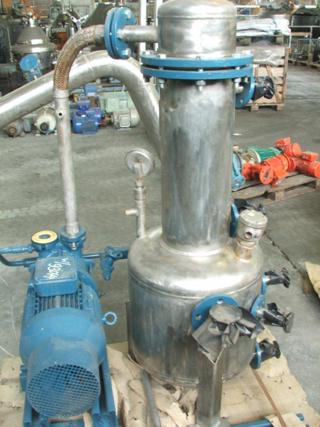

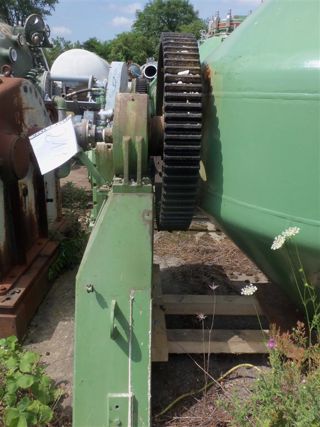

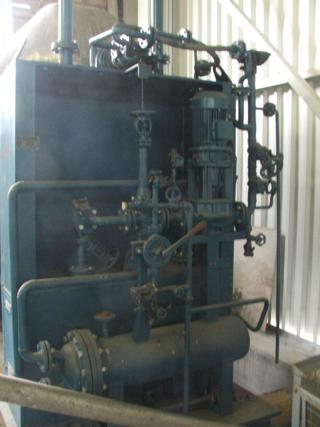

internal pressure -1/1 bar @ -10/200 deg C (4310ltr), jacket 6 bar @ -10/200 deg C (480ltr) 1m high top and bottom cones gear driven by a vari-speed drive 3/50/300/660 volt Hastelloy vacuum arm, mechanical seal, rotary union joint top cone with 1-450mm manway, bottom cone with 1-250mm discharge with valve (1) s/steel plate heat exchanger, 70 kw, pressure 16 bar @ 150 deg C (1) 8-28 m3/hr c/steel centrifugal pump, 14.5-9.5m hd,

Vessel Pressure: 1 bar (14.5 psi). Vessel Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Full Vacuum: Yes.

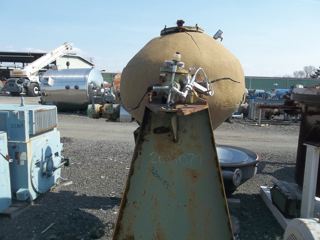

Stainless Steel Other Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Condition: Used

Material: Stainless Steel Other

Capacity Design: 0.05 m3 (1.77 ft3)

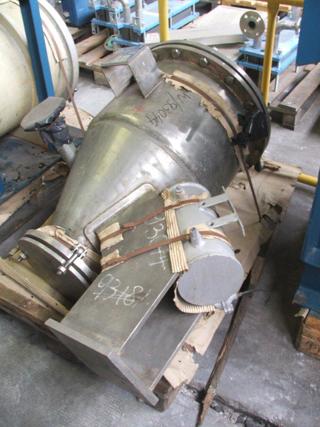

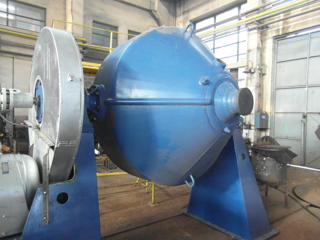

approx 50 liter stainless steel double cone rotary tumbler, top and bottom cones are off set, cone approx 550mm diameter x 300mm top and bottom cones, mounted on a stainless steel frame,

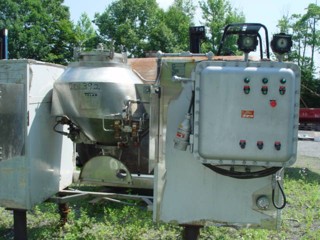

Stainless Steel 304 Gemco Formulator Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Gemco

Model: Formulator

Condition: Used

Material: Stainless Steel 304

Capacity Design: 0.17 m3 (6 ft3)

Capacity Operating: 0.14 m3 (5 ft3)

type Slant cone Rated 65 Lb/cubic foot Shell 32" diameter x 18" straight side x 12 and 8" long conical section With 18" diameter charge port ,With hydraulic operated valve 3/60/ 230/460V

Product Density: 1.84 m3 (65 ft3).

Twin shell and double cone dryers are rotating batch dryers used for low-shear, uniform drying of powders, granules and crystalline materials. Their simple, sealed design makes them ideal for vacuum drying and mixing sensitive or friable compounds. With over 47 years of experience, IPP offers a large inventory of secondhand and surplus twin shell and double cone dryers from 20 complete plant sites and more than 15,000 ready-to-ship systems.

These dryers operate by rotating the vessel to gently tumble the product while applying indirect heat through a jacket. Vacuum can be applied to reduce drying temperature, which is especially valuable for thermally sensitive materials or solvent removal.

Primary uses across industries

In pharmaceutical production, they dry APIs, intermediates and fine powders without degrading the product
In chemical manufacturing, they process specialty powders, pigments and sensitive catalysts
In nutraceuticals and food, they’re used for vitamins, proteins, extracts and granular ingredients
In plastics and resins, they dry additives and heat-sensitive compounds

Types of materials processed

Heat-sensitive powders and granules
Free-flowing solids requiring gentle tumbling
Products containing residual solvents

Common materials of construction

These dryers are built for corrosion resistance, cleanability and safe operation under vacuum:

Stainless steel for pharmaceutical and food-grade use
Carbon steel for non-corrosive industrial products
Specialty alloys like Hastelloy for reactive or high-purity applications

Key features of twin shell and double cone dryers

Gentle tumbling motion for uniform drying
Vacuum-compatible for low-temperature operation
Low shear – preserves fragile particles and blends
Sealed environment minimizes contamination
Easy to clean and maintain, with minimal moving parts

Dryer-Twin Shell & Double Cone FAQ

Have questions about Twin Shell & Double Cone Dryers or our services? Learn more about our products and why customers choose IPP.

Both function similarly, but twin shell dryers feature V-shaped vessels while double cone dryers have a symmetric conical design – the choice depends on capacity, layout and material flow needs.

They offer clean, low-shear, enclosed drying that prevents cross-contamination and protects sensitive materials.

Regular inspection of seals, vacuum connections, and vessel rotation systems is key to ensuring performance and product integrity.

IPP provides faster lead times, deep cost savings, and 47+ years of global expertise to help clients scale efficiently.

Learn more about vacuum tumble dryers and their industrial applications from Pharmaceutical Technology.

Find your double cone or twin shell dryer at IPP

Search the IPP inventory or contact IPP’s equipment experts to find a used, secondhand or surplus twin shell or double cone dryer. With global reach and systems ready to ship, IPP helps you save time and money on premium processing equipment.
