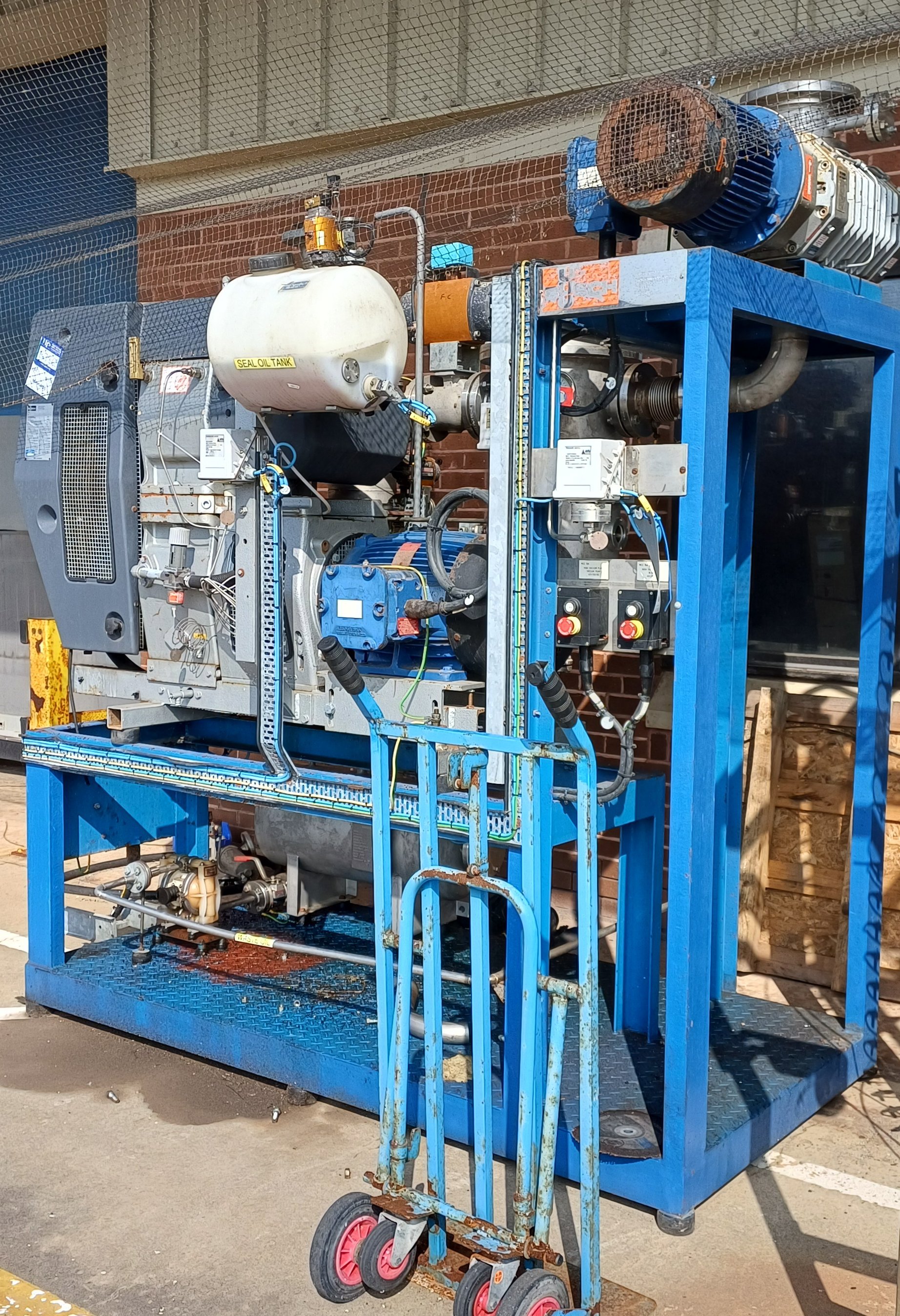

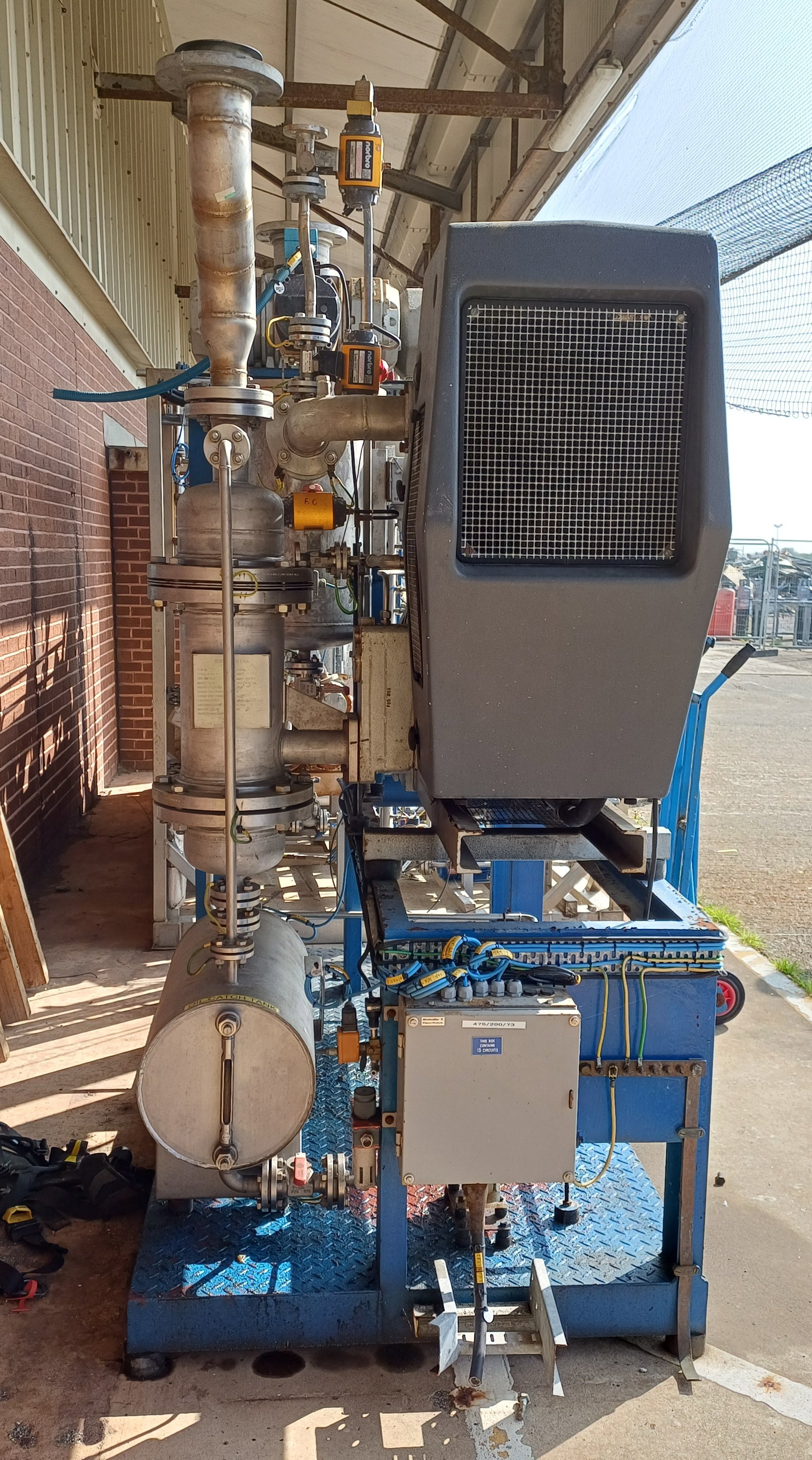

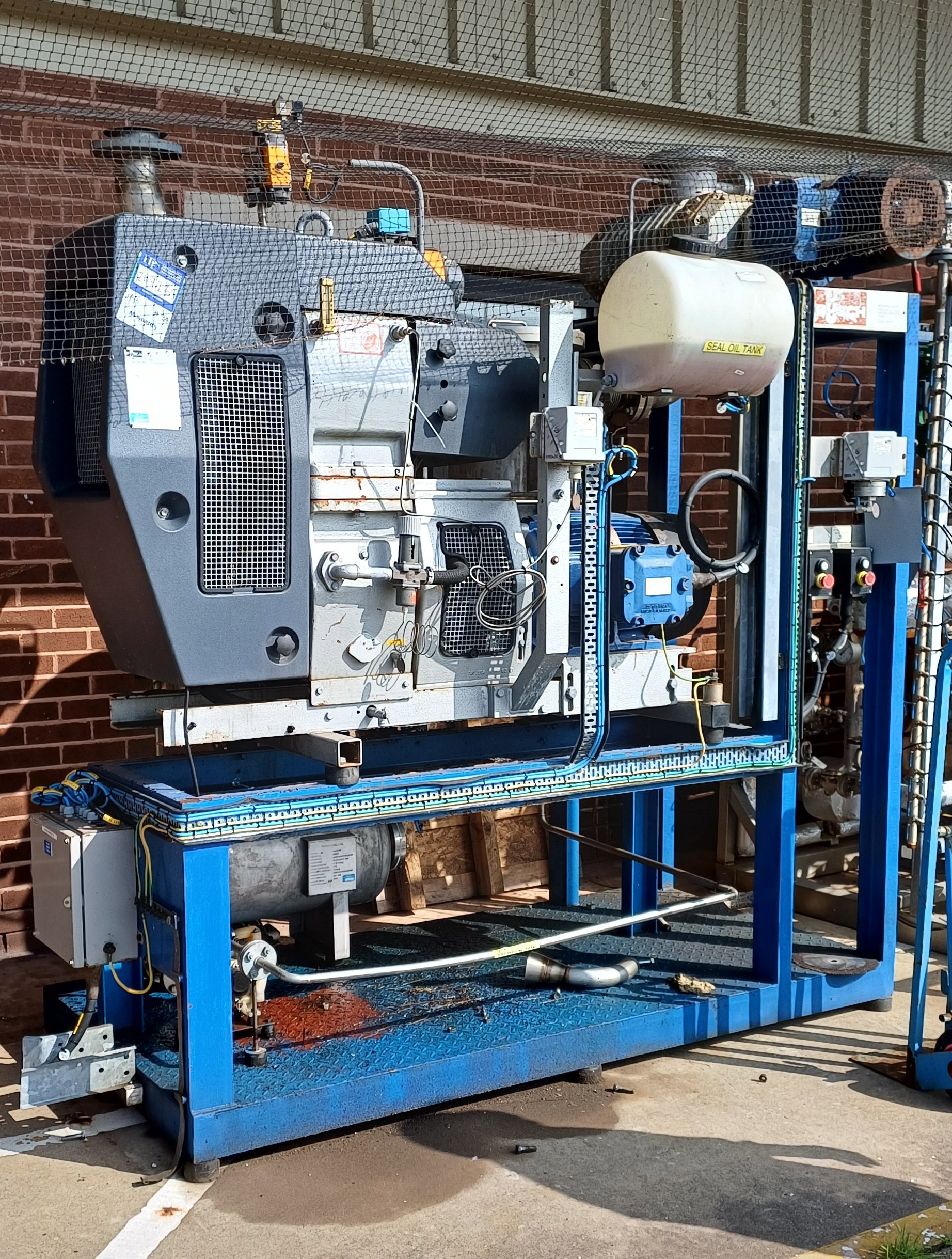

high vacuum package system with booster pump,
ultimate pressure 0.5 mbar
max discharge pressure (over pressure) 0.5 bar
high pressure test (over pressure) 10 bar,
Busch type HV 2000 booster pump, serial #H00043,
includes: seal oil tank, (1) stainless steel knock out pot manufactured by Busch UK Ltd, design pressure -1/8 barg @ 70 degrees C, (1) stainless steel horizontal condensate receiver, manufactured by Busch UK Ltd, design pressure -1/8 barg @ 70 degrees C, (1) stainless steel vertical exhaust muffle tank, design pressure 8 barg @ 70 degrees C,
Type: Pump-Vacuum
Manufacturer: Busch
Model: NC 0160 A BM6 OURF
Condition: Used
Material: Carbon Steel
Air Flow: 195 m3/h (115 CFM)
Orientation: Horizontal
at 0.075 torr
oil seal
single stage, dry vacuum pump
This pump is water cooled, positive displacement, and rotary screw type
direct drive with oiler
evaporative cooler
and knock out pot
230/460V motor
rated for Class 1 Groups C & D Div 1
Complete skid includes two -2" flame arrestors, 12 liter flushing reservoir, Hastelloy after condenser, one pass, 8 Sq.Ft., and the U-12 knock out pot, with filter and teflon de-mister
Knock out pot is Tefzel lined Carbon Steel
Water usage required is 1 gpm
Inlet Diameter: 50.8 mm (2 in). Outlet Diameter: 50.8 mm (2 in). Cooling or Seal Water: Yes.
Type: Pump-Vacuum
Manufacturer: Busch
Model: Mink MM 1202 A VV6
Condition: Used
Material: Carbon Steel
Air Flow: 241 m3/h (142 CFM)
Discharge Pressure: 0.1 bar (1.45 psi)
Orientation: Horizontal. Inlet Diameter: 50.8 mm (2 in). Outlet Diameter: 25.4 mm (1 in).
Type: Pump-Vacuum
Manufacturer: Busch
Model: Mink MM 1202 A VV6
Condition: Used
Material: Carbon Steel
Air Flow: 241 m3/h (142 CFM)
Discharge Pressure: 0.1 bar (1.45 psi)
Orientation: Horizontal. Inlet Diameter: 50.8 mm (2 in). Outlet Diameter: 25.4 mm (1 in).
Type: Pump-Vacuum
Manufacturer: Busch
Model: Mink MM 1202 A VV6 XXXX
Condition: Used
Material: Carbon Steel
Air Flow: 241 m3/h (142 CFM)
Discharge Pressure: 0.1 bar (1.45 psi)
Orientation: Horizontal. Inlet Diameter: 50.8 mm (2 in). Outlet Diameter: 25.4 mm (1 in).
