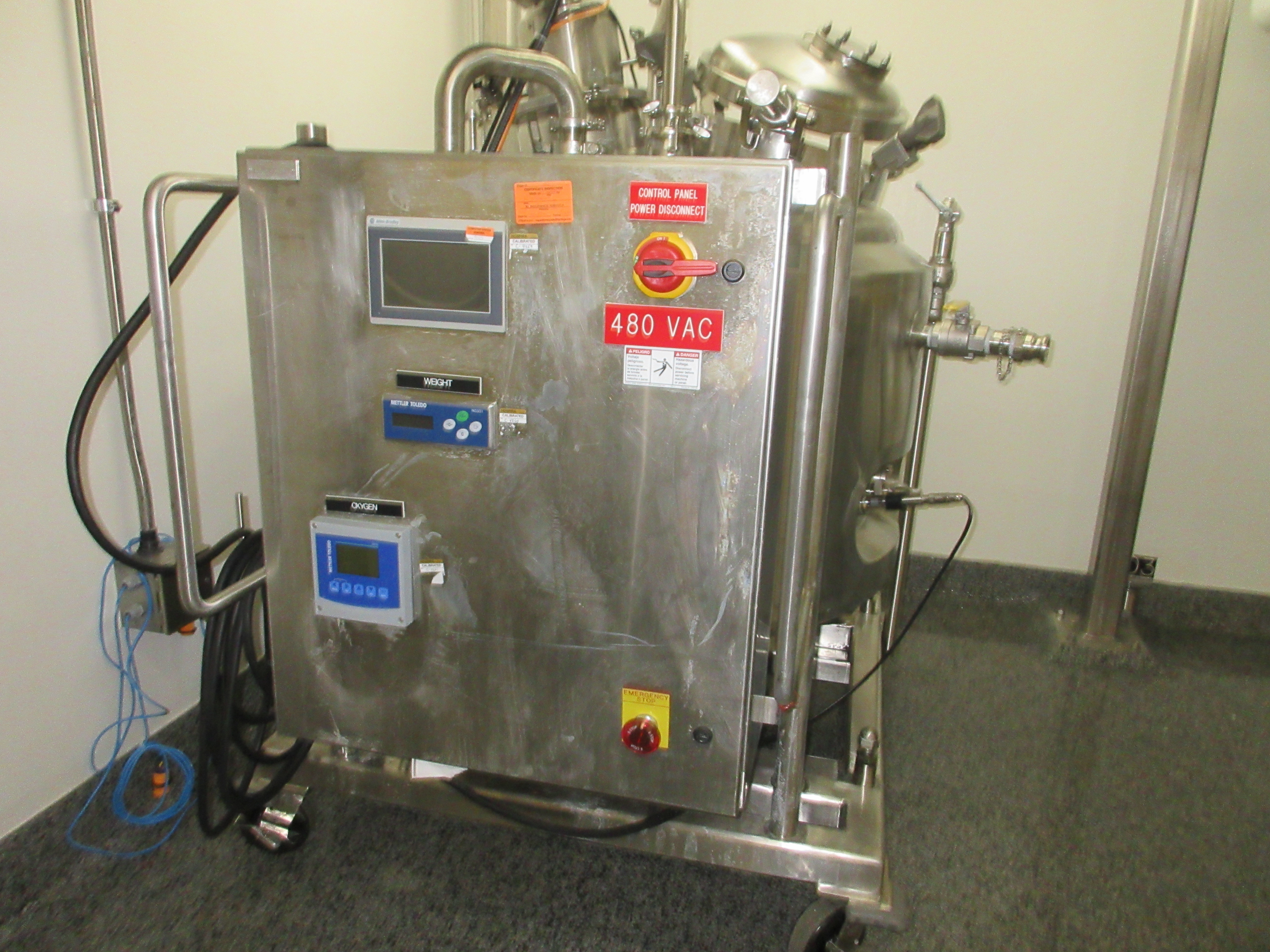

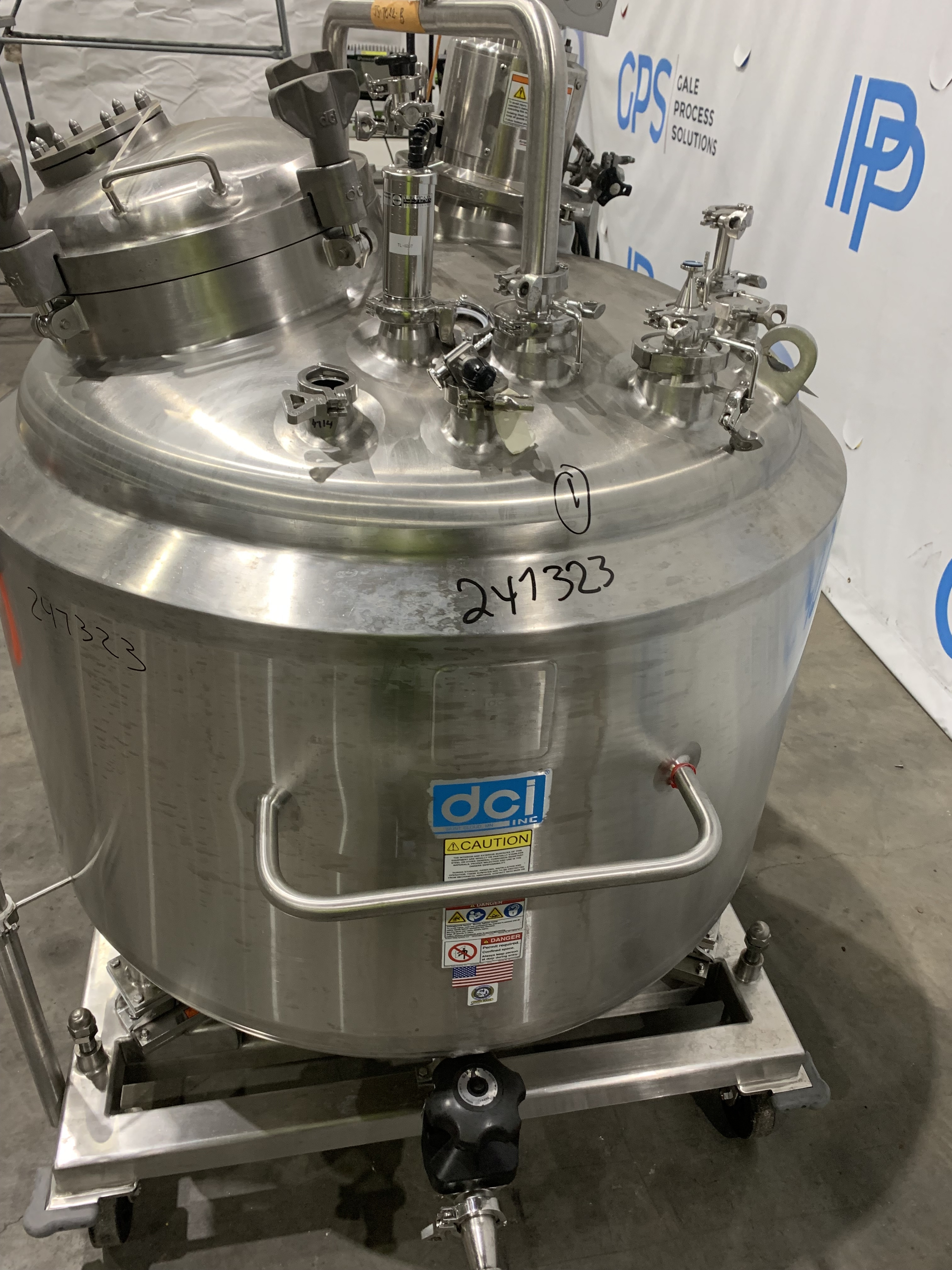

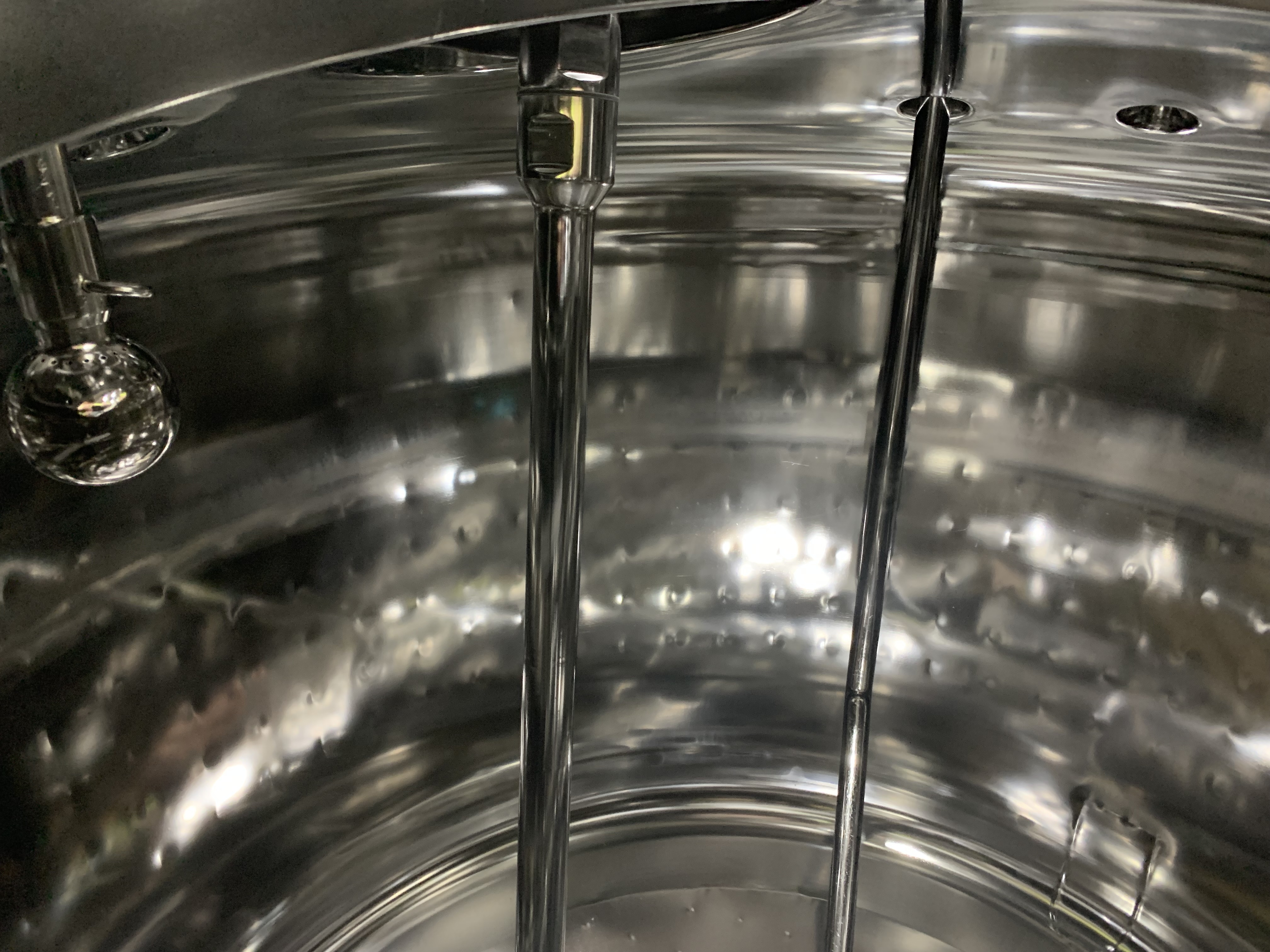

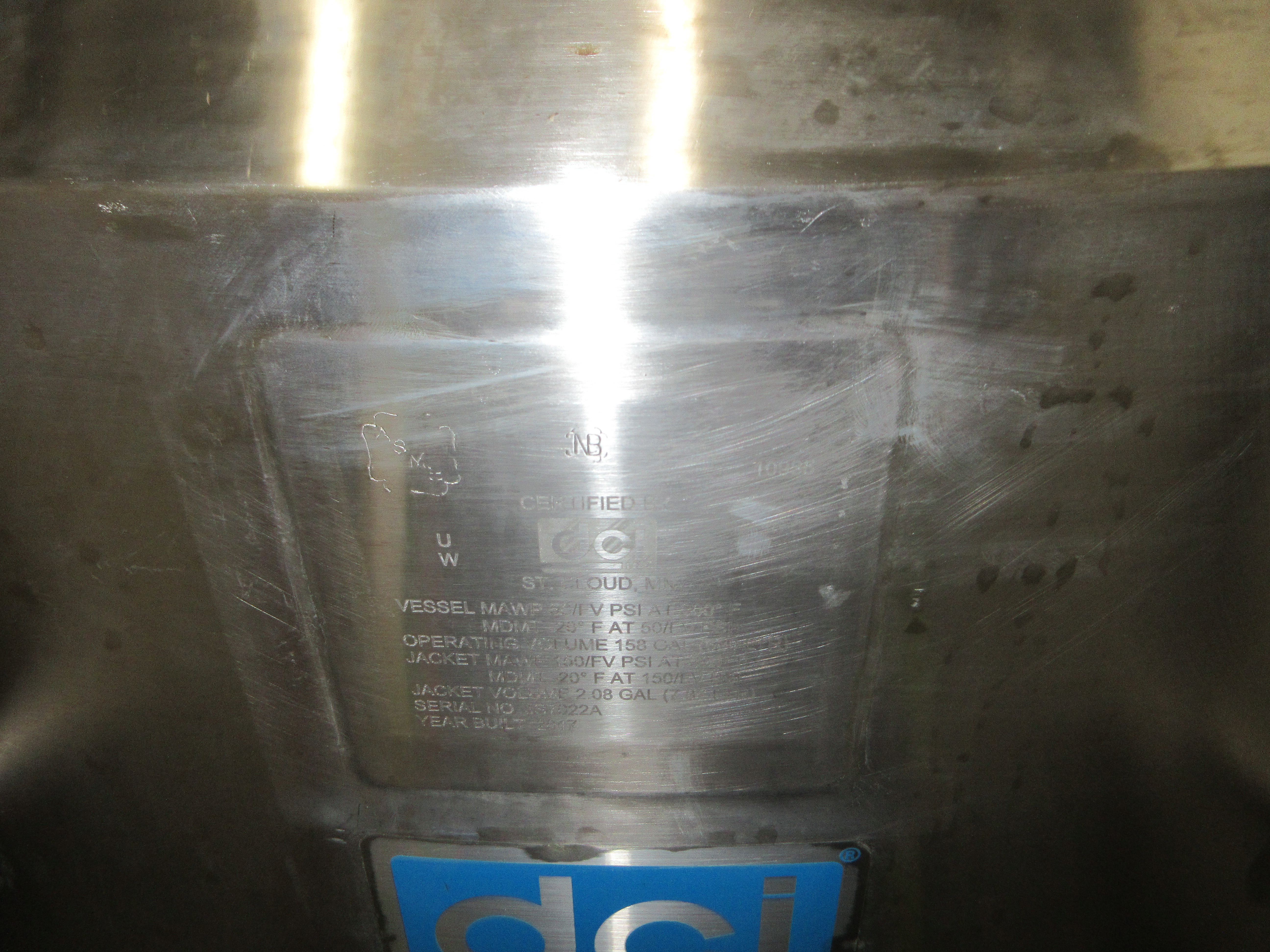

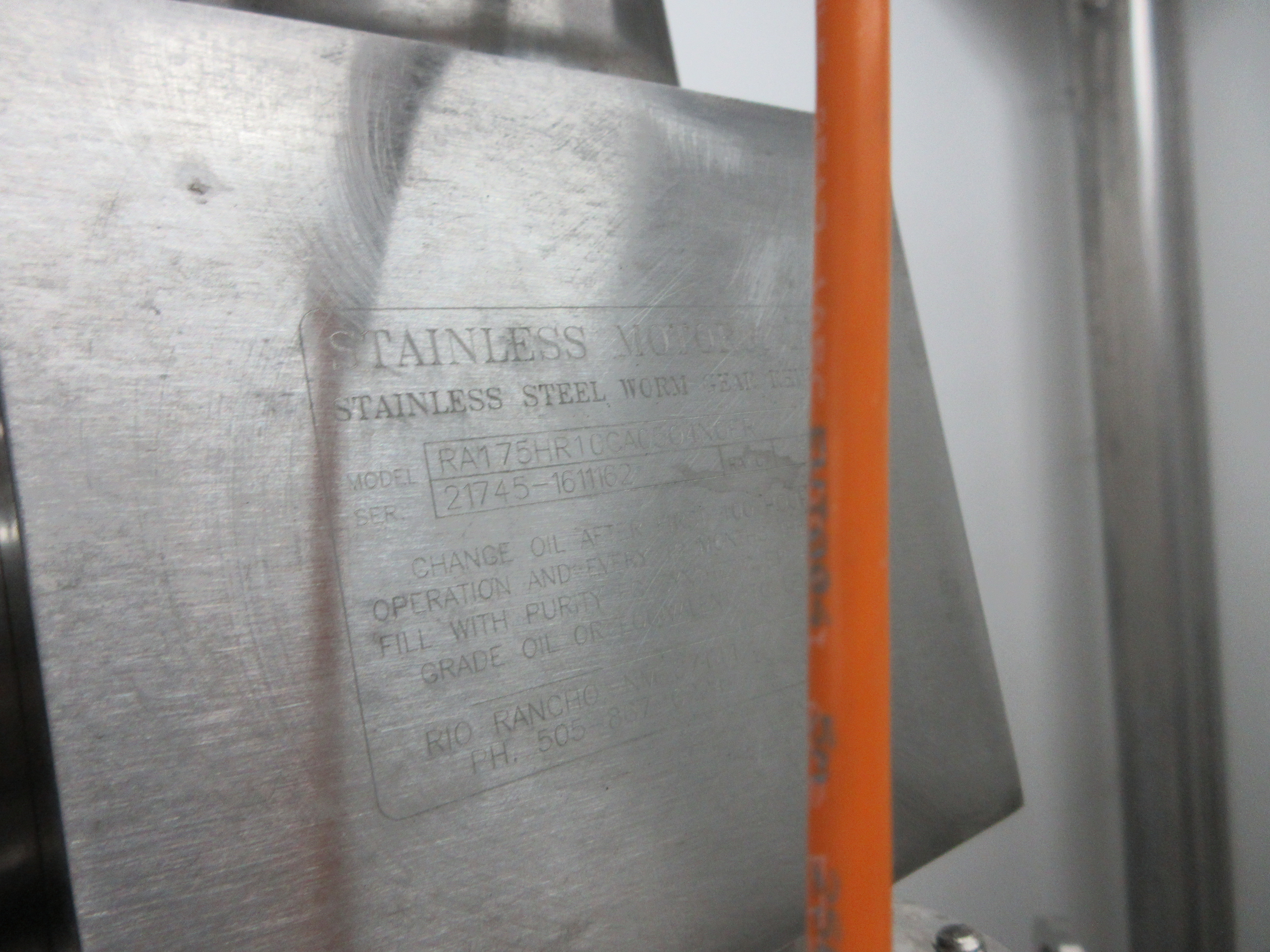

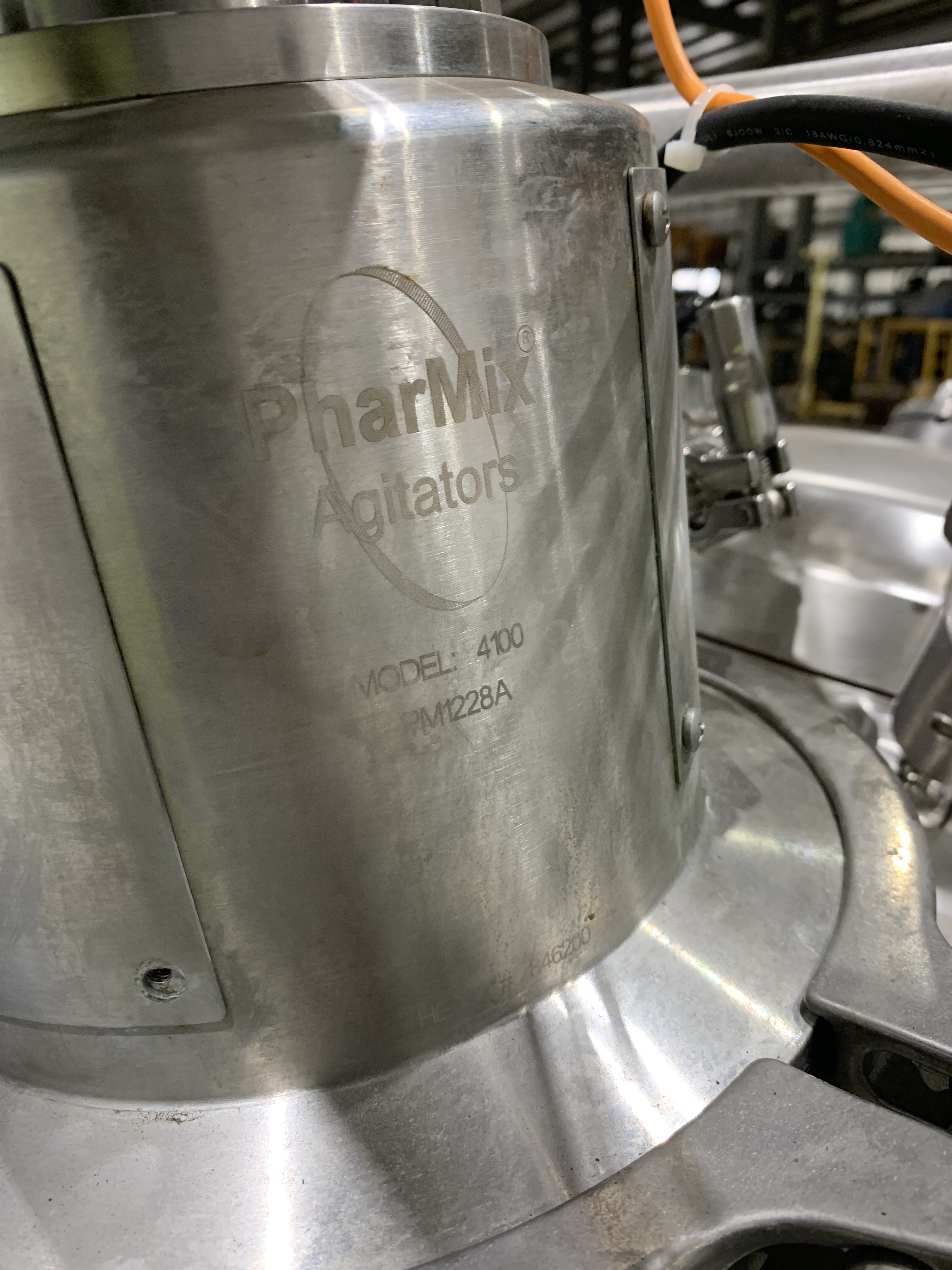

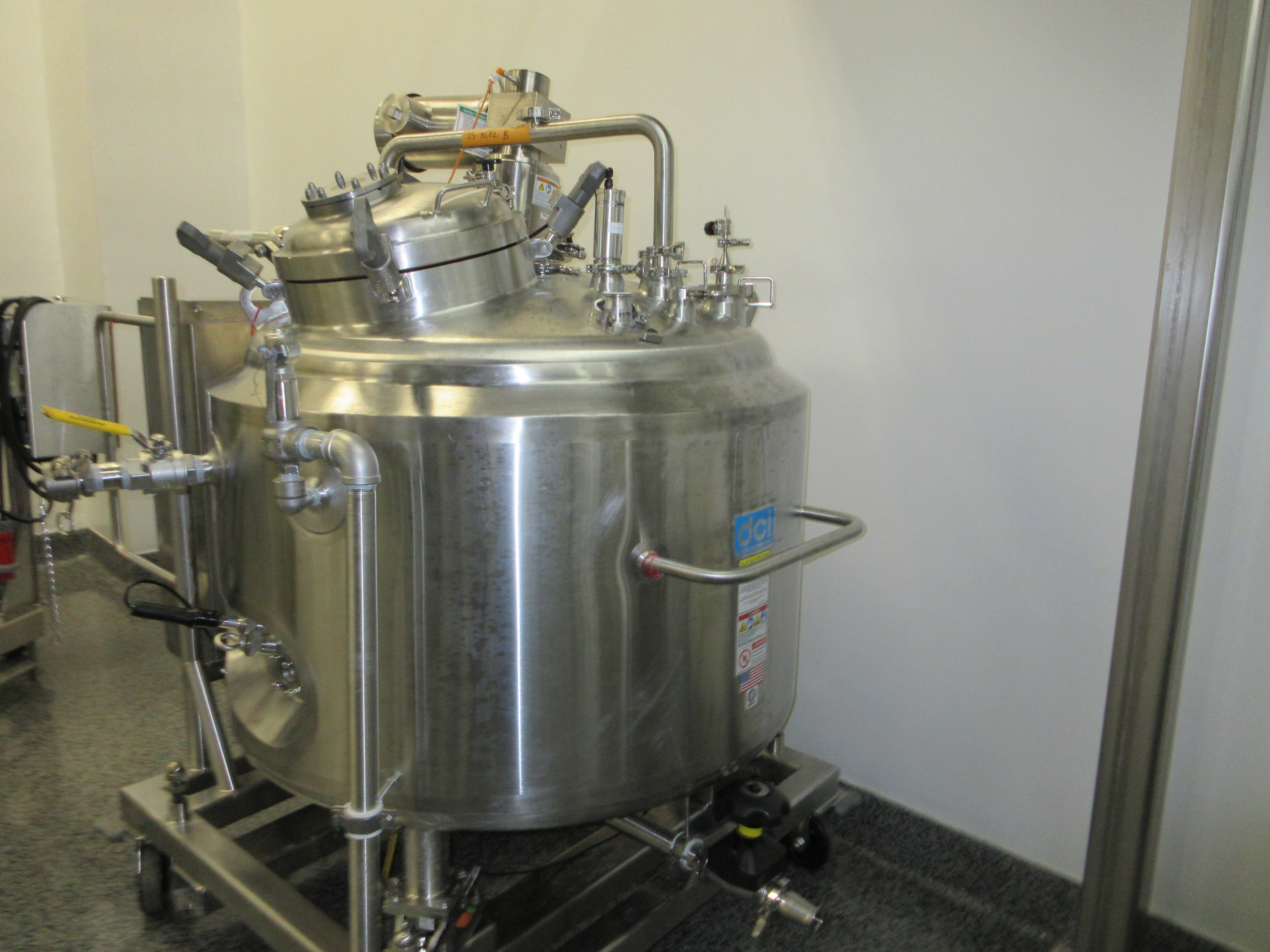

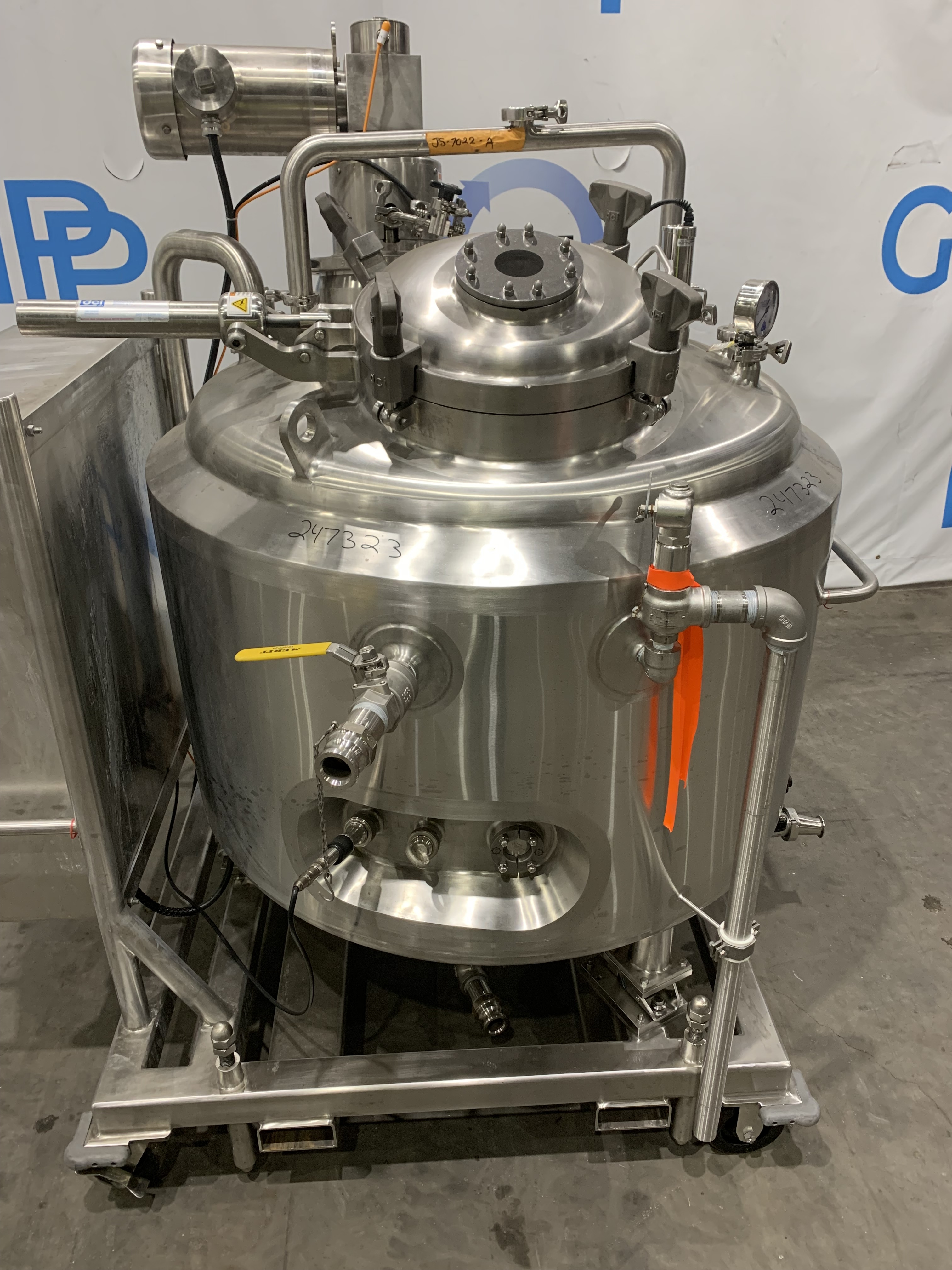

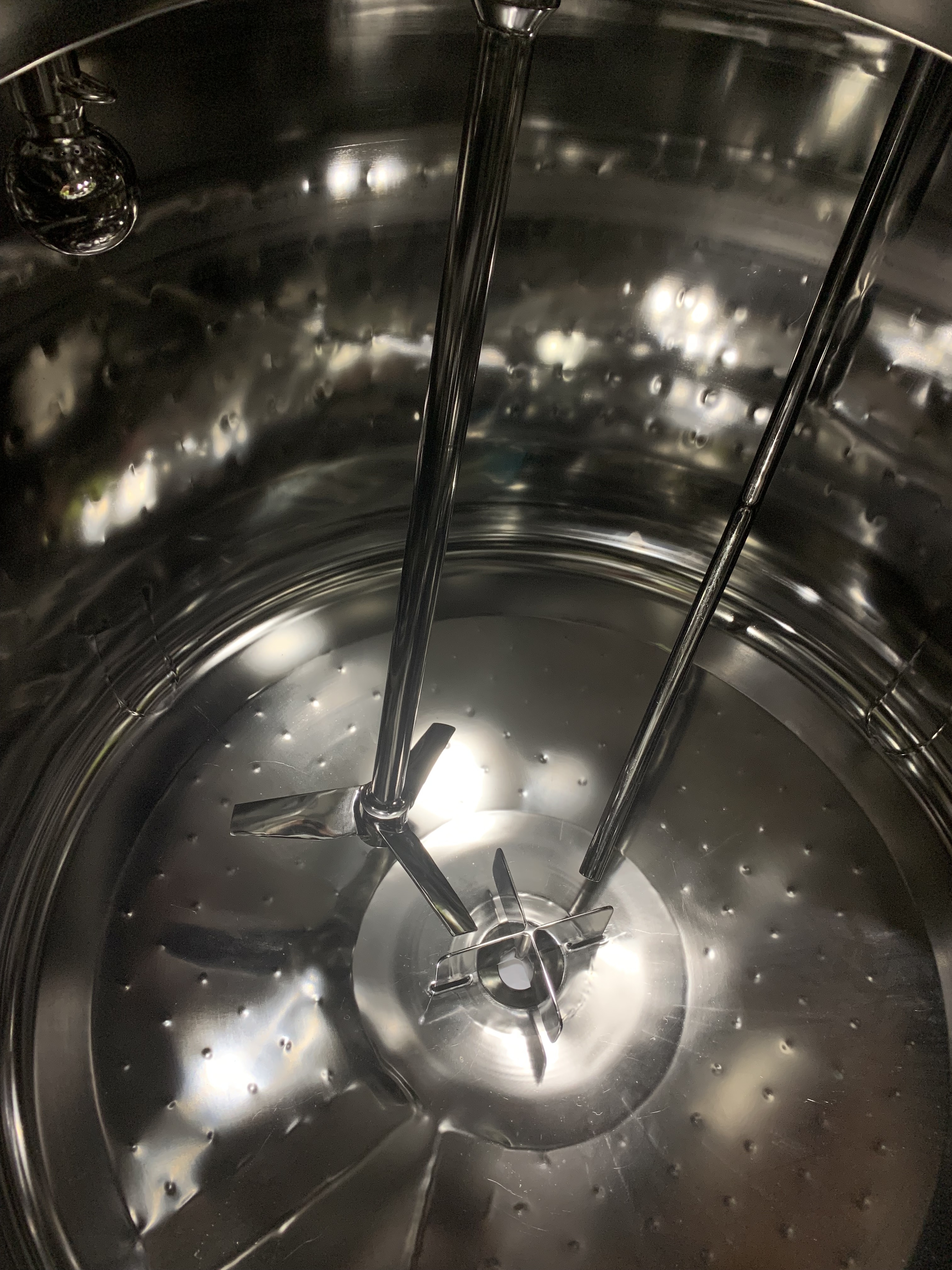

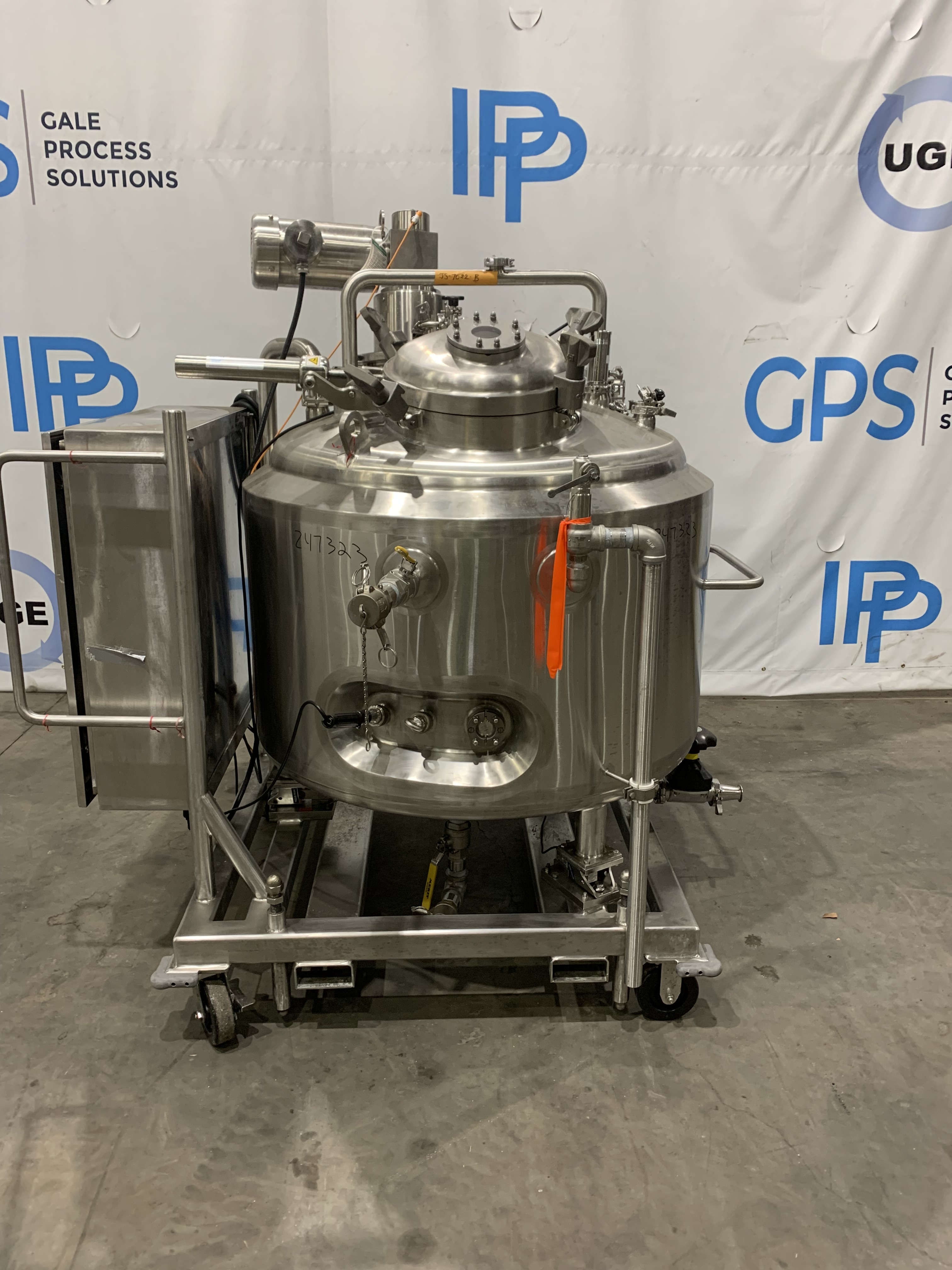

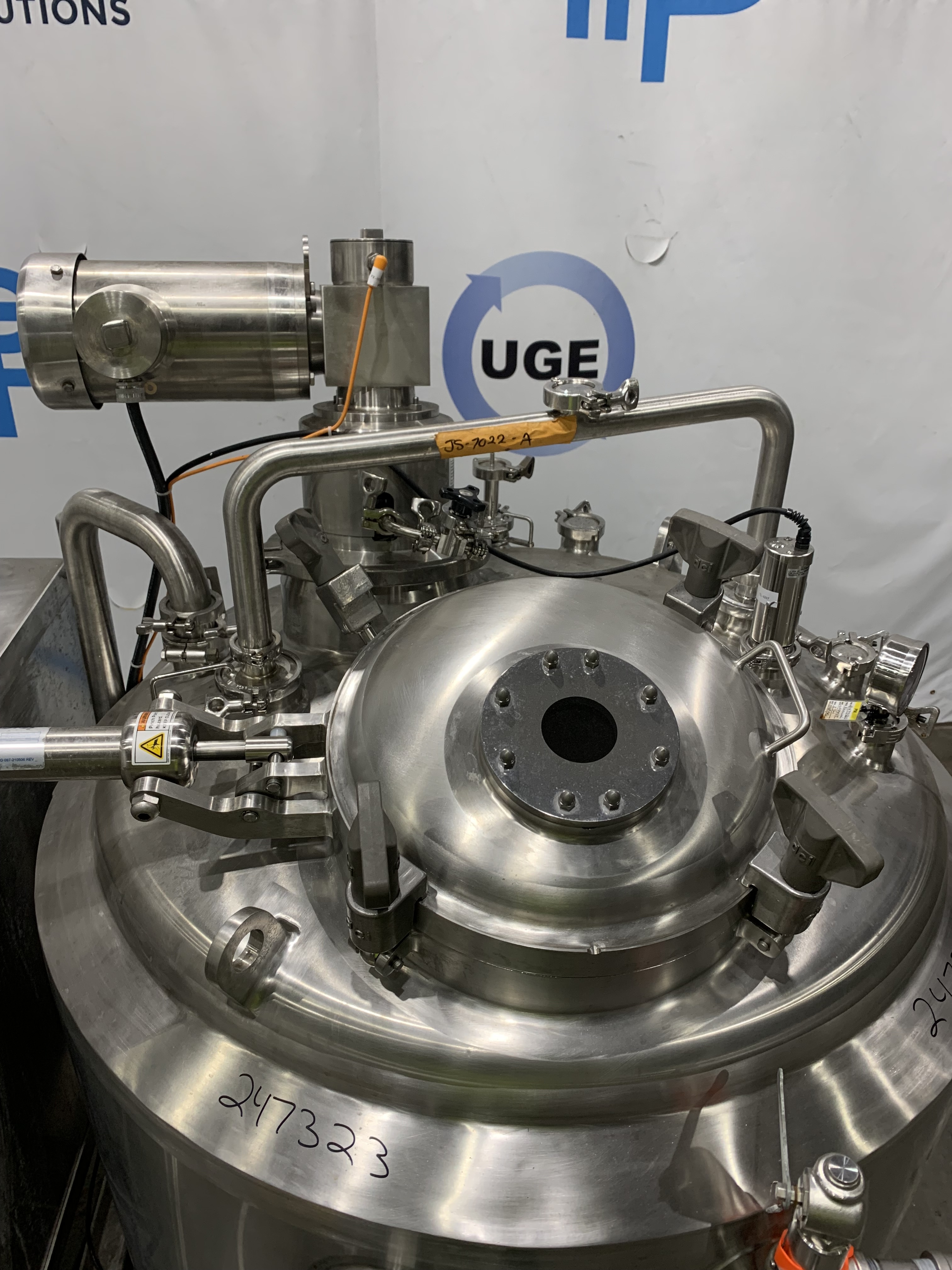

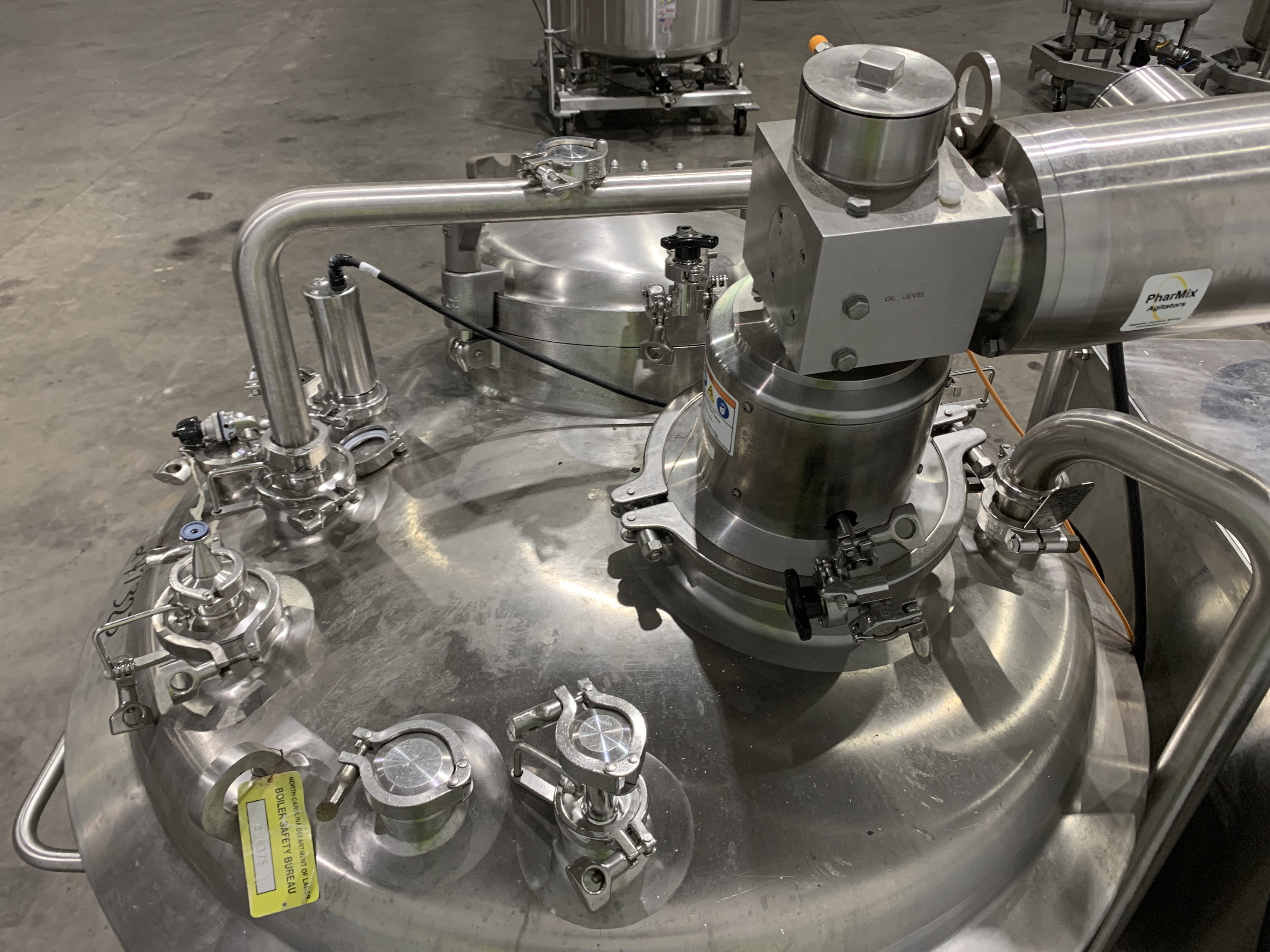

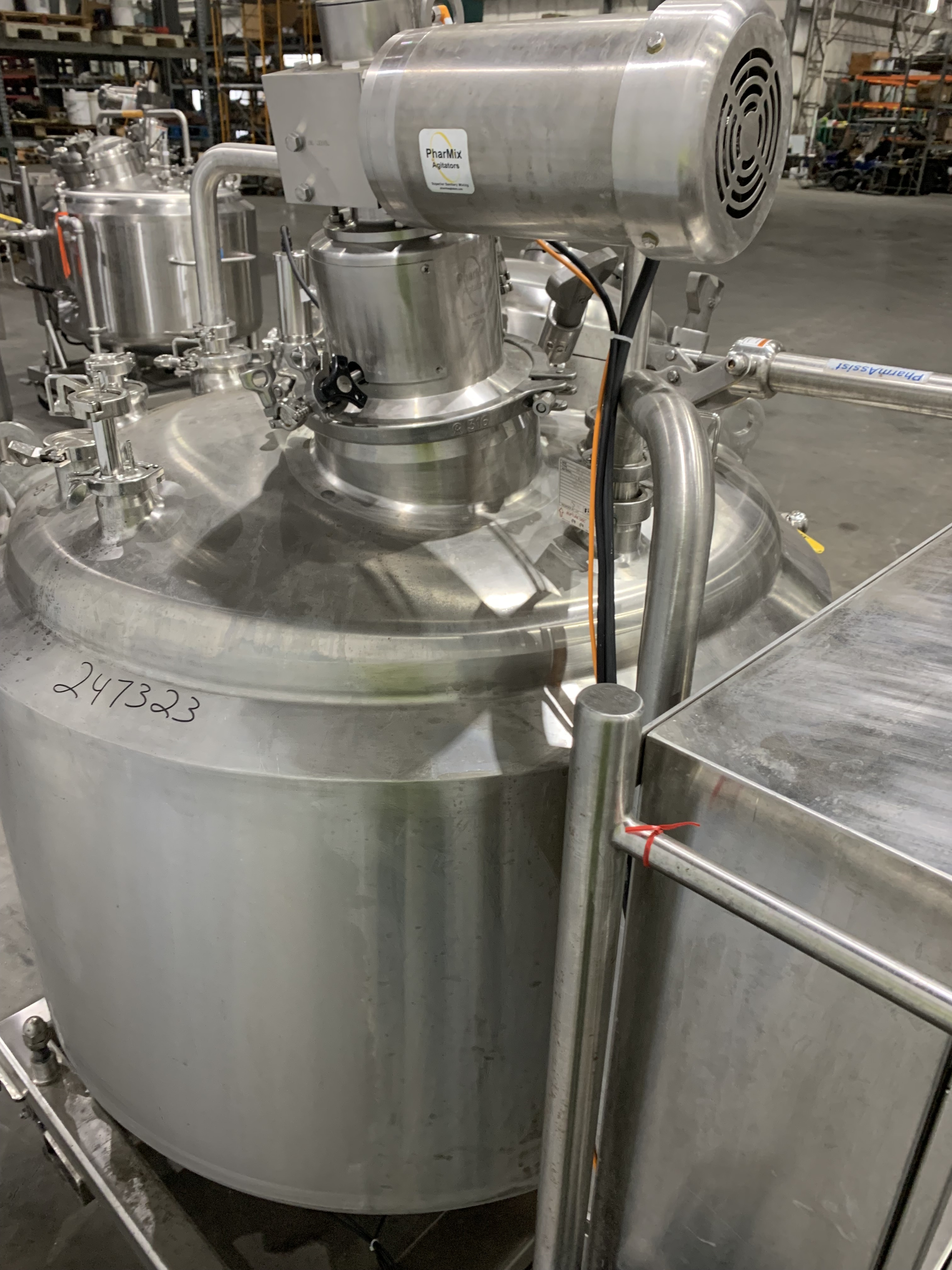

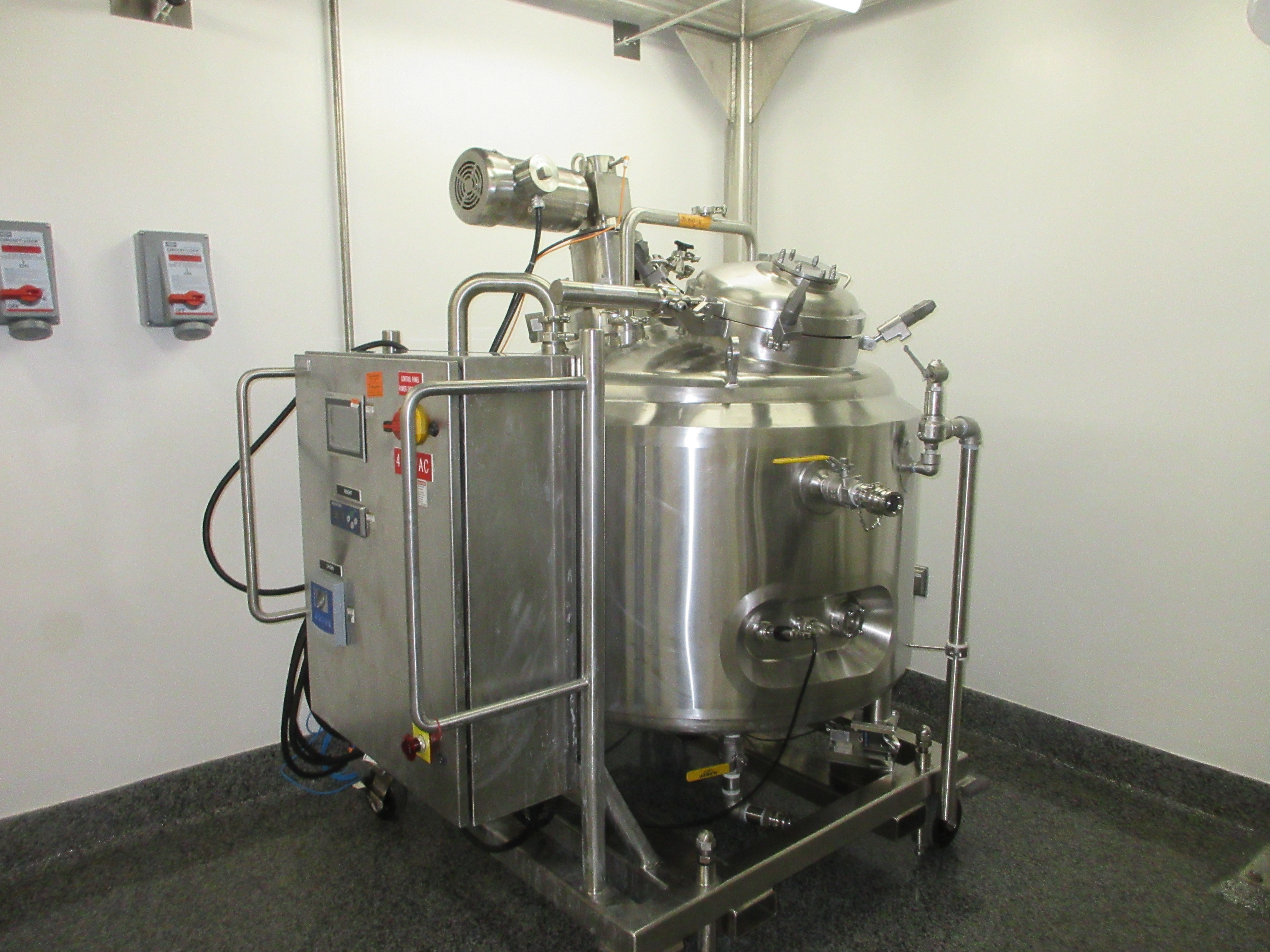

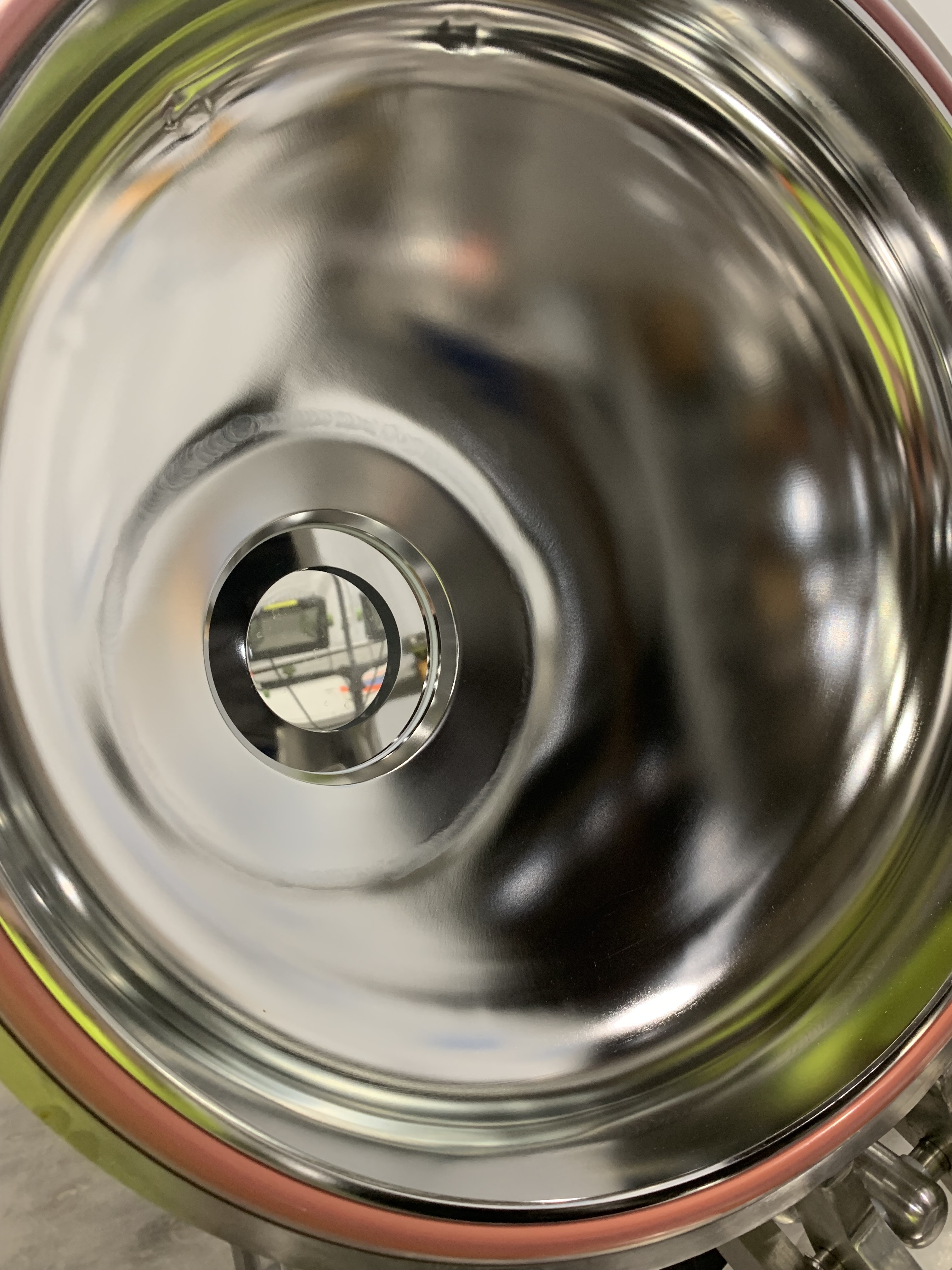

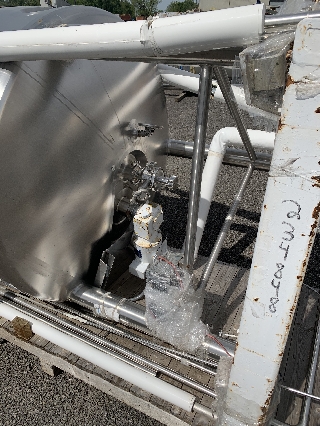

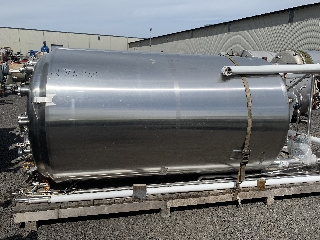

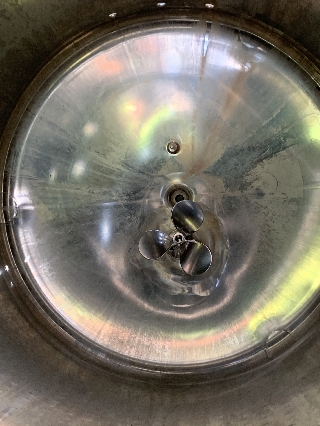

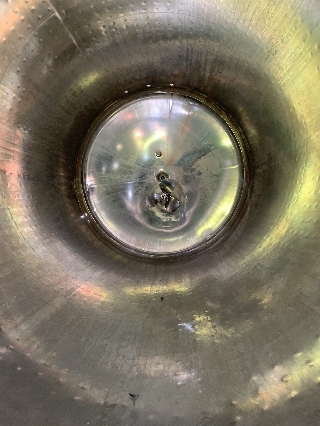

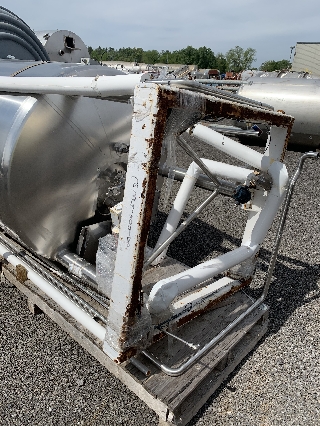

DCI, Inc. Batch-Type Agitated Reactor - IPP# 247323

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DCI, Inc.

Model: Bio Bulk Batch Vessel

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 3,000 L (793 gallons)

Internal Pressure: 3.1 bar (45 psi)

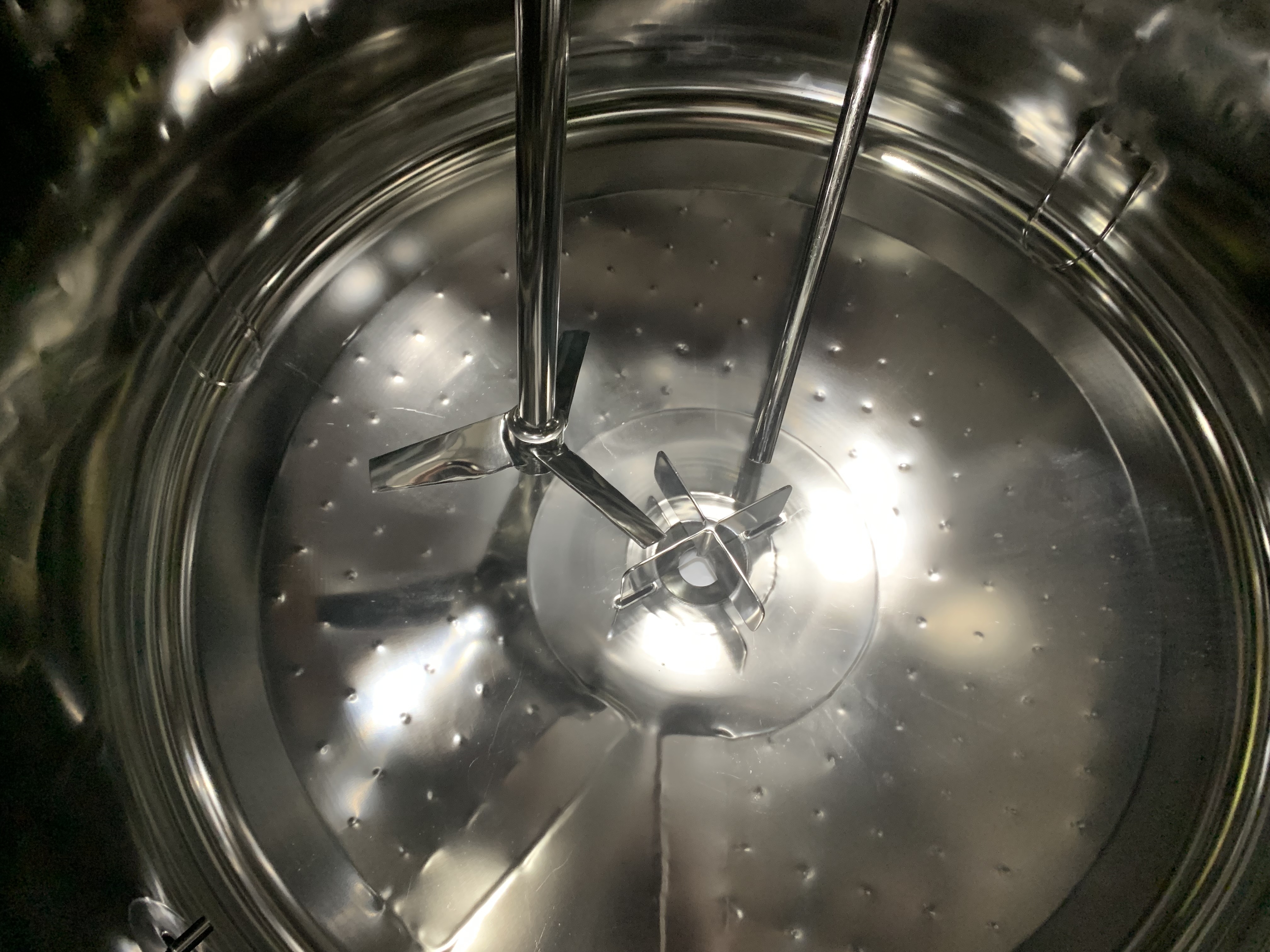

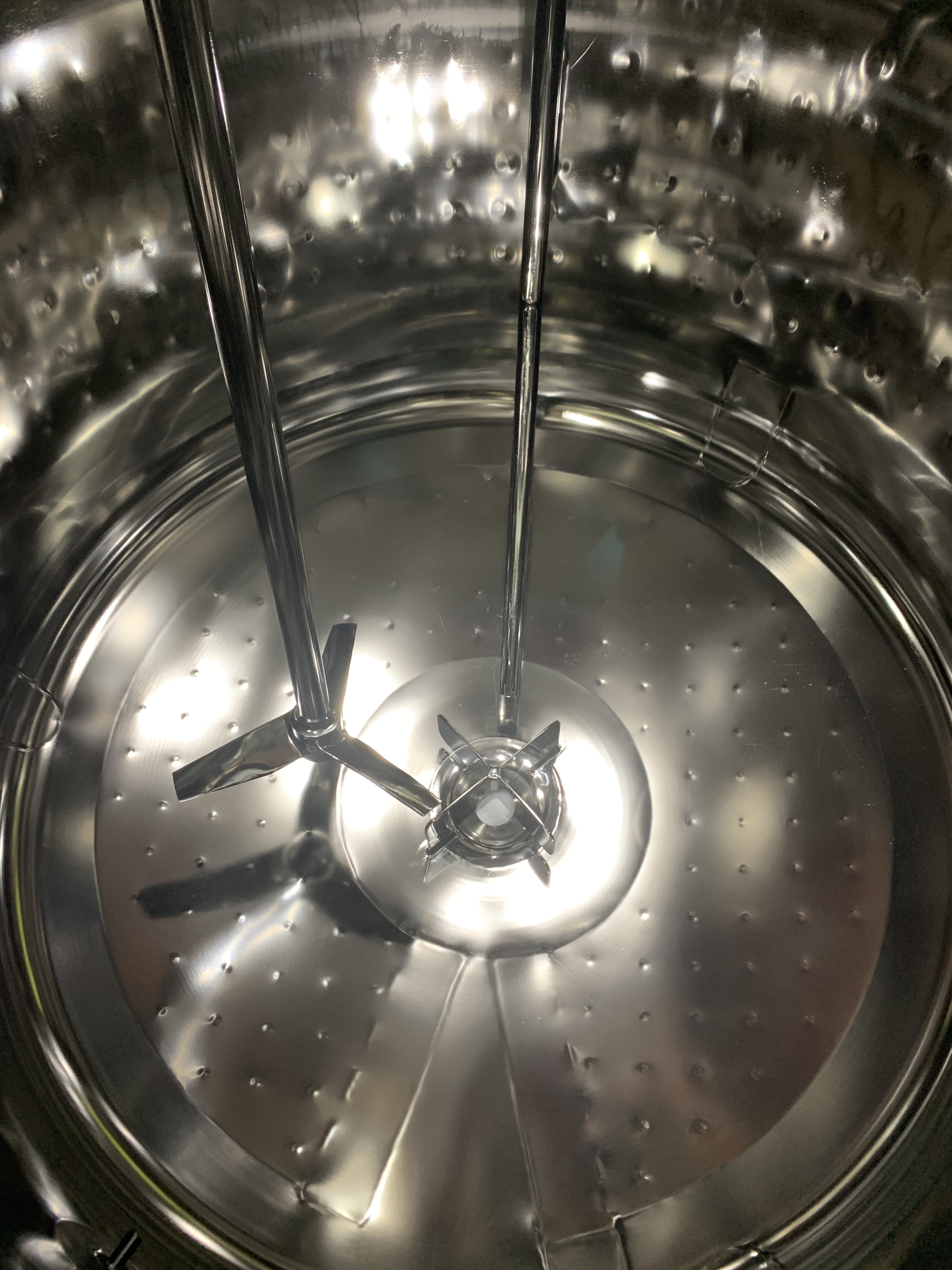

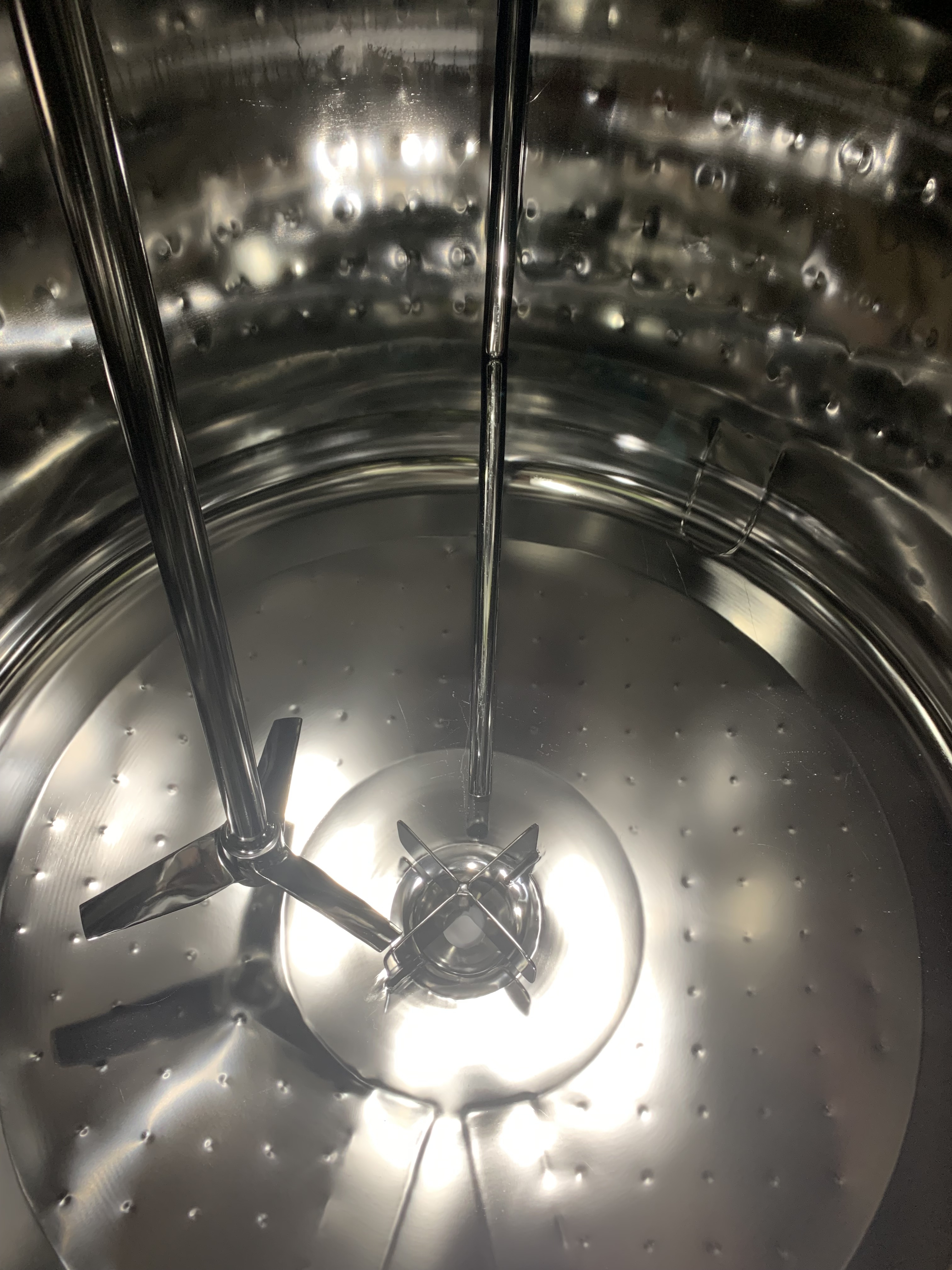

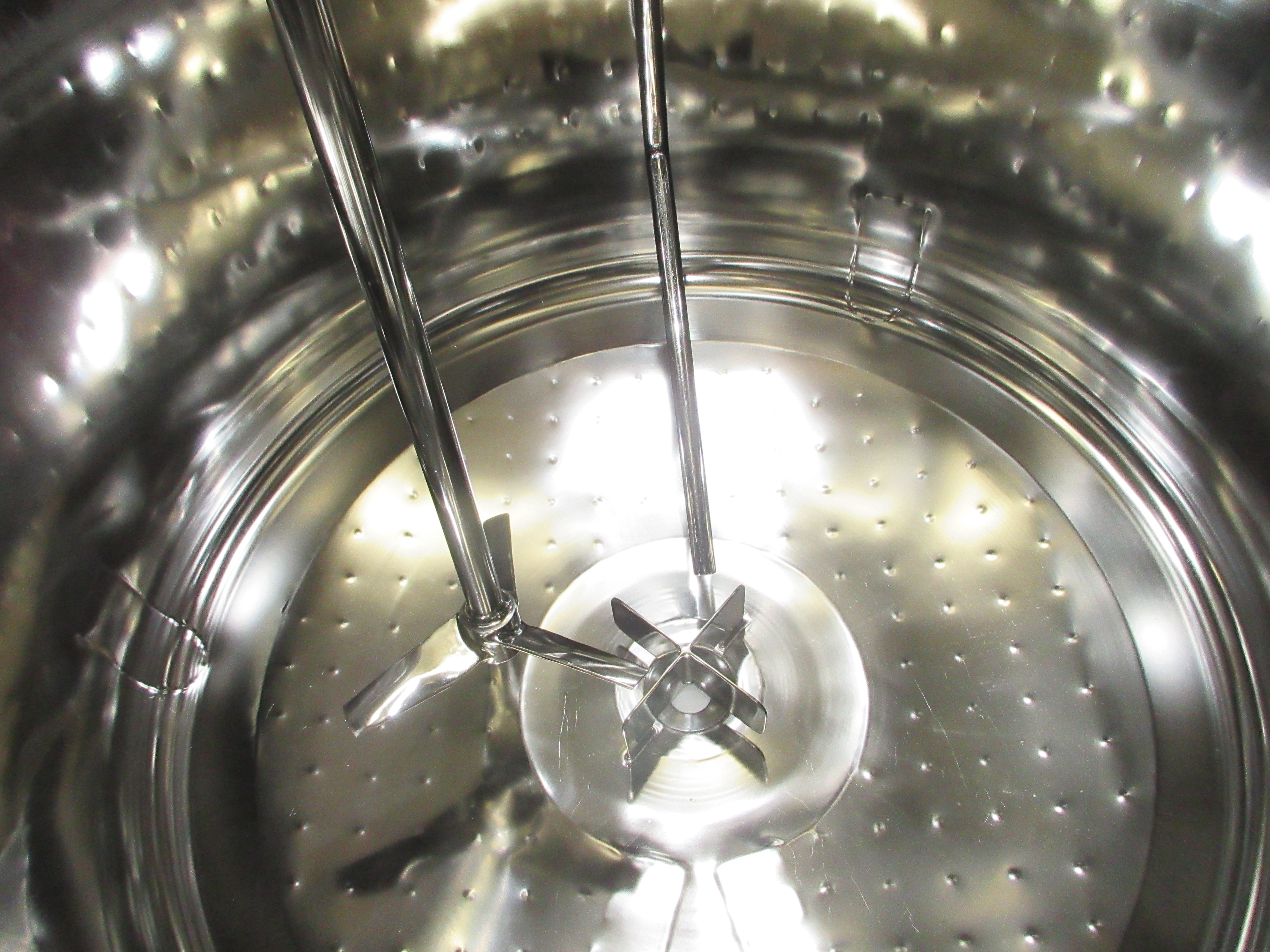

Internal Full Vacuum: Yes. Internal Temperature: 148.9 °C (300 °F). Sanitary Construction: Yes. Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes.

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 227 L (60 gallons)

Agitation: Yes

motor 3/50/400 volt

Diameter: 600 mm (23.6 in). Straight Side Length: 710 mm (28 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Johnson's Ltd

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 908 L (239.9 gallons)

Internal Pressure: 2.8 bar (40 psi)

Flange mounted Arton PVW mixer Mechanical seal on shaft motor 3/50/400/440 volt

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 4.3 bar (63 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Diameter: 1,100 mm (43.9 in). Straight Side Length: 837 mm (33 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 10,550 L (2,800 gallons)

Internal Pressure: 3.4 bar (50 psi)

• Working capacity: 6000 liters (57% full),
• (4) 316 stainless steel internal coils giving total heating surface area of 18.1 square meter, inner coil 50mm diameter x 7-vertical turns, heating surface 3.91 square meter, centre coil 50mm diameter x 7-vertical turns, heating/cooling surface 5.24 square meter, outer coil 50mm diameter x 7-vertical turns, heating surface 6.22 square meter, base coil 50mm diameter x 3-horizontal turns, heating surface 2.73 square meter.
• (3) 316 stainless steel internal baffles on sidewall,
• (1) 25mm diameter sparge pipe fitted on top nozzle.
• bottom outlet with hydraulic discharge valve, driven by compressed air, with air receiver,
• design code BS1515 Pt.2.

Internal Temperature: 300 °C (572 °F). Jacket Pressure: 5 bar (72.5 psi). Jacket Temperature: 300 °C (572 °F). Jacket Material of Construction: Stainless Steel 316. Orientation: Vertical. Agitation: Yes. Diameter: 1,950 mm (76.5 in). Straight Side Length: 3,000 mm (117.3 in). Support Type: Lugs.
