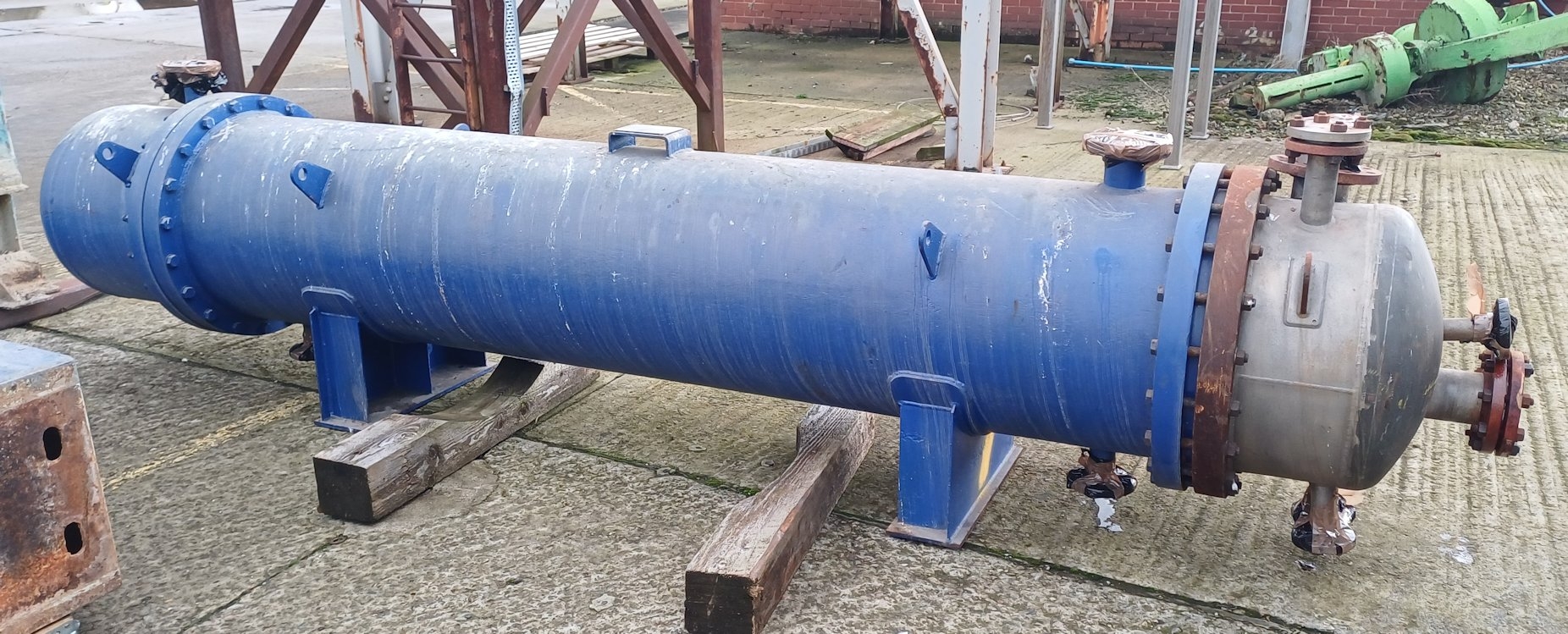

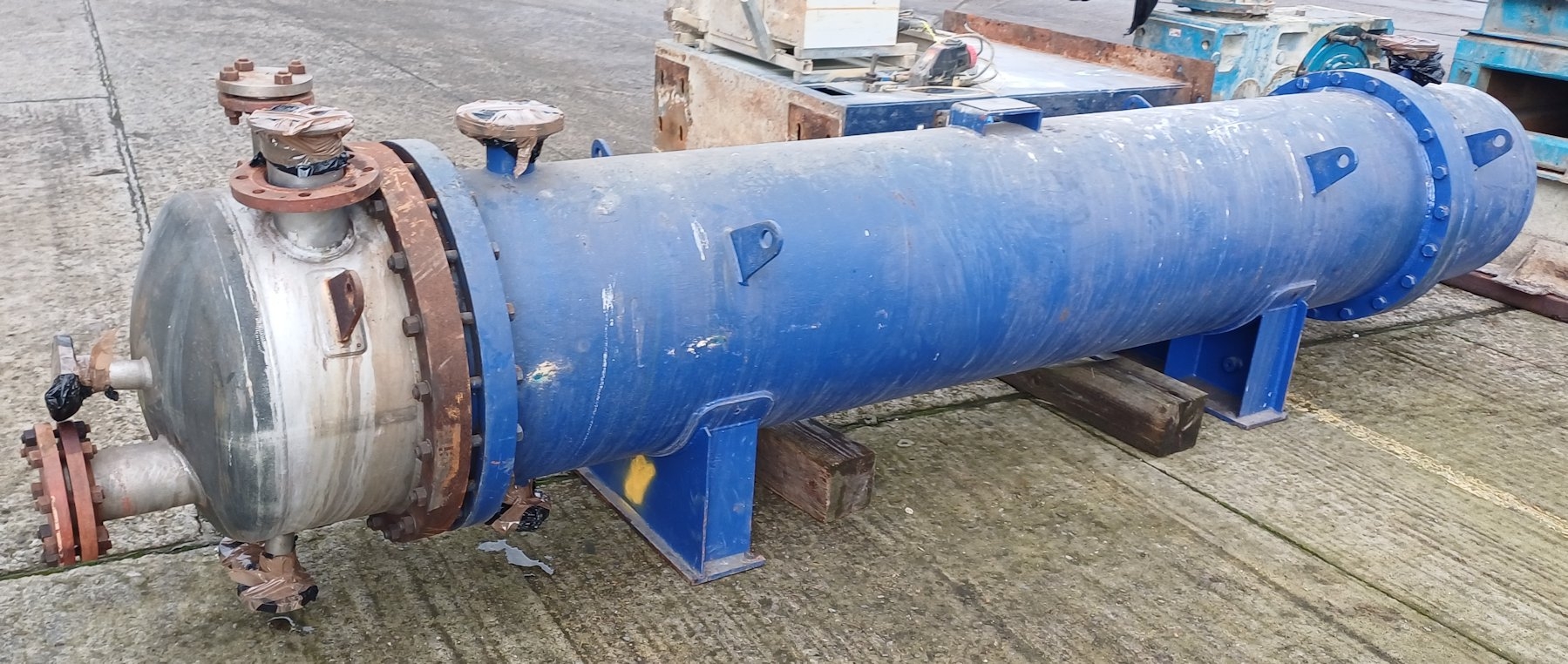

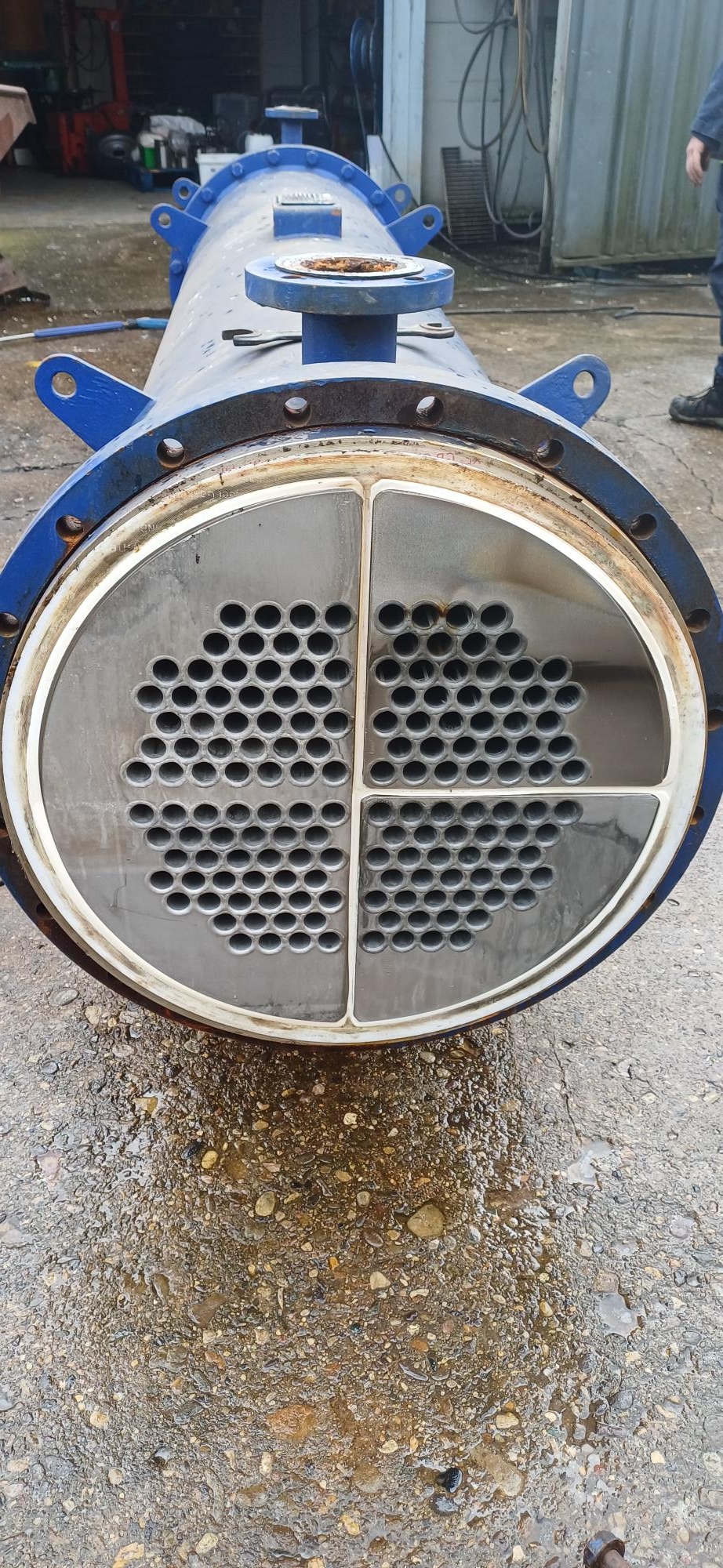

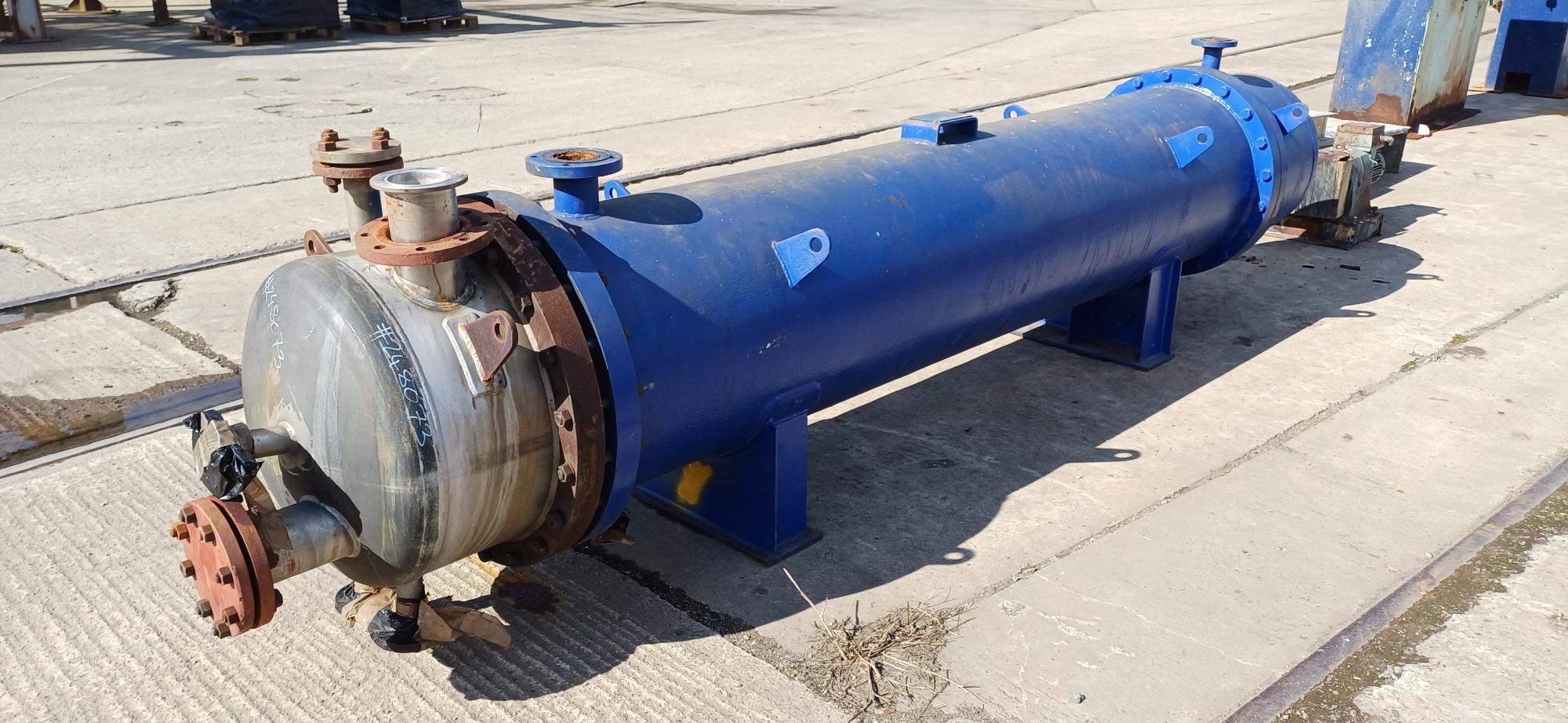

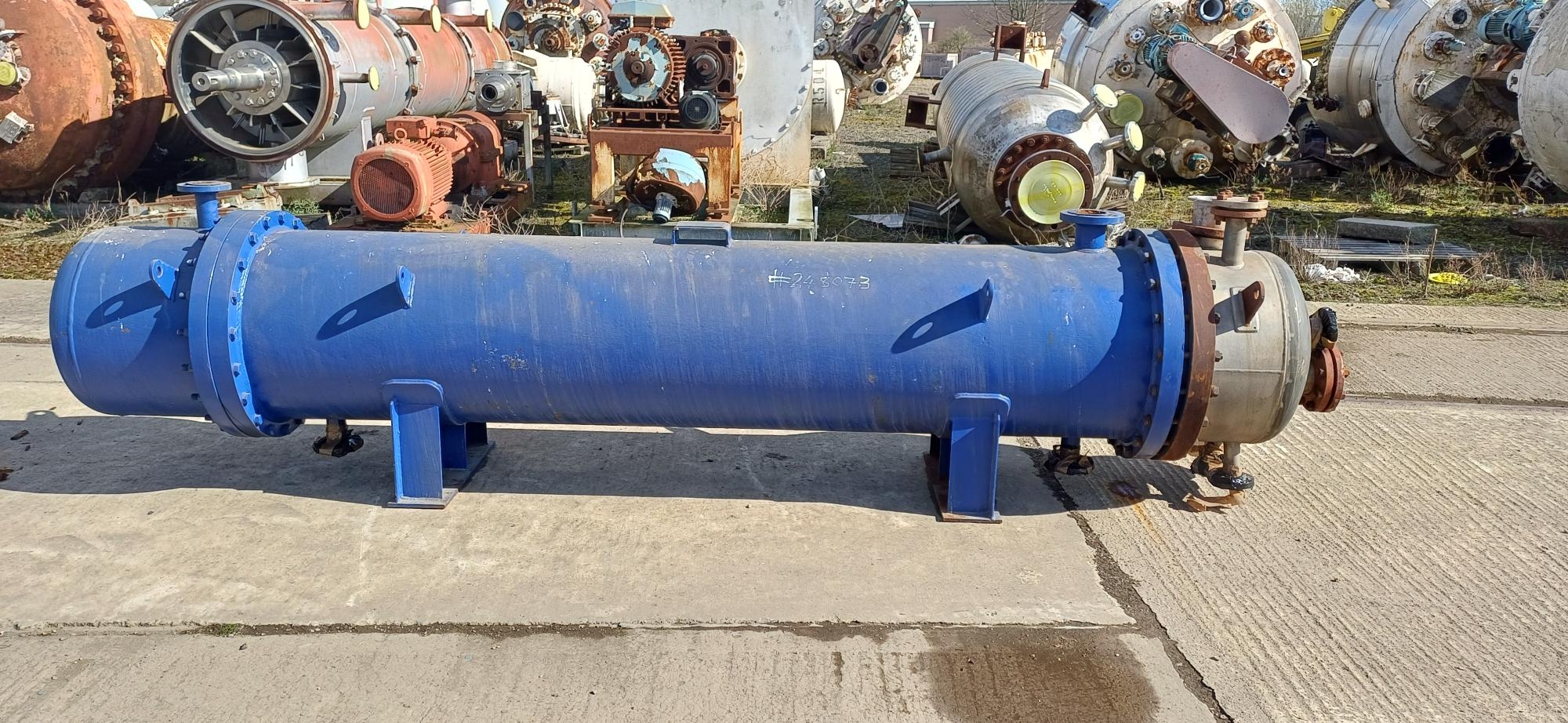

Hastelloy C276- 'U' Tube & carbon steel shell Horizontal Heat Exchanger - IPP# 248073

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Reactive Metal Fabricators Ltd

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 433 m² (4,650 ft²)

Orientation: Horizontal

Incolloy S25 expansion joint Design code: V111 DIV.1

Shell Pressure: 6.9 bar (99.9 psi). Shell Temperature: 187.7 °C (369.9 °F). Shell Material: Carbon Steel. Tube Pressure: 12.1 bar (174.9 psi). Tube Temperature: 171 °C (339.8 °F). Tube Material: Titanium. Tubesheet Material: Titanium. Shell Diameter: 1,250 mm (48.9 in). Head Material: Stainless Steel 317. Tube-side Passes: 2. Tube Number: 1,140. Tube Diameter: 25 mm (0.98 in). Tube Length: 4,850 mm (191.8 in). Nozzle Schedule: openings tube side: 1 head with 2-325mm with (2) 25mm off shoots, 1 head with none, shell side: 1-225mm, 1-75mm with a 32mm off shoot,.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Reactive Metal Fabricators Ltd

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 174.5 m² (1,900 ft²)

Orientation: Vertical

with expansion joint, (1) 316L stainless steel dished head, (1) 316L stainless steel coned reduction head, design code ASME V111 DIV.1 & TEMA 'R',

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 65 °C (149 °F). Shell Material: Carbon Steel. Tube Pressure: 17 bar (246.6 psi). Tube Temperature: 198.9 °C (390 °F). Tube Material: Stainless Steel 316. Head Material: Stainless Steel 316. Tube-side Passes: 1. Nozzle Schedule: opening tube side: dished head with 1-45mm, 1-15mm, reduction head with 1-600mm, 1-75mm, 1-50mm, shell: 2-150mm both with (3) 15mm off shoots, .

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Manning & Lewis

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 32.5 m² (350 ft²)

Orientation: Horizontal

• Duty: 2,900,000 BTU/hr
• Tema Registration Number: 11-00-99763 2 pass design

Shell Pressure: 48.3 bar (700 psi). Shell Temperature: 315.6 °C (600 °F). Shell Material: Stainless Steel 316. Tube Pressure: 48.3 bar (700 psi). Tube Temperature: 315.6 °C (600 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Head Material: Stainless Steel 316L. Length: 4,150 mm (163 in). Tube Type: Straight Tube. Tube Number: 155. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,350 mm (132 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell Side Inlet: 4' - Shell Side Outlet: 8' - Tube Side Inlet: 8' - Tube Side Outlet: 8'.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas Industrial

Model: 20-42 BEM

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 19.6 m² (211 ft²)

Orientation: Vertical

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy - C276. Length: 1,000 mm (40.3 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 324. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,000 mm (40 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: Two 6", two 3", Two 1", one 0.75".
