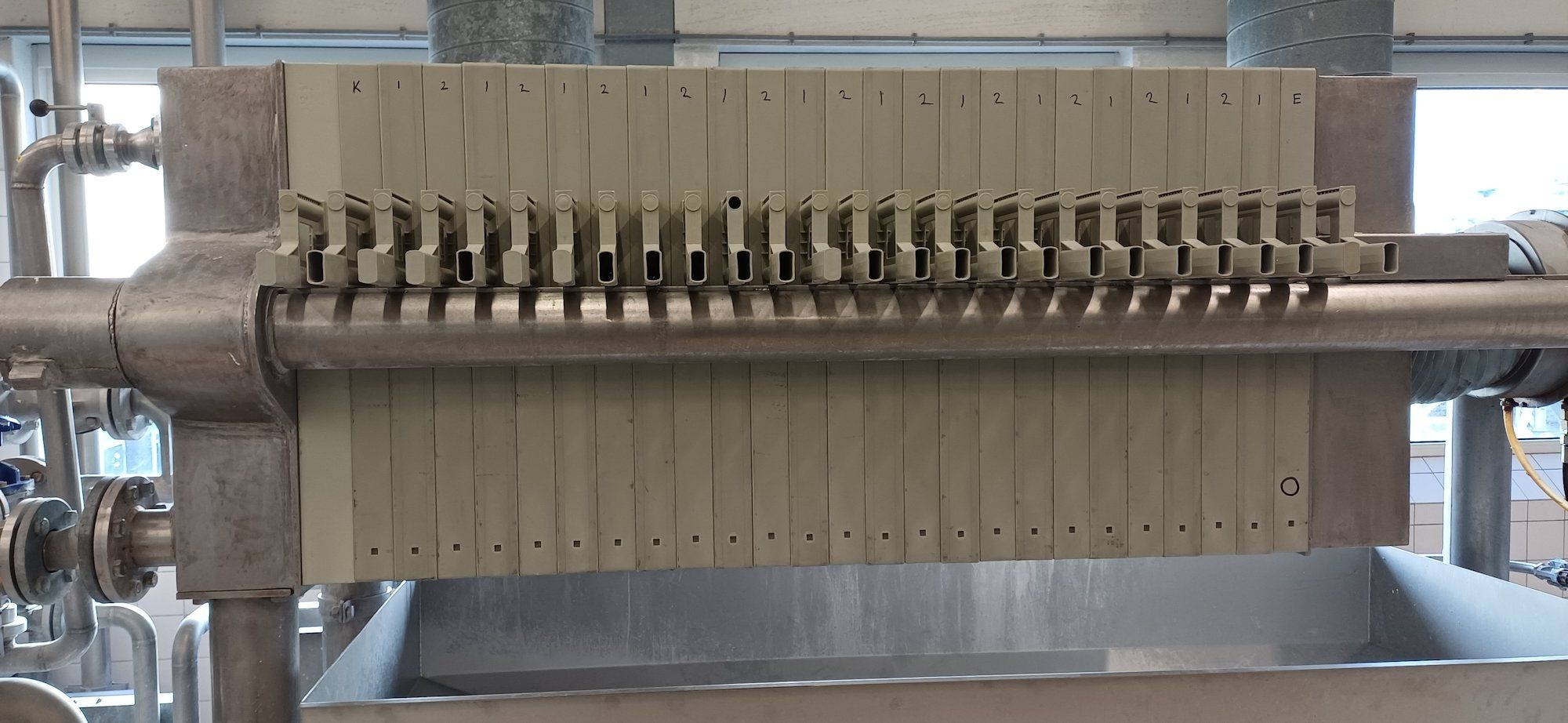

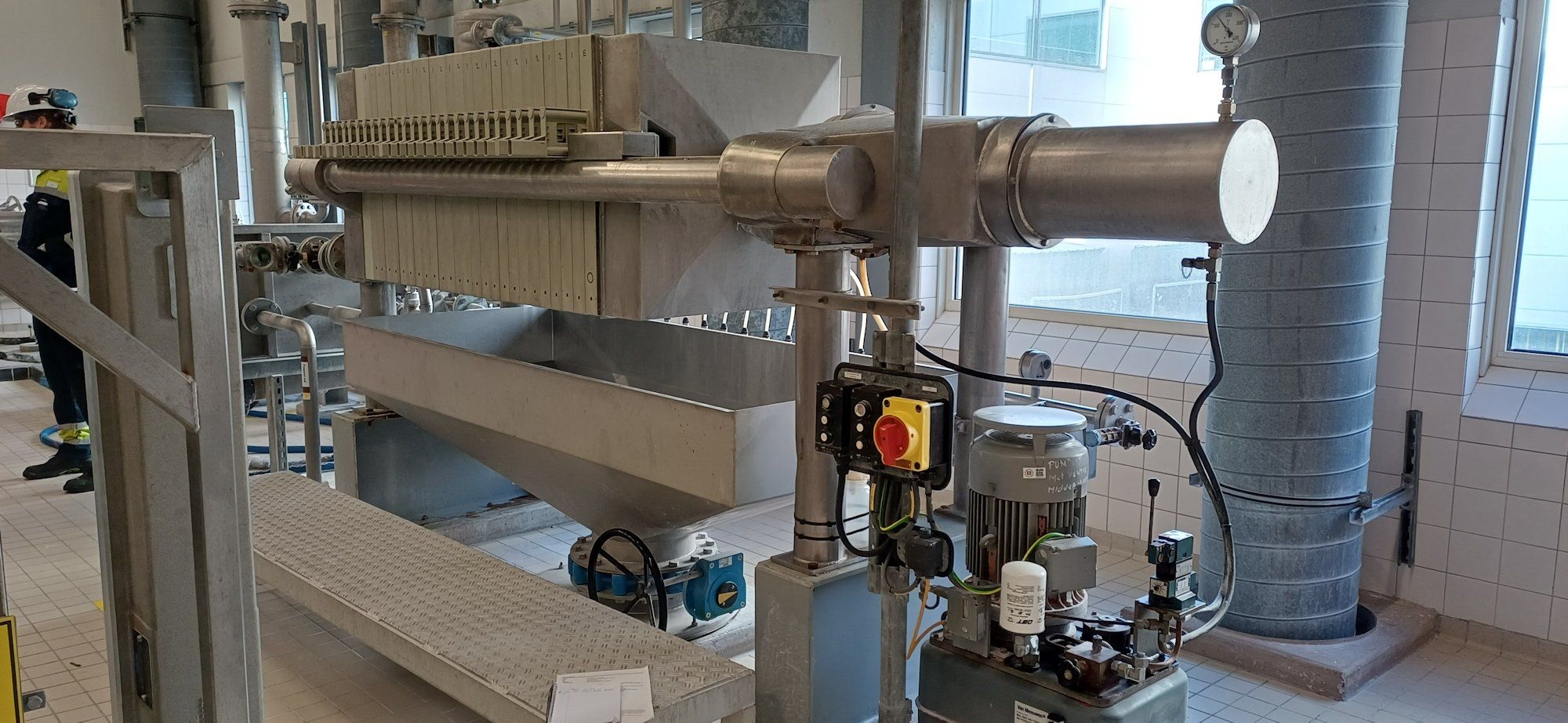

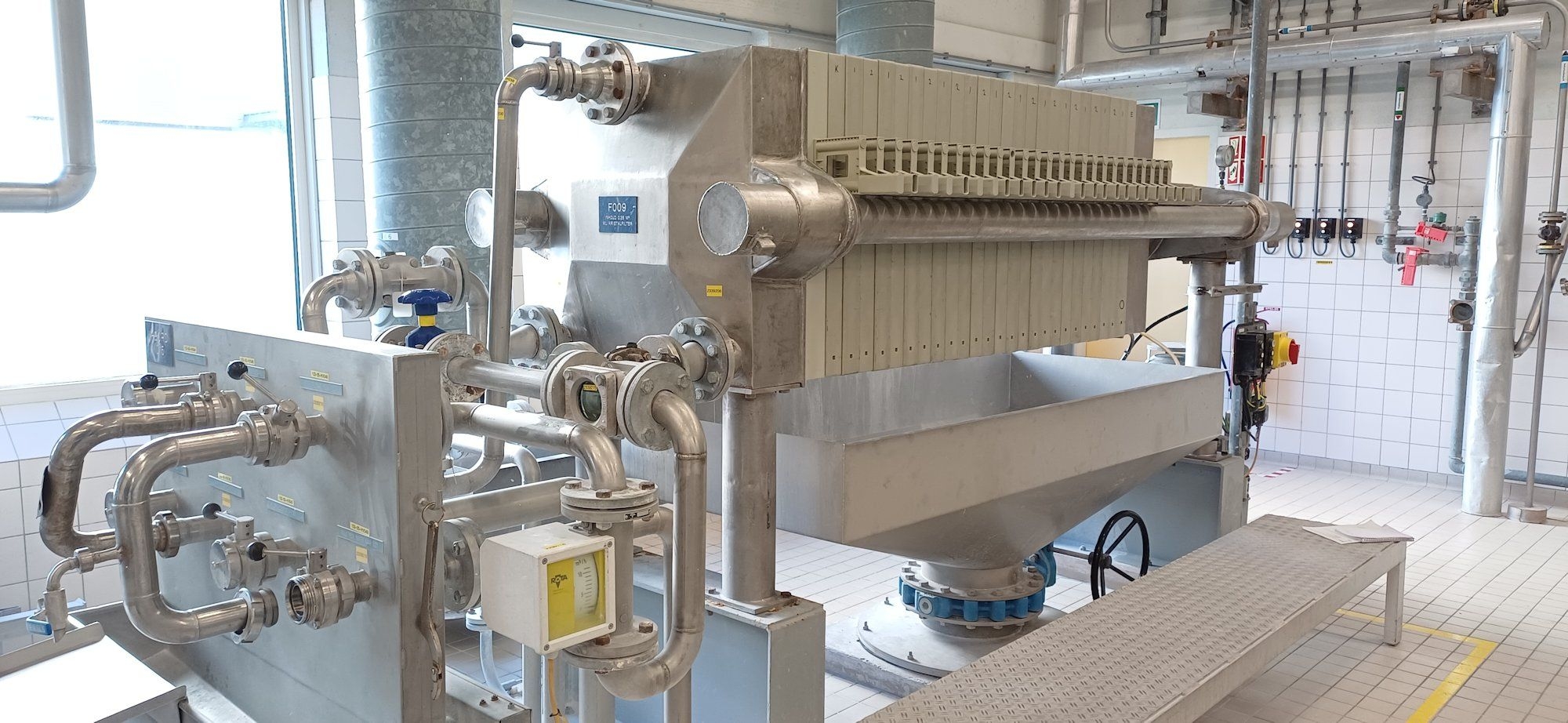

Polypropylene 1100 x 1100mm Membrane Filter Press - IPP# 248267

Type: Filter

Subtype: Press

Manufacturer: Bethlehem Corp

Condition: Used

Material: Polypropylene

Filtration Area: 3.2 m² (34.8 ft²)

Cake Volume: 0.03 m3 (1.2 ft3)

• Unit has 10 chambers recessed plates with 1/2" recess for forming 1" thick cake. 4 corner closed discharge,
• Unit has an air over oil compensating pump.

Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 10. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 457.2 mm (18 in). Plate Height: 457.2 mm (18 in). Plate Thickness: 12.7 mm (0.5 in). Plates Recessed: Yes. Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

Condition: Used

Material: Polypropylene

Filtration Area: 62.4 m² (672 ft²)

Pressure: 6 bar (87 psi)

• Recessed filter press. 62.4 square meter filter area, can be expanded to (60) plates (96 sq. meter).
• 4 eye center feed.
• Motorized hydraulic closure. Rated 170-200 bar.
• With safety mirrors,
• Cake thickness approx. 30 mm. Filter volume approx. 0.88 cu meter.
• Filter plates are suspended from an overhead beam.

Cake Volume: 0.88 m3 (31.1 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 39. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Shifter: Yes. Plates Recessed: Yes. Plates Shifted By: Automatic.

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

Condition: Used

Material: Polypropylene

Filtration Area: 62.4 m² (672 ft²)

Pressure: 6 bar (87 psi)

• Recessed filter press. 62.4 sq meter filter area, can be expanded to (60) plates (96 sq meter).
• 4 eye center feed,
• Motorized hydraulic closure. Rated 170-200 bar. With safety mirrors, Cake thickness approx 30 mm.
• Filter plates are suspended from an overhead beam.

Cake Volume: 0.88 m3 (31.1 ft3). Filter Press Plate Type: Gasketed Recessed. Number of Plates: 39. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Shifter: Yes. Plates Shifted By: Automatic.

Type: Filter

Subtype: Press

Manufacturer: Seitz Enzinger

Model: 40/60

Condition: Used

Material: Polypropylene

Filtration Area: 5.2 m² (55.4 ft²)

Pressure: 6 bar (87 psi)

• Seitz Enzinger plate and frame filter press with(4) eye.
• Manual Screw closure

Cake Volume: 0.002 m3 (0.07 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 24. Number of Plates: 23. Plate MOC: Polypropylene. Skeleton MOC: 304 SS. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in). Plate Thickness: 12 mm (0.47 in). Plates Shifted By: Manual.
