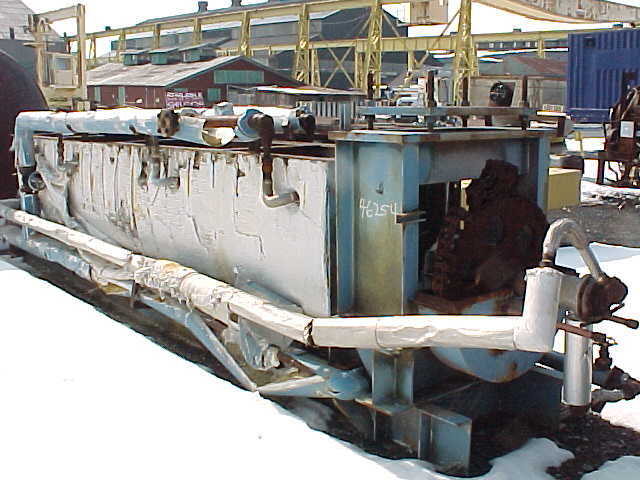

Carbon Steel Gale Process Solutions 1P3018JTC Dryer-Porcupine - IPP# 46254

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203JTB

Condition: Used

Material: Carbon Steel

Shell Configuration: Trough

Operational Mode: Batch

• Heating medium is hot oil or steam
• Vessel rated 20 psig and full vacuum
• Working volume 2.10 cubic feet
• Agitator 15 square feet of heating area and 9 square feet on the jacket
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Jacket Surface Area: 0.84 m² (9 ft²). Porcupine Surface Area: 1.39 m² (15 ft²). Jacket Operating Pressure: 3.4 bar (50 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 2.2 m² (24 ft²).

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203JT

Condition: Used

Material: Carbon Steel

Shell Configuration: Trough

Diameter: 304.8 mm (12 in)

• porcupine processor Unit has 2.10 cu ft operating volume
• 15 sq ft porcupine surface 9 sq ft jacket surface
• Should be a candidate for scrap
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.84 m² (9 ft²). Porcupine Surface Area: 1.39 m² (15 ft²). Jacket Operating Pressure: 3.4 bar (50 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 2.2 m² (24 ft²).

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 2Q3016UTC-R

Condition: Used

Material: Carbon Steel

Shell Configuration: Trough

Operational Mode: Continuous

• 30" dia x 16' long twin shaft porcupine processor
• Vaportight trough
• Both Rotors have a combined 392 sq ft of heating surface
• Approximately 140 cubic foot trough capacity
• Trough not jacketed
• Shaft speed 14 rpm
• UL label
• 30" vapor outlet on top cover, 12" x 12" feed port, 13" x 19" quick opening inspection door, 8" bottom clean outside discharge
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 762 mm (30 in). Length: 4,877 mm (192 in). Number of Shafts: 2. Porcupine Surface Area: 36.4 m² (392 ft²). Porcupine Operating Pressure: 5.2 bar (75 psi). Porcupine Operating Temperature: 104.4 °C (220 °F).

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P3012

Condition: Used

Material: Carbon Steel

Shell Configuration: Trough

Diameter: 762 mm (30 in)

• With drive and panel coils utilizing steam as the heat transfer medium agitator is ;142 sq. ft Trough is; 208 sq. ft
• The working volume is, 39.3 cu.ft It has a single shaft design supported by pillow block bearings with packing glands on shaft output rpms, 37 Ratio:48:11 service rating HP= 35.1
• Motor:80/40 amps3 phase AC electric motor Trough heating by four separate Tranter plate coils designed for 150 psi at 375 degrees F All have 1" inlets and outlets with weld neck flanges Serial and NB numbers are a follows: NB # 22173-SN PC13125; NB # 22174 SN # PC13126, NB # 22176 SN # PC 13128, NB # 22175 SN # PC 13127
• Bottom opening *' valve with Jamsbury automatic actuator Steam lines to rotary joint are 1.5" inlet & outlet
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Length: 3,658 mm (144 in). Number of Shafts: 1. Porcupine Surface Area: 13.2 m² (142 ft²). Total Heat Transfer Surface Area: 32.5 m² (350 ft²).
