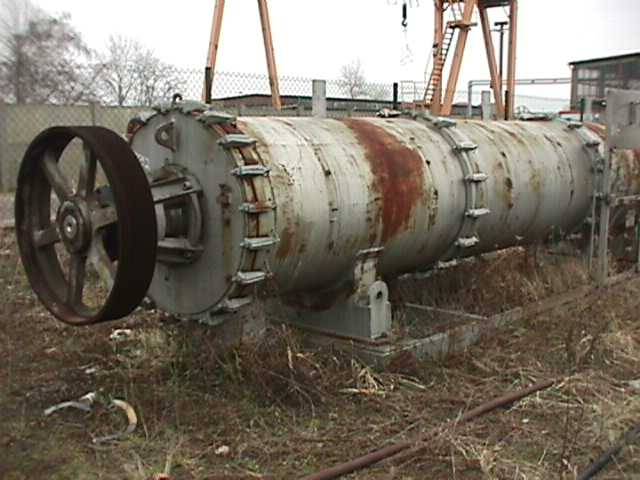

IPP# 70252 - Wiped/Thin Film Evaporator Stainless Steel 316 For Sale

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Artisan

Model: R-49-3-1H-70

Condition: Used

Material: Stainless Steel 316

Evaporation Rate: 181 kg/h (400 lb/h)

Total Heat Transfer Surface Area: 7.43 m² (80 ft²)

Kontro wiped film evaporator
shell rated 25 psi @ 750 deg F. Jacket rated 65 psi @ 750 degree F.
Has removable 18" diameter rotor. Mechanical seal. Has 1/2 CS jacket with expansion joint. Has outboard bearings. Has 12" diameter inlet, 8" diameter outlet. Belt driven by 40 HP, 3/60/208/220/440 volt, 885 rpm motor, UL label.

Orientation: Horizontal. Diameter: 1,067 mm (42 in). Height: 2,134 mm (84 in). Pressure: 1.72 bar (25 psi). Temperature: 399 °C (750 °F). Mechanical Seal on Shaft: Yes.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Model: D-850/4700/10

Condition: Used

Material: Stainless Steel 316

Evaporation Rate: 268 kg/h (590 lb/h)

Total Heat Transfer Surface Area: 11 m² (118 ft²)

Jkt rated 13 bar @ 220 deg C
Shell 850mm (34") dia x 4800mm (15.8') long,
Rotor driven by 30 KW, 3/50/380 volt, 260 rpm output speed.

Orientation: Horizontal. Diameter: 850 mm (33.5 in). Height: 4,800 mm (189 in). Pressure: 0.5 bar (7.25 psi). Temperature: 220 °C (428 °F). Vacuum: Yes.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Condition: Used

Material: Stainless Steel 316

Evaporation Rate: 11.3 kg/h (25 lb/h)

Total Heat Transfer Surface Area: 0.502 m² (5.4 ft²)

wiped film evaporator/filmtruder body only.

jkt rated 227 psi @ 392 deg F.

Diameter: 152 mm (6 in). Height: 1,829 mm (72 in). Pressure: 6.89 bar (100 psi). Temperature: 350 °C (662 °F). Vacuum: Yes.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Condition: Used

Material: Stainless Steel 316

Evaporation Rate: 11.3 kg/h (25 lb/h)

Total Heat Transfer Surface Area: 0.502 m² (5.4 ft²)

wiped film evaporator/filmtruder body only.
Jkt rated 16 psi.
6" dia x 5'6" long.

Orientation: Vertical. Diameter: 152 mm (6 in). Height: 1,676 mm (66 in). Pressure: 1.1 bar (16 psi).
