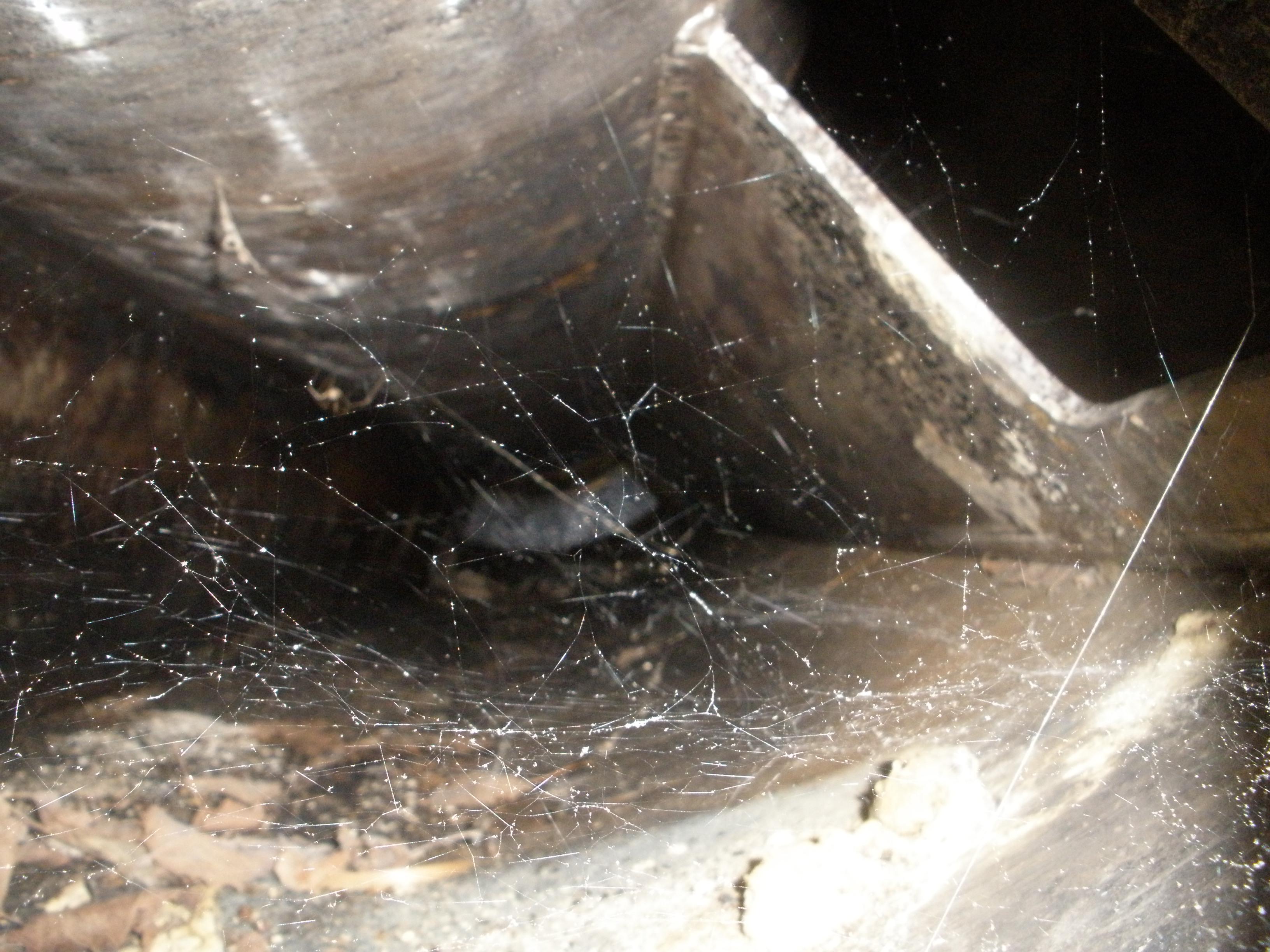

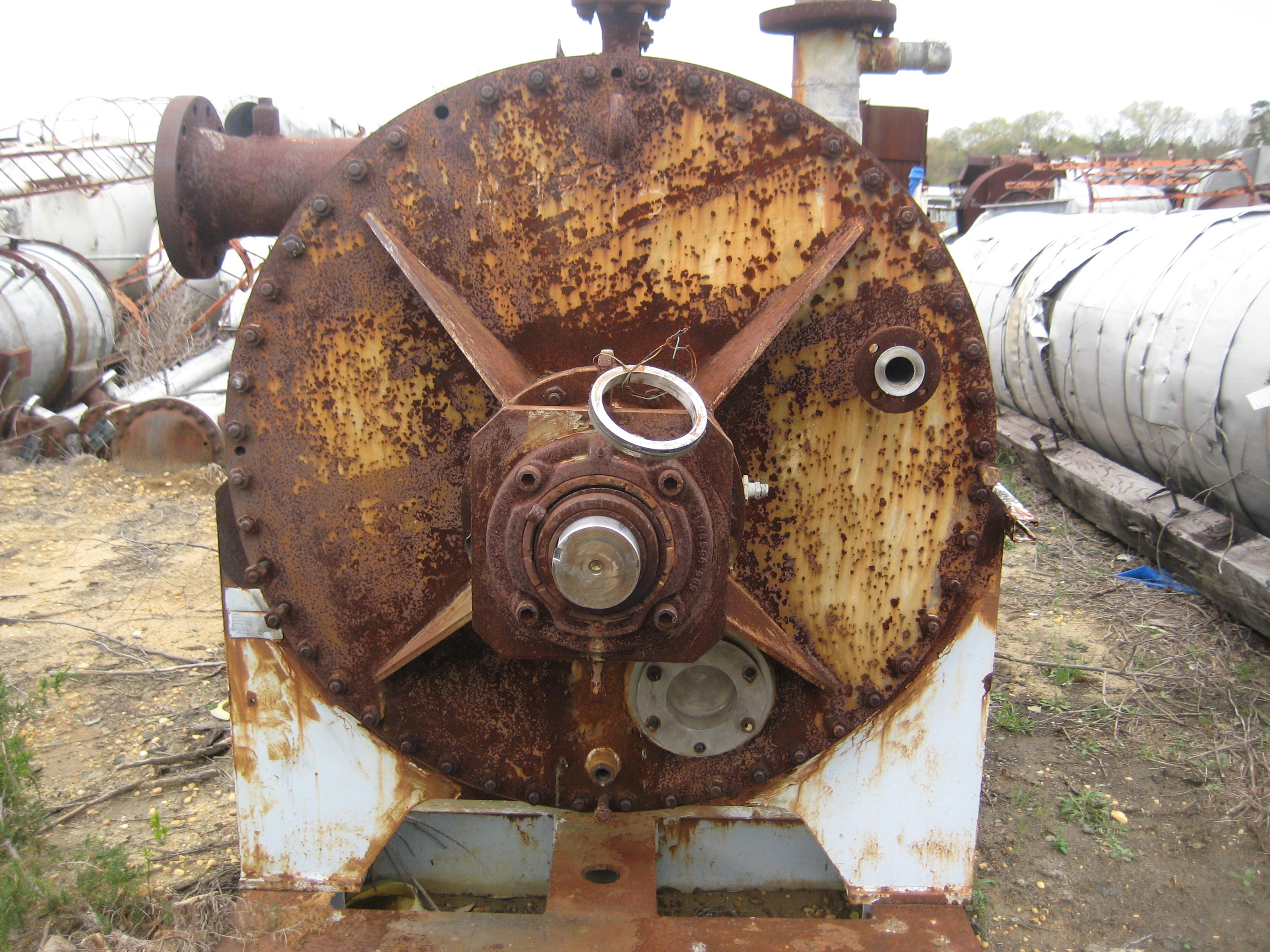

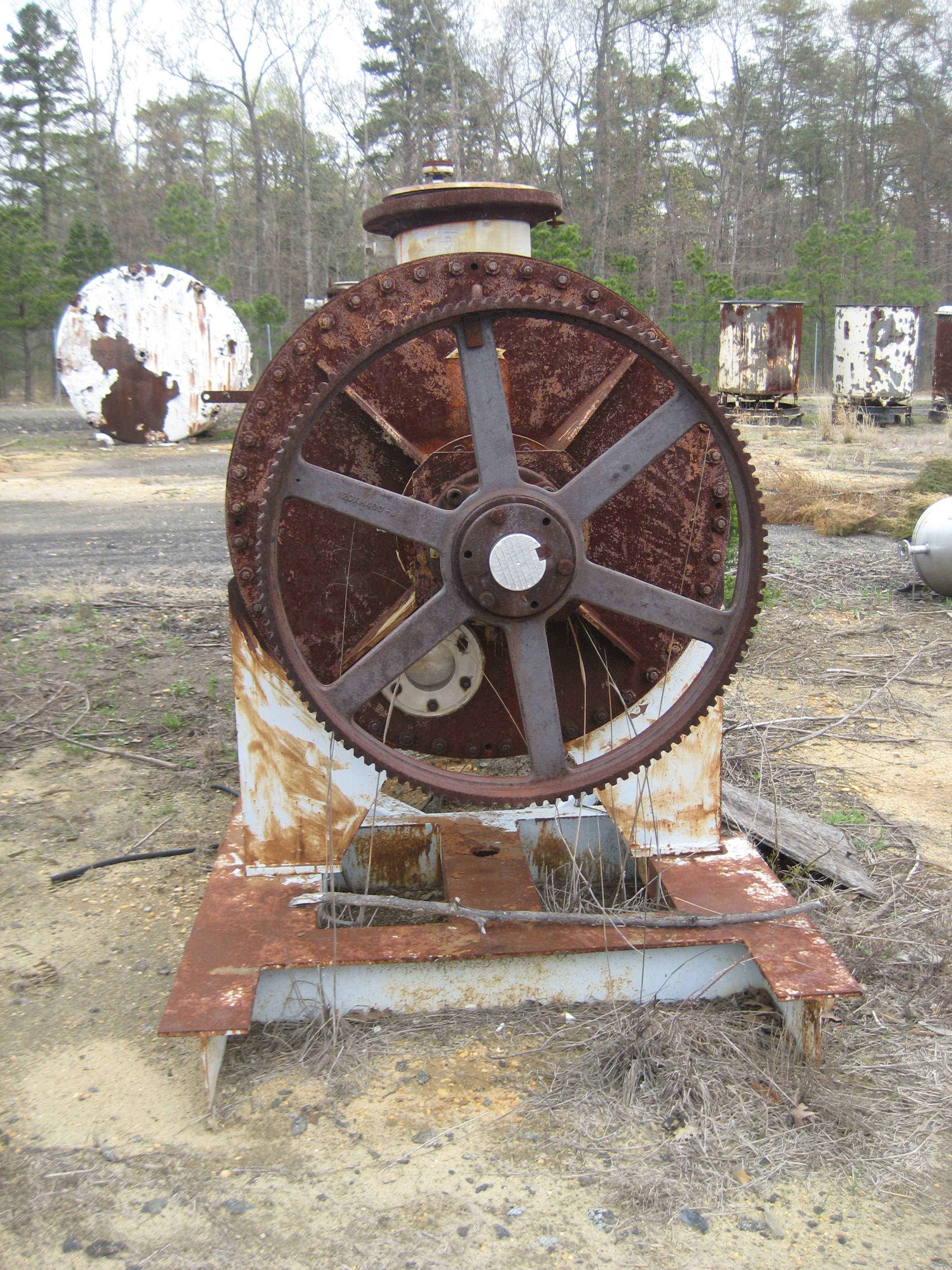

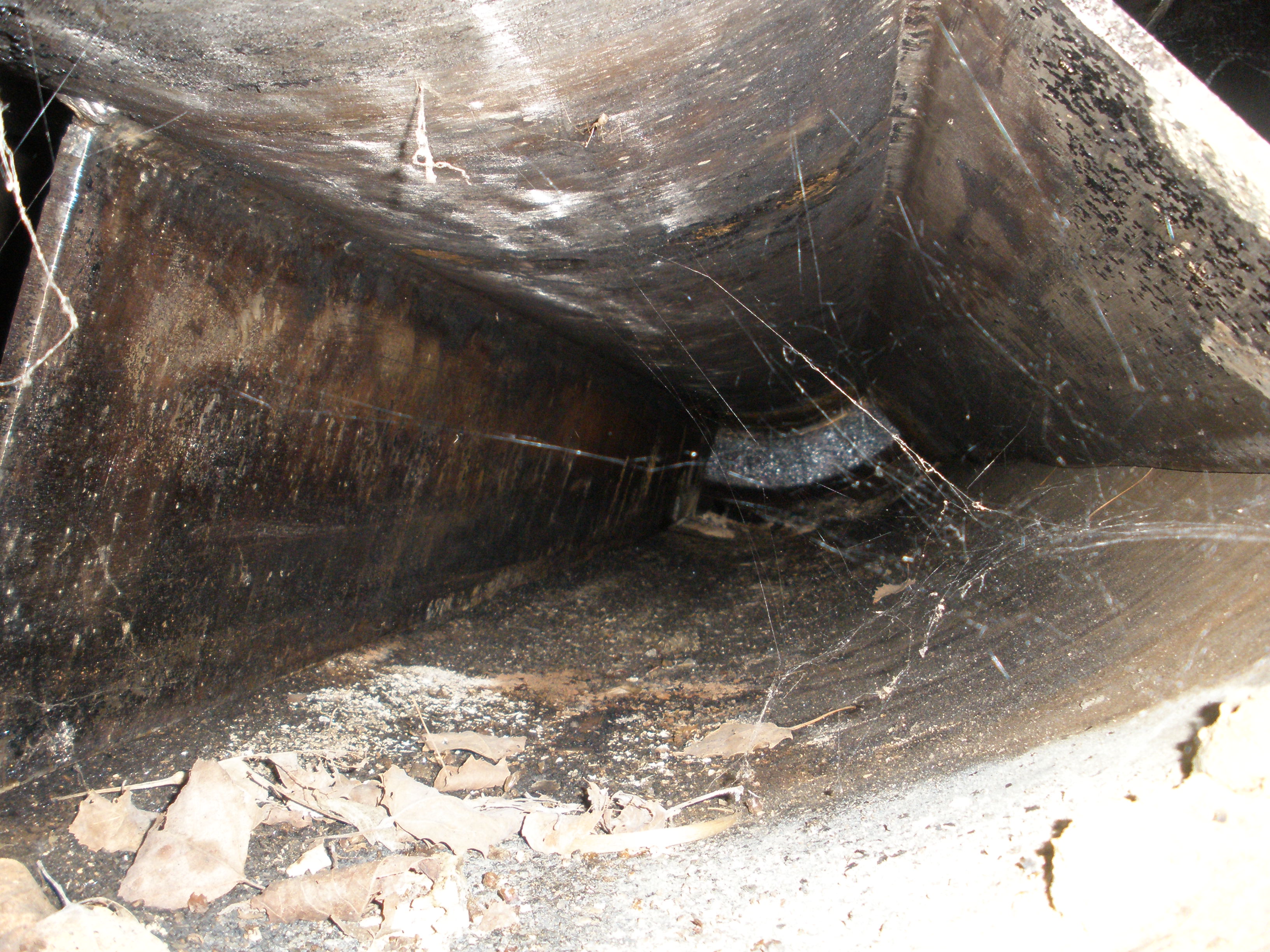

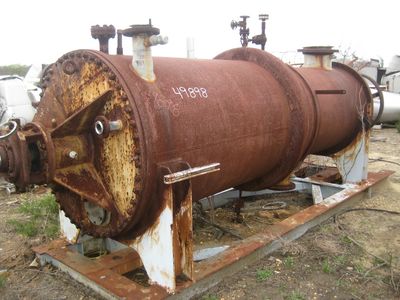

Stainless Steel 316 Artisan R-49-3-1H-70 Wiped/Thin Film Evaporator - IPP# 49898

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Artisan

Model: 63595A

Condition: Used

Material: Stainless Steel 316

Evaporation Rate: 45.4 kg/h (100 lb/h)

Total Heat Transfer Surface Area: 1.86 m² (20 ft²)

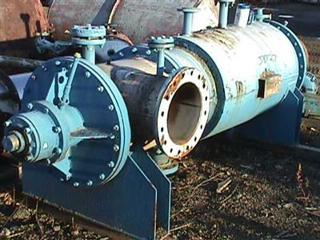

Consists of 20 sq ft Artisan horiz 316SS thin film evaporator.
jkt rated 150 psi @ 400 deg F.
316SS rotor.

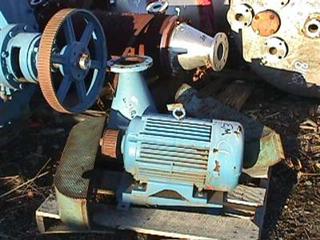

Shell 2' dia x 5'6" long; btm head 2' dia x 2' long. Segmented. Mech seal. Belt driven by 7.5 HP, 1170 rpm, 3/60/230/460 volt motor.
w/belt guard.

Orientation: Horizontal. Diameter: 610 mm (24 in). Height: 1,676 mm (66 in). Pressure: 1.03 bar (15 psi). Temperature: 204 °C (400 °F). Vacuum: Yes.

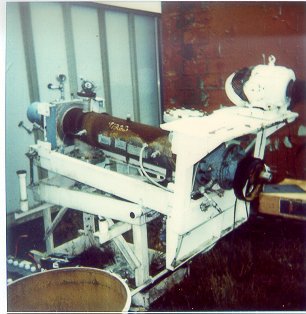

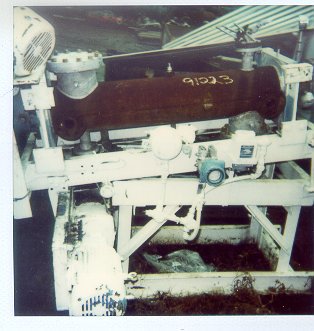

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Artisan

Condition: Used

Material: Stainless Steel 316

Evaporation Rate: 6.8 kg/h (15 lb/h)

Total Heat Transfer Surface Area: 0.279 m² (3 ft²)

hot oil jacket rated 30 psi/full vacuum @ 450 deg F.
Driven by 7.5 HP, 3/60/230/460 volt, 1750 rpm motor.
With 3 HP, 3/60/230/460 volt, 1750 rpm rotary gear pump.

Pressure: 1.03 bar (15 psi). Temperature: 232 °C (450 °F). Vacuum: Yes.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Artisan

Model: Roto Therm

Condition: Used

Material: Stainless Steel 316

Evaporation Rate: 45.4 kg/h (100 lb/h)

Total Heat Transfer Surface Area: 1.86 m² (20 ft²)

Orientation: Horizontal. Pressure: 1.03 bar (15 psi). Temperature: 288 °C (550 °F). Jacket Pressure: 5.17 bar (75 psi). Jacket Temperature: 316 °C (600 °F). Vacuum: Yes.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa

Model: DL-1000/6000/10

Condition: Used

Material: Stainless Steel 316

Total Heat Transfer Surface Area: 16 m² (172 ft²)

Orientation: Horizontal

3 sections
jacket rated by 10bar @ 200 degrees C ( total volume 150liter).

Pressure: 0.5 bar (7.25 psi). Temperature: 200 °C (392 °F). Vacuum: Yes.
