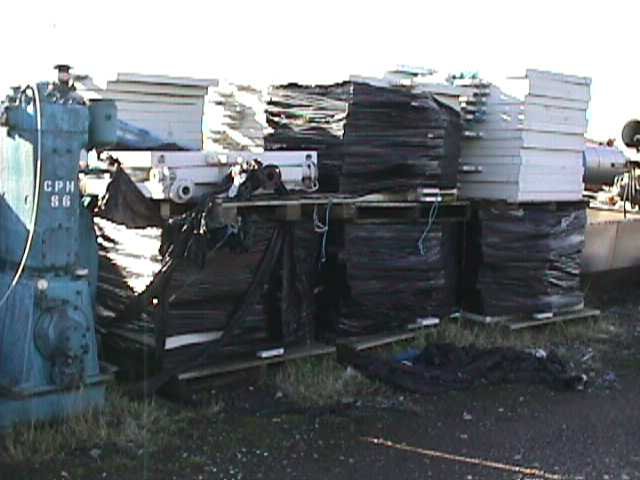

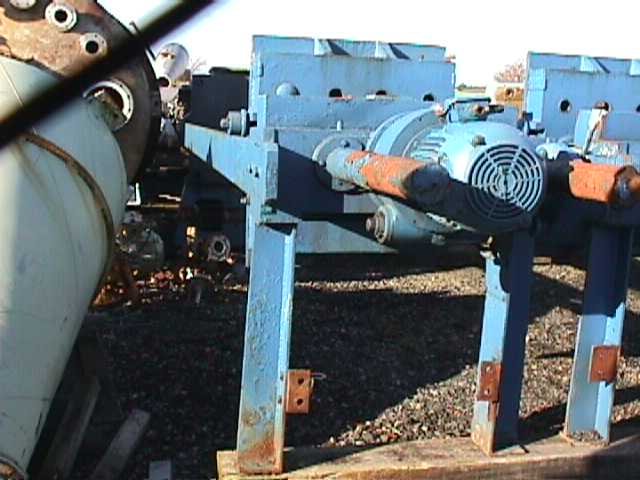

Polypropylene Edwards and Jones Filter Press - IPP# 703562

Type: Filter

Subtype: Press

Manufacturer: Edwards and Jones

Condition: Used

Material: Polypropylene

Filtration Area: 60.8 m² (655 ft²)

Cake Volume: 9.8 m3 (345.8 ft3)

• Plates manufactured by JVK, type 7876.

• (4) 75mm corner openings, 100mm center top feed.

• 17- plates with taps.

  Single screw hydraulic closure.

• Plate shifters.

Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 36. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,300 mm (51.2 in). Plate Height: 1,300 mm (51.2 in). Plate Thickness: 75 mm (3 in). Plate Shifter: Yes. Plates Recessed: Yes.

Type: Filter

Subtype: Press

Manufacturer: Edwards and Jones

Condition: Used

Material: Polypropylene

Filtration Area: 62 m² (667 ft²)

Cake Volume: 0.5 m3 (17.7 ft3)

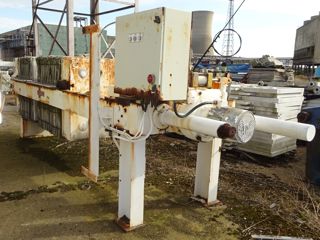

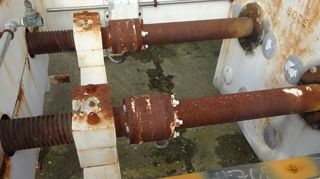

• Twin screw plate closure with control panel,

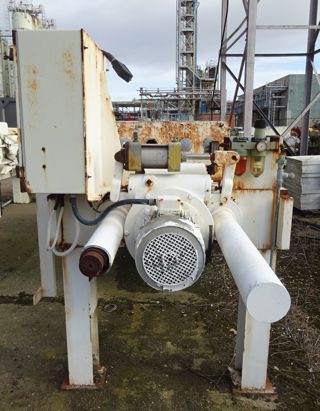

• Driven by 7.5 kw, 3/50/415 volt, 1450 rpm motor.

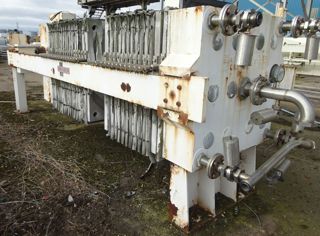

• 80mm center feed, (4) 50mm corner discharge,1 side of press has a Sick light curtain.

Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 31. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plates Recessed: Yes. Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Edwards and Jones

Model: A.O.H.C.1212

Condition: Used

Material: Polypropylene

Filtration Area: 41 m² (441.3 ft²)

Pressure: 3 bar (43.5 psi)

• fully automatic operation,
• plates supported on an overhead beam,

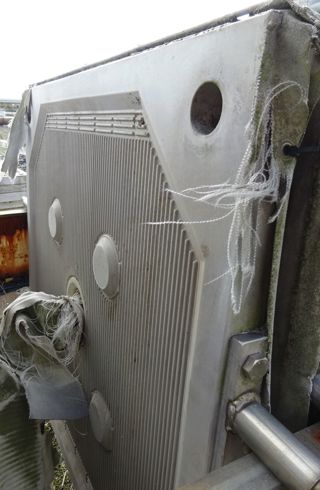

• 33 Lenser membrane plates and 2-end plates
• caulked and gasketed clothe
• cake thickness 50mm,
• drainage via internal 4-corner port,
• plate shifter hydraulic driven by a powerpack with a 1.1kw motor,
• powerpack for pressure mechanism with a 4kw 3/50/415 volt, 1430 rpm EEx d IIB T4 motor

Cake Volume: 2.1 m3 (72.6 ft3). Filter Press Plate Type: Membrane Plates. Number of Plates: 34. Plate MOC: Polypropylene. Skeleton MOC: carbon steel. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Shifter: Yes. Plate Shifter Automatic: Yes. Plates Gasketed: Yes. Plates Recessed: Yes. Plates Shifted By: Automatic.

Type: Filter

Subtype: Press

Manufacturer: Shriver

Condition: Used

Material: Carbon Steel

Filtration Area: 1.3 m² (14 ft²)

Cake Volume: 0.82 m3 (29 ft3)

• 4-eye closed delivery.
• Manual closure.

Filter Press Plate Type: Plate and Frame. Number of Frames: 10. Number of Plates: 8. Plate MOC: Carbon Steel. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 177.8 mm (7 in). Plate Height: 177.8 mm (7 in). Plate Thickness: 25.4 mm (1 in). Plates Shifted By: Manual.
