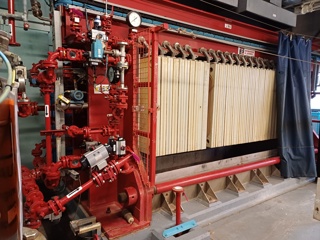

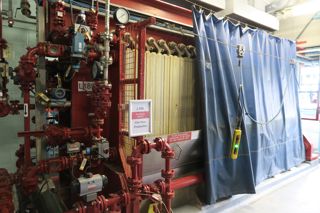

Polypropylene Edwards and Jones Filter Press - IPP# 706047

Type: Filter

Subtype: Press

Manufacturer: Edwards and Jones

Condition: Used

Material: Polypropylene

Filtration Area: 62 m² (667 ft²)

Cake Volume: 0.5 m3 (17.7 ft3)

• Twin screw plate closure with control panel,
• Driven by 7.5 kw, 3/50/415 volt, 1450 rpm motor.
• 80mm center feed, (4) 50mm corner discharge,1 side of press has a Sick light curtain.

Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 31. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plates Recessed: Yes. Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Edwards and Jones

Condition: Used

Material: Carbon Steel

Skeleton MOC: Carbon Steel

Plate Diameter or Width: 860 mm (33.9 in)

• skeleton only
• 4-corner closed discharge
• Unit has an electric motor closure, driven by 4 KW,940 rpm

Plate Height: 1,150 mm (45.7 in). Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Bethlehem Corp

Condition: Used

Material: Polypropylene

Filtration Area: 3.2 m² (34.8 ft²)

Cake Volume: 0.03 m3 (1.2 ft3)

• Unit has 10 chambers recessed plates with 1/2" recess for forming 1" thick cake. 4 corner closed discharge,
• Unit has an air over oil compensating pump.

Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 10. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 457.2 mm (18 in). Plate Height: 457.2 mm (18 in). Plate Thickness: 12.7 mm (0.5 in). Plates Recessed: Yes. Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

Condition: Used

Material: Polypropylene

Filtration Area: 62.4 m² (672 ft²)

Pressure: 6 bar (87 psi)

• Recessed filter press. 62.4 square meter filter area, can be expanded to (60) plates (96 sq. meter).
• 4 eye center feed.
• Motorized hydraulic closure. Rated 170-200 bar.
• With safety mirrors,
• Cake thickness approx. 30 mm. Filter volume approx. 0.88 cu meter.
• Filter plates are suspended from an overhead beam.

Cake Volume: 0.88 m3 (31.1 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 39. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Shifter: Yes. Plates Recessed: Yes. Plates Shifted By: Automatic.
