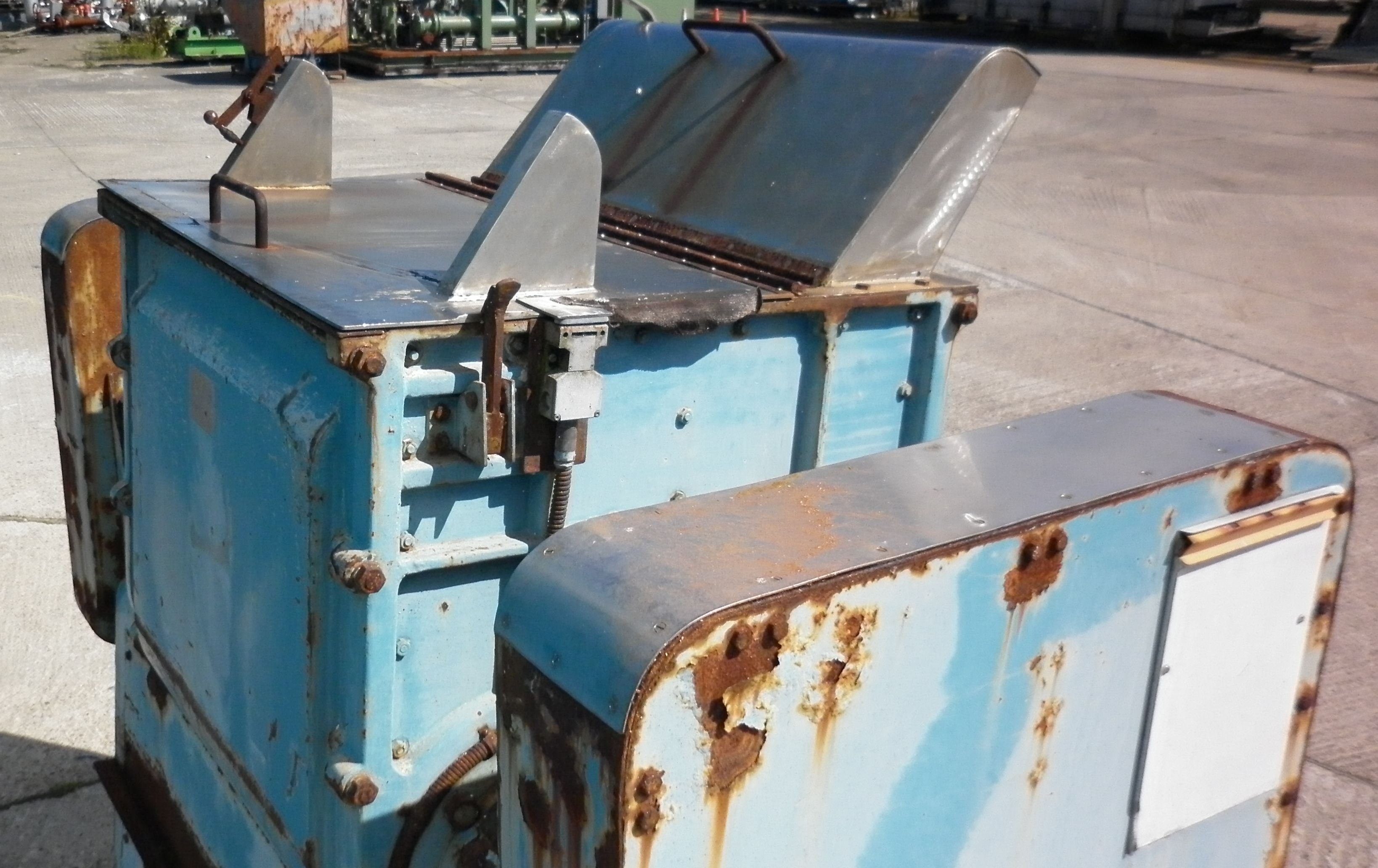

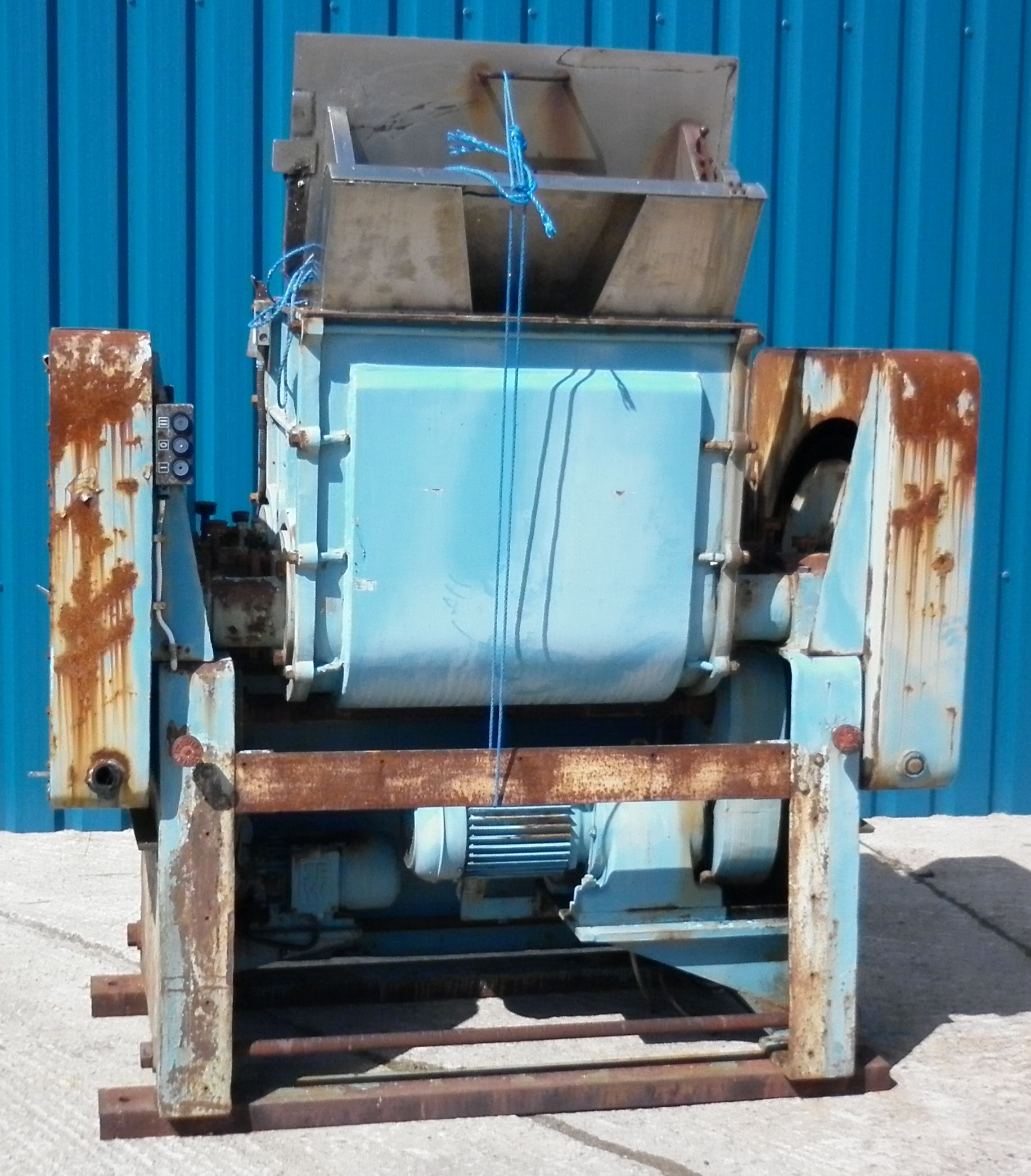

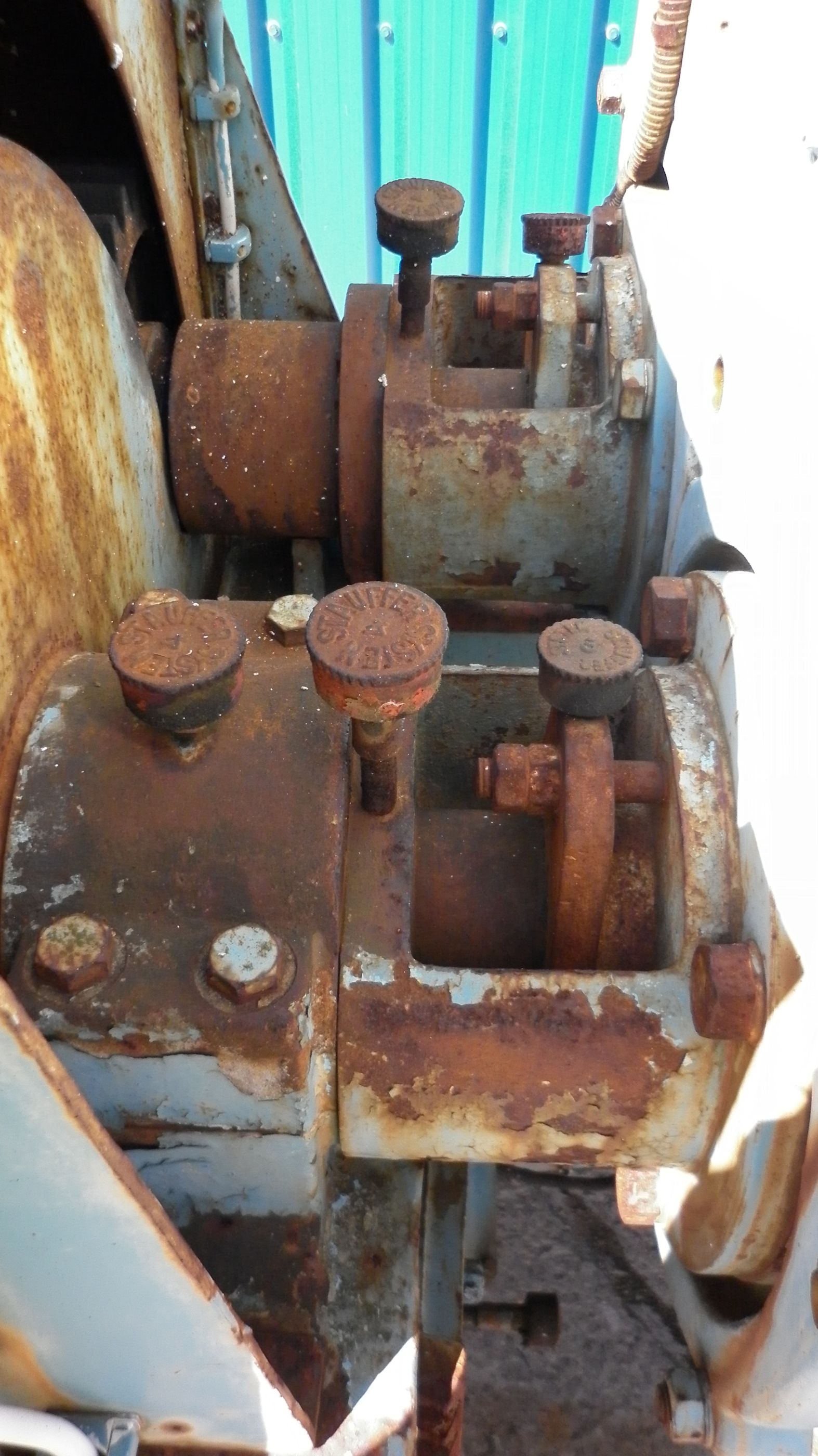

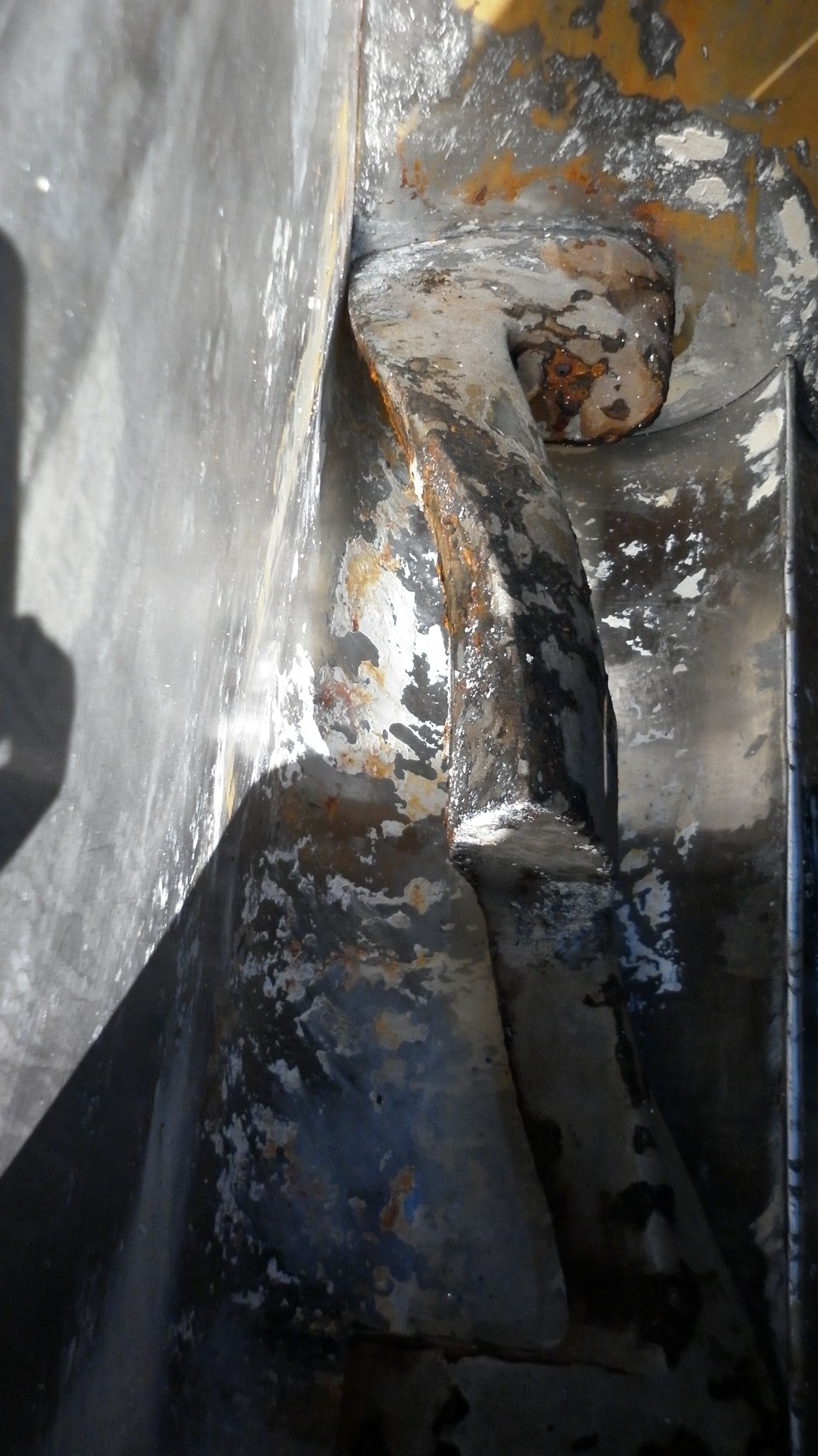

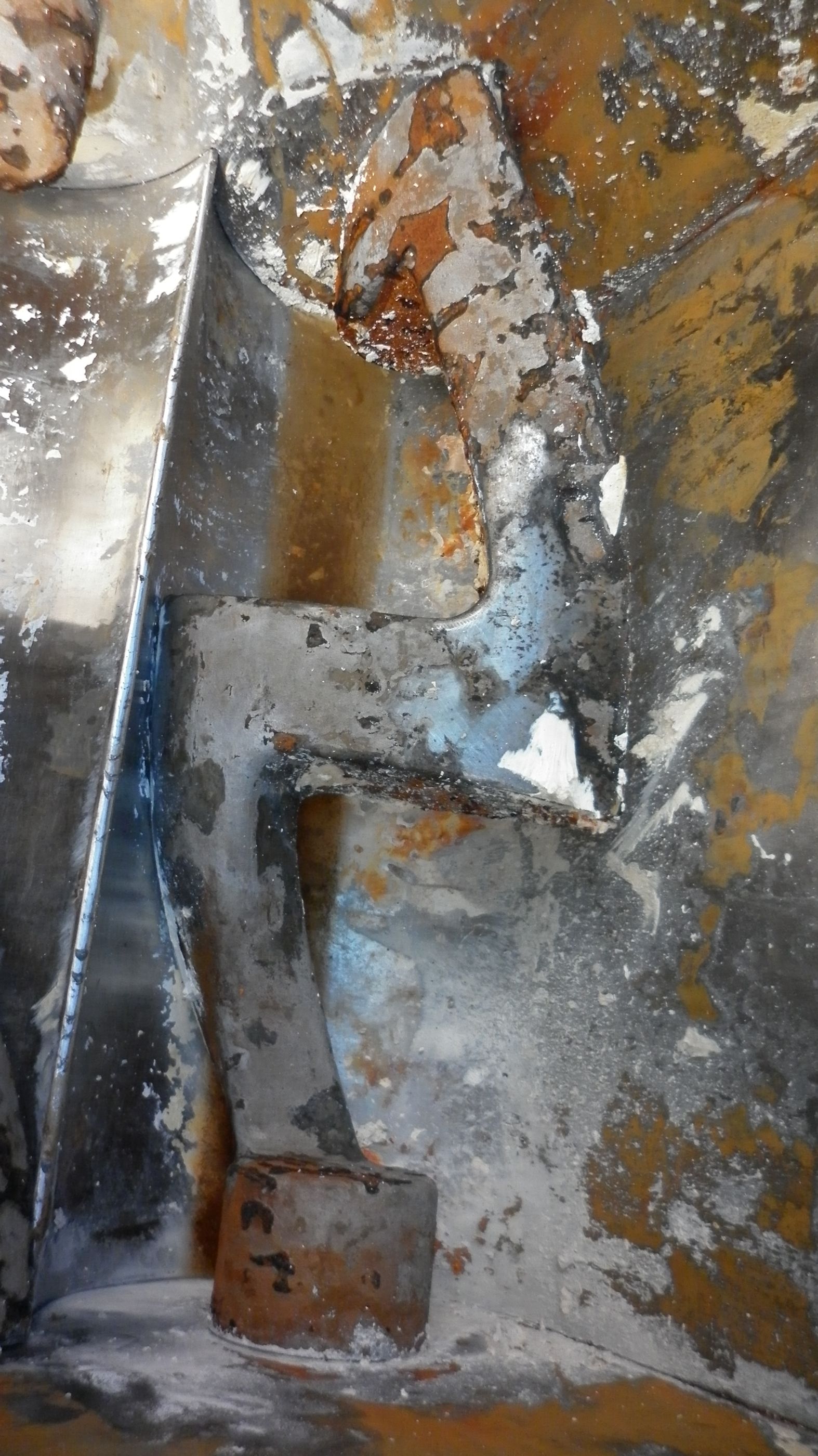

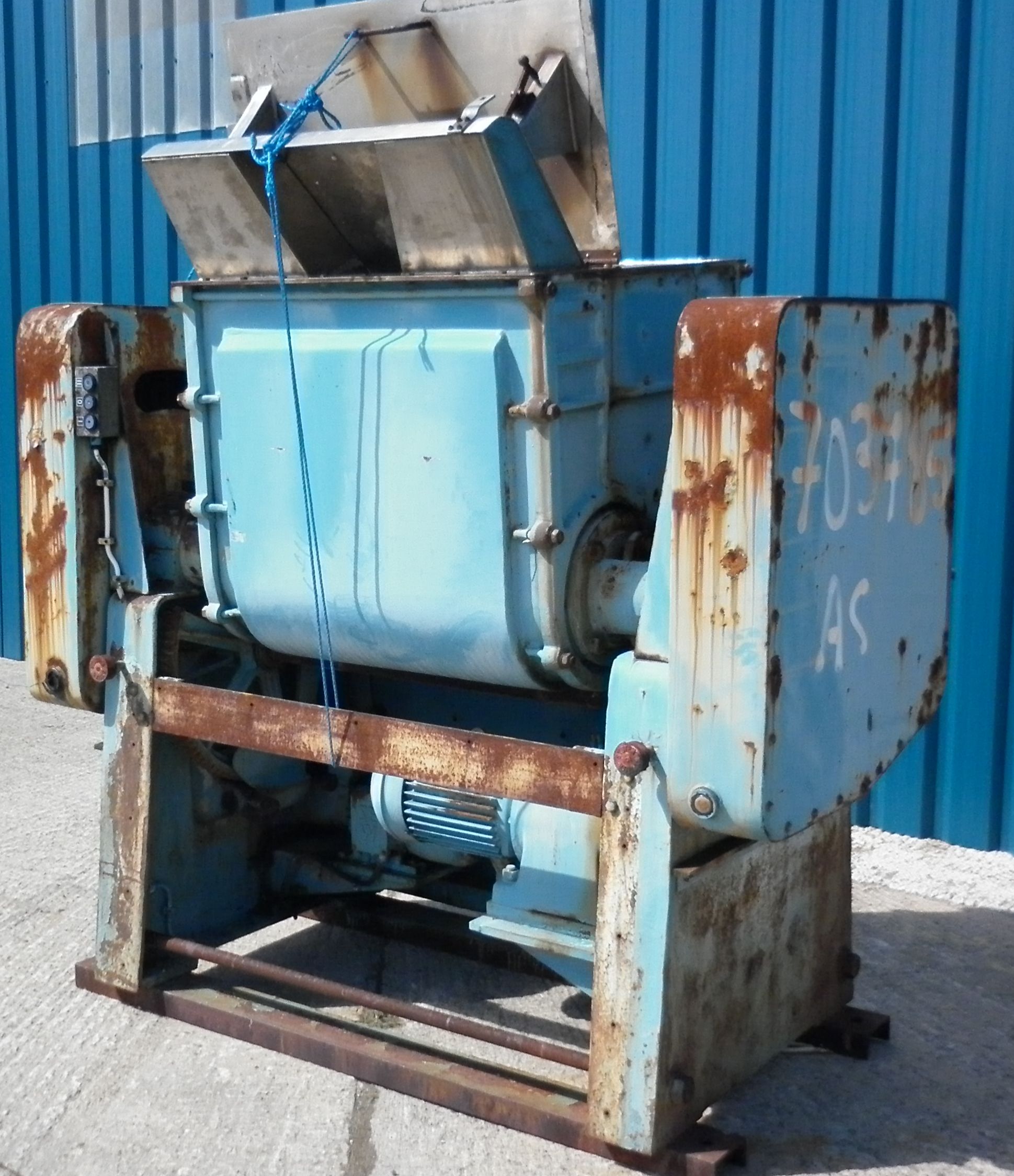

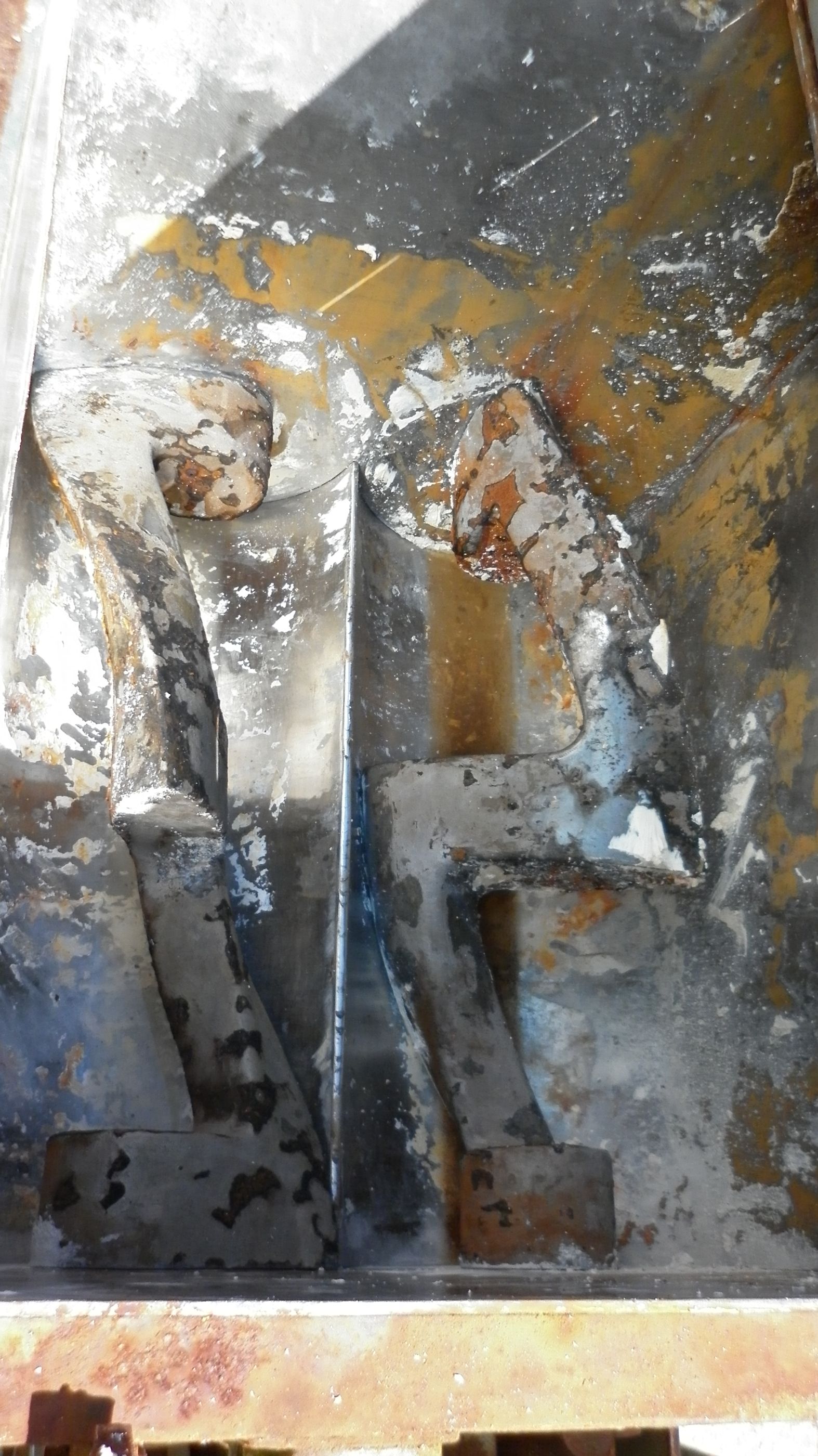

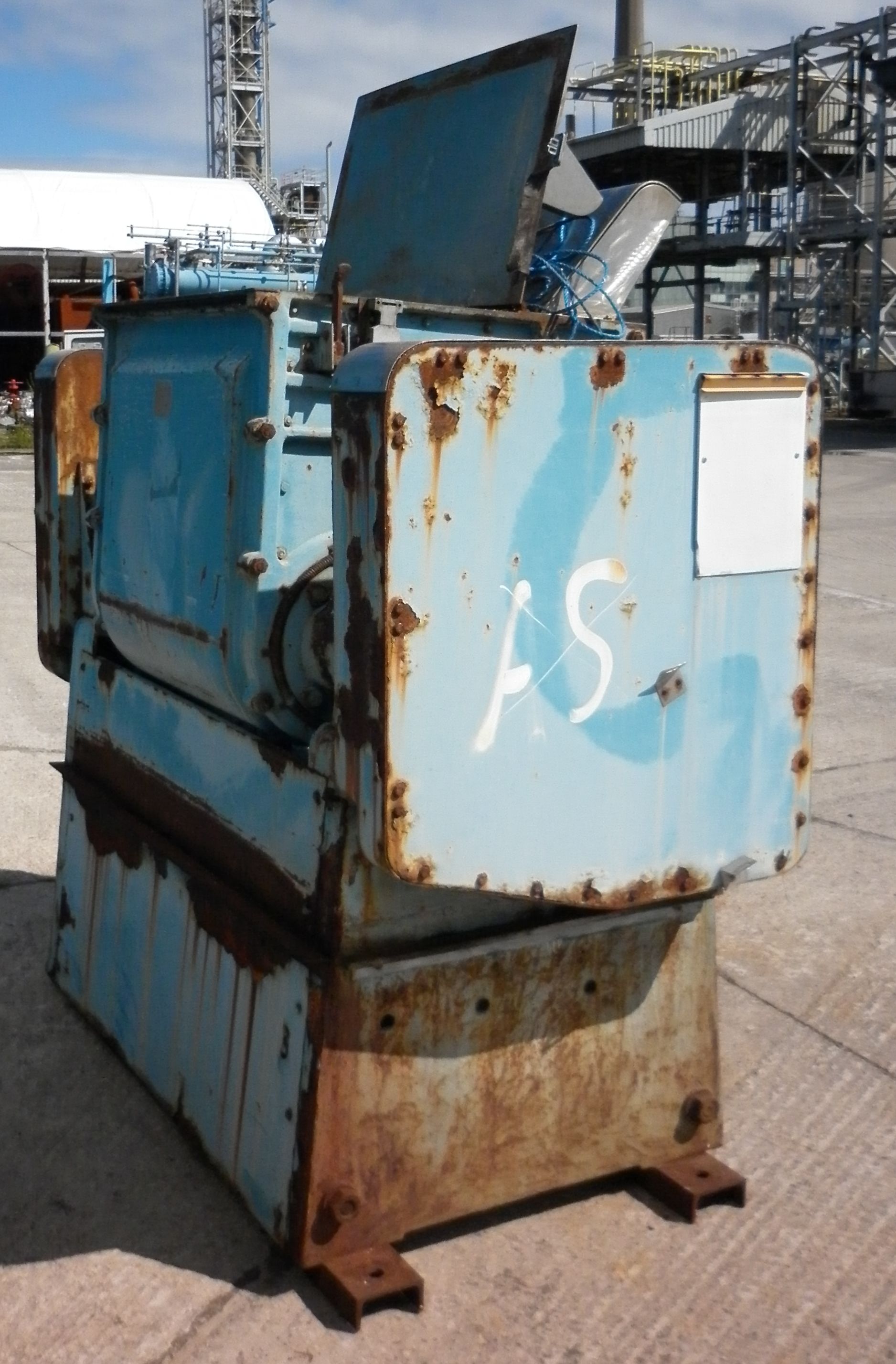

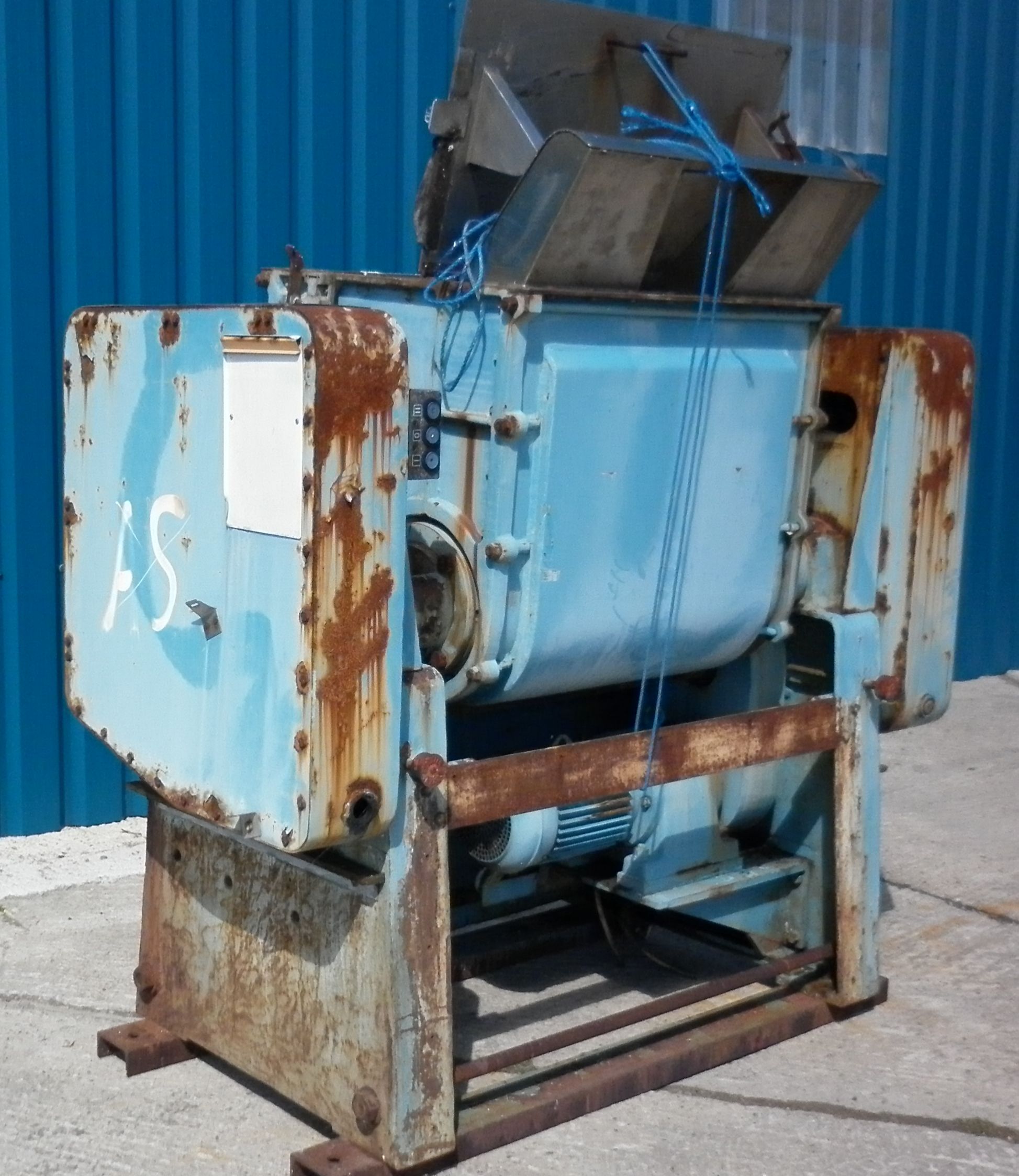

sigma blade mixer Trough size 31" long x 27" wide x 30" deep. 316 stainless steel body, carbon steel endplates non-flameproof motor. Geared both ends. Unit has 90 degree tilt mechanism which is gear driven by 1.5 KW, 3/50/380 volt, 1410 rpm non-flameproof motor. Packing gland on blade shafts. Openings: inlet - hinged lid section; outlet - top discharge chute.
Type: Mixer-Double Arm
Condition: Used
Material: Stainless Steel 316
Capacity (Design): 431 L (113.9 gallons)
Capacity (Working): 285 L (75.3 gallons)
Trough size 39 1/2" long x 27" wide x 27" deep. 316 stainless steel body with carbon steel ends plates. (2) carbon steel sigma blades. Geared both ends. Unit has 90 degree tilt mechanism which is gear driven by 1.5 KW, 3/50/380 volt, 1410 rpm non-flameproof motor. Packing gland on blade shafts. Openings: inlet - hinged lid section; outlet - top discharge chute.
Blade Type: carbon steel sigma blades. Tilting: Yes.
Type: Mixer-Double Arm
Condition: Used
Material: Stainless Steel 316
Capacity (Design): 500 L (132.1 gallons)
Capacity (Working): 330 L (87.2 gallons)
Trough size 39 1/2" x 27" wide x 27" deep. 316 stainless steel body with carbon steel ends plates. (2) carbon steel sigma blades. Geared both ends Unit has 90 degree tilt mechanism which is gear driven by 1.5 KW, 3/50/380 volt, 1410 rpm non-flameproof motor Packing gland on blade shafts. Openings: inlet - hinged lid section; outlet - top discharge chute.
Blade Type: double sigma. Tilting: Yes.
Type: Mixer-Double Arm
Manufacturer: Morton-Duplex
Model: 3-DUP
Condition: Used
Material: Stainless Steel 316
Capacity (Design): 140 L (37 gallons)
Capacity (Working): 77 L (20.3 gallons)
sigma blade jacketed mixer with oil heater Internal working pressure 20 psi. Trough size 500mm long x 500mm wide x 500mm deep Unit geared both ends. Manually operated tilt mechanism Counterbalanced top cover Openings: top 1-100mm; jacket 2-25mm
Blade Type: double sigma. Tilting: Yes.
Type: Mixer-Double Arm
Manufacturer: Werner & Pfleiderer
Model: Universal-17-X-E3
Condition: Used
Material: Stainless Steel 316
Capacity (Design): 946.4 L (250 gallons)
Capacity (Working): 378.5 L (100 gallons)
jacketed sigma blade mixer. bottom discharge with valve. Mixing bowl 1300mm long x 1100mm wide x 900mm deep. 250mm diameter center bottom outlet. 1:1 ratio pulleys, connected to double reduction gear, coupled to another triple reduction gear. Mixer rated for vacuum internal.
Jacket Pressure: 9.8 bar (142.3 psi). Jacket Material: Carbon Steel. Blade Type: Sigma. Vacuum: Yes.
