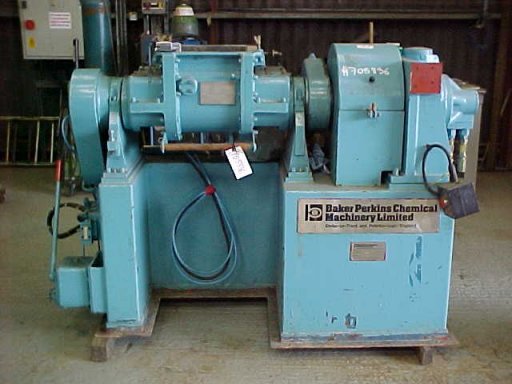

Mixer type: Baker Perkins wings twin shaft mixer trough 330mm wide x 400mm long x 320mm deep shafts driven by a hydraulic motor, Motor model B060/P pressure 1000 psi, hydraulic motor is driven by a hydraulic powerpac, manufactured by Towler hydraulics, type PX-2138, pressure 90 bar, serial # M790229, powerpac with Towler hydraulic pump, type 1-R-70,
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Model: 20 TUEM
Condition: Used
Material: Carbon Steel
Capacity (Design): 3,312 L (875 gallons)
Capacity (Working): 1,893 L (500 gallons)
size 20 TUEM, jacketed, Bowl tilting time 35 seconds. Mixing trough 58.5" Front blade output speed 25.5 RPM. Rear blade output speed 14.5 RPM. V belt driven. Base is 16'7" long x 9' 11" wide.
Jacket Pressure: 8.6 bar (125 psi). Blade Type: dual Sigma blades. Blade Speed (RPM): 25.5. Tilting: Yes. Vacuum: Yes. Hydraulics: Yes.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 3,312 L (875 gallons)
Capacity (Working): 1,893 L (500 gallons)
size 20 TUEM jacketed,no cover with unit Bowl tilting time 35 seconds. Mixing trough 58.5" . Front blade output speed 25.5 RPM. Rear blade output speed 14.5 RPM. Mixing arms V belt driven Main drive equipped with auxilliary motor with 45 seconds to start. Base is 16'7" long x 9' 11" wide.
Jacket Pressure: 8.6 bar (125 psi). Blade Type: double arm (Sigma Blades). Blade Speed (RPM): 25.5. Tilting: Yes. Hydraulics: Yes.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 757.1 L (200 gallons)
Capacity (Working): 378.5 L (100 gallons)
Sigma Blade Mixer jacket trough, tilt discharge packing glands on shaft, rated atmospheric internal, with dust cover With chain and sprocket drive on one end Unit has a seperate power pack for tilt discharge
Blade Type: tangential sigma blades. Tilting: Yes.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 567.8 L (150 gallons)
Capacity (Working): 378.5 L (100 gallons)
Sigma Blade Mixer jacket trough, tilt discharge. packing glands on shaft, rated atmospheric internal, with dust cover Geared both sides, driven through a jack shaft, with chain and sprocket drive on one end Unit has a seperate power pack for tilt discharge.
Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 204.4 °C (400 °F). Blade Type: tangential sigma blades. Tilting: Yes.
