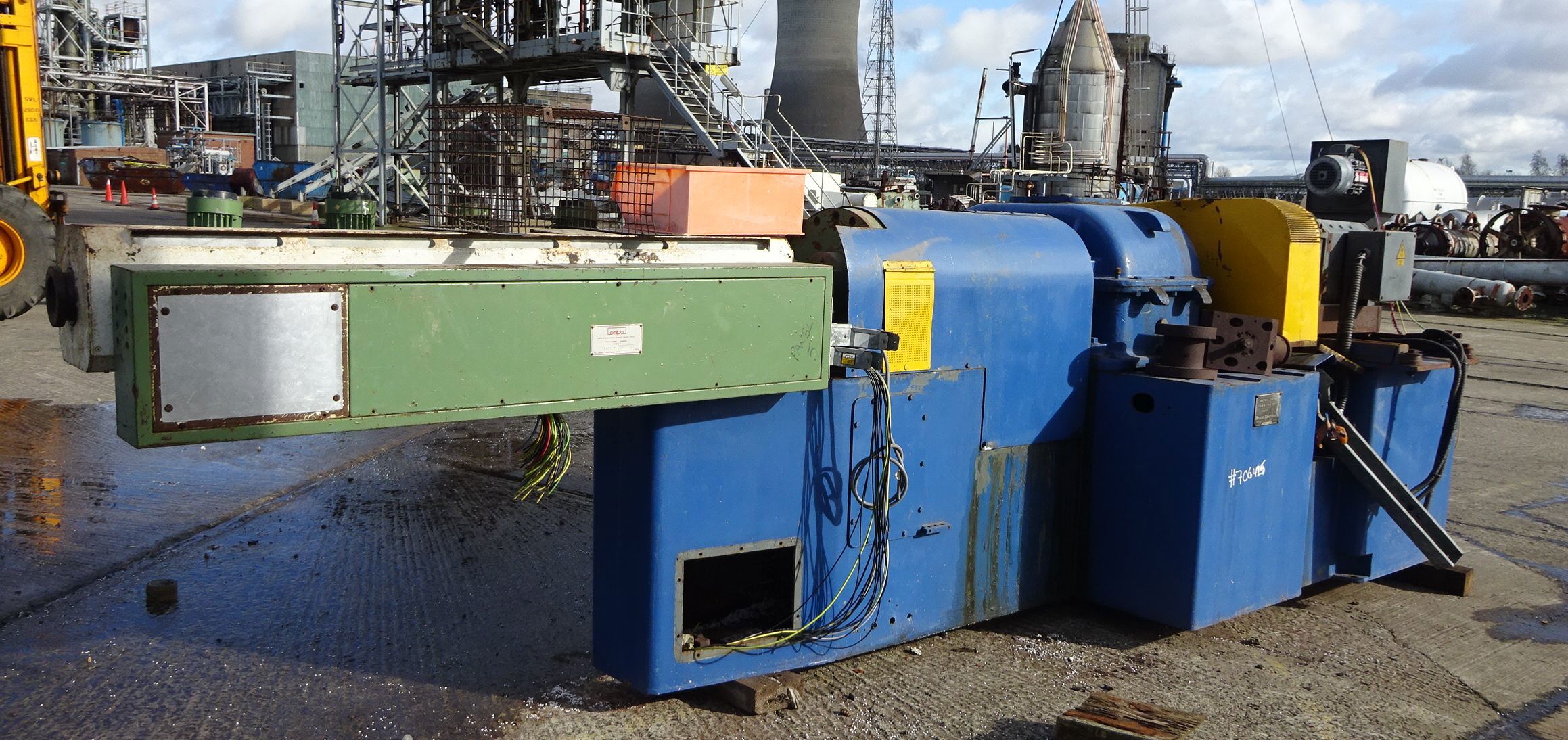

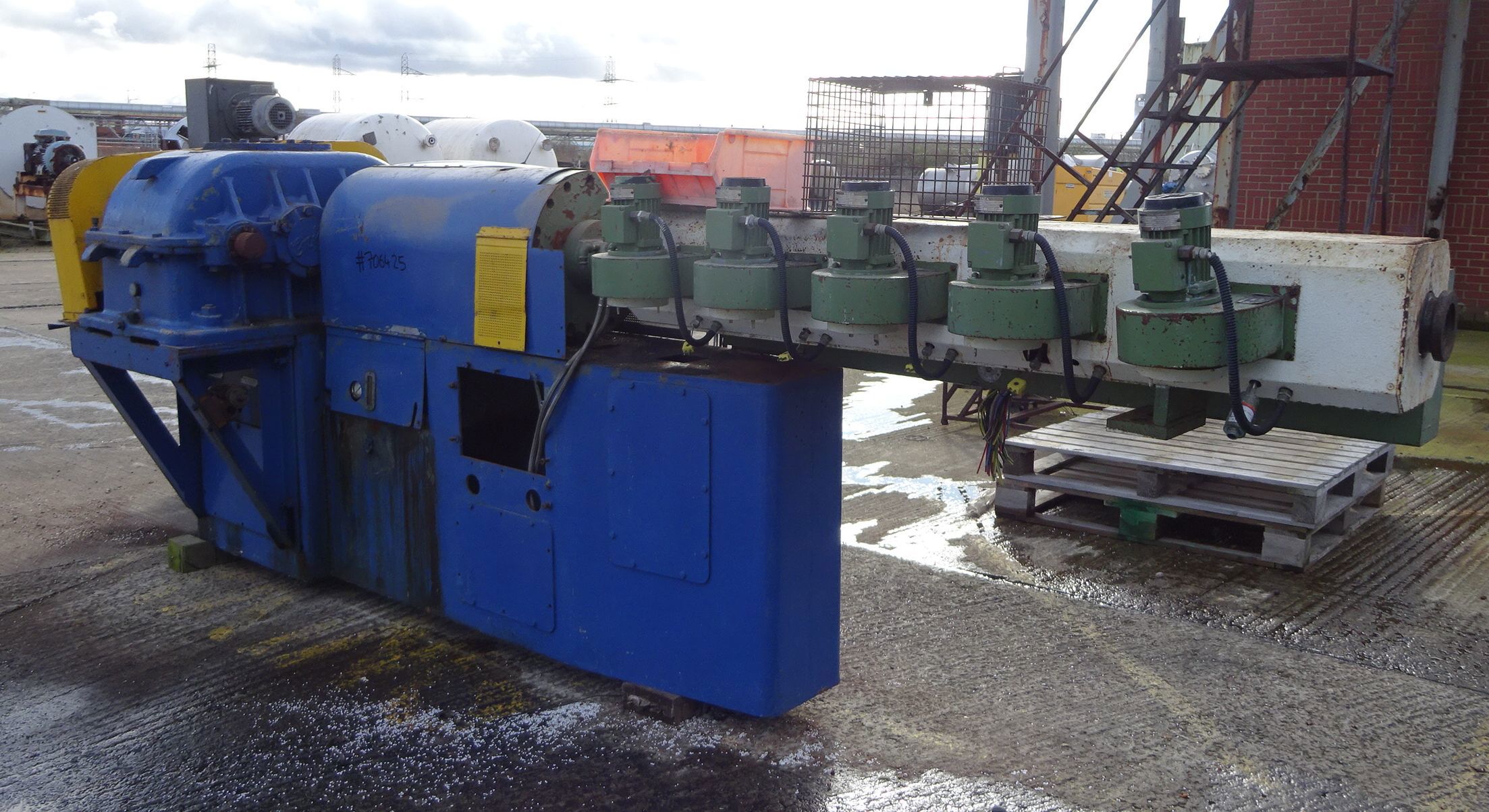

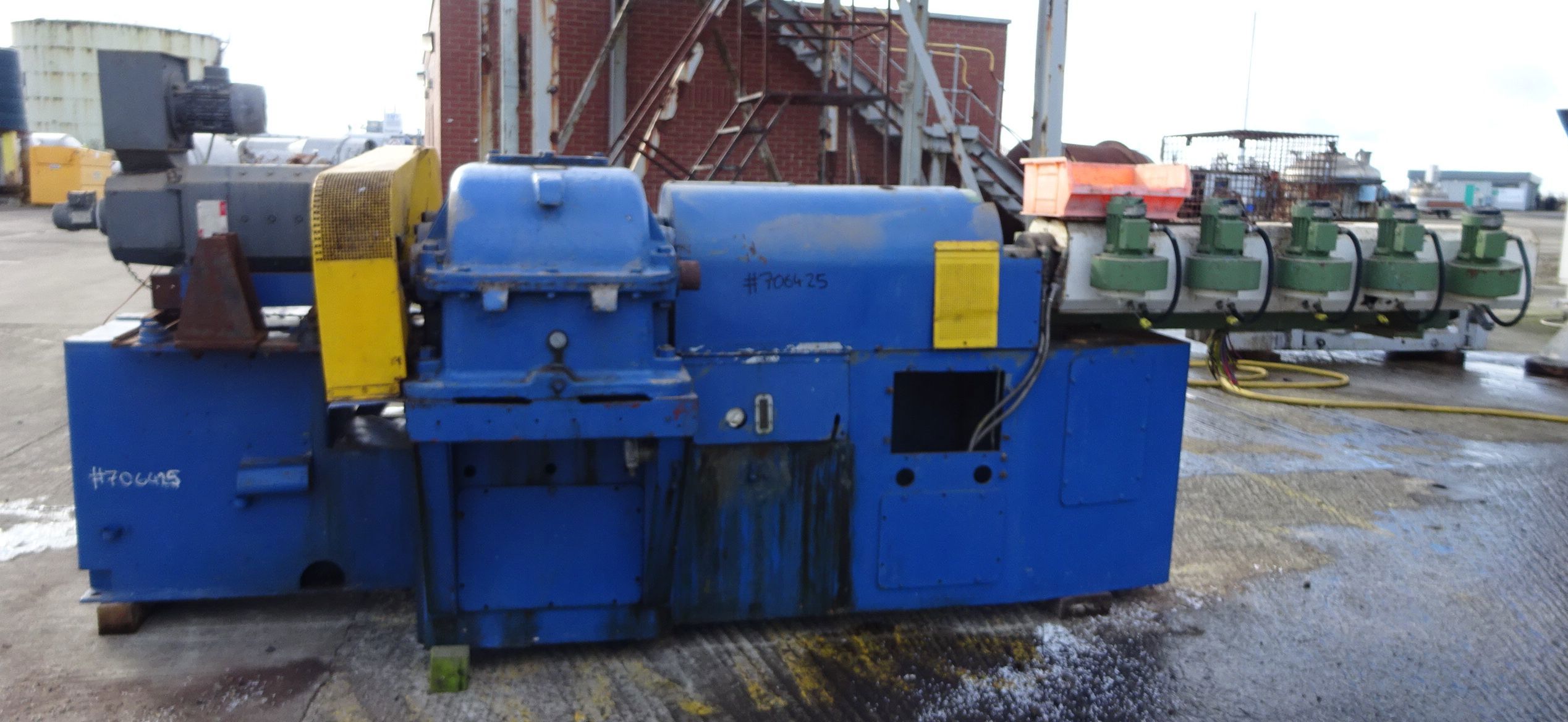

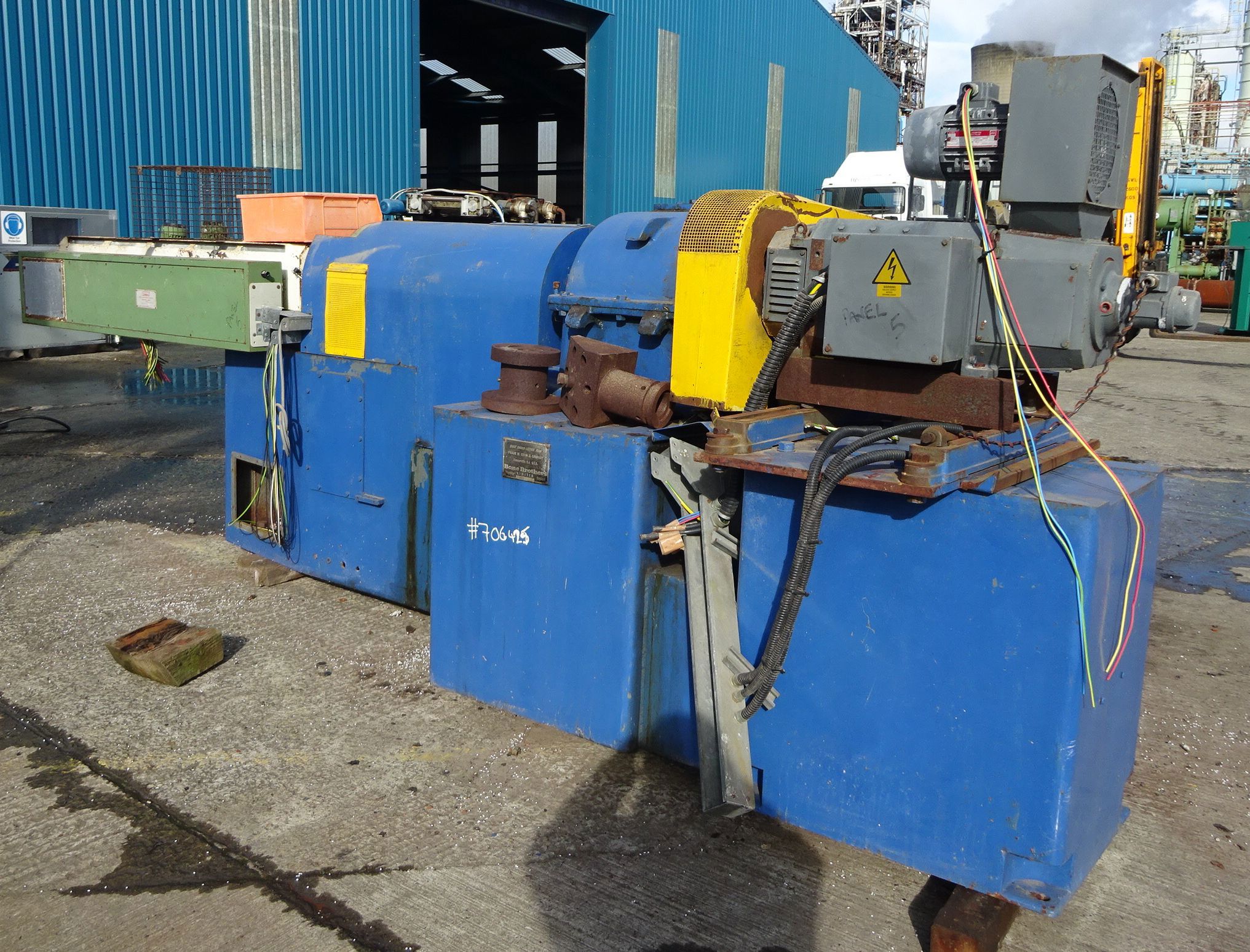

63mm, single screw extrusion line, approx 60 kg/hr of 800mm wide plastic sheet), line consists of: (1) Bone Brother 63mm x 2m long c/steel single screw extruder, motor with cooling fan, barrel with (5) fans driven by 0.33 kw, 3/50/415 volt, 2800 rpm motors, 126mm x 38mm feed opening with s/steel feed hopper, (1) 3-roll calender, rolls 300mm diameter x 800mm long, rolls with mirror finish, each roll is oil heated with its own oil heater, each roll gap adjuster has a hydraulic ram driven by 4 kw, 3/50/380-420 volt, 1435 rpm motor vai a Eurodrive gearbox, the calender is mounted on a moveable skid , skid has a hydraulic raise/lower mechanism, (1) end of line Gillard & Co sheet cutter, mounted on wheels, totally enclosed in a cabinet, system with control panels.
Type: Extruder
Model: TCS-70-16D Kneader
Condition: Used
Material: Carbon Steel
Diameter: 70 mm (2.8 in)
Number of Heating Zones: 5
single screw Ko-Kneader system, proceesing length 16 L/D, carbon steel heated screw, screw oscillation stroke 10.5mm, screw root diameter 45mm, Theoretical pitch in kneading zone (2-spirals) 42mm, pitch in infeed zone (1-spiral) 38mm, free zone (5-barrel section) 2.04 dm3, screw driven by a 2-speed motor, 45kw, 3/50/380/400/415/660/690 volt, 1480/1475 rpm or 55kw, 3/60/440 volt, 1775 rpm, cast chrome steel barrel, barrel with special high nickel content carbon steel liner and kneading pins, barrels steam/water heated, (4) Regloplas type P160/9/SG5/IK/R145 water/steam heater temperature controllers, 6.5 ltr volume, rated 6 bar @ 160 deg C, (1) 600mm wide x 3m long chilled rubber belt conveyor with Netzsch Condux Granulator, (2) Tricool chillers, 2) 21.6 cubic foot (0.6 cubic meter) carbon steel ribbon mixer, 550mm wide x 1680mm long x 700mm deep, interupted ribbon, driven by 7.5 hp, 3/60/415 volt, 1405 rpm motor, end bottom discharge with pneumatic operated slide valve, 2-650mm x 650mm inspection ports with hinged covers,
Screw Length: 1,300 mm (51.2 in). Feeder: Yes. Number of Cooling Zones: 1.
Type: Extruder
Condition: Used
Material: Carbon Steel
Diameter: 20 mm (0.79 in)
Number of Heating Zones: 4
Bone Brothers lab size single screw extruder. Unit has (4) electrically heated zones. Unit is complete with 7" diameter x 5" high stainless steel feed hopper cooling bath and control panel.
Screw Length: 420 mm (16.5 in). Feeder: Yes. Heating type: Electric.
Type: Extruder
Manufacturer: Francis Shaw & Co. LTD.
Condition: Used
Material: Carbon Steel
Diameter: 35 mm (1.38 in)
Barrel MOC: Carbon Steel
1m long carbon steel Extruder electric heated barrel
Heating type: Electric.
Type: Extruder
Manufacturer: APV
Model: MP 2065 Kneader
Condition: Used
Material: Carbon Steel
Diameter: 65 mm (2.6 in)
Number of Heating Zones: 5
twin screw Ko-Kneader system, (1) Baker Perkins 800mm diameter chilled drum roll cooler, series 2000, serial #65712, drum with pre-breaker and Kibbler granulator, granulator driven by 10HP, 1500 rpm motor, pre-breaker driven by 1HP, 150 rpm motor, chill roll motor driven by 5 HP, 25 rpm motor, (2) 350 liter high intensive mixers, driven by 37kw, 3/50/415 volt, 1475 rpm motor, (1) chiller, (1) buffer hopper with bag filler
Screw Length: 1,600 mm (63 in). Feeder: Yes. Heating type: Electric.
