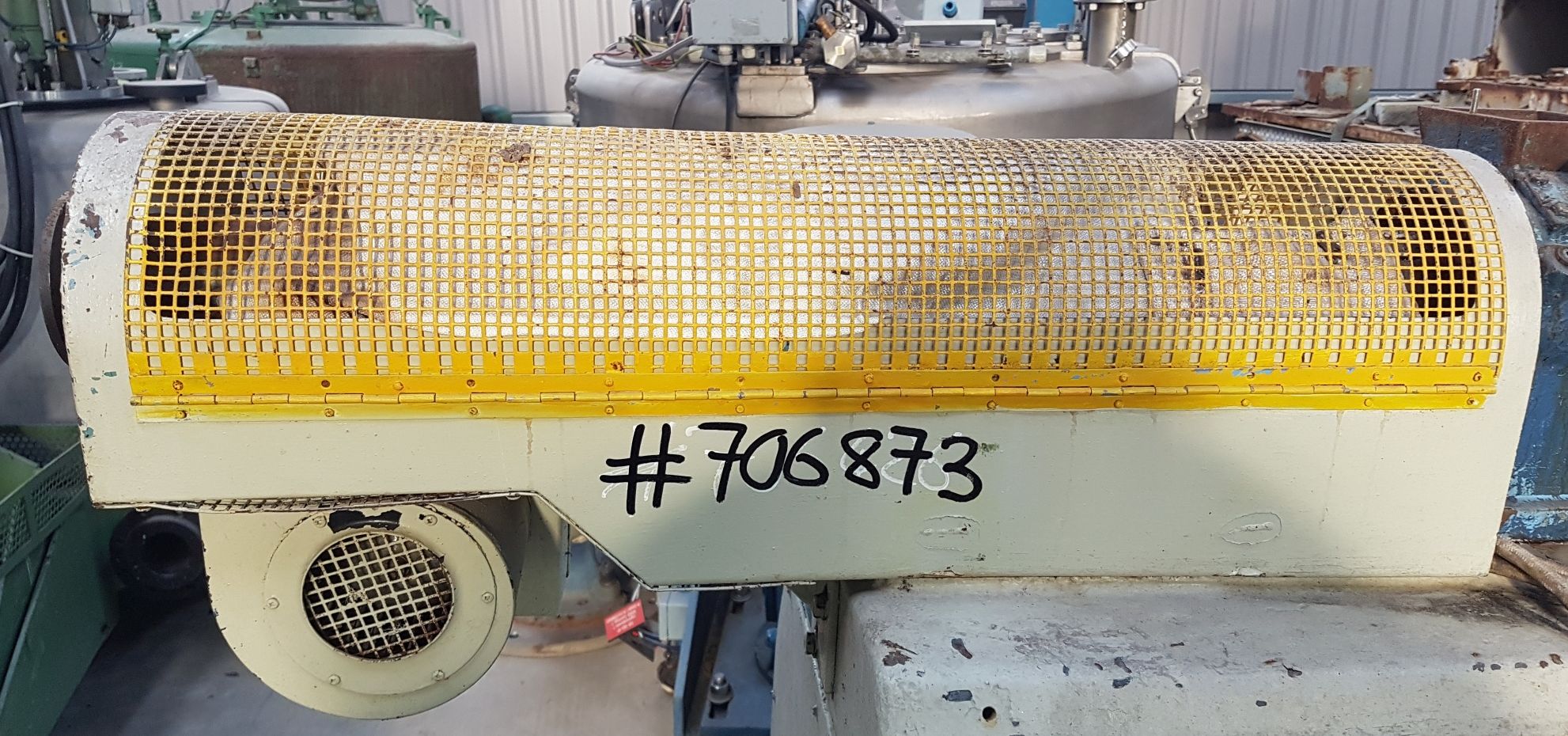

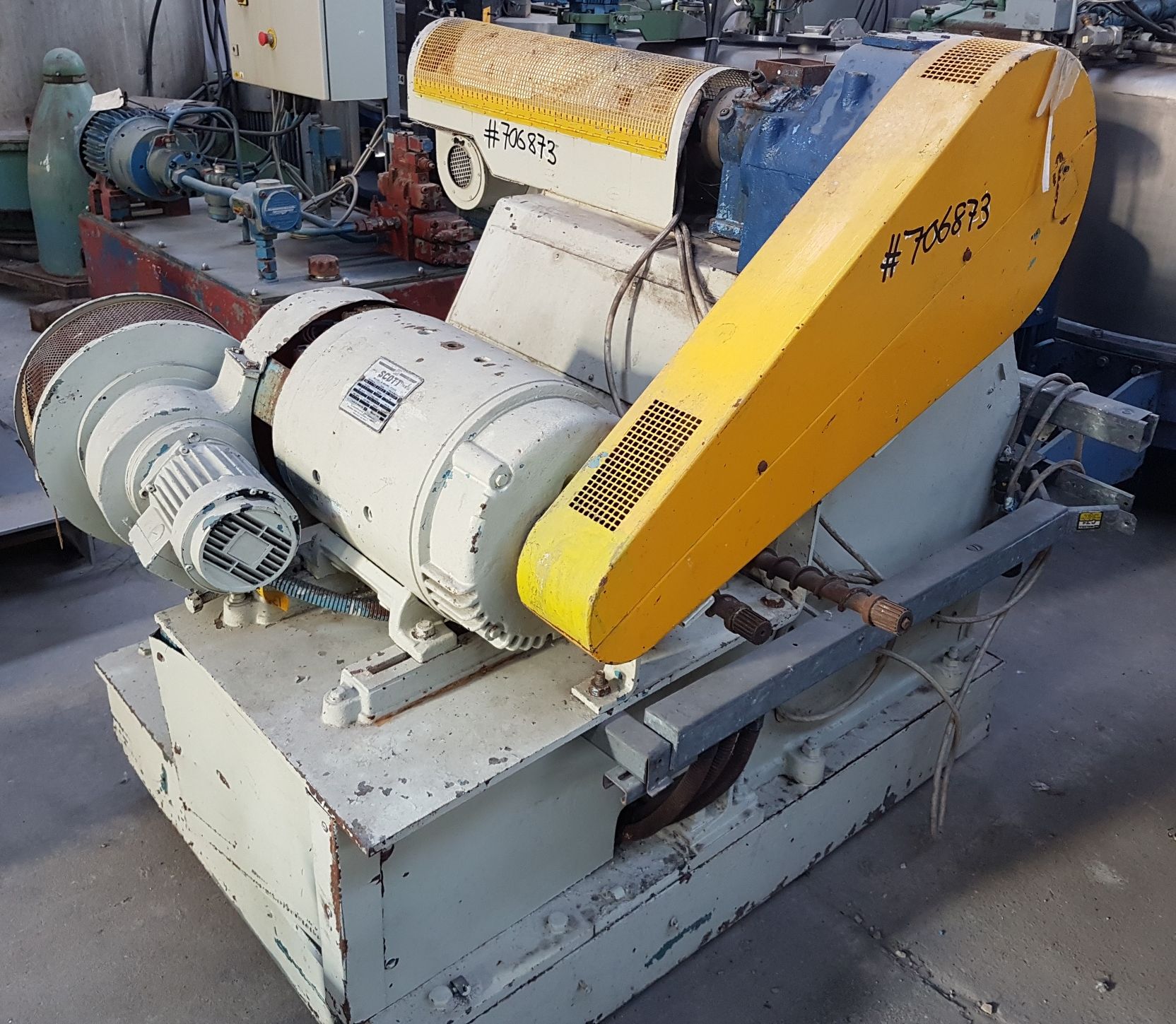

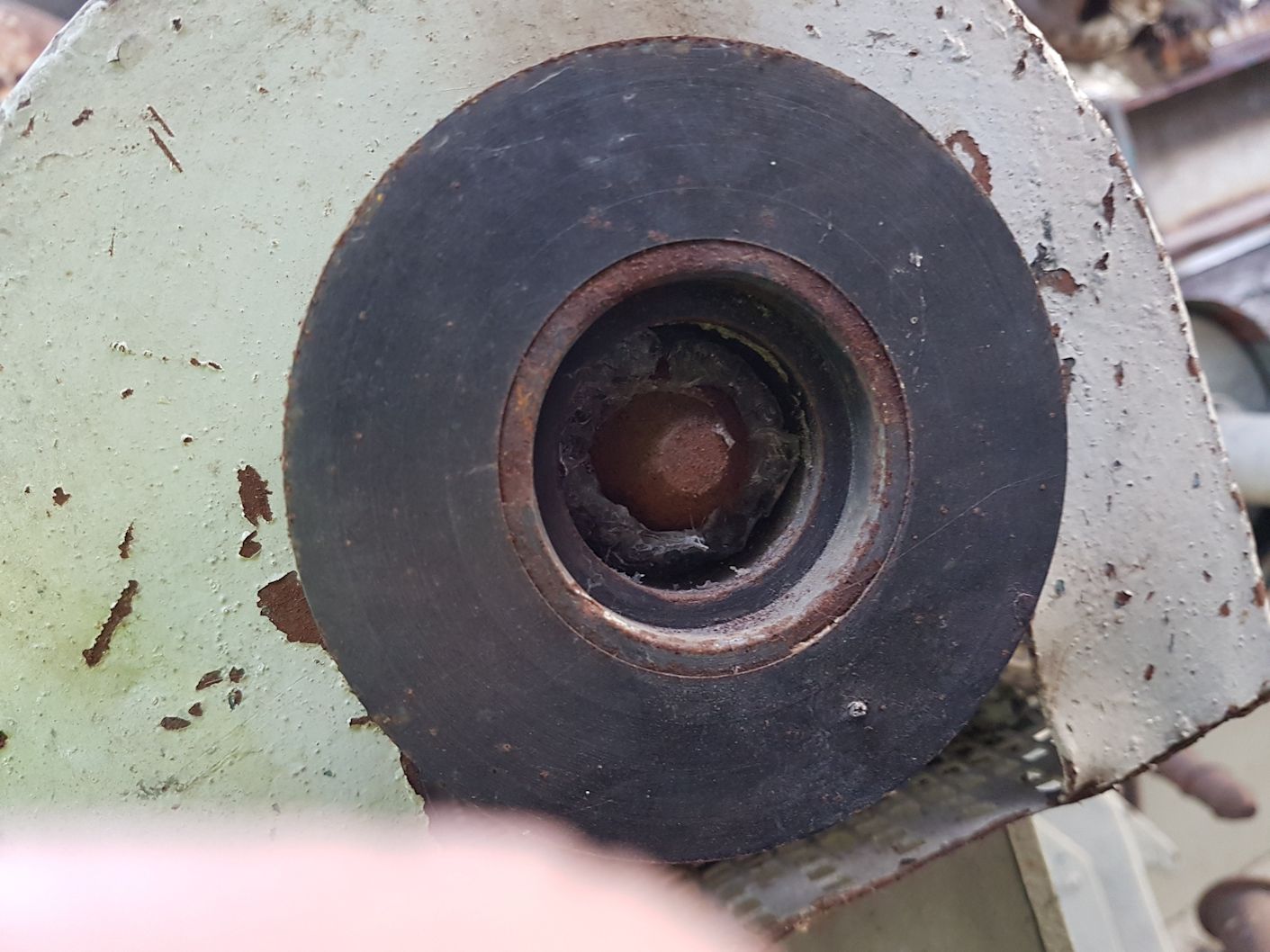

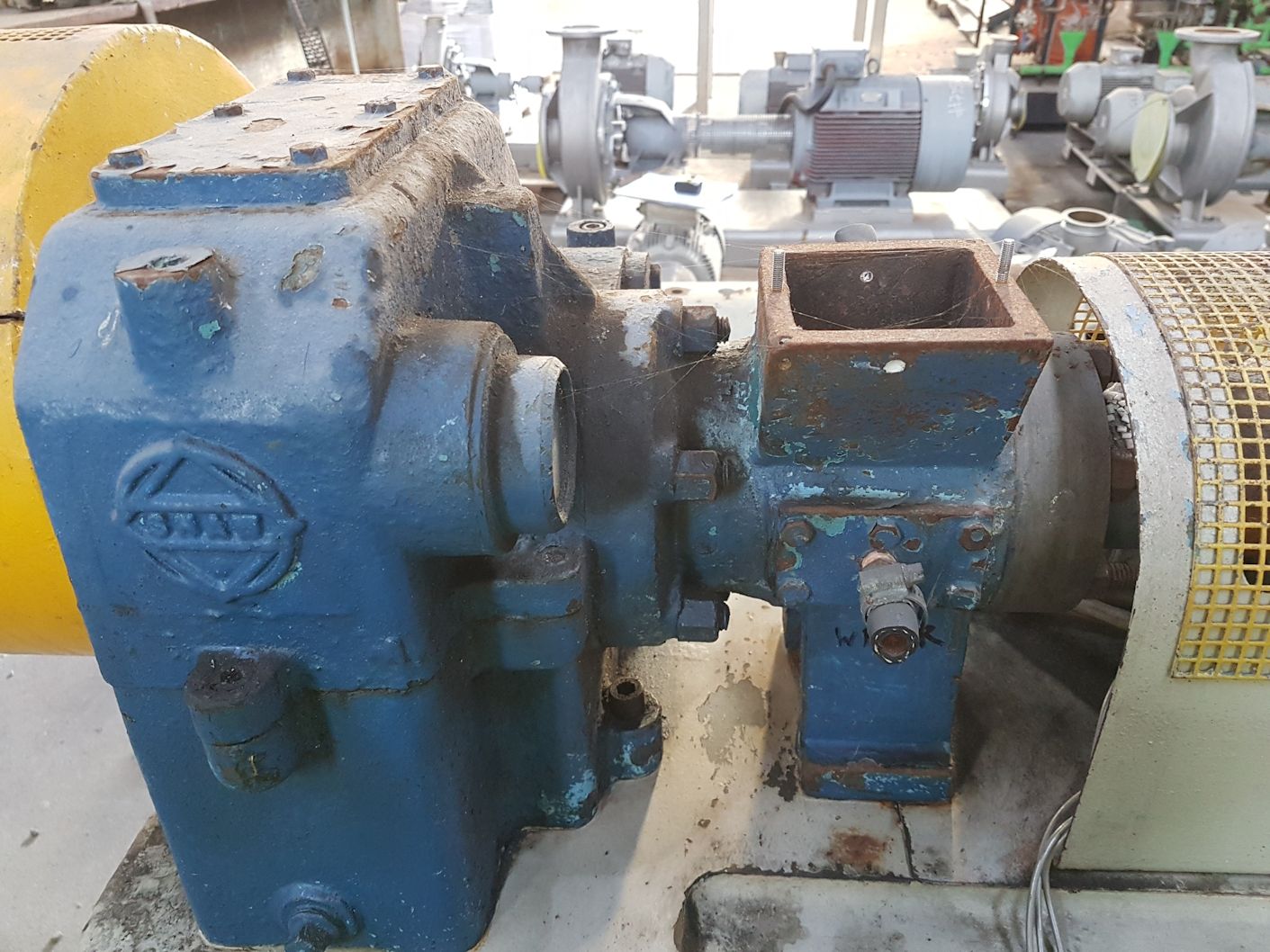

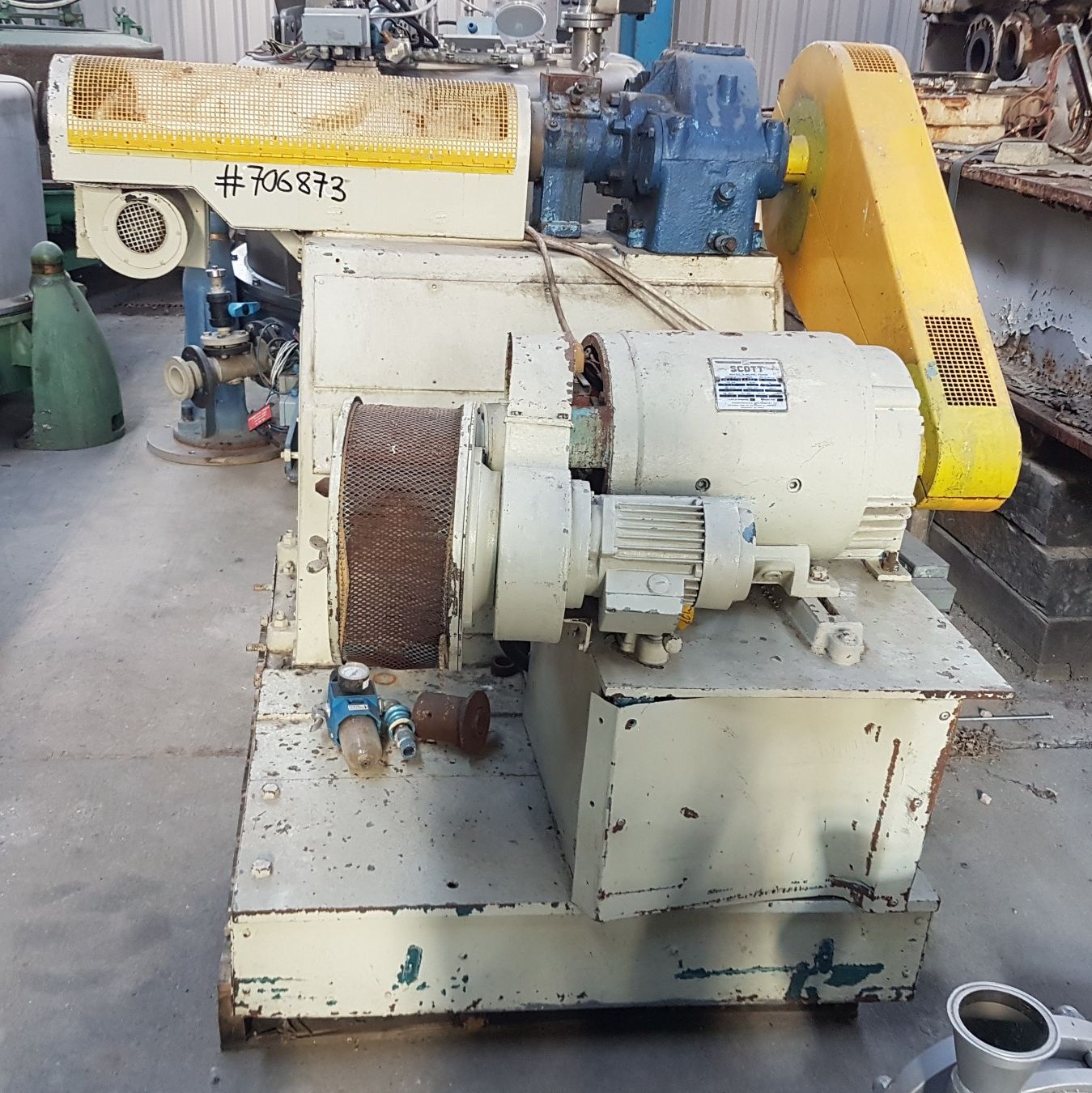

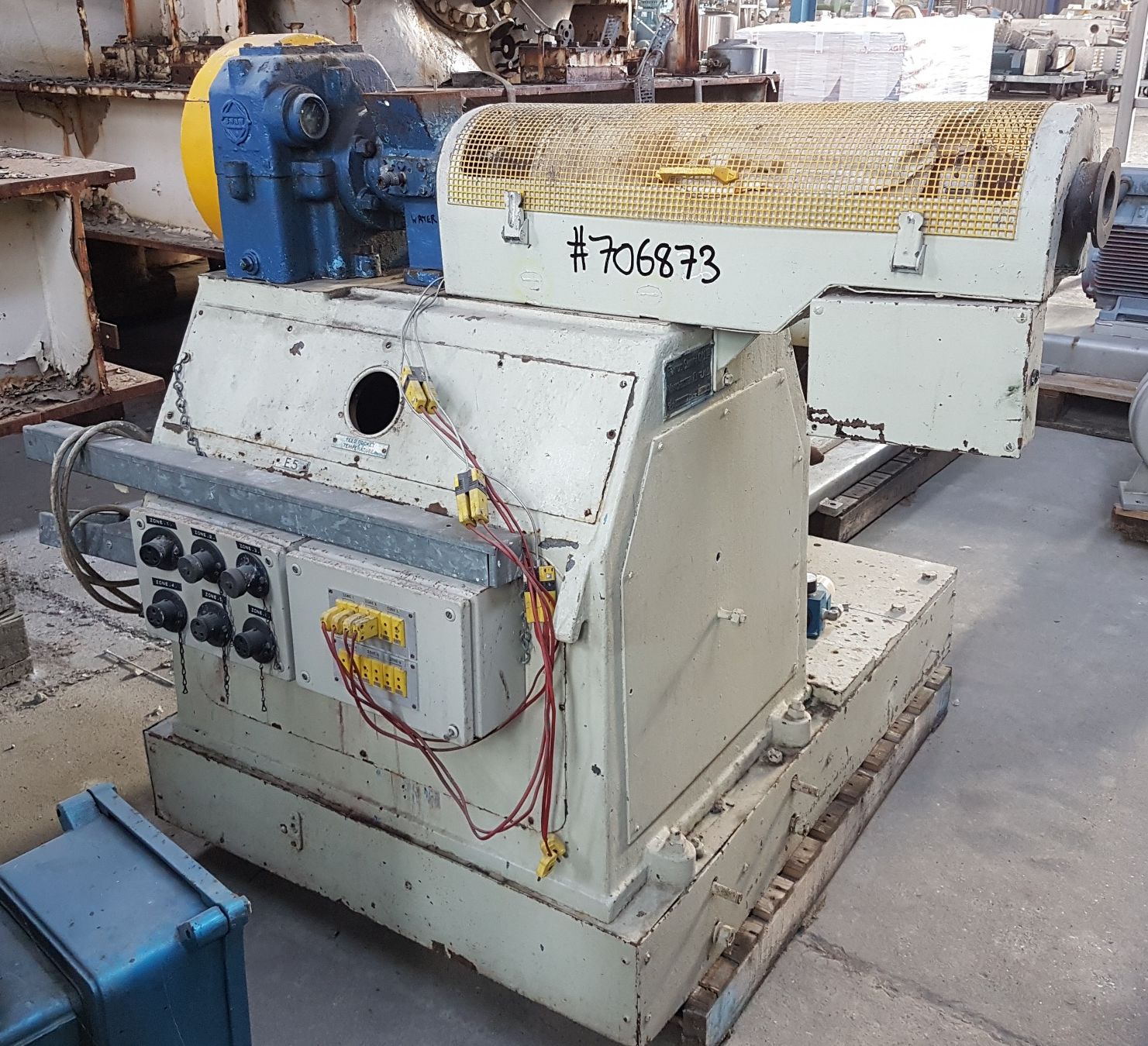

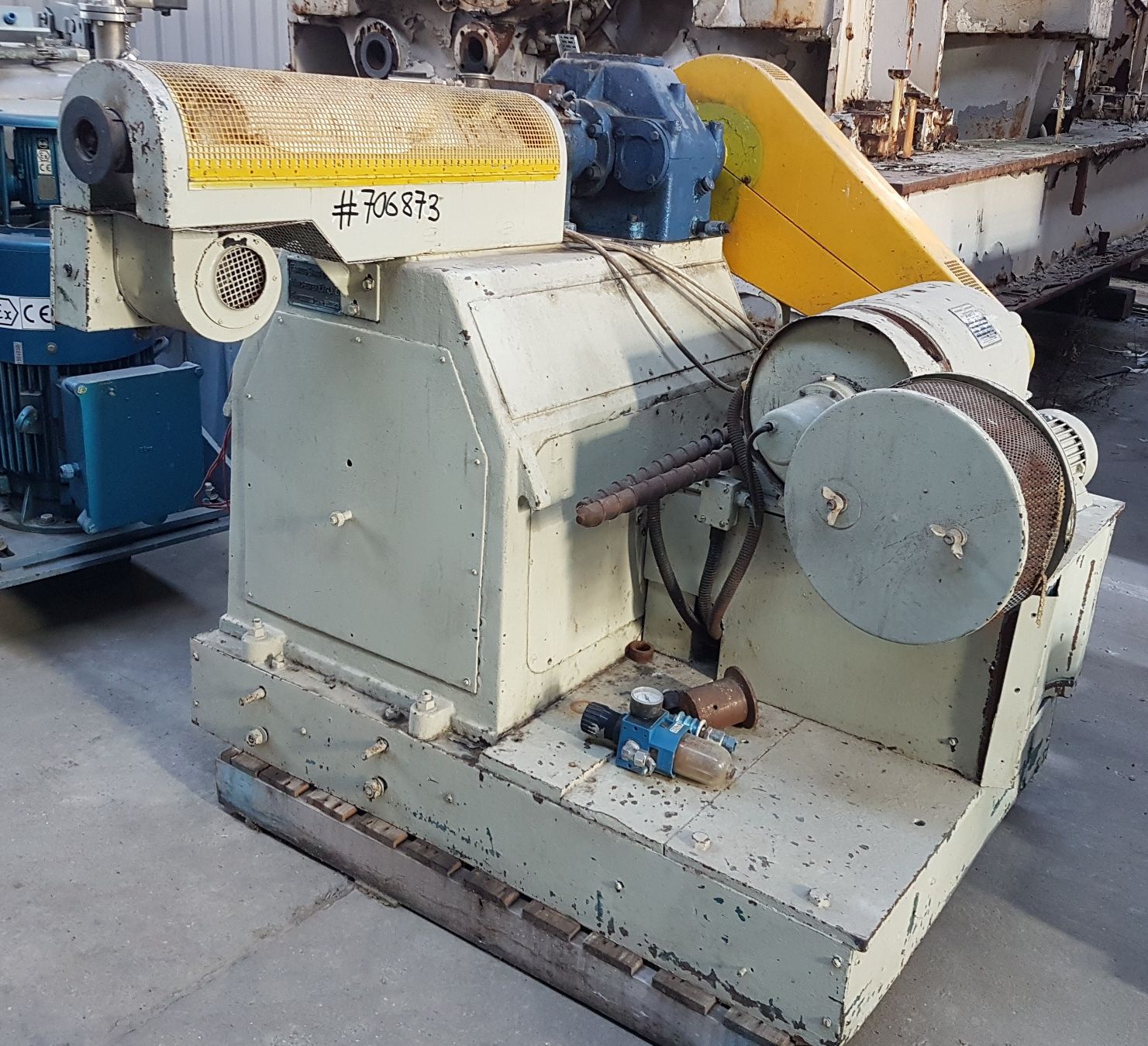

1m long carbon steel Extruder
electric heated barrel
Type: Extruder
Model: TCS-70-16D Kneader
Condition: Used
Material: Carbon Steel
Diameter: 70 mm (2.76 in)
Number of Heating Zones: 5
single screw Ko-Kneader system,
proceesing length 16 L/D,
carbon steel heated screw,
screw oscillation stroke 10.5mm, screw root diameter 45mm, Theoretical pitch in kneading zone (2-spirals) 42mm, pitch in infeed zone (1-spiral) 38mm, free zone (5-barrel section) 2.04 dm3,
screw driven by a 2-speed motor, 45kw, 3/50/380/400/415/660/690 volt, 1480/1475 rpm or 55kw, 3/60/440 volt, 1775 rpm, cast chrome steel barrel,
barrel with special high nickel content carbon steel liner and kneading pins, barrels steam/water heated, (4) Regloplas type P160/9/SG5/IK/R145 water/steam heater temperature controllers,
6.5 ltr volume, rated 6 bar @ 160 deg C, (1) 600mm wide x 3m long chilled rubber belt conveyor with Netzsch Condux Granulator, (2) Tricool chillers,
2) 21.6 cubic foot (0.6 cubic meter) carbon steel ribbon mixer, 550mm wide x 1680mm long x 700mm deep, interupted ribbon, driven by 7.5 hp, 3/60/415 volt, 1405 rpm motor, end bottom discharge with pneumatic operated slide valve, 2-650mm x 650mm inspection ports with hinged covers,
Screw Length: 1,300 mm (51.2 in). Feeder: Yes. Number of Cooling Zones: 1.
Type: Extruder
Condition: Used
Material: Carbon Steel
Diameter: 63 mm (2.48 in)
Feeder: Yes
63mm,
single screw extrusion line,
approx 60 kg/hr of 800mm wide plastic sheet),
line consists of: (1) Bone Brother 63mm x 2m long c/steel single screw extruder,
motor with cooling fan,
barrel with (5) fans driven by 0.33 kw, 3/50/415 volt, 2800 rpm motors,
126mm x 38mm feed opening with s/steel feed hopper,
(1) 3-roll calender, rolls 300mm diameter x 800mm long, rolls with mirror finish, each roll is oil heated with its own oil heater, each roll gap adjuster has a hydraulic ram driven by 4 kw, 3/50/380-420 volt, 1435 rpm motor vai a Eurodrive gearbox,
the calender is mounted on a moveable skid , skid has a hydraulic raise/lower mechanism, (1) end of line Gillard & Co sheet cutter, mounted on wheels, totally enclosed in a cabinet, system with control panels.
Type: Extruder
Condition: Used
Material: Carbon Steel
Diameter: 20 mm (0.787 in)
Number of Heating Zones: 4
Bone Brothers
lab size single screw extruder.
Unit has (4) electrically heated zones.
Unit is complete with 7" diameter x 5" high stainless steel feed hopper
cooling bath and control panel.
Screw Length: 420 mm (16.5 in). Feeder: Yes. Heating type: Electric.
Type: Extruder
Manufacturer: APV
Model: MP 2065 Kneader
Condition: Used
Material: Carbon Steel
Diameter: 65 mm (2.56 in)
Number of Heating Zones: 5
twin screw Ko-Kneader system,
(1) Baker Perkins 800mm diameter chilled drum roll cooler, series 2000, serial #65712, drum with pre-breaker and Kibbler granulator, granulator driven by 10HP, 1500 rpm motor, pre-breaker driven by 1HP, 150 rpm motor, chill roll motor driven by 5 HP, 25 rpm motor,
(2) 350 liter high intensive mixers, driven by 37kw, 3/50/415 volt, 1475 rpm motor,
(1) chiller,
(1) buffer hopper with bag filler
Screw Length: 1,600 mm (63 in). Feeder: Yes. Heating type: Electric.
