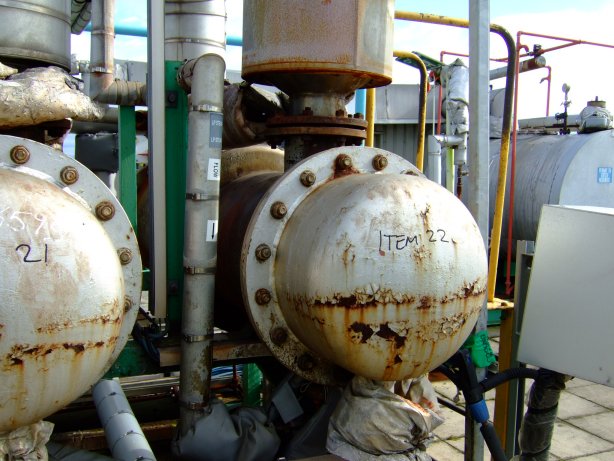

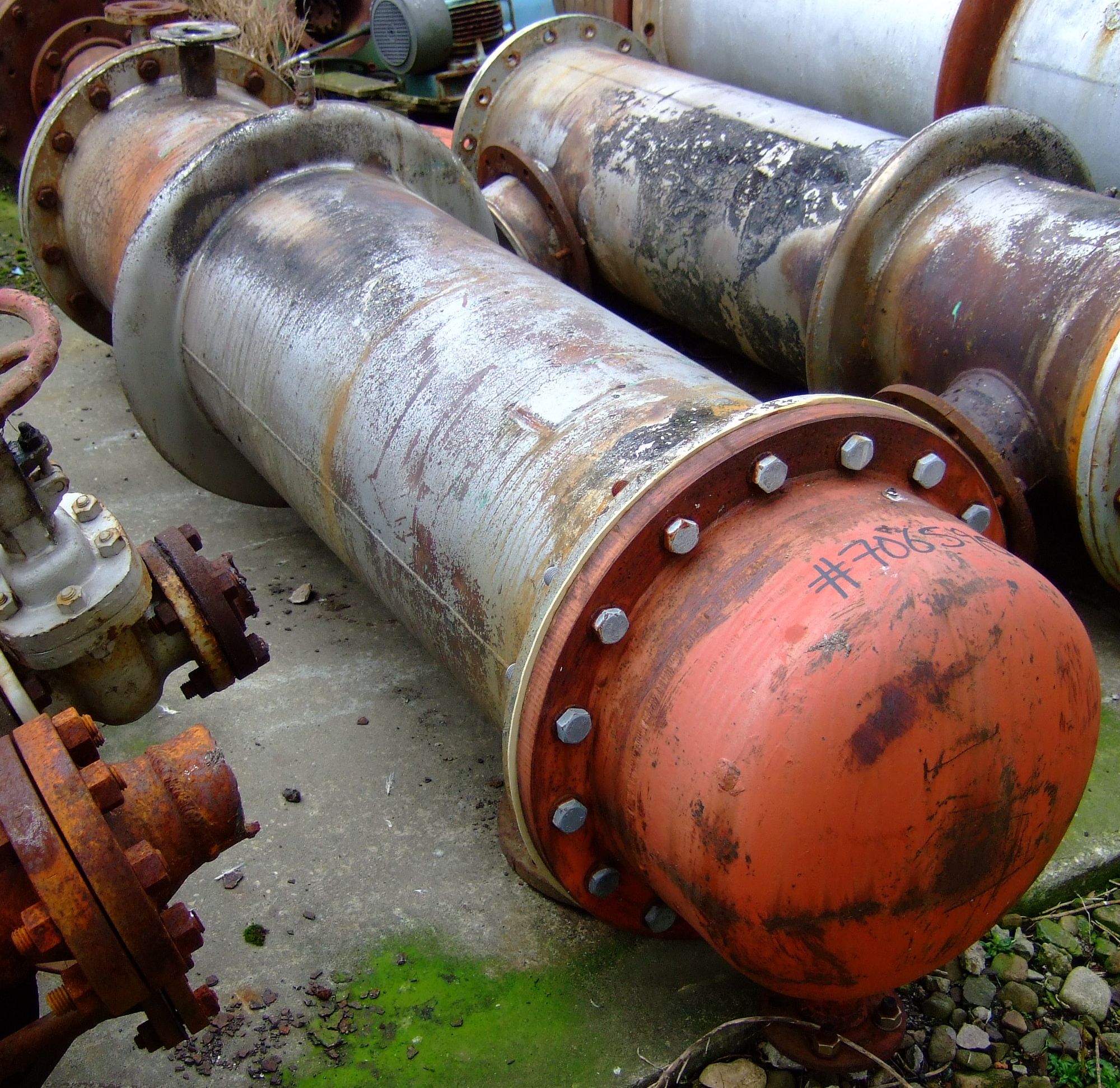

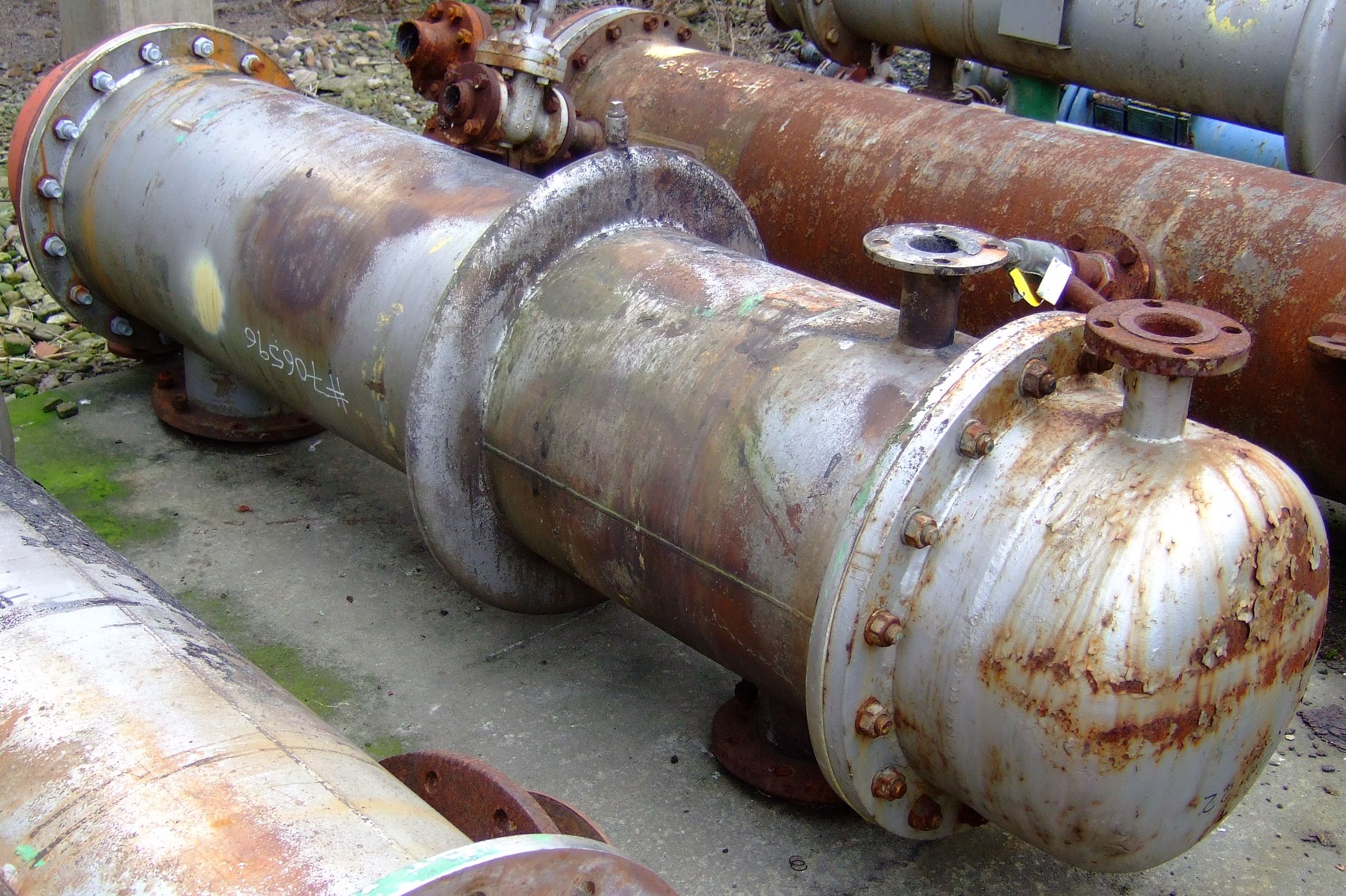

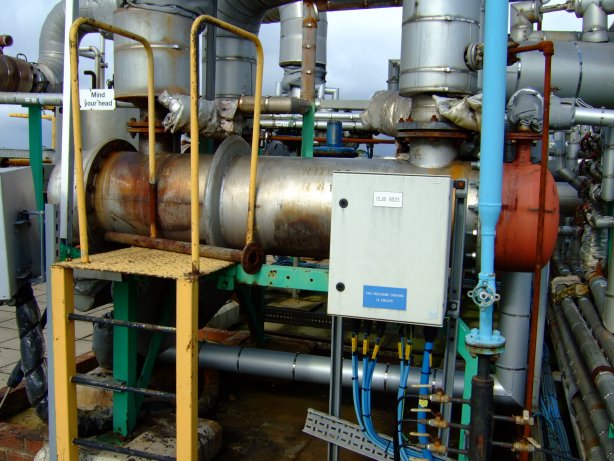

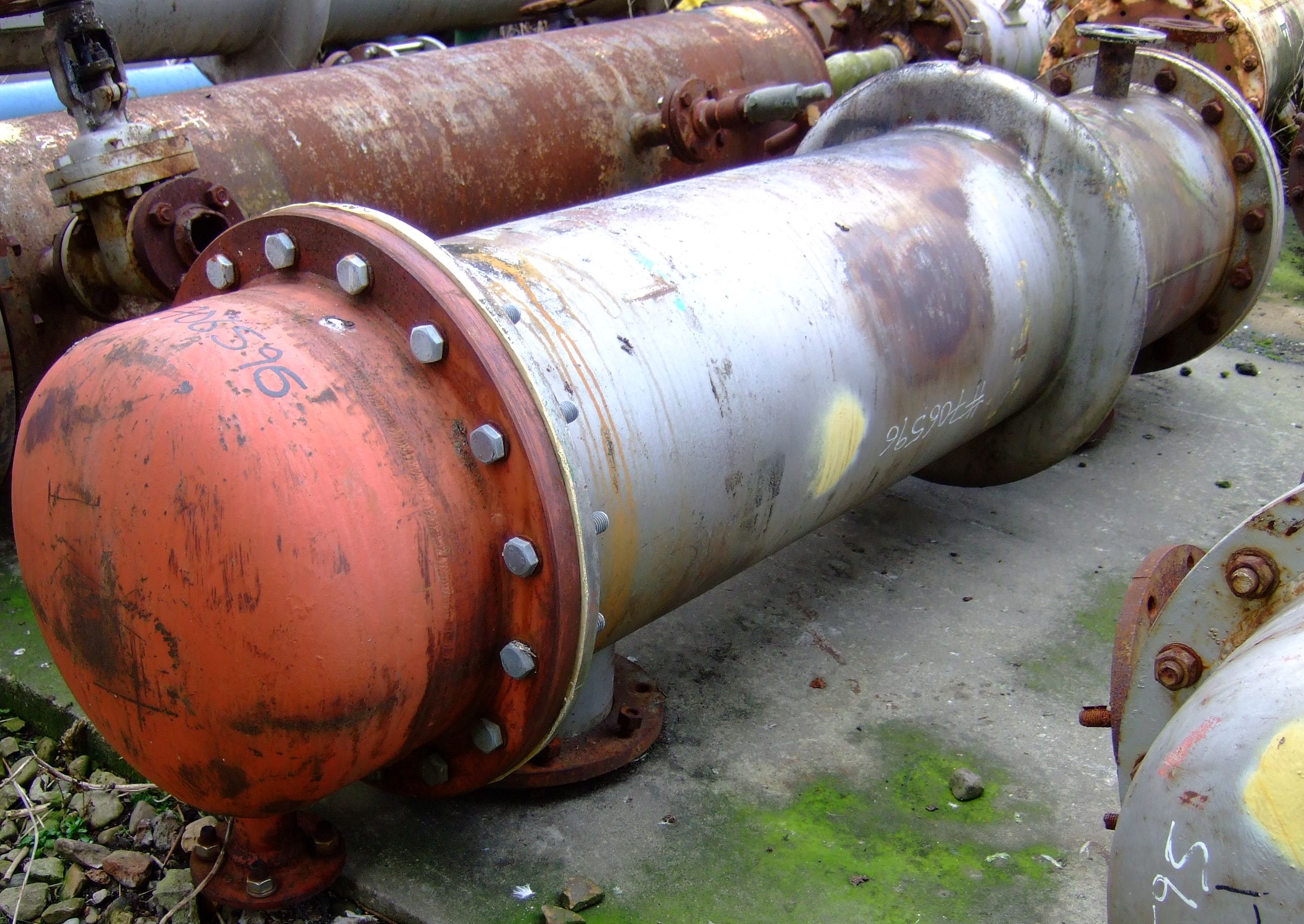

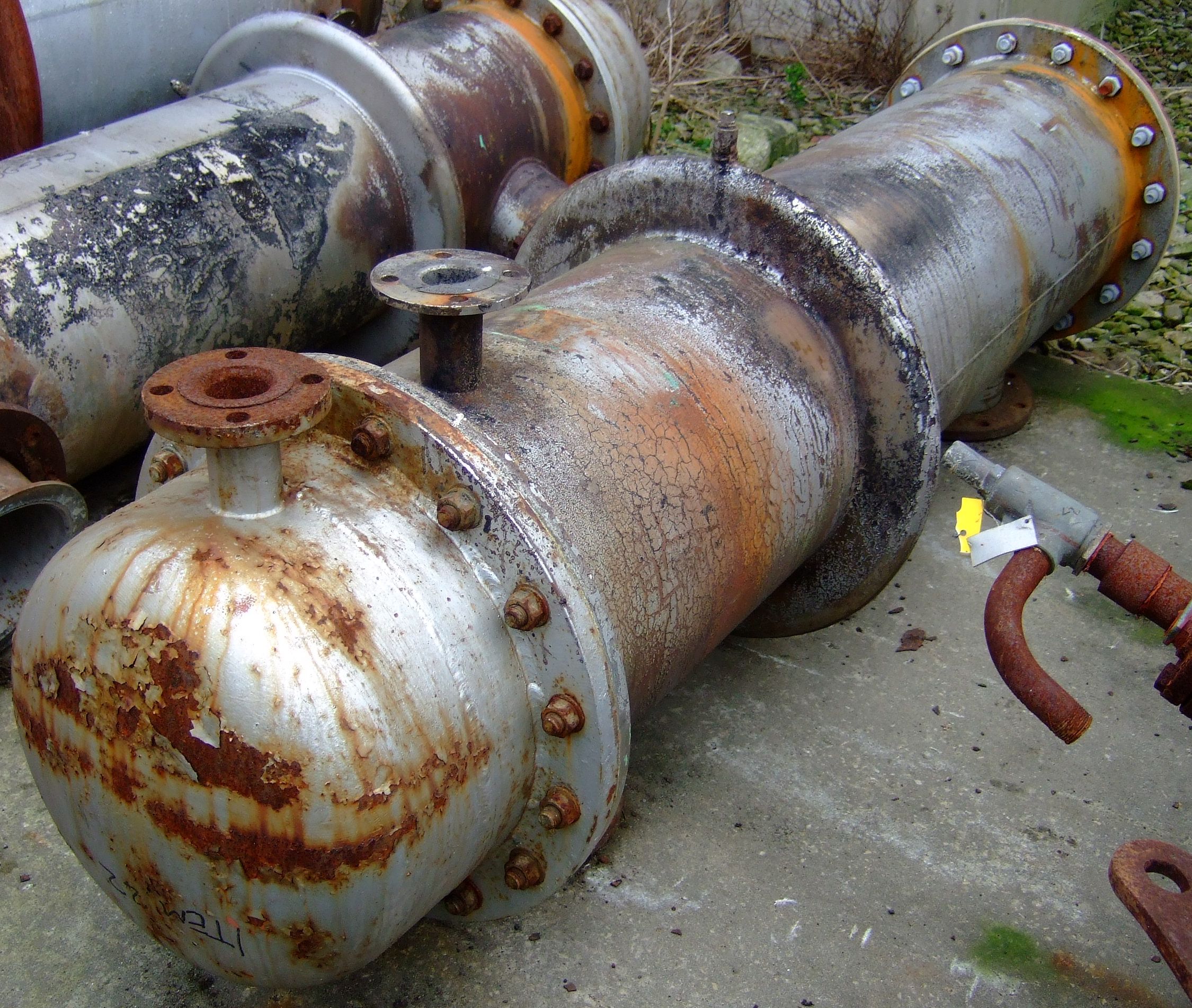

Stainless Steel 316 Shell and Tube Heat Exchanger 10.3 m² (110.9 ft²) For Sale - IPP# 706596

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Bramah Process Plant Ltd

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 25.8 m² (277.7 ft²)

Orientation: Horizontal

Tube side: 10.55 kg/cm2 @ 299 deg C Shell side: 10.55 kg/cm2 @ 399 deg C (2) c/steel flat heads

Shell Pressure: 10.3 bar (150.1 psi). Shell Temperature: 399 °C (750.2 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150.1 psi). Tube Temperature: 299 °C (570.2 °F). Tube Material: Stainless Steel 316. Shell Diameter: 350 mm (13.8 in). Head Material: Carbon Steel. Length: 6,060 mm (238.6 in). Tube-side Passes: 4. Tube Number: 72. Tube Diameter: 19 mm (0.75 in). Tube Length: 6,060 mm (238.6 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Stainless Steel Fabrications LTD

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 10 m² (107.6 ft²)

Orientation: Horizontal

Expansion bellow: Yes (2) c/steel channel heads

Shell Pressure: 1.01 bar (14.7 psi). Shell Temperature: 140 °C (284 °F). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 50 °C (122 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 350 mm (13.8 in). Head Material: Carbon Steel. Length: 2,950 mm (116.1 in). Tube-side Passes: 4. Tube Number: 54. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Nozzle Schedule: Head openings: - Tubeside: 2-50mm, 4-6mm - Shell: 1-150mm, 1-75mm, 1-50mm, 1-6mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Stainless Steel Fabrications LTD

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 24 m² (258.3 ft²)

Orientation: Horizontal

Additional features: expansion bellow, (2) carbon steel channel heads,

Shell Pressure: 1.01 bar (14.7 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 75 °C (167 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 560 mm (22 in). Head Material: Carbon Steel. Length: 3,050 mm (120.1 in). Tube-side Passes: 4. Tube Number: 122. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tubeside - 2-75mm, 4-6mm, shell - 2-300mm, 1-75mm, 1-20mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 10.3 m² (110.9 ft²)

Orientation: Horizontal

(2) c/steel bonnet heads Additional features: Expansion bellow

Shell Pressure: 4.1 bar (60 psi). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Material: Stainless Steel 316. Shell Diameter: 420 mm (16.5 in). Head Material: Carbon Steel. Tube Number: 57. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,846 mm (72.7 in). Nozzle Schedule: - Tube side openings: 2-50mm - Shell openings: 1-200mm, 1-150mm, 1-50mm.
