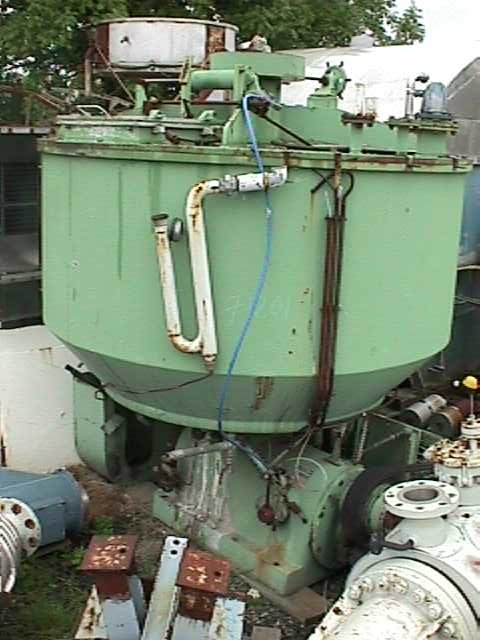

jacketed high intensity mixer/disperser/homogenizer/emulsifier
Double jacketed for heating and cooling
Underdriven
Top openings for liquid and powder feed
Cover opens with a pneumatic operated cylinder. 120mm side bottom discharge with pneumatic operated valve
Type: Mixer-Intensive
Manufacturer: Plastechnik Greiz
Model: MSHK750/2000
Condition: Unused
Material: Stainless Steel 304
Capacity (Design): 780 L (206 gallons)
Motor Power: 105 kW (141 HP)

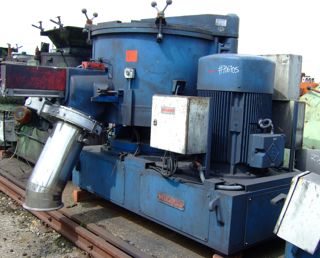

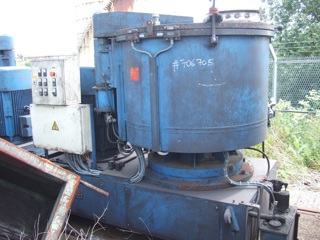

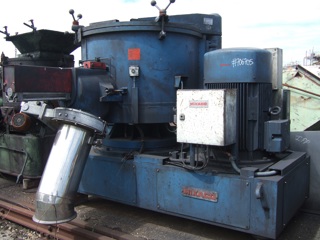

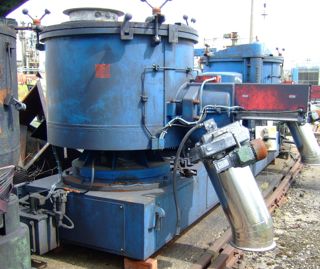

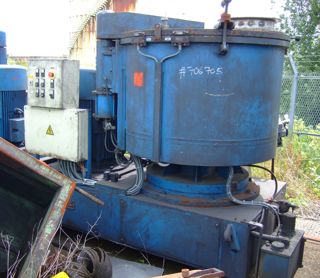

750/2000 liter
fluidizing intensive mixer/cooler system
Mixer Mdl 750-4
cooler mixer Mdl 2000-2
Mixer/heater is 780 liter total capacity, 600 liter working capacity.
Shell 1.0m dia.
Load 235 Kg.
W/200mm discharge valve.
W/double jkt for heating and cooling rated 0.05 MPa
mixer blades output speed 450/900 rpm.
Motor type AHR355-8/4.
Mixer/cooler is 2000 liter total capacity, 1600 liter working capacity.
Load 580 kg.
W/jkt for cooling.
Shell 1.8m dia.
W/300mm dia discharge valve.
Driven by 18.5 KW, 3/50/380 volt, 1460 rpm motor, 75 rpm output speed.
W/side entering chopper, driven by 11.0 KW, 3/50/380 volt, 1790 rpm motor.
Bowl Diameter: 1,000 mm (39.4 in). Blade Speed (RPM): 900. Bowl Jacket: Yes. Vacuum: Yes.
Type: Mixer-Intensive
Manufacturer: Plastechnik Greiz
Model: MSHK750/2000
Condition: Unused
Material: Stainless Steel 304
Capacity (Design): 780 L (206 gallons)
Motor Power: 105 kW (141 HP)
750/2000 liter
fluidizing intensive mixer/cooler system.
Mixer Mdl 750-4, cooler mixer Mdl 2000-2.
Mixer/heater is 780 liter total capacity,
Shell 1.0m dia.
Load 235 Kg.
W/200mm discharge valve.
W/double jkt for heating and cooling rated 0.05 MPa.
mixer blades output speed 450/900 rpm.
Motor type AHR355-8/4.
Mixer/cooler is 2000 liter total capacity,
1600 liter working capacity.
Load 580 kg.
W/jkt for cooling.
Shell 1.8m dia.
W/300mm dia discharge valve.
Driven by 18.5 KW, 3/50/380 volt, 1460 rpm motor, 75 rpm output speed.
W/side entering chopper, driven by 0.55 KW, 3/50/380 volt, 1790 rpm motor.
Bowl Diameter: 1,000 mm (39.4 in). Bowl Depth: 300 mm (11.8 in). Blade Speed (RPM): 900. Bowl Jacket: Yes. Vacuum: Yes.
Type: Mixer-Intensive
Manufacturer: Henschel
Model: FM10L
Condition: Used
Material: Stainless Steel 304
Capacity (Design): 10 L (2.64 gallons)
Motor Power: 2.2 kW (2.95 HP)
polished sanitary jacketed high intensity mixer
highly polished, (3) sets of 2-blade on rotor
manual s/steel plow
non-flameproof motor.
manual variable speed drive 1800 rpm to 3800 rpm
c/steel straight jacket
Hinged top cover with 2" (50mm) sight glass w/light, jacket outlets 2-1" (25mm), 1-2" (50mm) side bottom discharge with manual plug valve.
On/off switch, safety cut off switch on top cover
Bowl Diameter: 230 mm (9.06 in). Bowl Depth: 230 mm (9.06 in). Blade Type: 3 sets, 2 blades each, rotor mounted w/ manual SS plow. Bowl Jacket: Yes. Jacket Material: Carbon Steel. Controls: Yes.
Type: Mixer-Intensive
Manufacturer: Mixaco
Model: SM-600-D
Condition: Used
Material: Stainless Steel 304
Capacity (Design): 750 L (198 gallons)
Motor Power: 45 kW (60.3 HP)
Type: High intensity mixer
600 liter capacity
3/50/400/690 volt
air pressure 6 bar,
350mm feed,
300mm discharge with valve.
Bowl Diameter: 1,180 mm (46.5 in). Bowl Depth: 690 mm (27.2 in). Pressure: 6 bar (87 psi).
