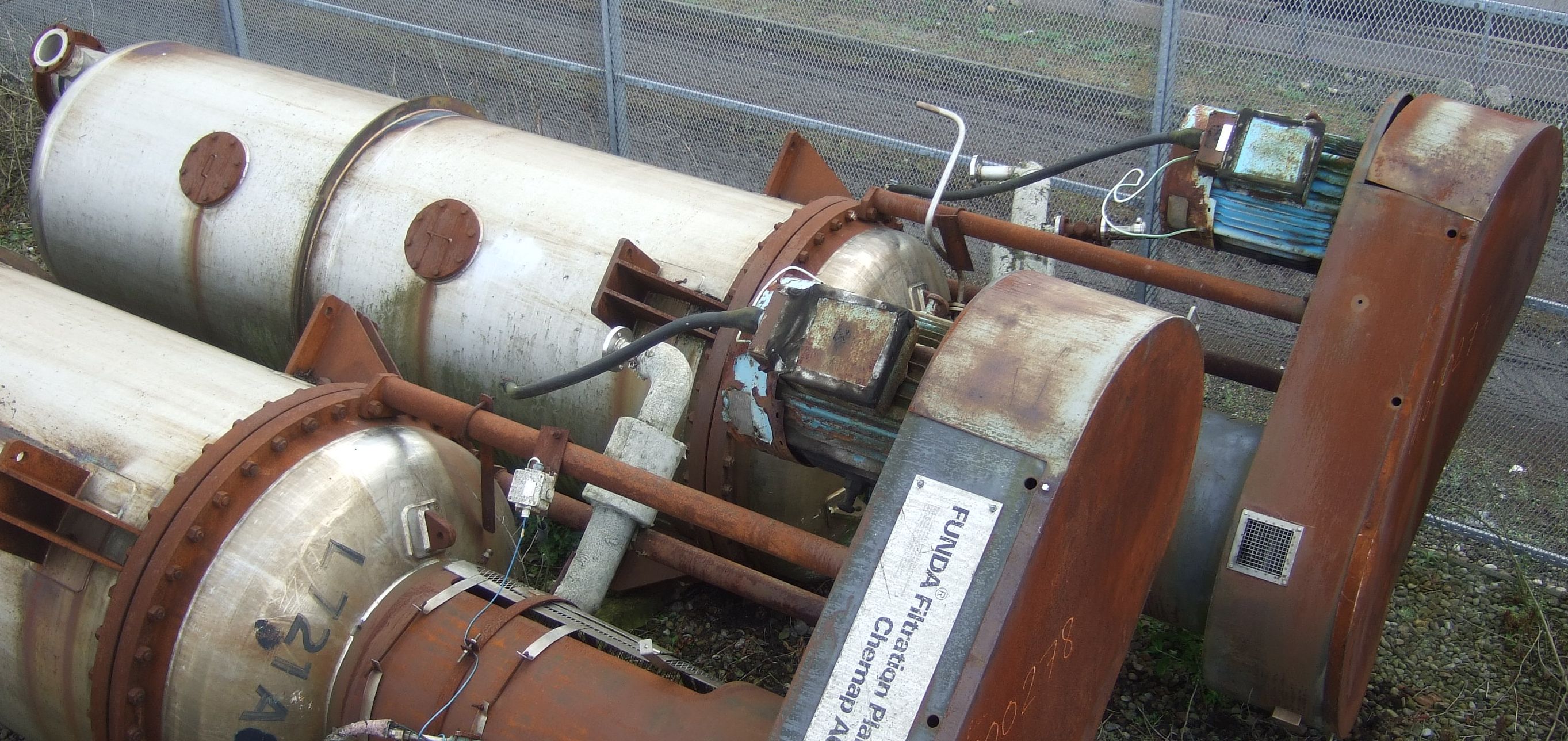

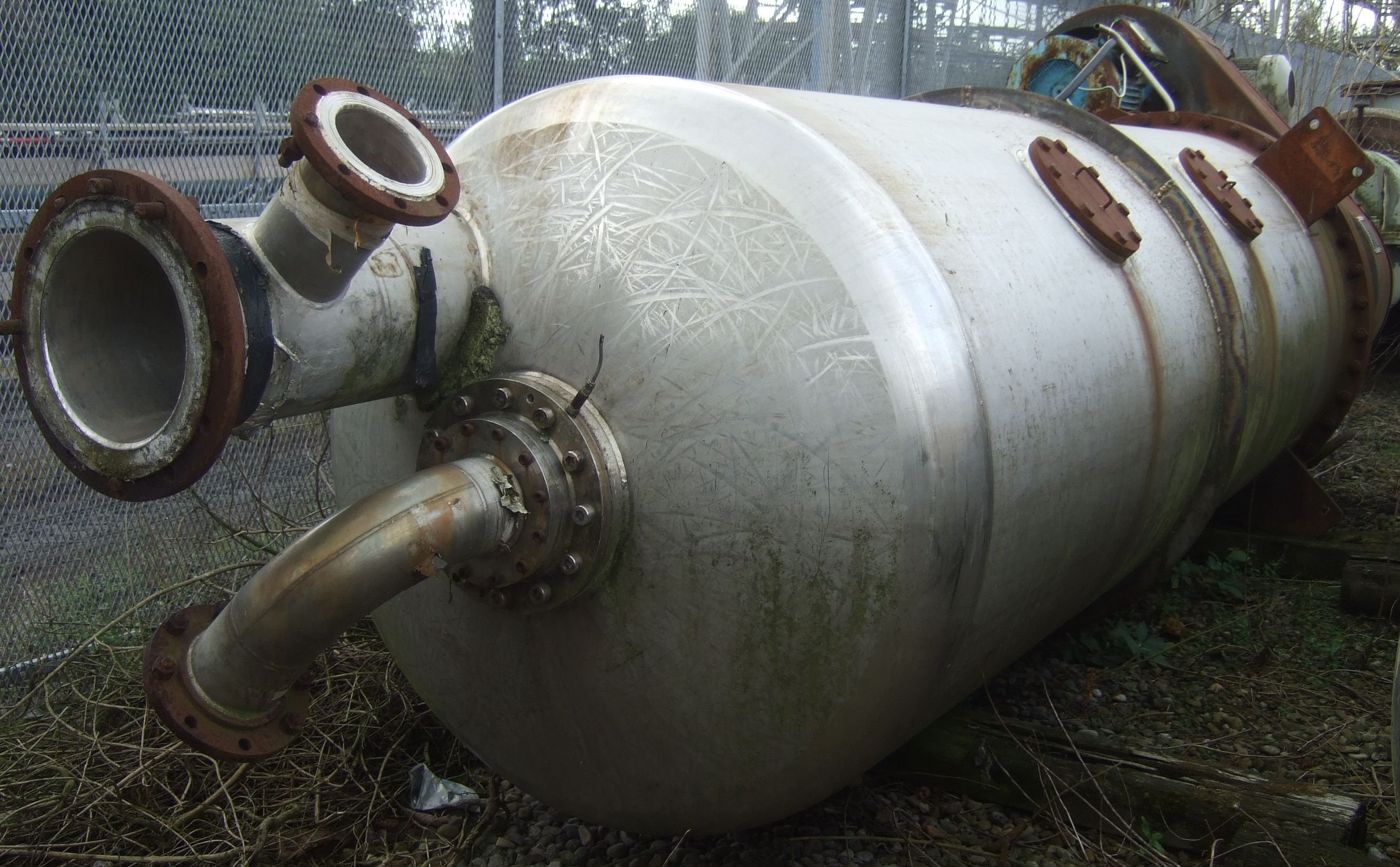

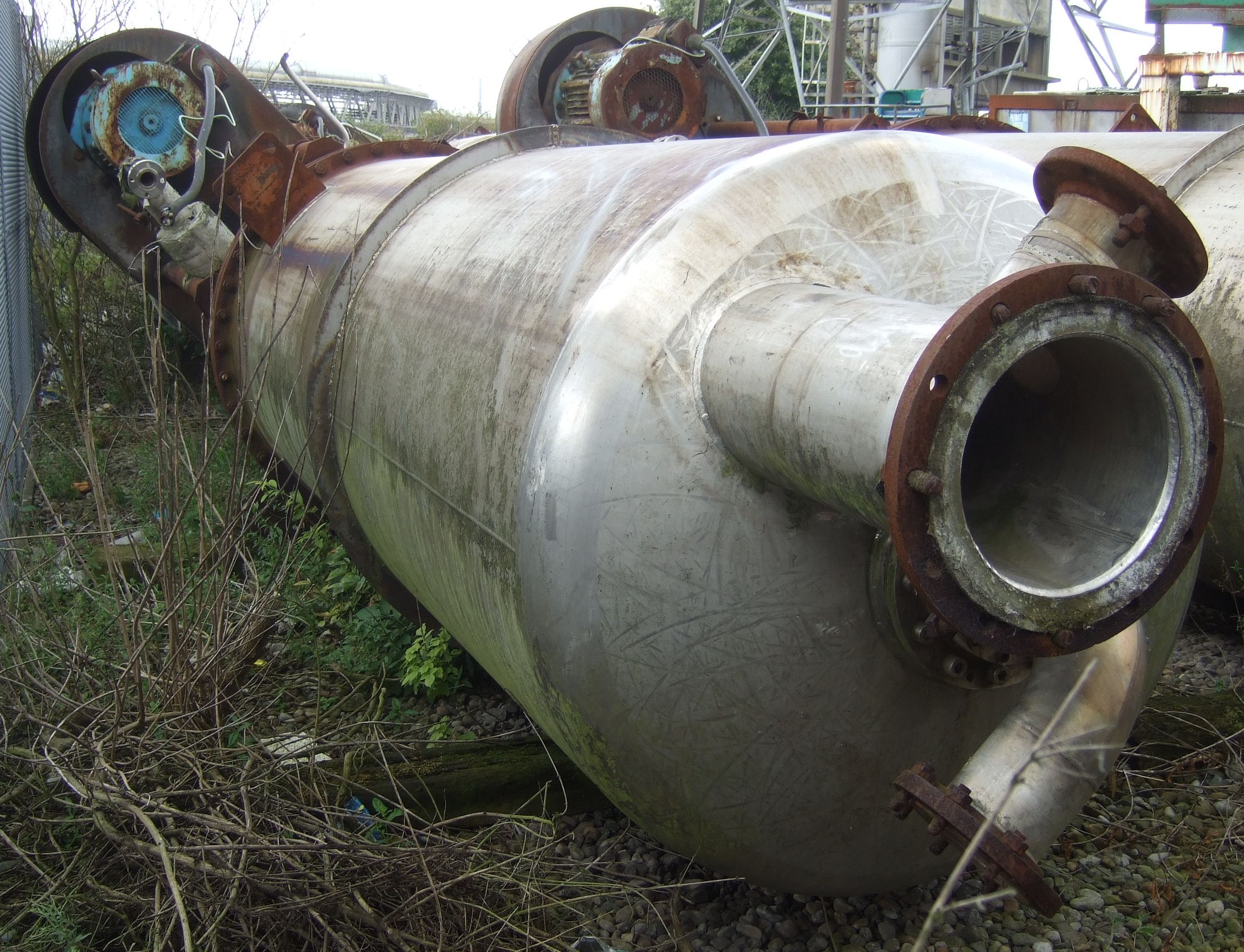

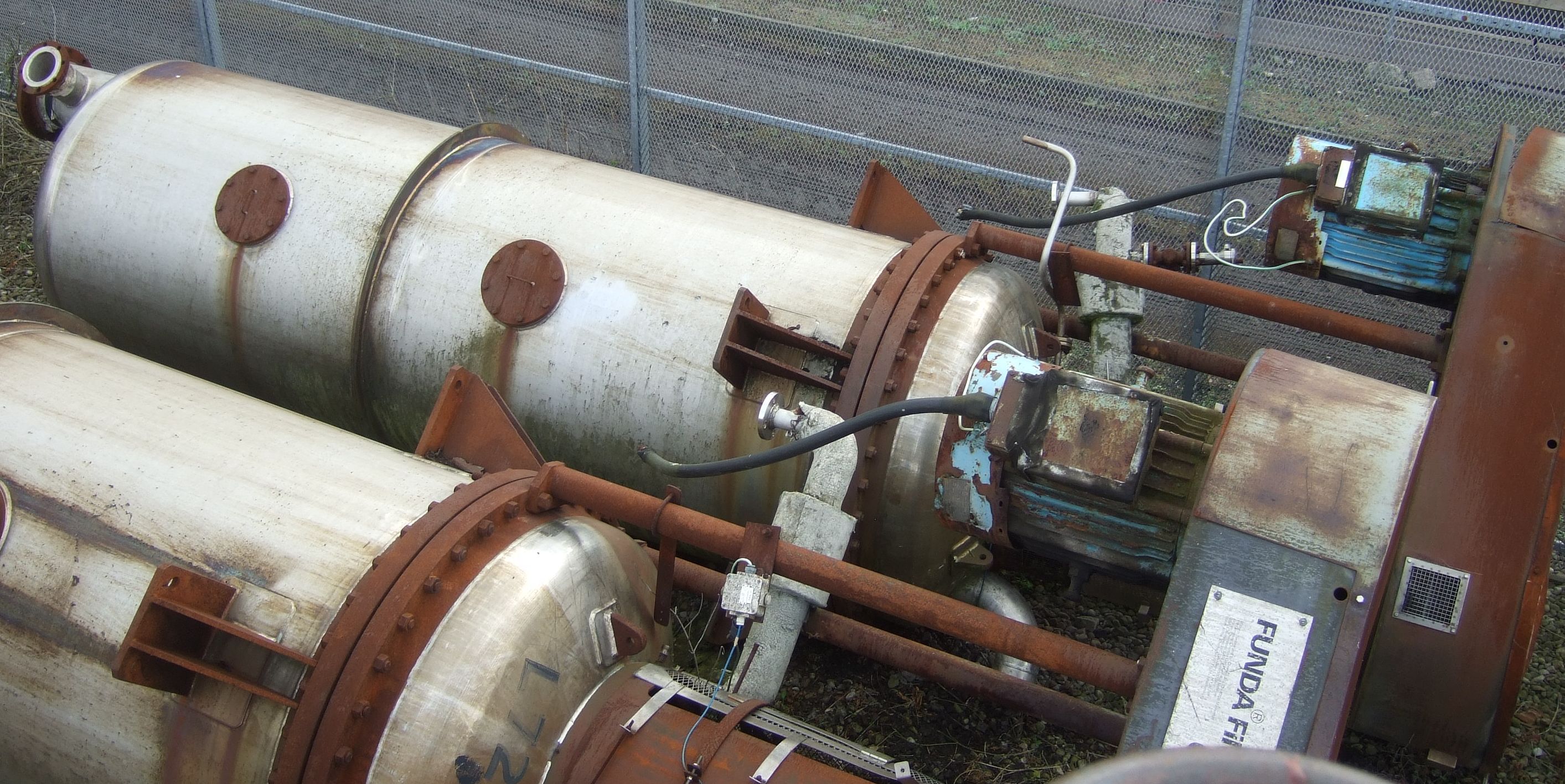

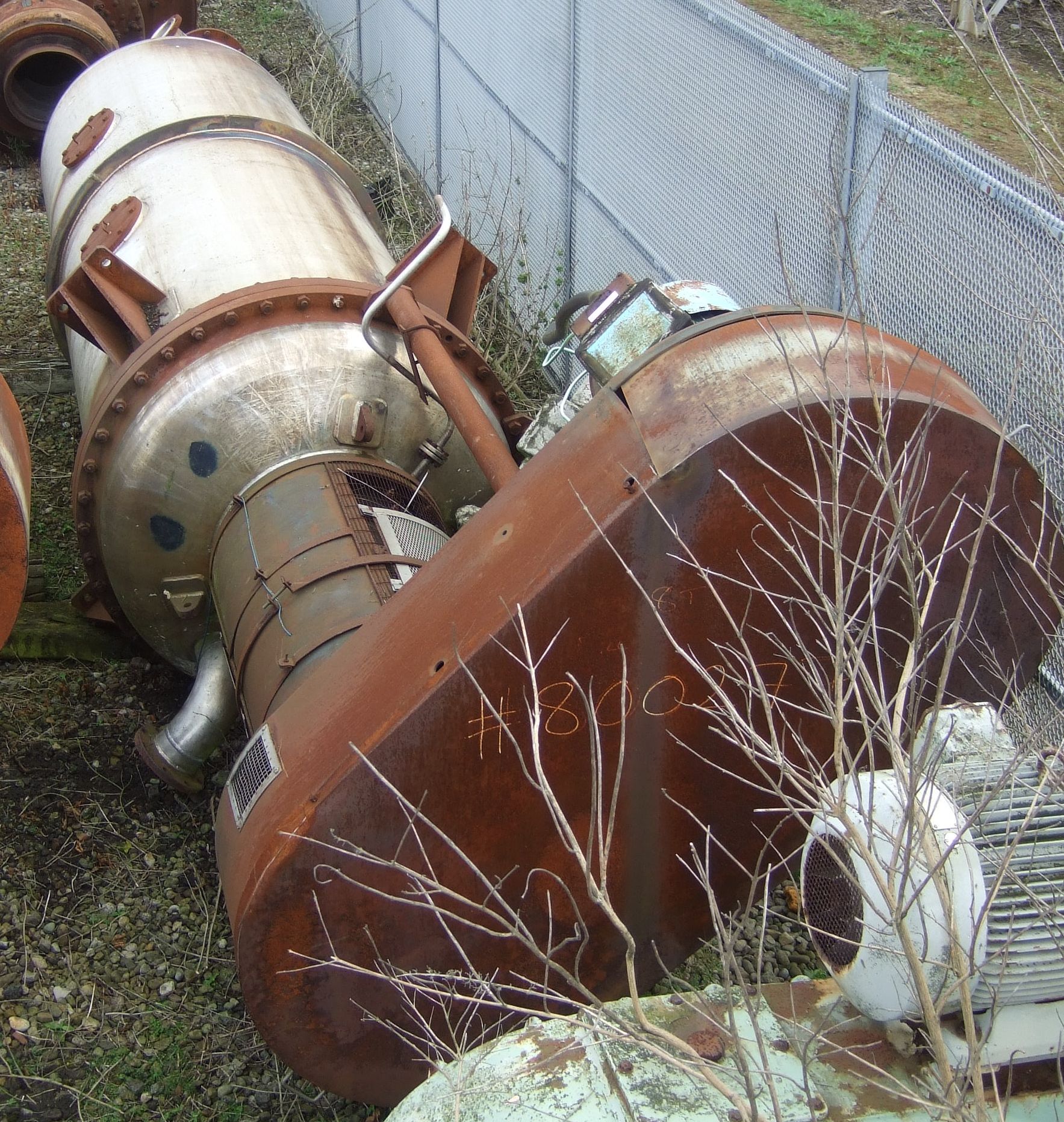

Stainless Steel 316 Chemap AG (Swiss) Pressure Leaf Filter - IPP# 800277

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap AG (Swiss)

Condition: Used

Material: Stainless Steel 316

Filtration Area: 80 m² (861 ft²)

Diameter: 1,400 mm (55.1 in)

5.69 bar @ -29/+60 deg C packed gland on shaft, built to ASME V111 div 1

Pressure: 5.7 bar (82.5 psi). Temperature: 60 °C (140 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap AG (Swiss)

Condition: Used

Material: Stainless Steel 316

Filtration Area: 80 m² (861 ft²)

Diameter: 1,400 mm (55.1 in)

design pressure 5.69 bar @ -29/+60 deg C Shaft seal: Packed gland built to ASME V111 div 1

Pressure: 5.7 bar (82.5 psi). Temperature: 60 °C (140 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: AMA (Holland)

Model: 48-2204ASC

Condition: Used

Material: Stainless Steel 316

Filtration Area: 18.5 m² (199.1 ft²)

Orientation: Vertical

Niagara 316 stainless steel horizontal tank vertical leaf pressure filter Rated 4.5 Kg/cm @ 120 degrees C Volume 2.555 cubic meter Chamber 1650mm long x 1150mm diameter Manual opening mechanism Pull plates out

Temperature: 120 °C (248 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Schenk

Model: ZHF-SR5KL

Condition: Used

Material: Stainless Steel 316

Filtration Area: 5 m² (53.8 ft²)

Diameter: 813 mm (32 in)

pressure leaf filter body Discharge type: centrifugal Tank capacity: 350 litres Serial number: KH839 Int rated 6 bar/full vac @ 200 deg C Unit will take (10) leaves Vessel is 900mm (36"). No leaves w/unit.

Pressure: 6 bar (87 psi). Temperature: 200 °C (392 °F).
