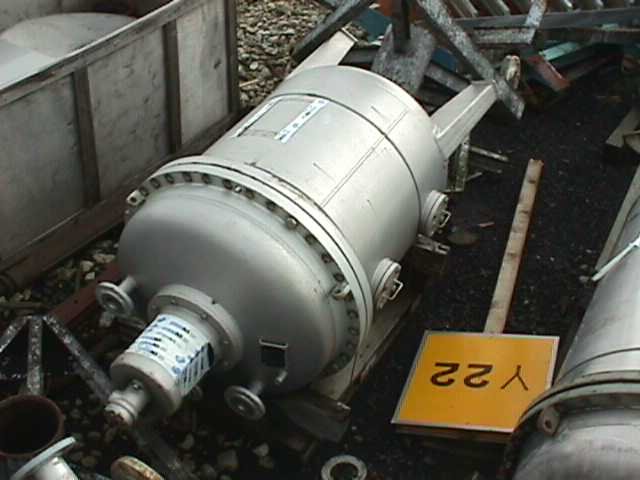

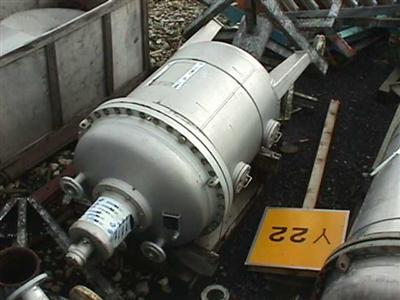

Unused Pressure Leaf (Funda) Filter Stainless Steel 304 Chemap A10 - IPP# 89349

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap

Model: A15

Condition: Unused

Material: Stainless Steel 304

Filtration Area: 15 m² (161.5 ft²)

Diameter: 1,100 mm (42.5 in)

Funda filter with centrifugal discharge (33) 800mm diameter filter elements @ 30mm spacing Filter volume 1380 liters Designed for wet cake discharge. Requires 30 KW motor.

Pressure: 10 bar (145 psi). Temperature: 100 °C (212 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap

Model: A18

Condition: Unused

Material: Stainless Steel 316L

Filtration Area: 18 m² (193.8 ft²)

Diameter: 1,100 mm (43.3 in)

Funda filter with centrifugal discharge (23) 1000mm diameter filter elements mounted @ 30mm spacing Wet cake discharge

Pressure: 5 bar (72.5 psi). Temperature: 100 °C (212 °F).

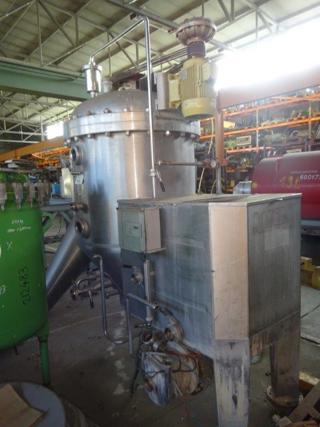

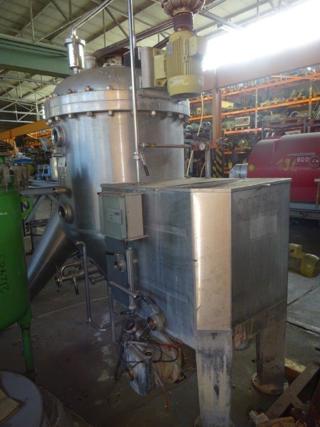

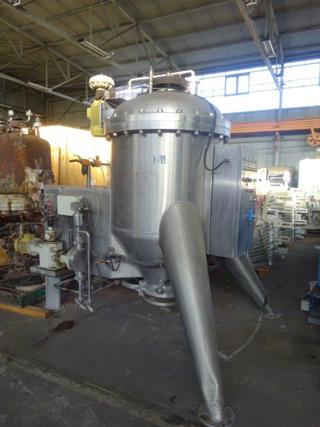

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap

Condition: Used

Material: Stainless Steel 316

Filtration Area: 3 m² (32.3 ft²)

Diameter: 800 mm (31.5 in)

approx 1m diameter

Packed gland on shaft

bottom outlet with Pneumatic operated valve and a stainless steel product bin,

Orientation: Vertical. Pressure: 5 bar (72.5 psi). Temperature: 100 °C (212 °F). Jacket: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Type: Standard. Jacket MOC: Stainless Steel 316. Jacket Temperature: 125 °C (257 °F). Seal Type: Packing. Vessel Liquid Capacity: 580 L (153.2 gallons).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Sparkler

Model: HRC-100

Condition: Used

Material: Stainless Steel 304

Filtration Area: 10.9 m² (117 ft²)

Diameter: 1,200 mm (48 in)

(12) 48" long horiz filter plates rotate to vert position for discharge Designed for dry cake discharge via screw conveyor (conveyor and conveyor drive missing) Approx 560 gal volume 18 cu ft cake capacity (1/2" clearance) Designed for pneumatic discharge and hydraulically rotating plates (Vibrators and hydraulic rotating pump missing)

Orientation: Horizontal. Pressure: 5.2 bar (75 psi). Overall Length: 1,650 mm (65 in). Jacket: Yes. Jacket Pressure: 5.5 bar (80 psi). Jacket Type: Half Pipe/Limpet.
