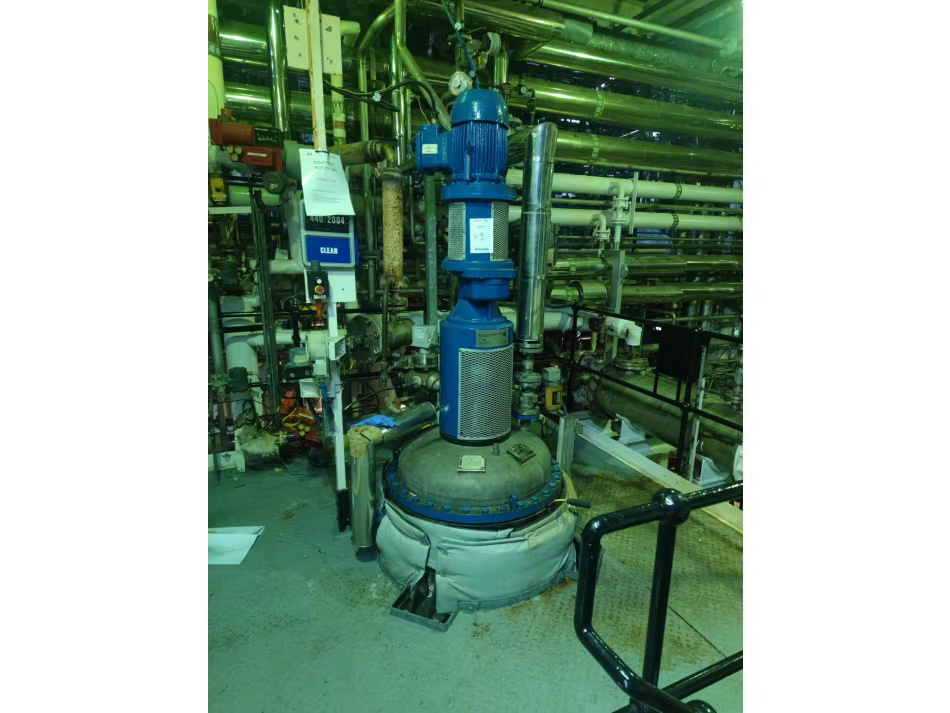

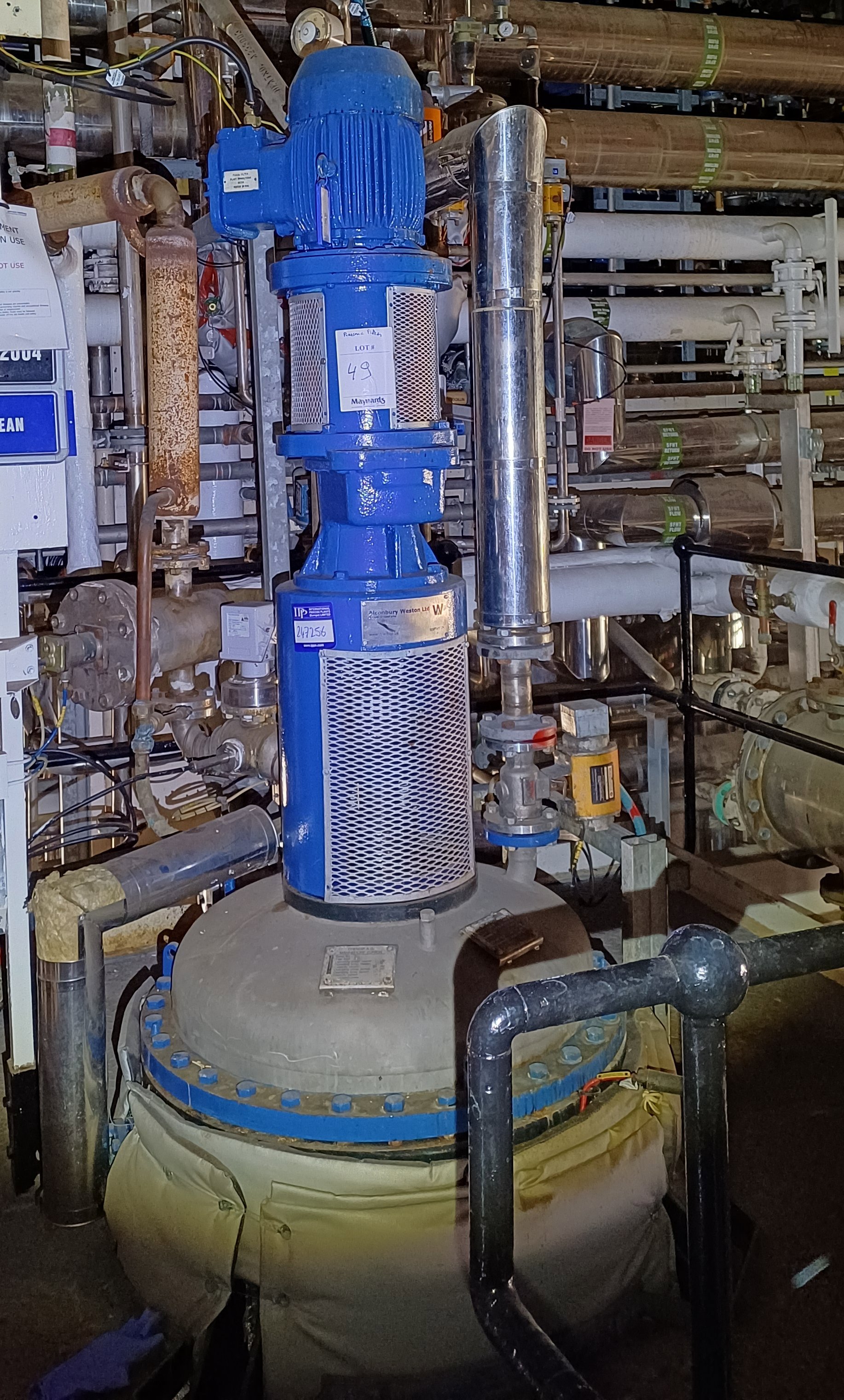

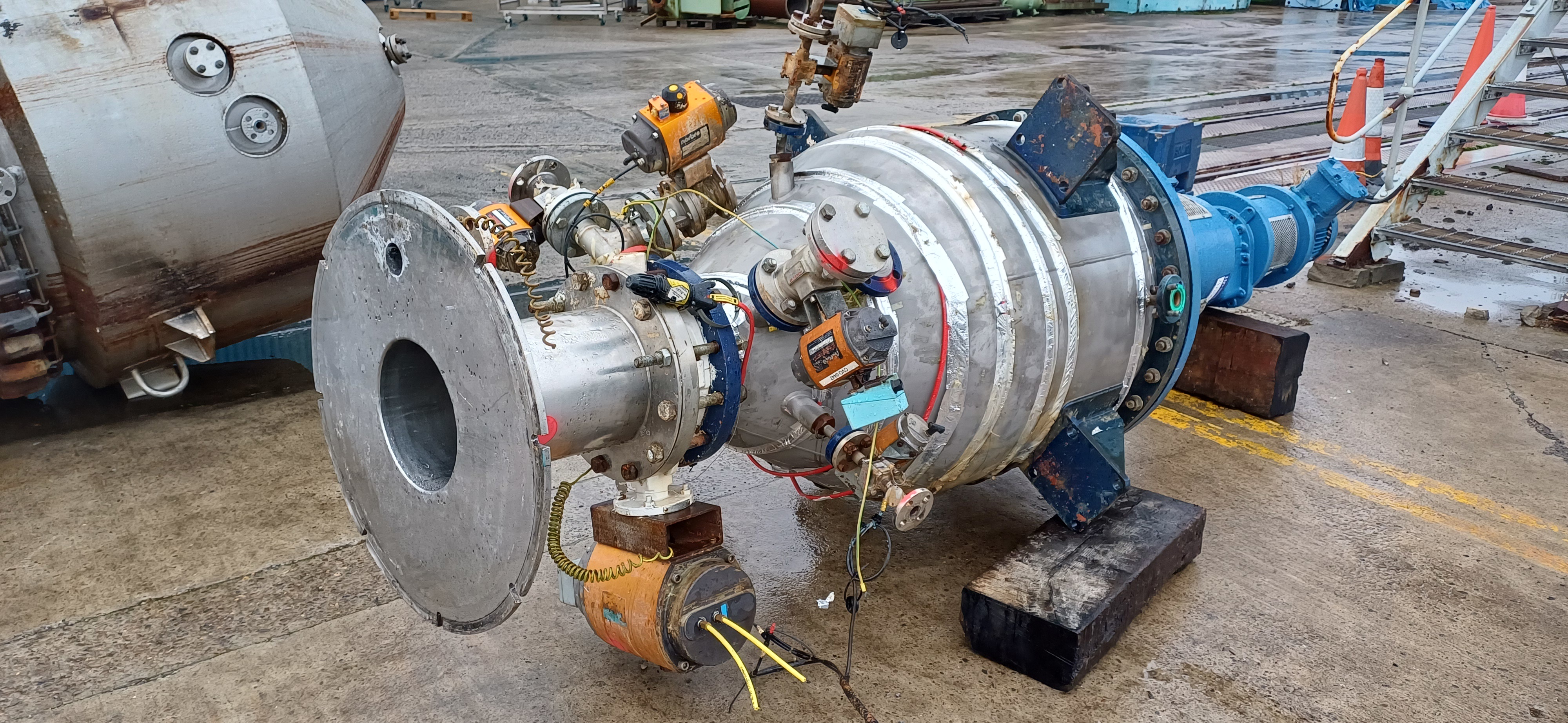

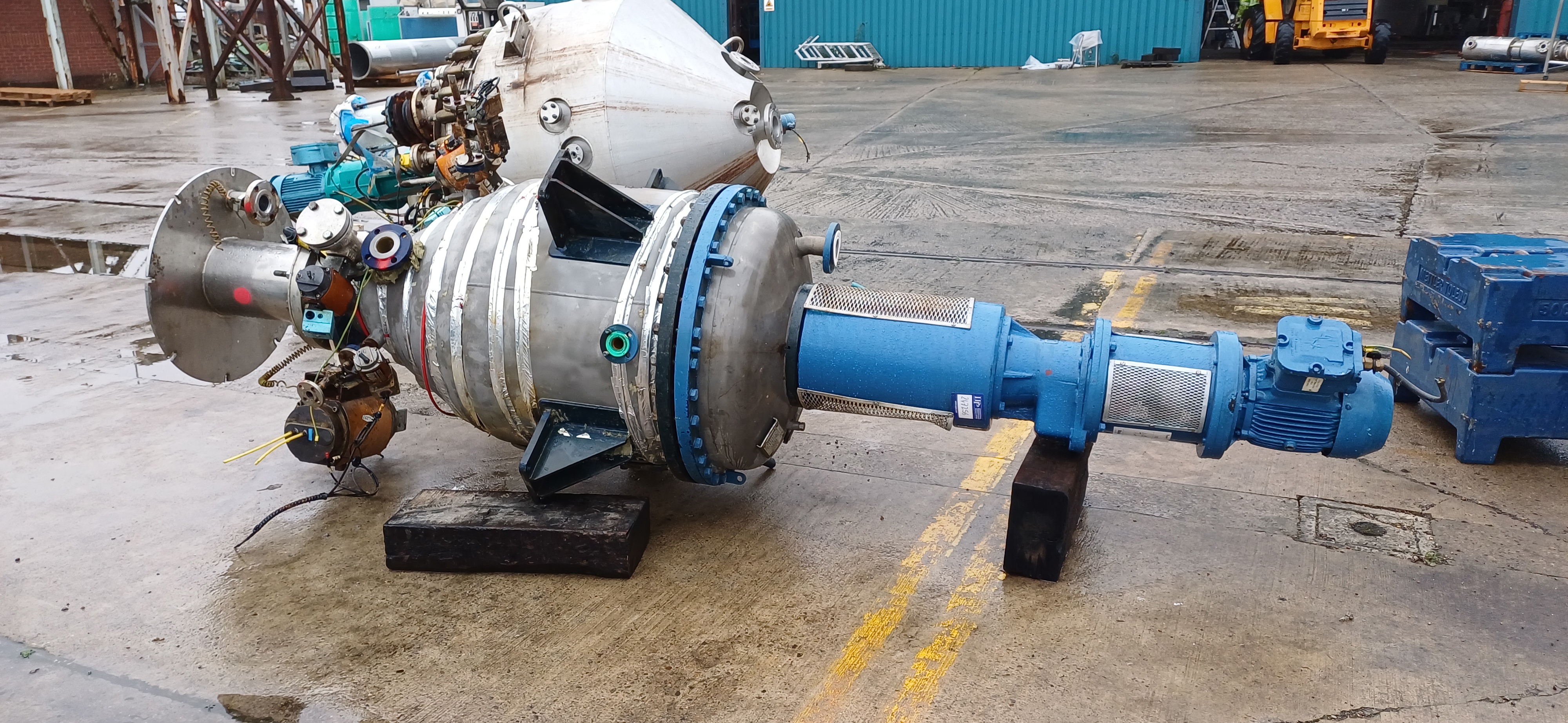

Pressure Leaf Filter - IPP# 247256

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap

Model: A15

Condition: Unused

Material: Stainless Steel 304

Filtration Area: 15 m² (161 ft²)

Diameter: 1,080 mm (42.5 in)

Funda filter with centrifugal discharge
(33) 800mm diameter filter elements @ 30mm spacing
Filter volume 1380 liters
Designed for wet cake discharge.
Requires 30 KW motor.

Pressure: 10 bar (145 psi). Temperature: 100 °C (212 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap

Model: A18

Condition: Unused

Material: Stainless Steel 316L

Filtration Area: 18 m² (194 ft²)

Diameter: 1,100 mm (43.3 in)

Funda filter with centrifugal discharge
(23) 1000mm diameter filter elements mounted @ 30mm spacing
Wet cake discharge

Pressure: 5 bar (72.5 psi). Temperature: 100 °C (212 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap

Model: A10

Condition: Unused

Material: Stainless Steel 304

Filtration Area: 10 m² (108 ft²)

Diameter: 900 mm (35.4 in)

Funda filter with centrifugal discharge
Shell 900mm diameter x 960mm from flanged top to bottom discharge
(22) 800mm diameter filter elements @ 30mm spacing
Requires 15 PS motor
Wet cake discharge

Pressure: 5 bar (72.5 psi). Temperature: 100 °C (212 °F). Overall Length: 960 mm (37.8 in).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: AMA (Holland)

Model: 48-2204ASC

Condition: Used

Material: Stainless Steel 316

Filtration Area: 18.5 m² (199 ft²)

Orientation: Vertical

Niagara 316 stainless steel horizontal tank vertical leaf pressure filter
Rated 4.5 Kg/cm @ 120 degrees C
Volume 2.555 cubic meter
Chamber 1650mm long x 1150mm diameter
Manual opening mechanism
Pull plates out

Temperature: 120 °C (248 °F). Overall Height: 860 mm (33.9 in).
