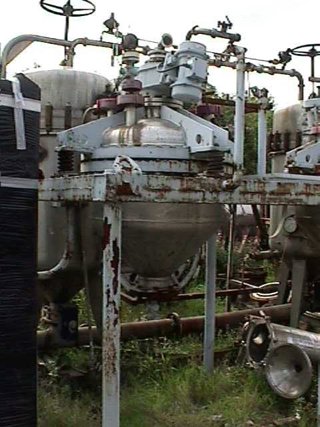

IPP# 71235 - Pressure Leaf Filter 3.3 m² (35.5 ft²) Stainless Steel 316 For Sale

Type: Filter

Subtype: Pressure Leaf

Manufacturer: BHS (Germany)

Model: TDF760/60/8

Condition: Used

Material: Stainless Steel 316

Filtration Area: 3.3 m² (35.5 ft²)

Diameter: 914 mm (36 in)

21" cone
Filter vessel volume 496 liter
Each plate 760mm diameter
Cake is discharged by means of oscillation with 3.5 KW, 3/50/380 volt motor
Filter has (8) horizontal leaves

Pressure: 8 bar (116 psi). Temperature: 80 °C (176 °F). Overall Length: 533 mm (21 in).

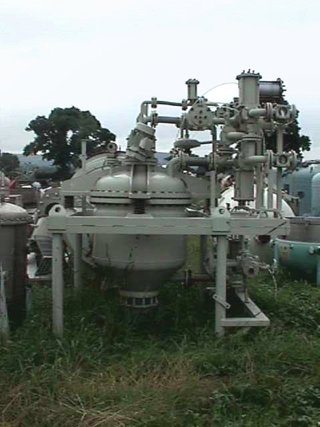

Type: Filter

Subtype: Pressure Leaf

Manufacturer: BHS (Germany)

Model: TDF-76-60-9-2

Condition: Used

Material: Stainless Steel 304

Filtration Area: 4.6 m² (49.5 ft²)

Diameter: 900 mm (35.4 in)

Filter body manufactured by R Stihler, serial #9018
Filter tank capacity 593 liter. with (2) vibratory motors
Motor: 3 phase
non-flameproof motors
and bottom cone

Pressure: 6 bar (87 psi). Temperature: 100 °C (212 °F). Overall Length: 400 mm (15.7 in). Jacket: Yes. Jacket MOC: Carbon Steel.

Type: Filter

Subtype: Pressure Leaf

Manufacturer: AMA (Holland)

Model: 48-2204ASC

Condition: Used

Material: Stainless Steel 316

Filtration Area: 18.5 m² (199 ft²)

Orientation: Vertical

Niagara 316 stainless steel horizontal tank vertical leaf pressure filter
Rated 4.5 Kg/cm @ 120 degrees C
Volume 2.555 cubic meter
Chamber 1650mm long x 1150mm diameter
Manual opening mechanism
Pull plates out

Temperature: 120 °C (248 °F). Overall Height: 860 mm (33.9 in).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Schenk

Model: ZHF-SR5KL

Condition: Used

Material: Stainless Steel 316

Filtration Area: 5 m² (53.8 ft²)

Diameter: 813 mm (32 in)

pressure leaf filter body
Discharge type: centrifugal
Tank capacity: 350 litres
Serial number: KH839
Int rated 6 bar/full vac @ 200 deg C
Unit will take (10) leaves
Vessel is 900mm (36").
No leaves w/unit.

Pressure: 6 bar (87 psi). Temperature: 200 °C (392 °F).
