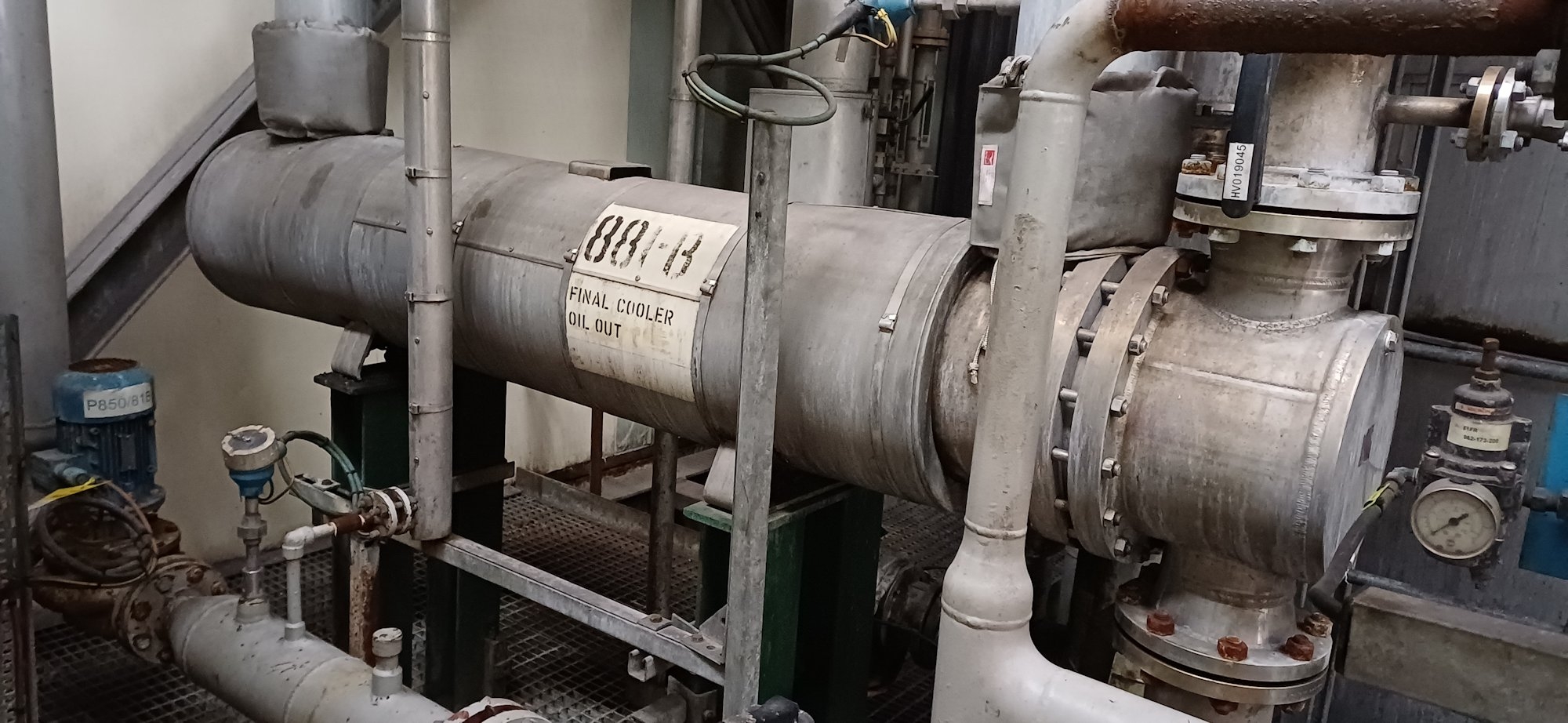

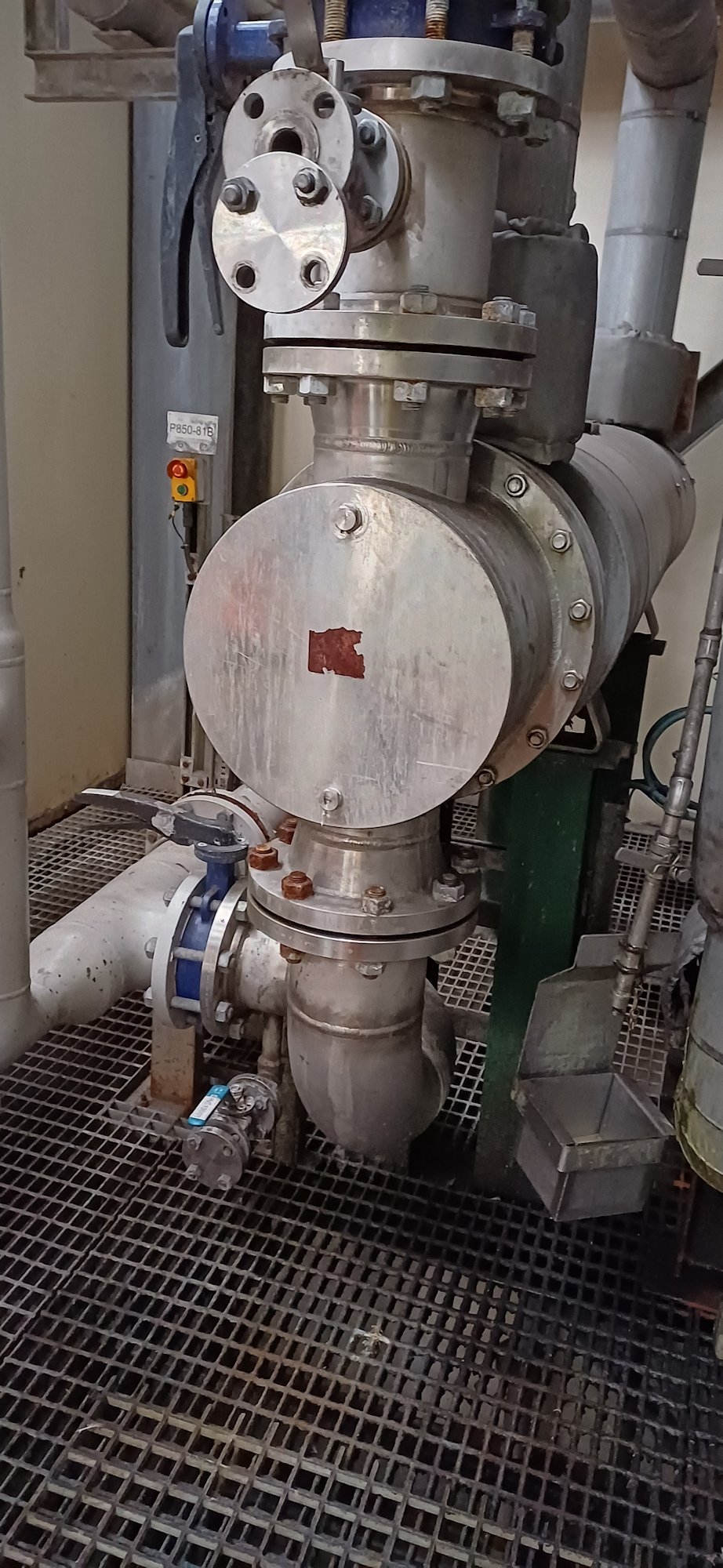

Stainless Steel 316L E.Prang & Co Apparatebau Shell and 'U' Tube Heat Exchanger - IPP# 248319

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: E.Prang & Co Apparatebau

Model: OK 32-ZN-574

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 8 m² (86.1 ft²)

Orientation: Horizontal

• approx 8 square meter 316L stainless steel 'U' tube, head and shell horizontal heat exchanger,

Shell Pressure: 10 bar (145 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10 bar (145 psi). Tube Temperature: 100 °C (212 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Head Material: Stainless Steel 316L. Tube-side Passes: 2. Tube Type: U-Tube. Capacity: 142 L (37.5 gallons). Heat Exchanger Tube Capacity: 106.5 L (28.1 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 54.4 m² (586 ft²)

Orientation: Horizontal

316L stainless steel 'U' tubes multi-pass

Shell Pressure: 3.5 bar (50.8 psi). Shell Material: Stainless Steel Austenitic. Tube Pressure: 3.5 bar (50.8 psi). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 1,100 mm (43.3 in). Head Material: Carbon Steel. Length: 3,500 mm (137.8 in). Tube Type: U-Tube. Tube Number: 180. Tube Diameter: 28 mm (1.1 in). Tube Length: 3,500 mm (137.8 in). Nozzle Schedule: - Openings: tubeside - 2-80mm, 4-15mm (sockets), shell - 1-800mm, 1-600mm, 1-80mm (with sump).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart (Process Technology) Ltd

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 37 m² (398.3 ft²)

Orientation: Horizontal

• design code: PD5500 Cat 2 (2000)

Shell Pressure: 10.5 bar (152.3 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8 bar (116 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 406 mm (16 in). Head Material: Stainless Steel 316. Length: 3,900 mm (153.5 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 80. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,600 mm (141.7 in). Nozzle Schedule: tube side - 2-100mm, shell - 2-75mm, 1-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: R.Lords & Sons LTD.

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 35 m² (376.7 ft²)

Orientation: Horizontal

working pressure on both sides 5mm hg absolute (0.09 psi) @ 200 degrees C

Shell Pressure: 0.006 bar (0.09 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 0.006 bar (0.09 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austenitic. Shell Diameter: 914 mm (36 in). Head Material: Carbon Steel. Length: 5,200 mm (204 in). Tube-side Passes: 4. Tube Number: 80. Tube Diameter: 28 mm (1.1 in). Tube Length: 5,200 mm (204 in). Nozzle Schedule: - Openings: Tubeside - 2-75mm, Shell - 1-400mm, 1-300mm, 2-50mm (with sump) .
