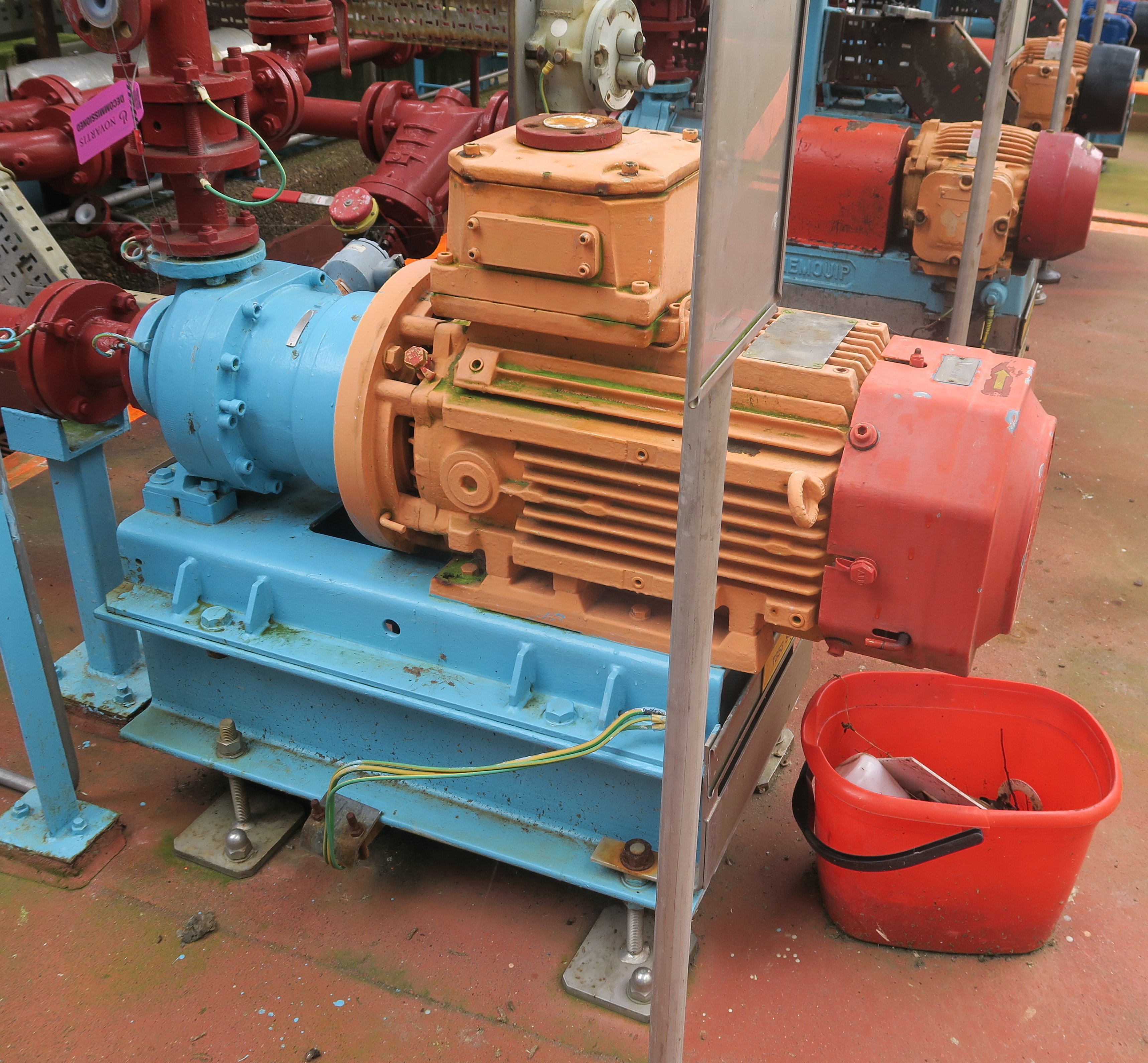

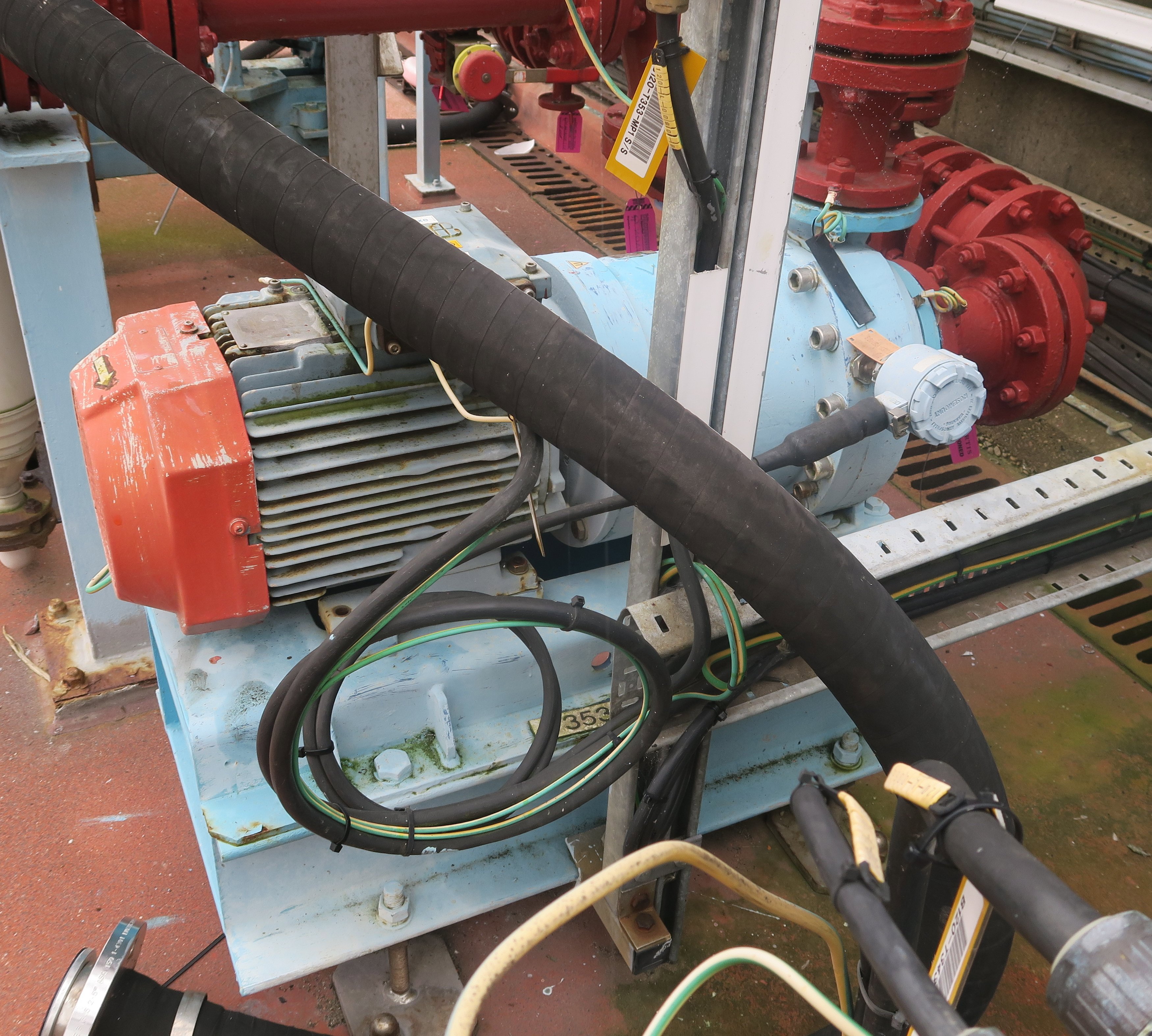

(2) 25m3/hr @ 11.8m head PTFE lined centrifugal pumps manufactured by CP Pumpen AG, type MKPL 80-50-200, 196mm diameter impellor, 1450 rpm, 20/30 degrees C, CE Ex II 2GD T1-T4 classification, mounted on a baseplate,

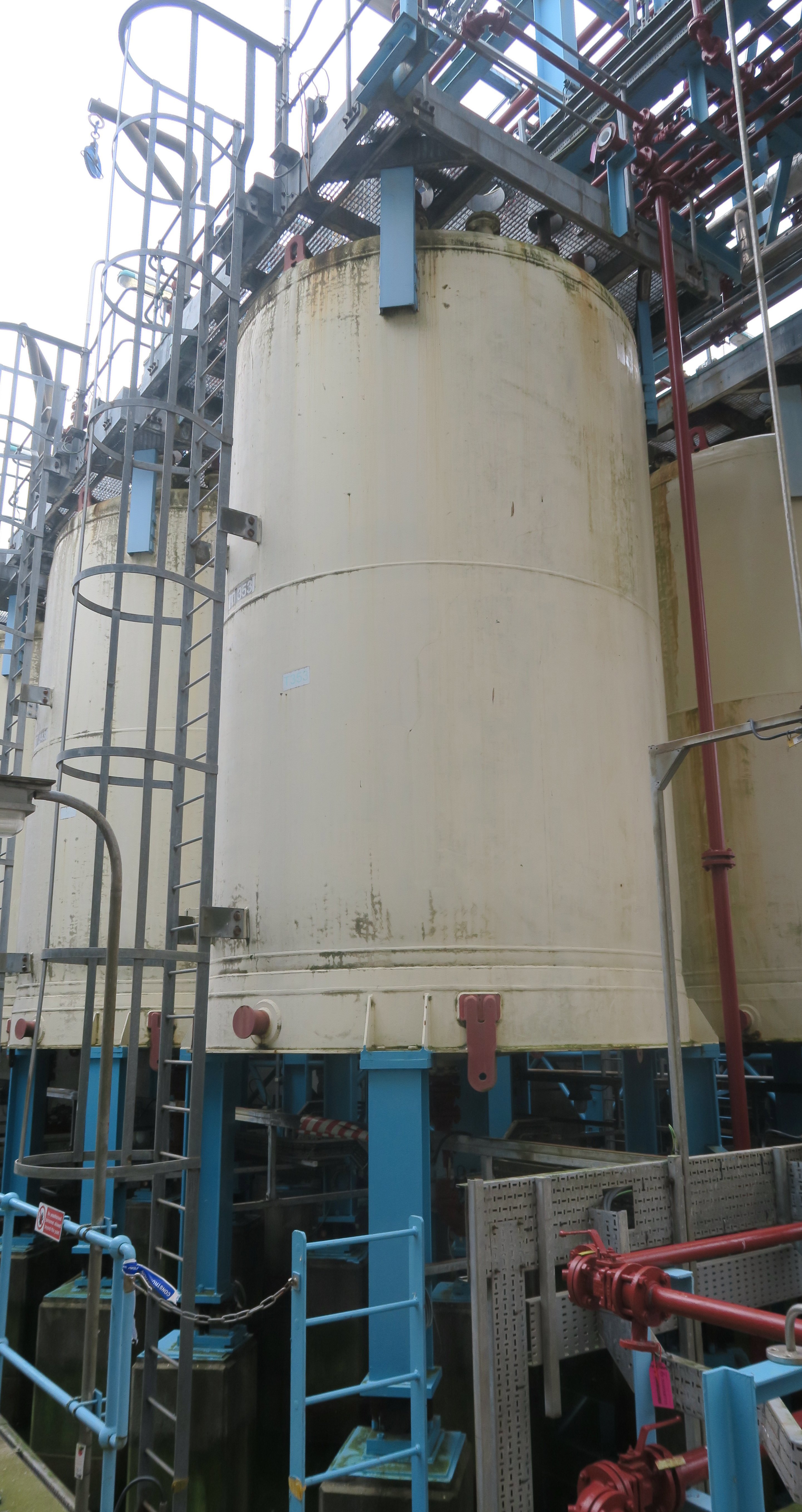

Type: Tank
Manufacturer: Pfaudler
Model: VR-100
Condition: Re-glassed
Material: Glasslined
Capacity (Design): 378.5 L (100 gallons)
Orientation: Vertical
Diameter: 762 mm (30 in). Straight-side Length: 914 mm (36 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 176.7 °C (350 °F). Support: Lugs.
Type: Tank
Manufacturer: Pfaudler
Model: VR-100
Condition: Re-glassed
Material: Glasslined
Capacity (Design): 378.5 L (100 gallons)
Orientation: Vertical
Diameter: 762 mm (30 in). Straight-side Length: 914 mm (36 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Lugs.
Type: Tank
Manufacturer: Pfaudler
Condition: Used
Material: Glasslined
Capacity (Design): 189.3 L (50 gallons)
Orientation: Vertical
Diameter: 610 mm (24 in). Straight-side Length: 711 mm (28 in). Internal Pressure: 1.72 bar (25 psi). Support: Legs.
Type: Tank
Manufacturer: Pfaudler
Condition: Used
Material: Glasslined
Capacity (Design): 1,700 L (450.4 gallons)
Orientation: Vertical
Diameter: 1,000 mm (39.4 in). Straight-side Length: 2,100 mm (82.7 in). Internal Pressure: 2.3 bar (33.4 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Lugs.
