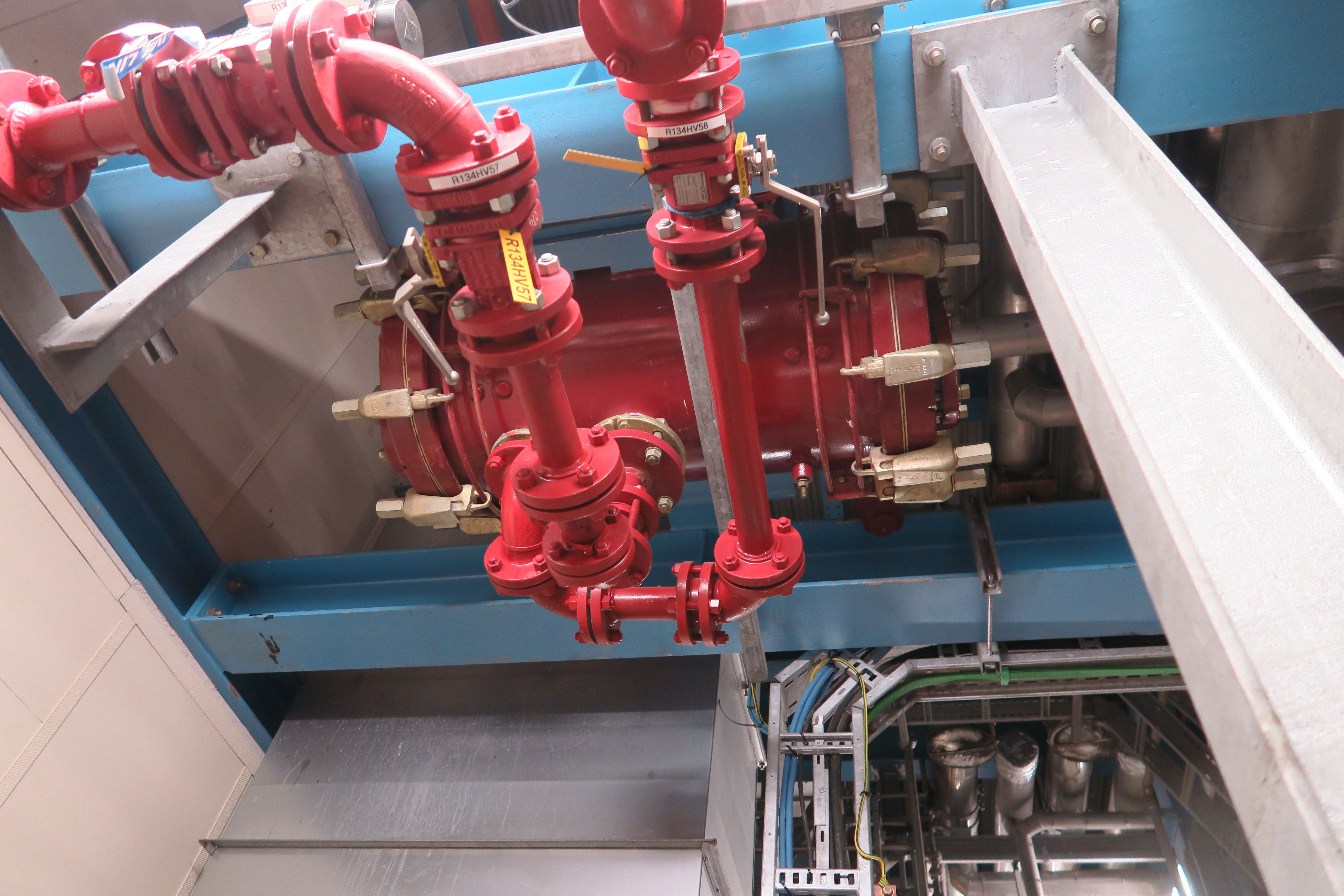

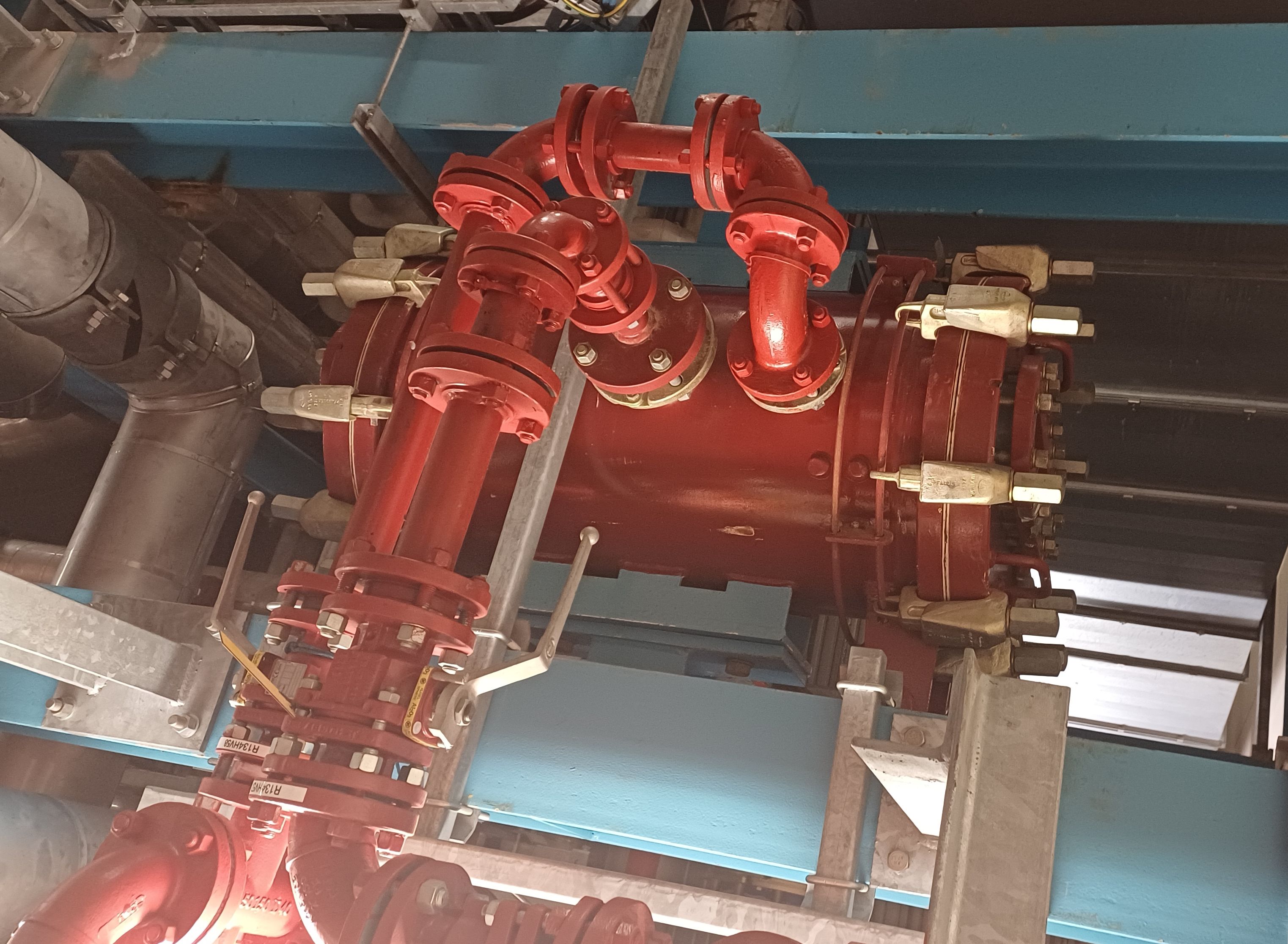

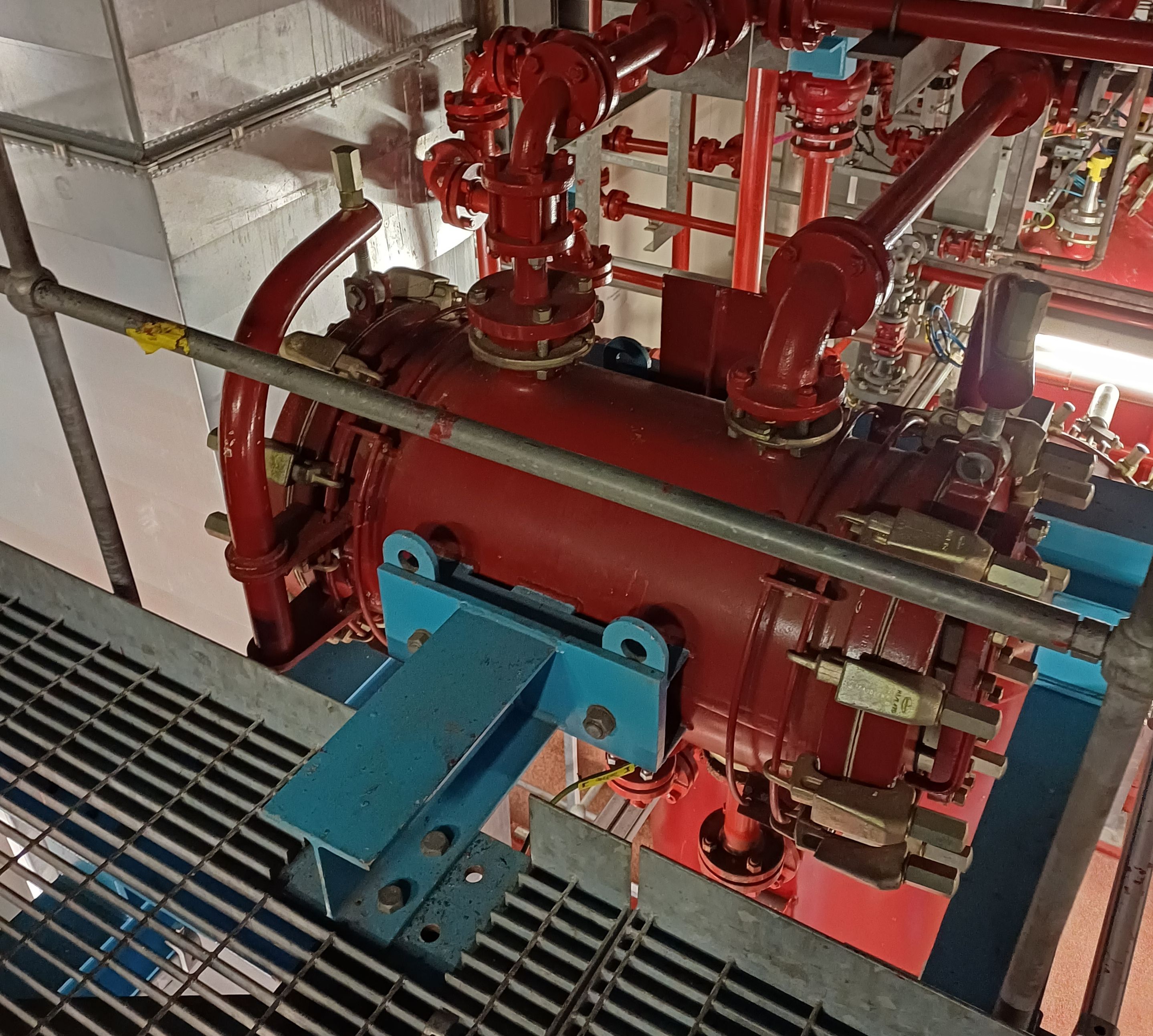

Glasslined Pfaudler Tank - IPP# 243138

Overview

Type:

Tank

Manufacturer:

Pfaudler

Condition:

Used

Material:

Glasslined

Capacity

Capacity (Design):

177 L (46.8 gallons)

Dimensions

Orientation:

Horizontal

Diameter:

488 mm (19.2 in)

Straight-side Length:

900 mm (35.4 in)

Pressure

Internal Pressure:

6 bar (87 psi)

Temperature

Internal Temperature:

165 °C (329 °F)

Other Specifications

Vacuum:

Yes

Support:

Lugs

Additional Information

working volume 170 liter
design pressure -1/6 barg @ -20/165 degrees C (177 liter)
glass type 9129 white glass
clamped flat ends each with a davit assist
design code: ASME VIII DIV 1. 2004. annexe Z. and essential safety requirements of PED 97/23/EC. group 1. CAT IV module G
