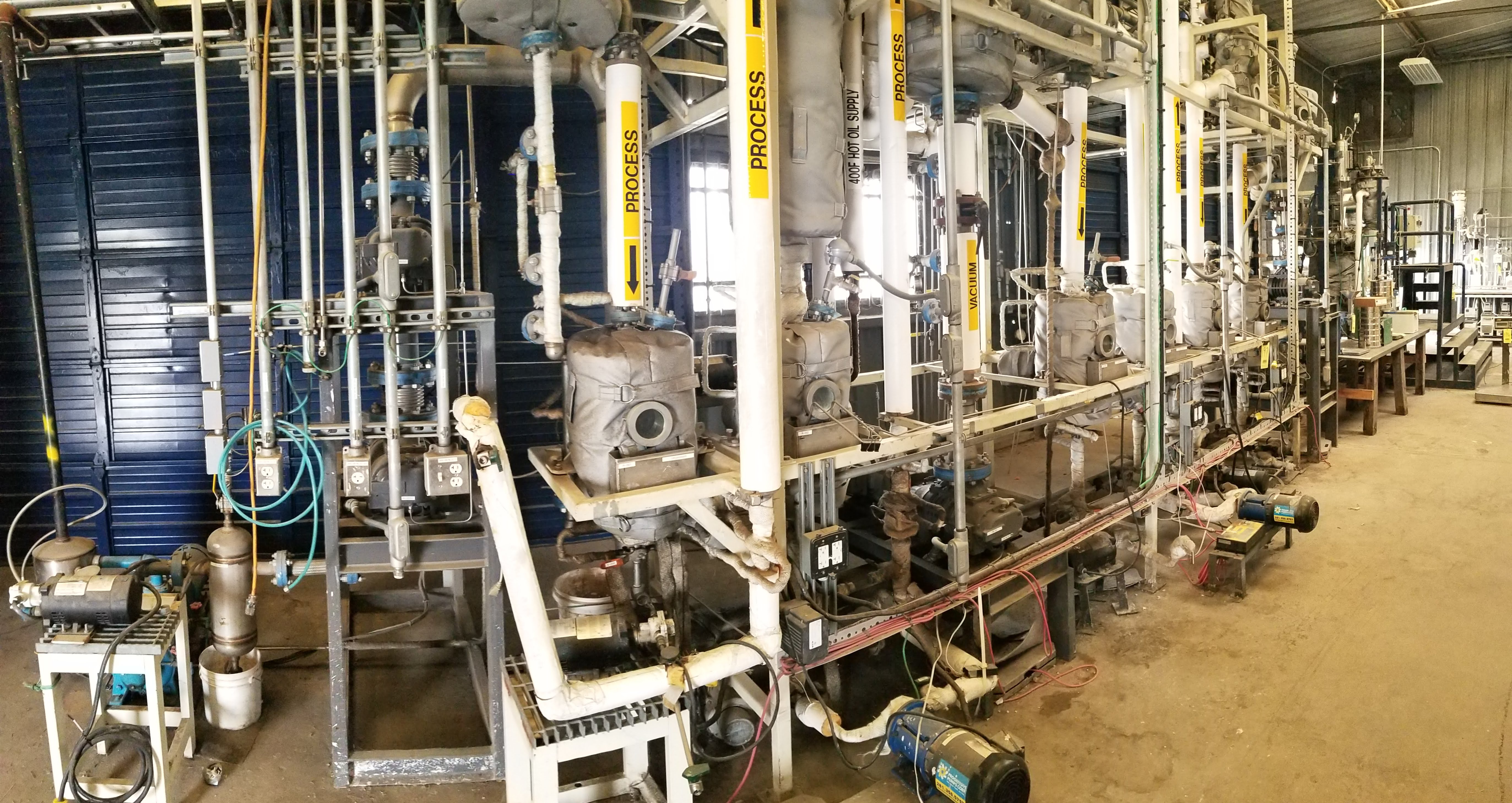

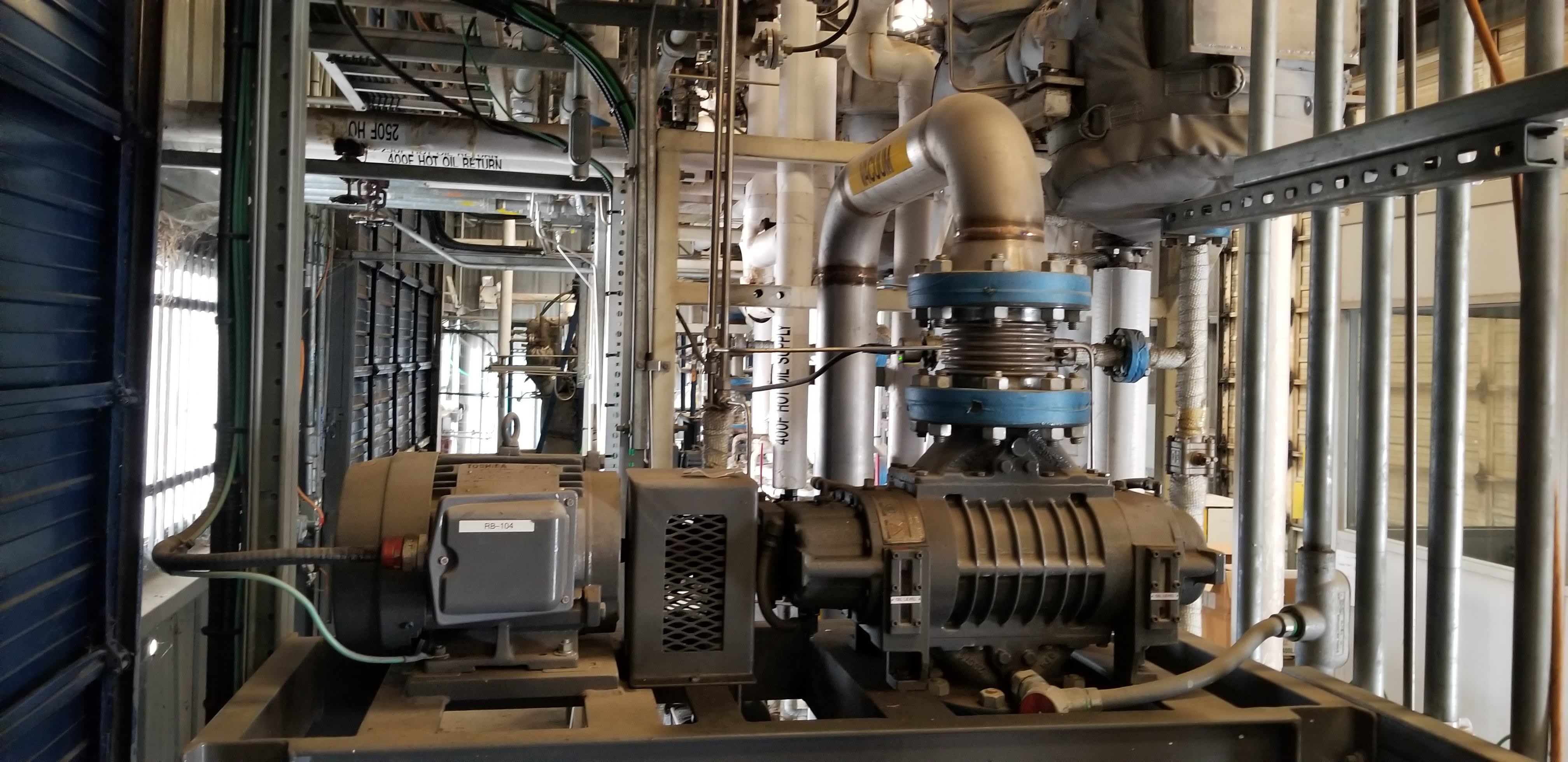

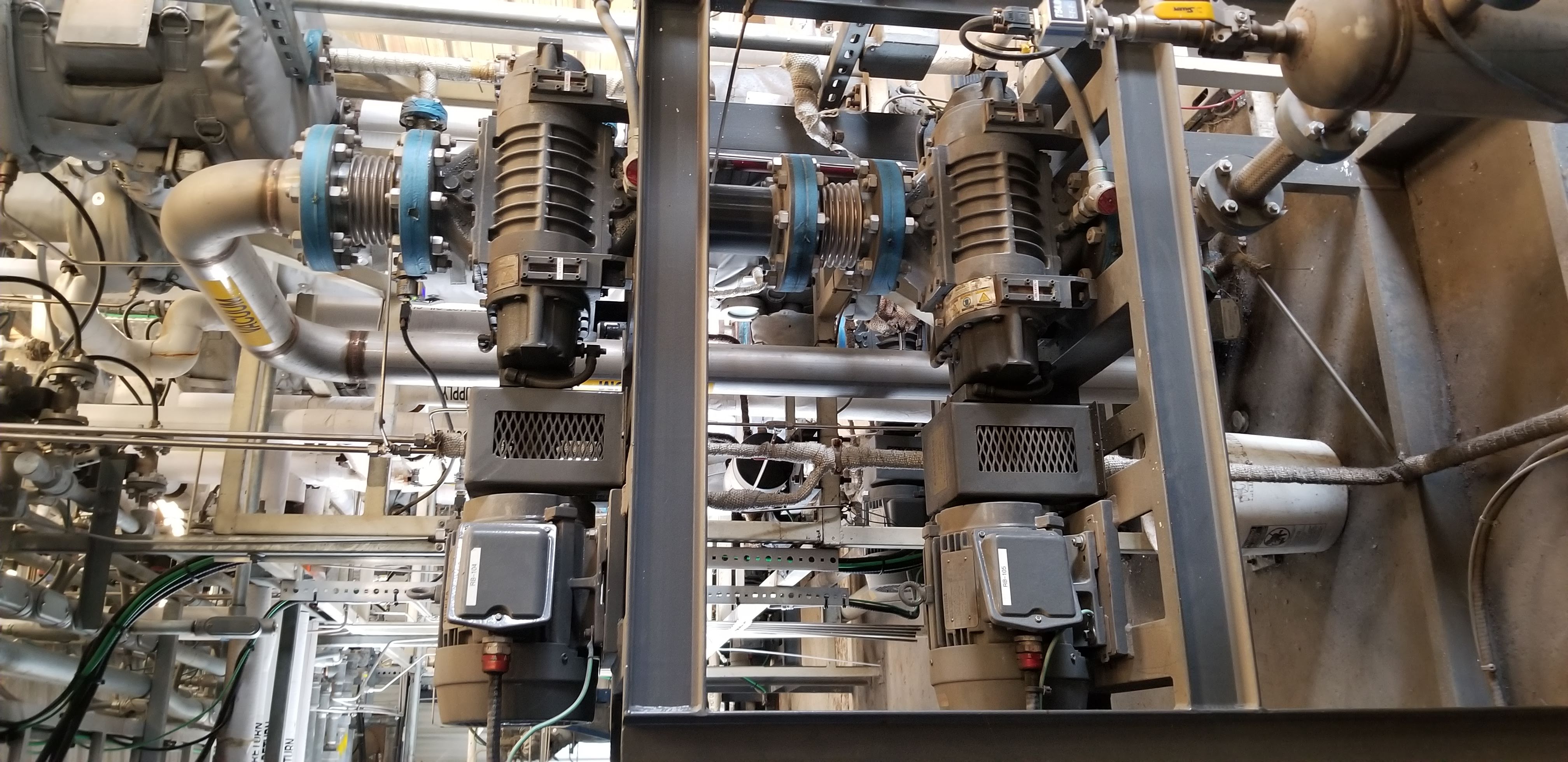

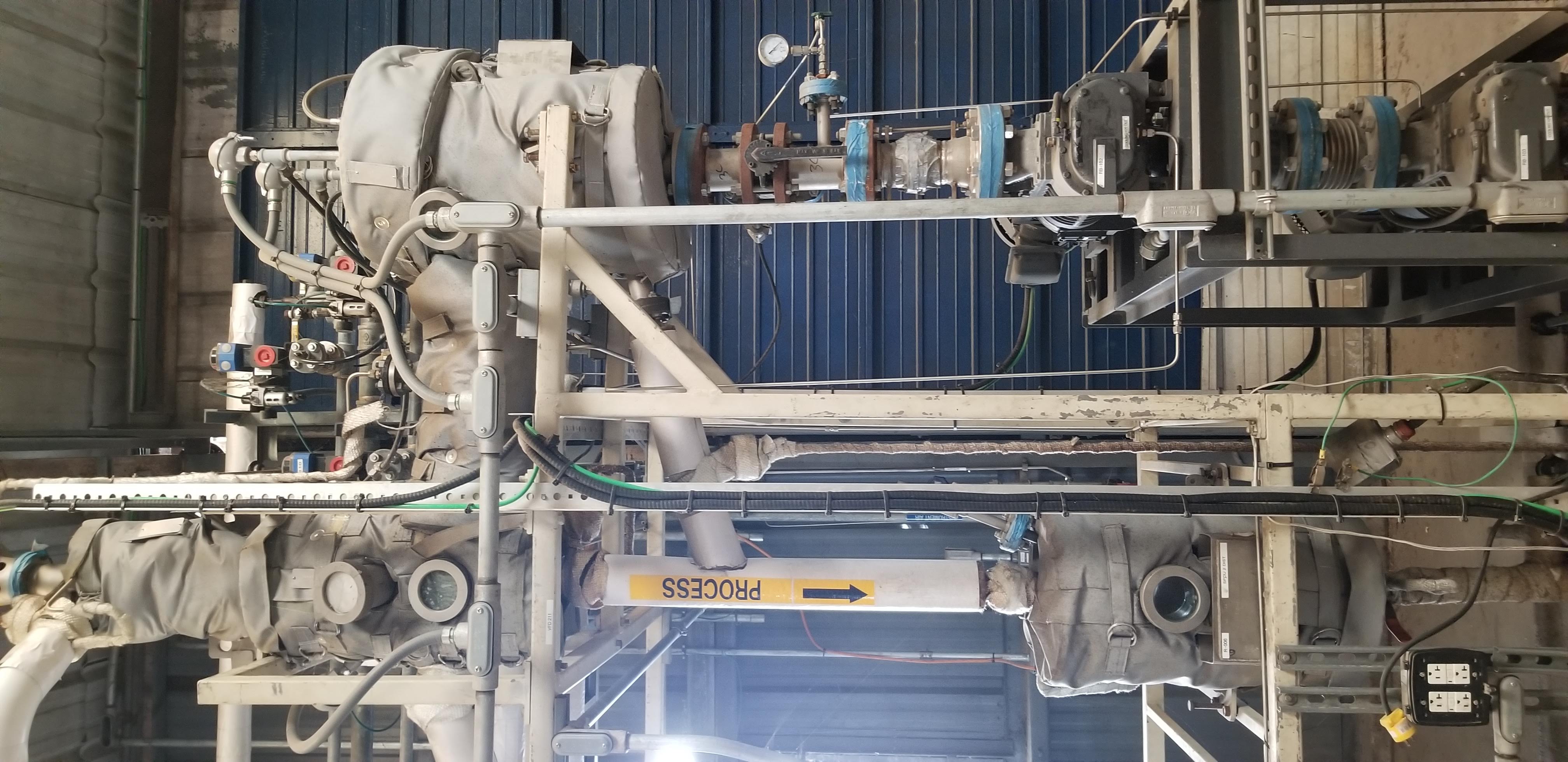

(Two SPDU's) product contact, complete Short path distillation plant. This unit was previously used to process 300 lbs/day of product. The system consists of two, 0.1 m2 short path distillation units, three cold traps, six hold up receivers, and a degassing column with a pre heater. All equipment is piped and mounted in a steel framework, including all pumps, vacuum pumps, heater, valves, and controls. This process system has the following attributes: Can operate up to 340 degrees C, It is capable of vacuum to 0.01 mbar. , has a short resonance time, is good for heat sensitive products and hazardous materials, is suitable for viscous products, and has an excellent turn down capacity. Product contact surfaces are finished to 0.62 um RA The process piping and hold up tank are jacketed. The cold traps feature double coils for hot and cold brine. The system includes all process pumps and vacuum pumps. Primary and secondary heaters are supplied by Sterling. Chillers are supplied by Micro Therm.

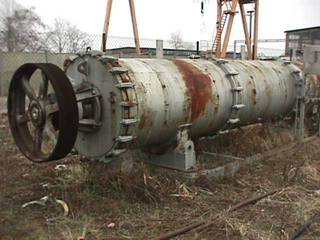

Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa
Model: DL-1000/6000/10
Condition: Used
Material: Stainless Steel 316
Total Heat Transfer Surface Area: 16 m² (172.2 ft²)
Orientation: Horizontal
3 sections jacket rated by 10bar @ 200 degrees C ( total volume 150liter).
Pressure: 0.5 bar (7.3 psi). Temperature: 200 °C (392 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Artisan
Model: R-49-3-1H-70
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 181.4 kg/h (400 lb/h)
Total Heat Transfer Surface Area: 7.4 m² (80 ft²)

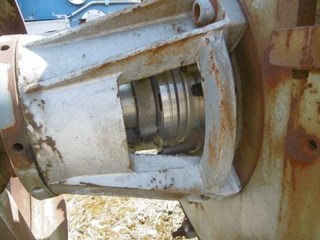

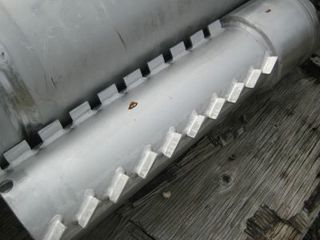

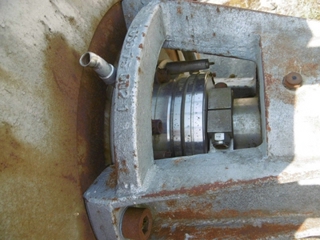

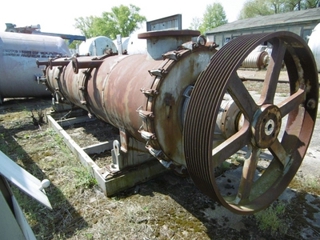

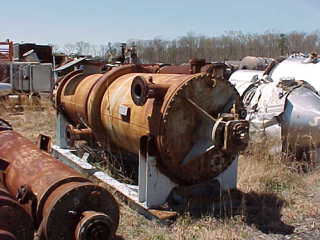

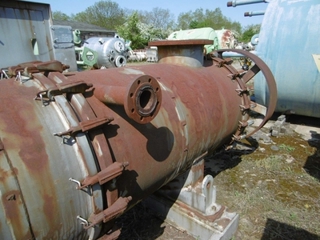

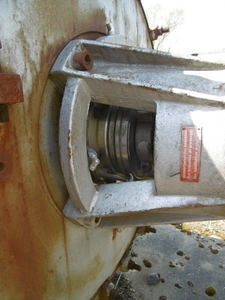

Kontro wiped film evaporator shell rated 25 psi @ 750 deg F. Jacket rated 65 psi @ 750 degree F. Has removable 18" diameter rotor. Mechanical seal. Has 1/2 CS jacket with expansion joint. Has outboard bearings. Has 12" diameter inlet, 8" diameter outlet. Belt driven by 40 HP, 3/60/208/220/440 volt, 885 rpm motor, UL label.
Orientation: Horizontal. Diameter: 1,050 mm (42 in). Height: 2,150 mm (84 in). Pressure: 1.72 bar (25 psi). Temperature: 398.9 °C (750 °F). Mechanical Seal on Shaft: Yes.

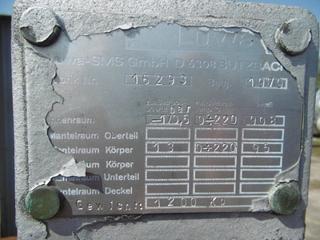

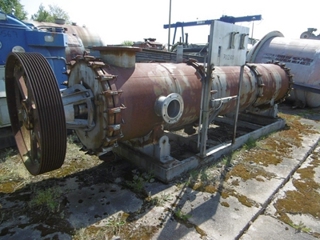

Type: Evaporator
Subtype: Wiped/Thin Film

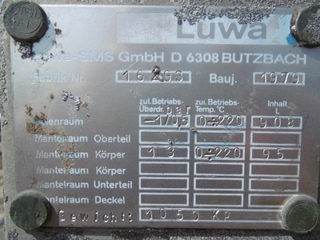

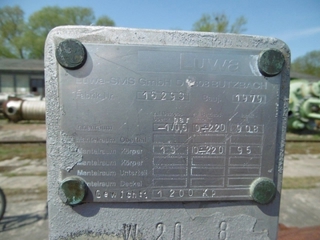

Manufacturer: Luwa SMS
Model: D-850/4700/10
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 267.6 kg/h (590 lb/h)
Total Heat Transfer Surface Area: 11 m² (118.4 ft²)
Jkt rated 13 bar @ 220 deg C Shell 850mm (34") dia x 4800mm (15.8') long, Rotor driven by 30 KW, 3/50/380 volt, 260 rpm output speed.
Orientation: Horizontal. Diameter: 850 mm (33.5 in). Height: 4,800 mm (189 in). Pressure: 0.5 bar (7.3 psi). Temperature: 220 °C (428 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 11.3 kg/h (25 lb/h)
Total Heat Transfer Surface Area: 0.5 m² (5.4 ft²)

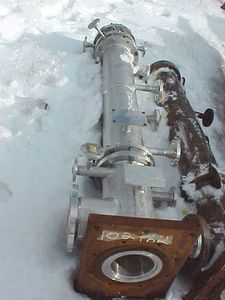

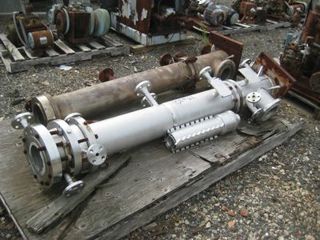

wiped film evaporator/filmtruder body only.
jkt rated 227 psi @ 392 deg F.
Diameter: 152.4 mm (6 in). Height: 1,850 mm (72 in). Pressure: 6.9 bar (100 psi). Temperature: 350 °C (662 °F). Vacuum: Yes.
