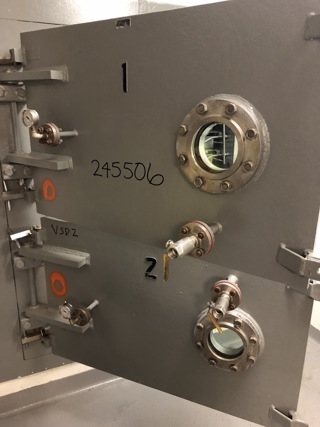

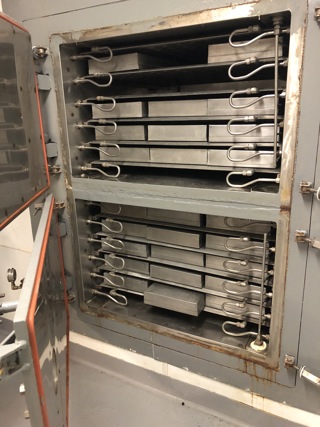

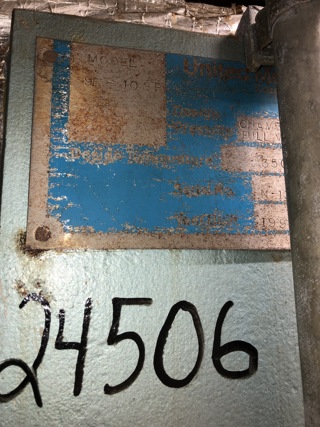

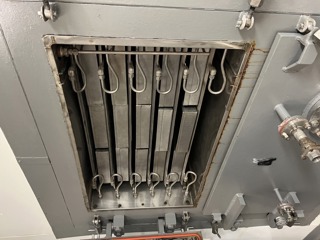

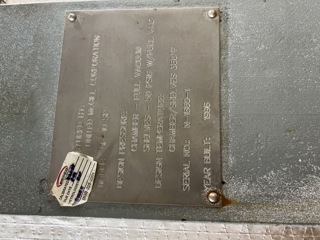

Type: Dryer-Shelf
Manufacturer: United McGill
Model: 9E-10 SP
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 11.3 m² (122 ft²)
Vacuum Rated: Yes
Missing 4 pans

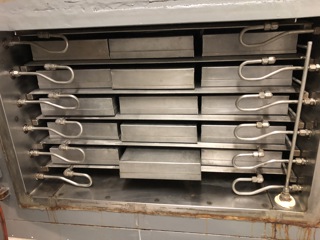

Number of Shelves: 10. Shelf Pressure: 3.4 bar (50 psi). Shelf Temperature: 176.7 °C (350 °F). Chamber Height: 2,032 mm (80 in). Chamber Width: 1,118 mm (44 in). Chamber Length: 1,016 mm (40 in). Orientation: Horizontal. Temperature: 176.7 °C (350 °F). Number of Pans: 10. Pan Capacity: 0.65 m3 (22.8 ft3).

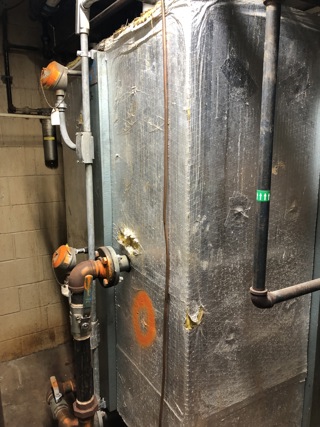

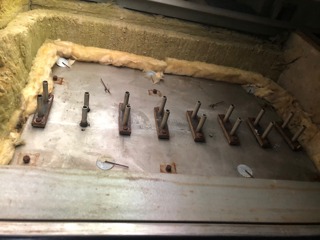

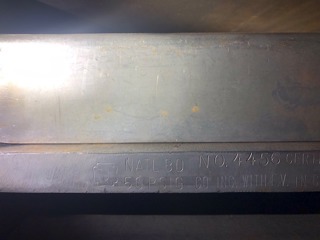

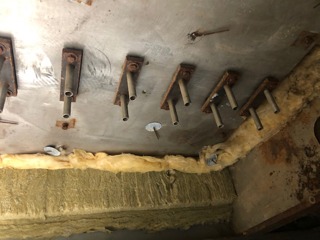

Type: Dryer-Oven
Manufacturer: Lewco
Model: NS-HSC1T
Condition: Used
Material: Carbon Steel
Capacity: 2.7 m3 (96 ft3)
Temperature: 148.9 °C (300 °F)
NFPA class A drum warming oven. designed for BOC Anhydride and acetic acid Purge time 10 minutes input 124,000BTUH at 75 psi Complete with fire protection and controls.
Heating Type: Steam. Pressure: 5.2 bar (75 psi). Air Flow Rate: 169.9 m3/h (100 CFM). Orientation: Vertical. Operational Mode: Batch.
Type: Dryer-Oven
Manufacturer: Amarc srl
Model: CCE10S-O41P
Condition: Used
Material: Stainless Steel 304
Capacity: 3 m3 (105.9 ft3)
Temperature: 100 °C (212 °F)
3 phase, 50Hz, 400 volt, 11kW, temperature upto 100 degrees C, can be used with 4 x 200 liter drums on 1 pallet or 1 x 1000 liter IBC, stainless steel hinged single front door, (1) internal circulation fan, driven by 0.75kW, 3/50/230-400 volt, 2760 rpm motor, built on controls,
Heating Type: Electric. Orientation: Vertical. Operational Mode: Batch.
Type: Dryer-Shelf
Manufacturer: Stalwart international
Model: 1
Condition: New
Material: Stainless Steel 316
Heat Transfer Surface Area: 0.53 m² (5.7 ft²)
Vacuum Rated: Yes
vacuum tray dryer with mirror polish finish internal, rated for GMP use. Sanitary construction. Complete with vacuum condenser and condensate pot. Can be ASME stamped. With 3 heating plates(dummy on top) heating plate size 420 mm x 420 mm x 28 mm Working pressure 5 kg/cm2. Circulation designed for Steam/Water. Chamber rated for FV 1 kg/cm2. Door gasket is silicone rubber. Approximate dimensions of oven are 600 mm x 600 mm x 650 mm. Complete with 0.5 square meter shell and tube heat exchanger (316 SS tube side, 304 SS shell side, and a 30 liter condensate pot of 316 SS.
Number of Shelves: 3. Shelf Length: 420 mm (16.5 in). Shelf Width: 420 mm (16.5 in). Shelf Pressure: 4.9 bar (71.1 psi). Chamber Height: 600 mm (23.6 in). Chamber Width: 600 mm (23.6 in). Chamber Length: 650 mm (25.6 in). Orientation: Vertical.
Shelf dryers are vacuum drying systems designed for delicate, heat-sensitive products that require uniform moisture removal without thermal degradation. These units dry materials in trays placed on heated shelves within a vacuum chamber. For over 47 years, IPP has provided shelf dryers and other thermal equipment from 20 complete plant sites, all supported by an inventory of over 15,000 ready-to-ship systems. These dryers are especially valued in pharmaceutical, food and fine chemical operations.
Shelf dryers rely on conduction heating via shelves that are often heated with circulating fluid or steam. Vacuum pressure lowers the boiling point of moisture or solvents, enabling gentle, controlled drying that protects product integrity.
Shelf dryers must be sanitary, corrosion-resistant, and maintain vacuum integrity:
Learn more about vacuum drying technologies in sensitive applications from Pharmaceutical Technology.
Search the IPP inventory or contact IPP’s equipment experts to locate the right used, secondhand or surplus shelf dryer. With quick access to global stock and trusted industry knowledge, IPP helps you save time and money on precision drying systems.
