Results 10 items found

Available equipment

Showing 10 of 10 matching equipment.

Stock Number: #204501

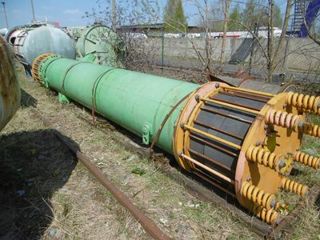

92.9 m² (1,000 ft²) Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 1,000 ft²
Orientation: Vertical
Shell Pressure: 3 bar
Shell Temperature: 50 °C
Tube Pressure: 6 bar
Tube Temperature: 90 °C
Length: 8,100 mm
Nozzle Schedule: - Tube Side Openings: (1) 50mm, (2) 150mm - Shell Side Openings: (2) 200mm
Additional Information: • Tube Side Capacity: 1370 liters • Shell Side Capacity: 2020 liters
More Details ⟶
Stock Number: #204124

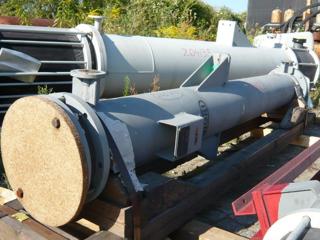

1.8 m² (19.4 ft²) Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 1.8 m²
Orientation: Horizontal
Shell Pressure: 6 bar
Shell Temperature: 165 °C
Shell Material: Carbon Steel
Tube Pressure: 2 bar
Tube Temperature: 165 °C
Tube Material: Graphite
Vacuum: Yes
Nozzle Schedule: - Openings: - Heads: 3 openings of 40mm, 1 opening of 25mm - Shell: 2 openings of 40mm, 1 opening of 25mm
Additional Information: condenser rated 6 bar @ 165 degrees C Service Side, volume 60 liters; -1/2 bar @ 165 degrees C process side, volume 11 liters
More Details ⟶
Stock Number: #204135
23.1 m² (248.6 ft²) Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 23.1 m²
Orientation: Horizontal
Shell Pressure: 2 psi
Shell Temperature: 165 °F
Shell Material: Carbon Steel
Tube Pressure: 6 bar
Tube Temperature: 165 °C
Tube Material: Graphite
Vacuum: Yes
Nozzle Schedule: - Openings: Heads - 1-300mm, 2-40mm; Shell - 1-75mm, 2-40mm
Additional Information: condenser rated -1/2 bar @ 165 degrees C service side, volume 240 liters; rated 6 bar @ 165 degrees C process side, volume 250 liters weight 1400kg
More Details ⟶
Stock Number: #204123
1.5 m² (16.1 ft²) Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 1.5 m²
Orientation: Horizontal
Shell Pressure: 6 bar
Shell Temperature: 165 °C
Shell Material: Carbon Steel
Tube Pressure: 2 bar
Tube Temperature: 165 °C
Tube Material: Graphite
Vacuum: Yes
Nozzle Schedule: openings: heads: 3-40mm, shell: 3-30mm
Additional Information: condenser rated 6 bar @ 165 degrees C Service Side, volume 50 liters; -1/2 bar @ 165 degrees C process side, volume 10 liters
More Details ⟶
Stock Number: #204117
Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 10 m²
Orientation: Horizontal
Shell Pressure: 2 bar
Shell Temperature: 100 °C
Shell Material: Carbon Steel
Tube Pressure: 5 bar
Tube Temperature: 25 °C
Tube Material: Graphite
Vacuum: Yes
Nozzle Schedule: openings: heads: 2-50mm, shell: 1-40mm, 1-30mm, 1-50mm
Additional Information: condenser rated -1/2 bar bar @ 100 degrees C service side, volume 28 liter; rated 5 bar @ 25 degrees C process side, volume 10 liter
More Details ⟶
Stock Number: #211578
Graphite Block Heat Exchanger
Heat Transfer Surface Area: 1.2 m²
Orientation: Vertical
Shell Temperature: 100 °C
Vacuum: Yes
Process Pressure: 5 bar
Process Temperature: 25 °C
Additional Information: Cylindrical
More Details ⟶
Stock Number: #211577
7.6 m² (81.8 ft²) Graphite Block Heat Exchanger
Heat Transfer Surface Area: 7.6 m²
Orientation: Vertical
Shell Pressure: 2 bar
Shell Temperature: 100 °C
Nozzle Schedule: openings: heat: 2-50mm, shell: 1-50mm, 1-30mm, 1-125mm
Process Pressure: 2 bar
Process Temperature: 100 °C
Additional Information: Cylindrical block Heat Exchanger
More Details ⟶
Stock Number: #210886
Graphite Block Heat Exchanger
Heat Transfer Surface Area: 80 ft²
Shell Pressure: 100 psi
Shell Temperature: 350 °F
Shell Material: Carbon Steel
Length: 68 in
Nozzle Schedule: Inlet is 8" reduced to 6", outlet is 2". Shell side nozzles are 6".
Process Pressure: 100 psi
Process Temperature: 350 °F
Additional Information: Great Lakes Carbon Corp. Inlet is 8" reduced to 6", outlet is 2" Diameter is 18" x 68" long with an overall length of 90"
More Details ⟶
Stock Number: #204122
4.6 m² (49.5 ft²) Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 4.6 m²
Orientation: Horizontal
Shell Pressure: 6 bar
Shell Temperature: 165 °C
Shell Material: Carbon Steel
Tube Pressure: 2 bar
Tube Temperature: 165 °C
Tube Material: Graphite
Nozzle Schedule: - Openings: Heads - 2-200mm, Shell - 2-25mm
Additional Information: condenser rated 6 bar @ 165 degrees C Service Side, volume 83 liters; -1/2 bar @ 165 degrees C process side, volume 35 liters
More Details ⟶
Stock Number: #211701
4.9 m² (52.7 ft²) Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 4.9 m²
Orientation: Vertical
Shell Pressure: 10 bar
Shell Temperature: 180 °C
Shell Material: Carbon Steel
Tube Pressure: 6 bar
Tube Temperature: 180 °C
Tube Material: Graphite
Shell Diameter: 250 mm
Length: 4,700 mm
Tube Number: 13
Tube Diameter: 37 mm
Additional Information: Tube Length: 4,000 mm. Nozzle Schedule: - Openings: (2) 25mm on tube side.
More Details ⟶
