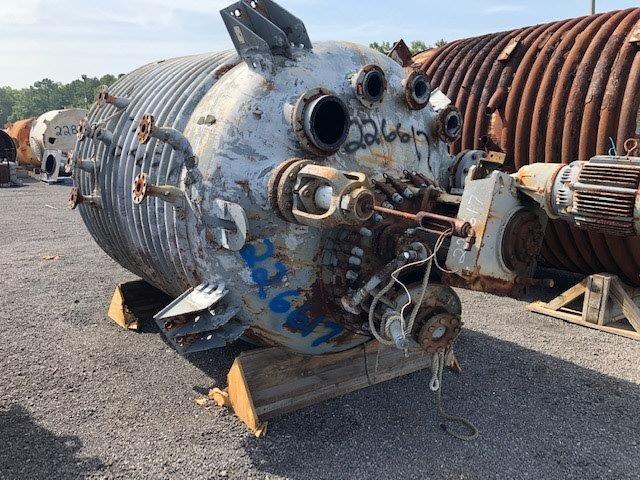

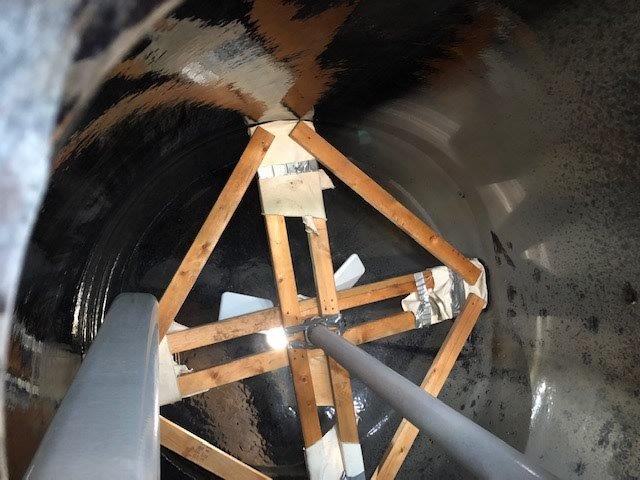

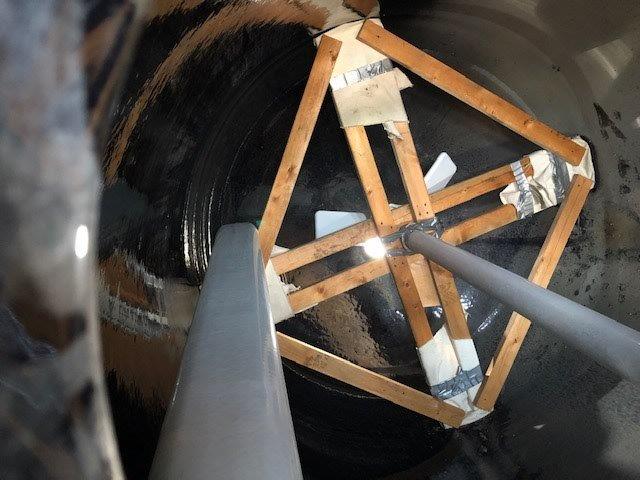

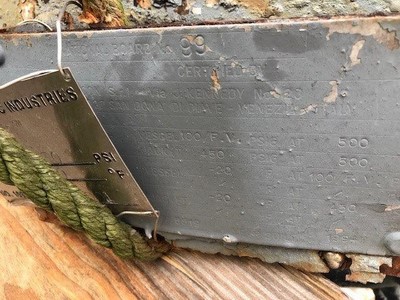

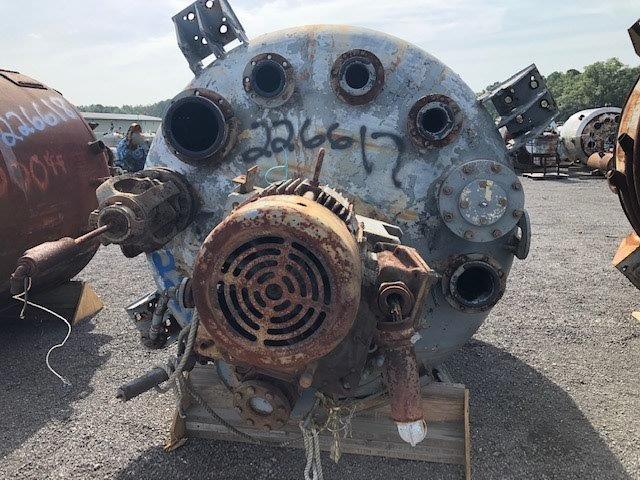

Glasslined Tycon Batch-Type Agitated Reactor - IPP# 226617

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Tycon

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 1,450 L (381.7 gallons)

Internal Pressure: 3.2 bar (46.4 psi)

jacket rated 6 bar @ -25/+200 deg C. -Other: Includes a nucerite 2-finger upward baffle with a temperature sensor. Internal rated for 3.2 bar and full vacuum. jacket 110 liters

Internal Full Vacuum: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 1,200 mm (47.2 in). Straight Side Length: 1,000 mm (39.4 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Tycon

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 3,100 L (824 gallons)

Internal Pressure: 6 bar (87 psi)

internal pressure -1/6 bar @ -25/200 degrees C (3120 liter), jacket -1/6 bar @ -25/200 degrees C (135 liter straight side and bottom dish TUV certified

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 1,200 mm (48.1 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Tycon

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 9,350 L (2,450 gallons)

Internal Pressure: 6 bar (87 psi)

Rated -1/6 bar @ -60 to 200 degrees C internal; -1/6 bar @ -60 to 200 degrees C in the jacket. jacket 750 liters

• Type: CE8000
• Mounting: mounted on mounting ring.
• Heat transfer area: 17.9 Sqm

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,200 mm (86.6 in). Straight Side Length: 3,450 mm (134.9 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: P Series

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 75.7 L (20 gallons)

Internal Pressure: 20.7 bar (300 psi)

Glass type: #9115

Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 232.2 °C (450 °F). Orientation: Vertical. Diameter: 508 mm (20 in). Straight Side Length: 476.3 mm (18.8 in). Support Type: Legs.
