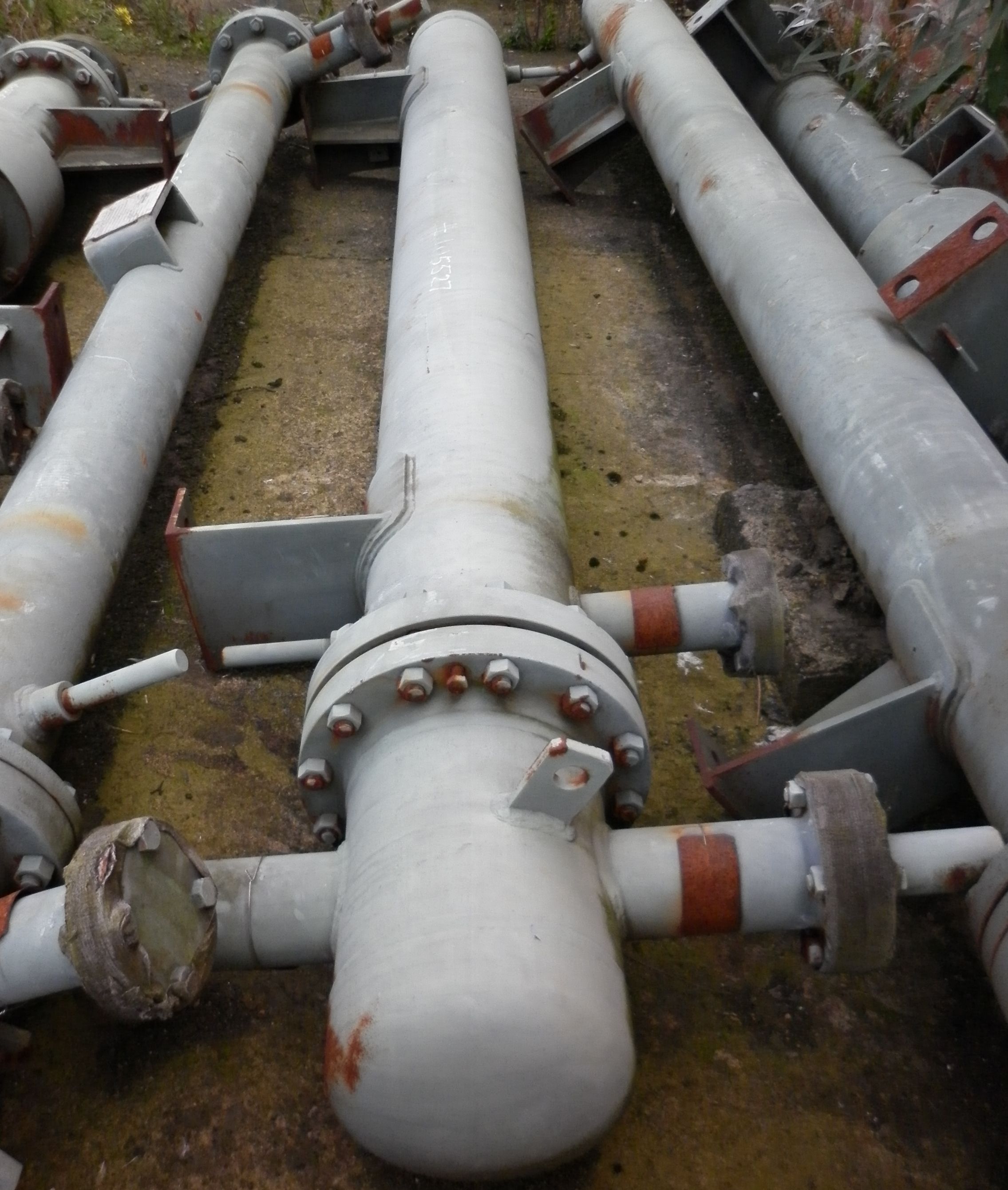

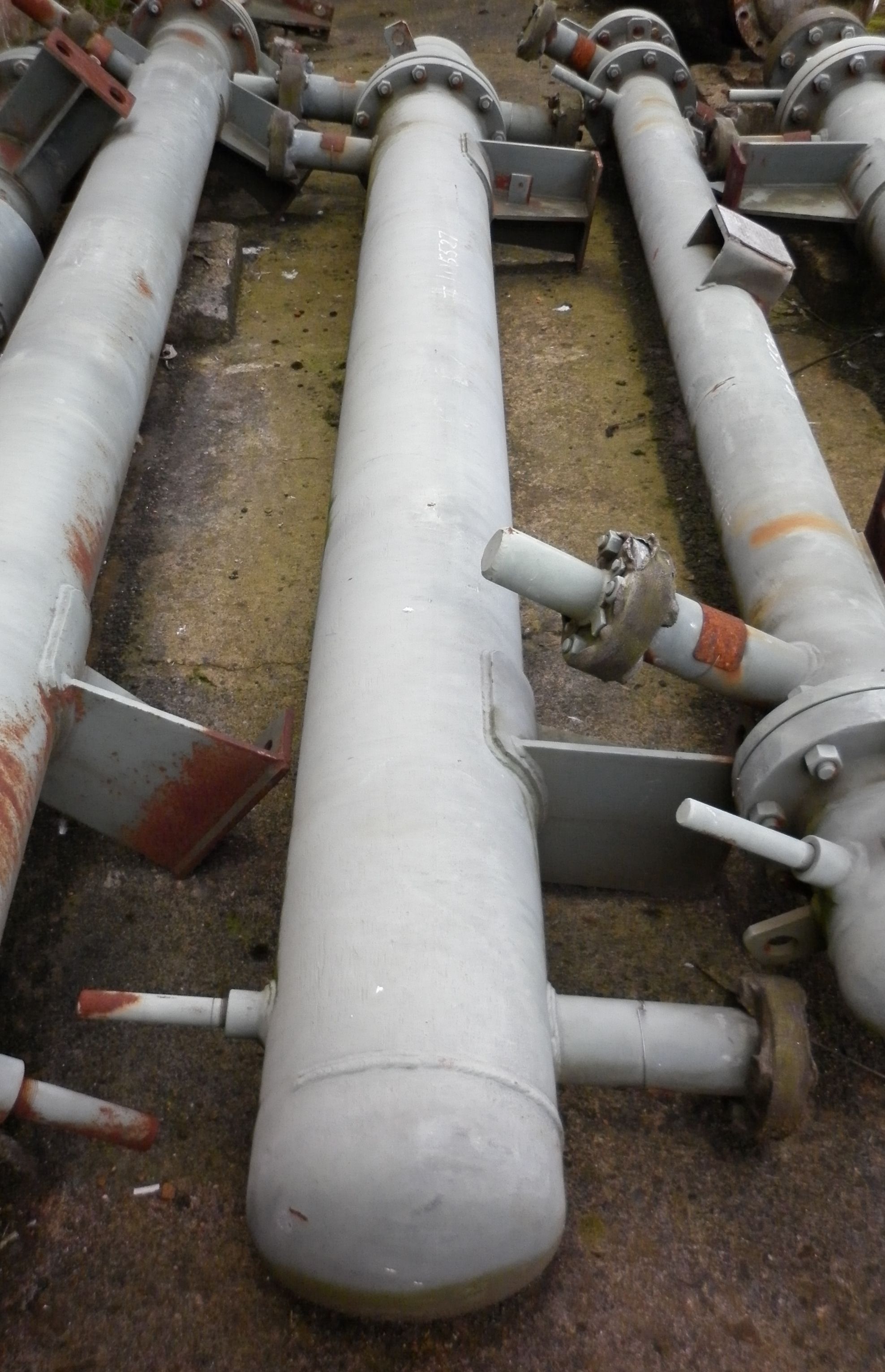

Unused Carbon Steel Johnson Hunt LTD BEU Shell and Tube Heat Exchanger - IPP# 105527

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Johnson Hunt LTD

Model: BEU

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 1.95 m² (21 ft²)

Orientation: Horizontal

Shell Pressure: 9 bar (131 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 21.6 bar (313 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 8. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,050 mm (120 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Obringer/Sotralentz

Model: BEU

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 25.3 m² (272.3 ft²)

Orientation: Horizontal

working pressure tube side 7.5 barg (0.75 Mpa) @ 50 degrees C (350 liter ), shell side 53 barg (5.3 Mpa) @ 95 degrees C (450 liter) (1) carbon steel bonnet head, (1) carbon steel tubesheet, design code: CODAP 95 A f2,

Shell Pressure: 53 bar (769 psi). Shell Temperature: 95 °C (203 °F). Shell Material: Copper/Brass. Tube Pressure: 7.5 bar (108.8 psi). Tube Temperature: 50 °C (122 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 610 mm (24 in). Head Material: Carbon Steel. Length: 3,500 mm (138.4 in). Tube-side Passes: 4. Tube Type: U-Tube. Tube Number: 186. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,250 mm (89.3 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: openings tube side: bonnet head with 2-100mm, shell: 2-100mm, 2-50mm, .

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Johnson Hunt LTD

Model: AEM

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 5.2 m² (56 ft²)

Orientation: Horizontal

3/4' diameter x 14 gauge x 8' long tubes 2 heads

Shell Pressure: 33 bar (479 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 33 bar (479 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 37. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,450 mm (96 in). Tube Thickness: 2 mm (0.08 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Johnson Hunt LTD

Model: AEM

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 1.58 m² (17 ft²)

Orientation: Horizontal

Has (11) 3/4" diameter x 14 gauge x 6' long tubes. 2 heads

Shell Pressure: 26 bar (377 psi). Shell Temperature: 190 °C (374 °F). Shell Material: Carbon Steel. Tube Pressure: 26 bar (377 psi). Tube Temperature: 190 °C (374 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 152.4 mm (6 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 11. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,850 mm (72 in). Tube Thickness: 2 mm (0.08 in).
