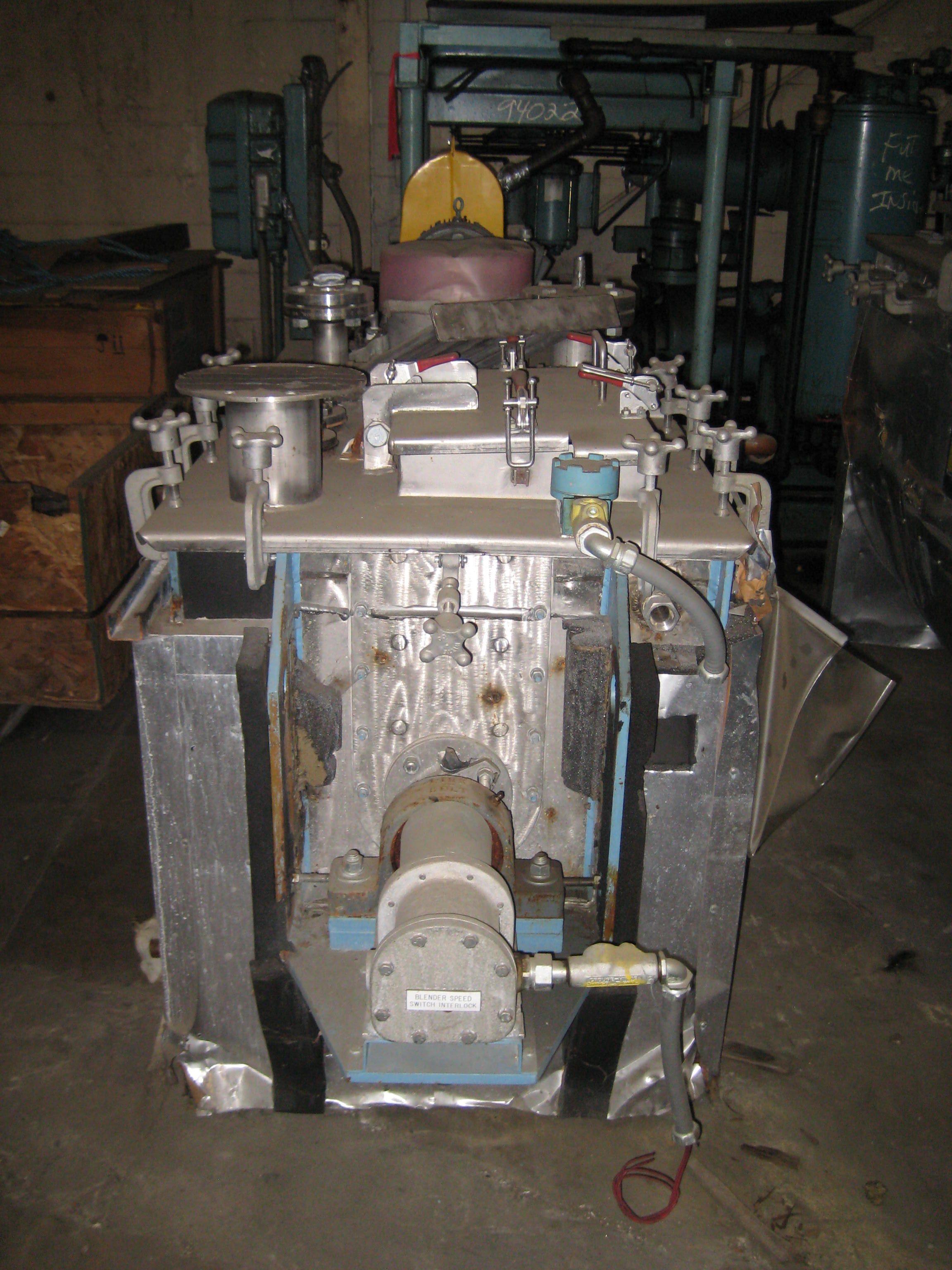

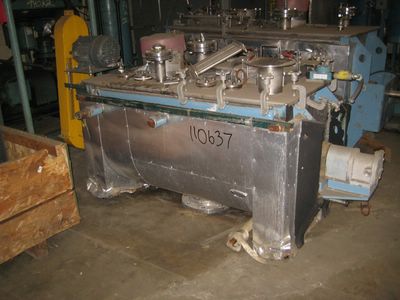

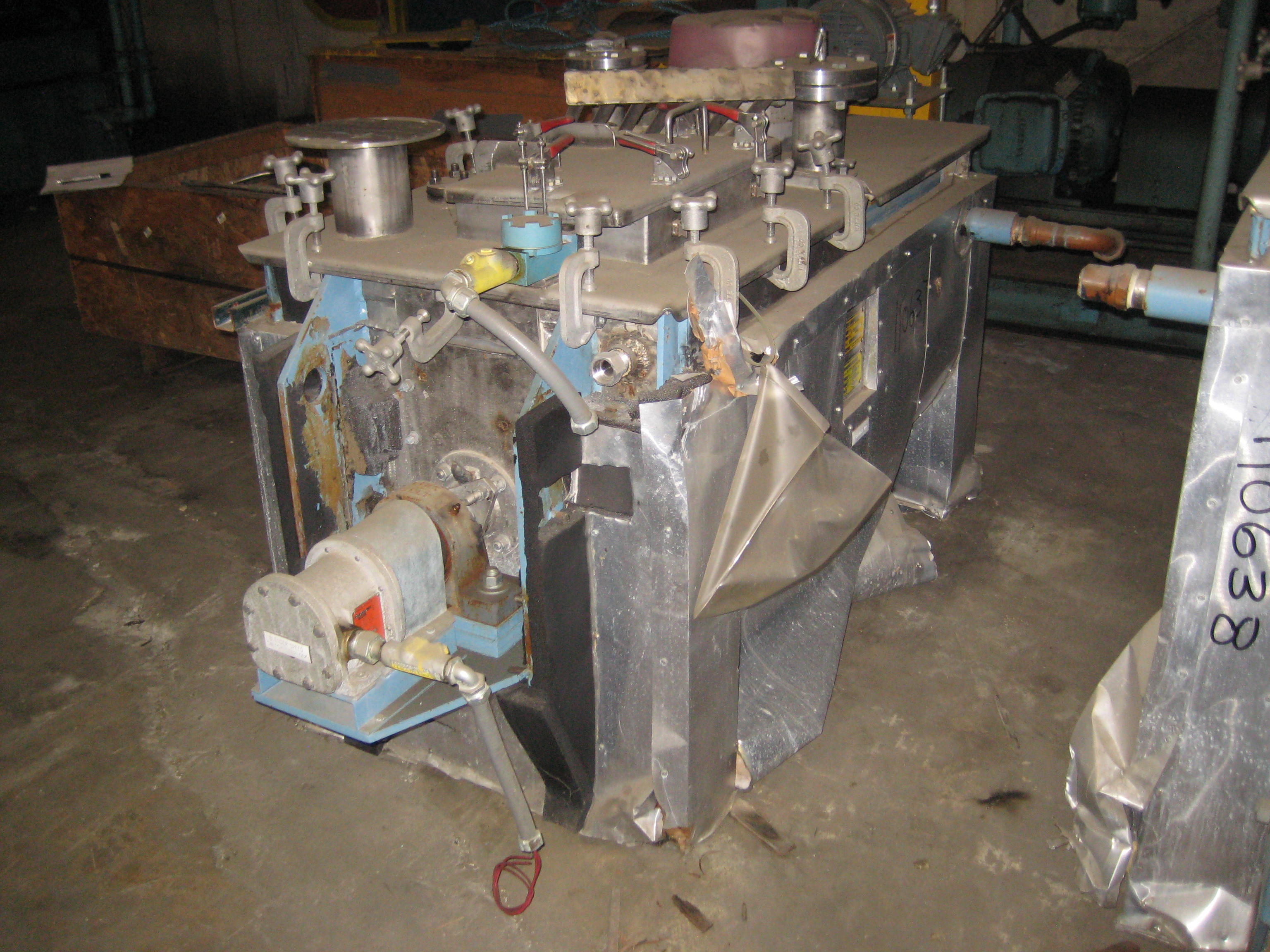

CS jacketed ribbon blender
Internal pressure rated 3 psi @ 200 deg. F to -20 deg. F min.

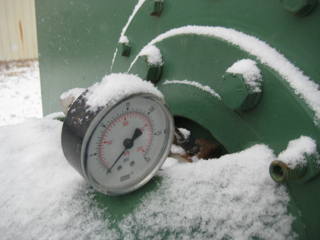

Jacket is rated 60 psi @ 200 deg. F to -20 deg. F min.
Blender configuration is full flat top cover with center bottom outlet.

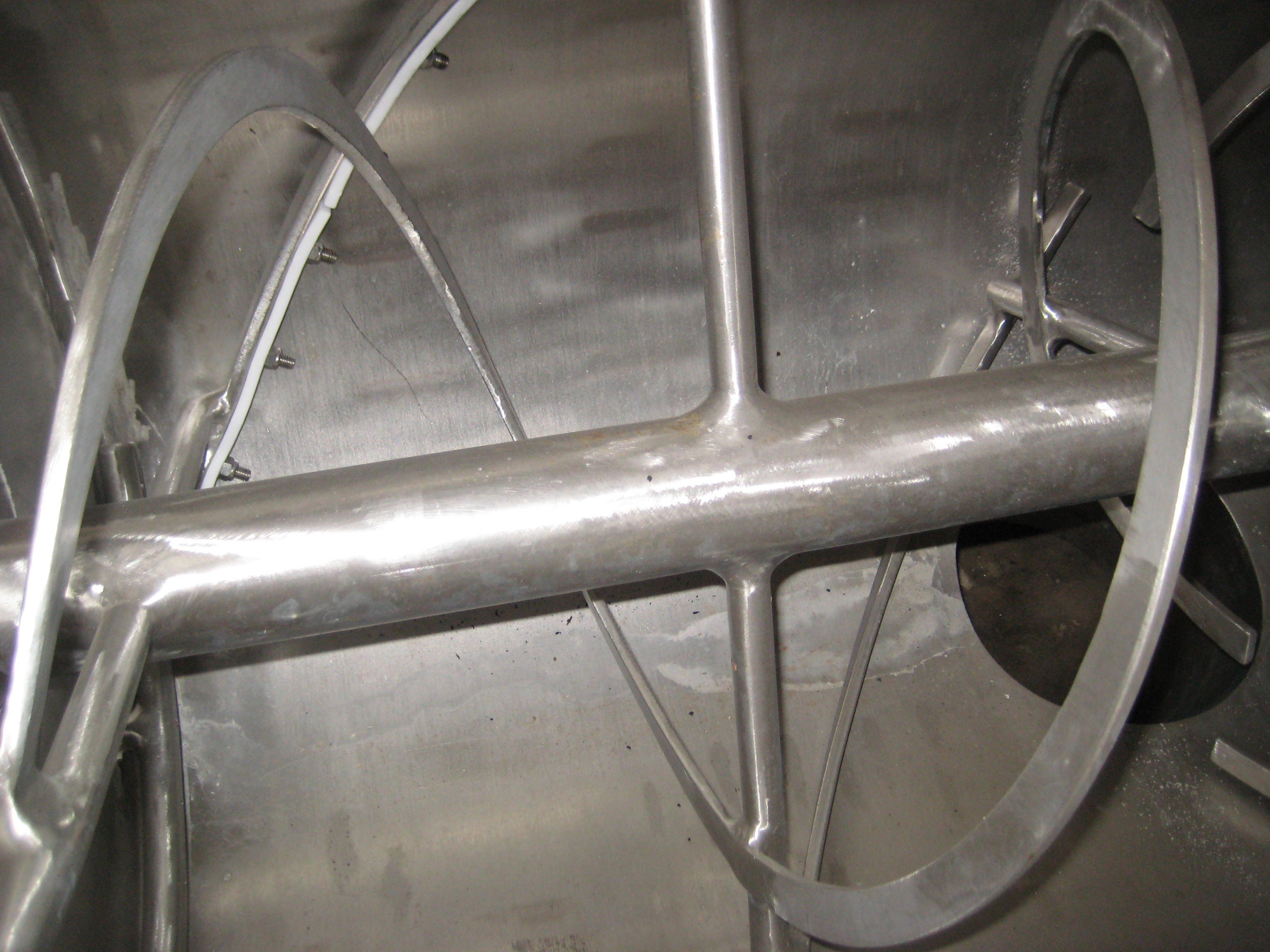

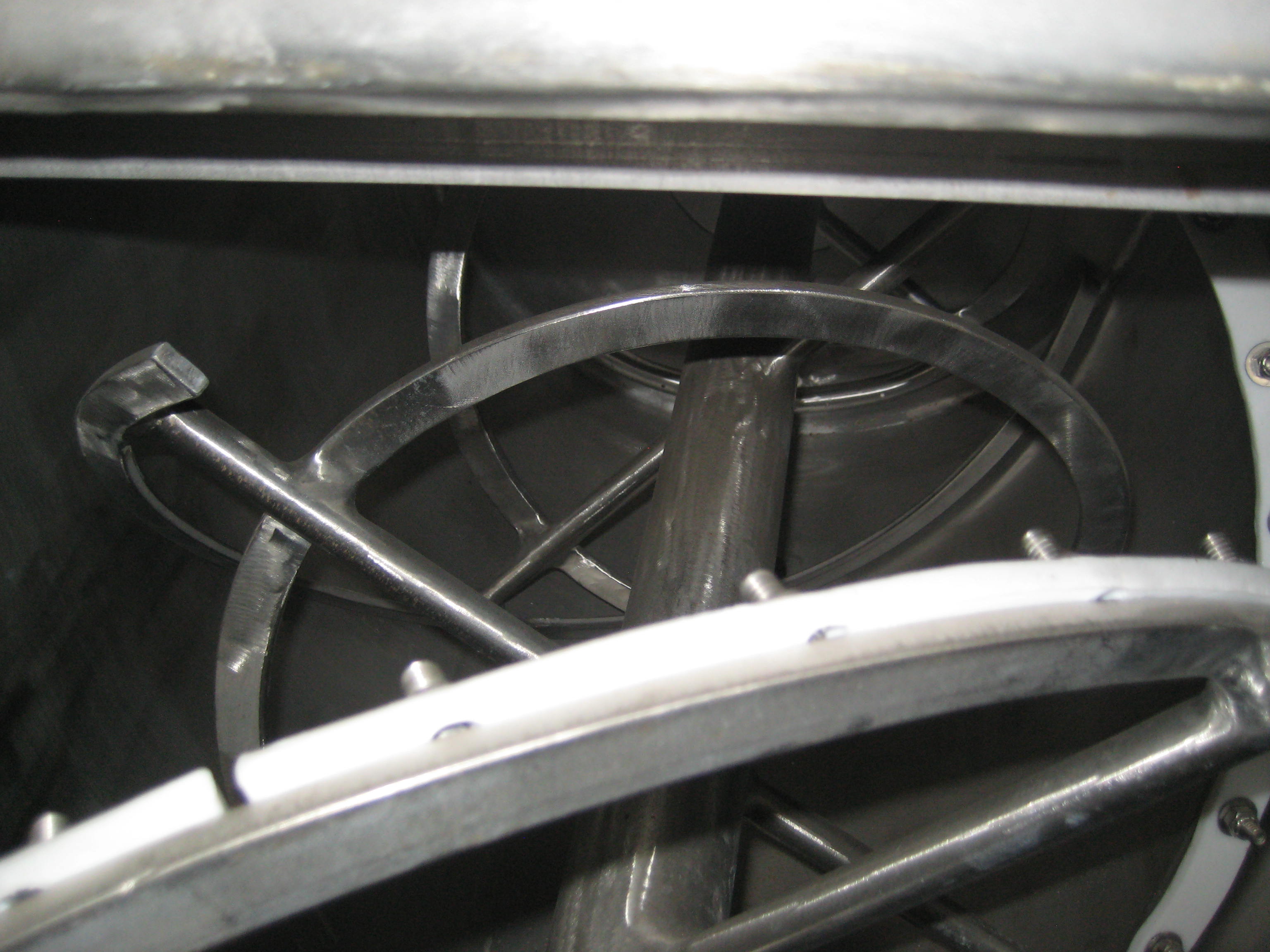

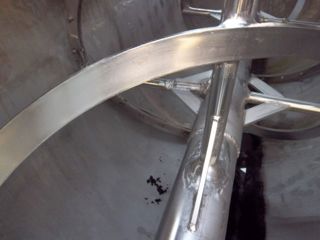

Shaft has stuffing box, ribbon design is removable, continuous double ribbon with Teflon wipers

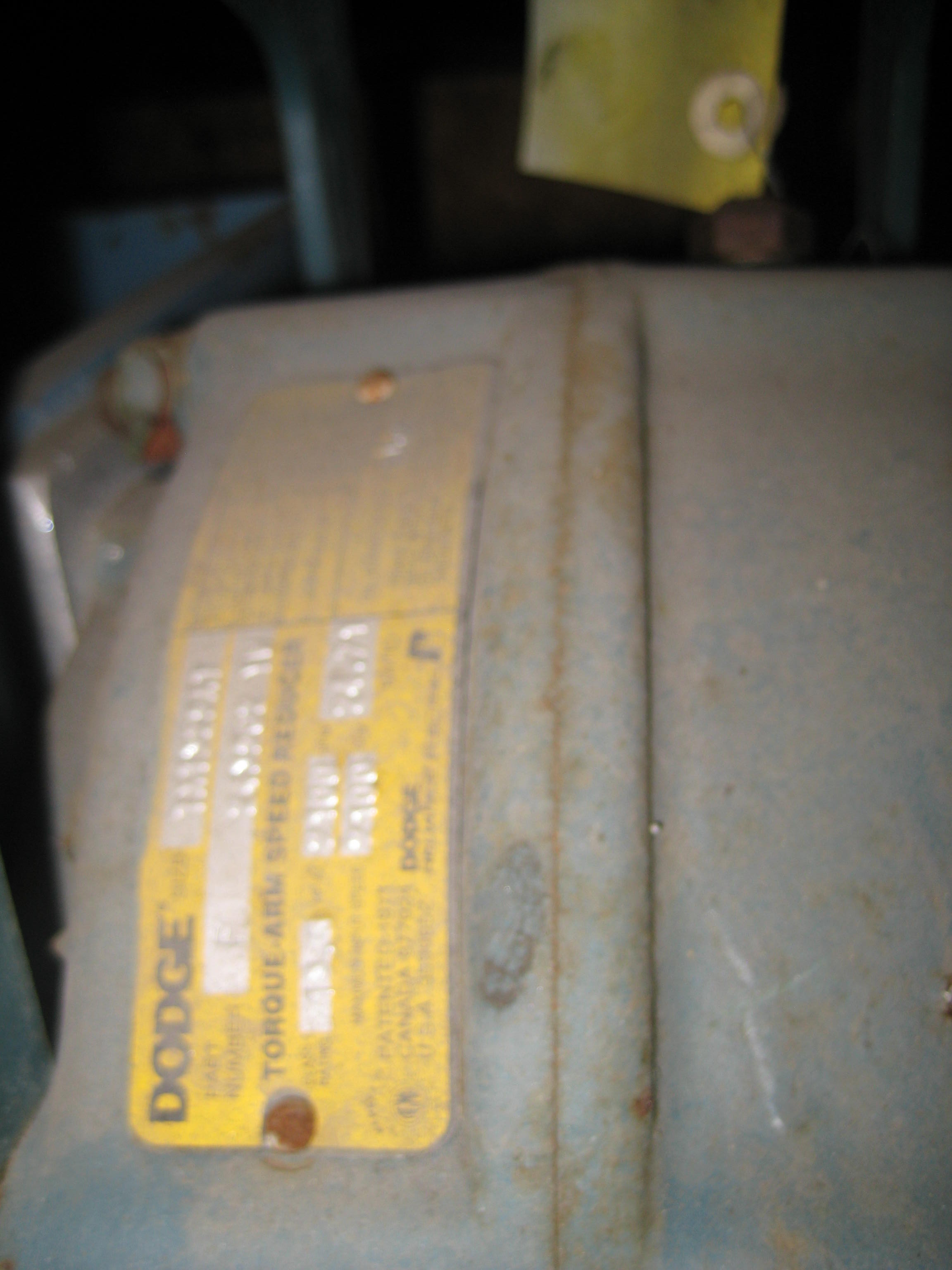

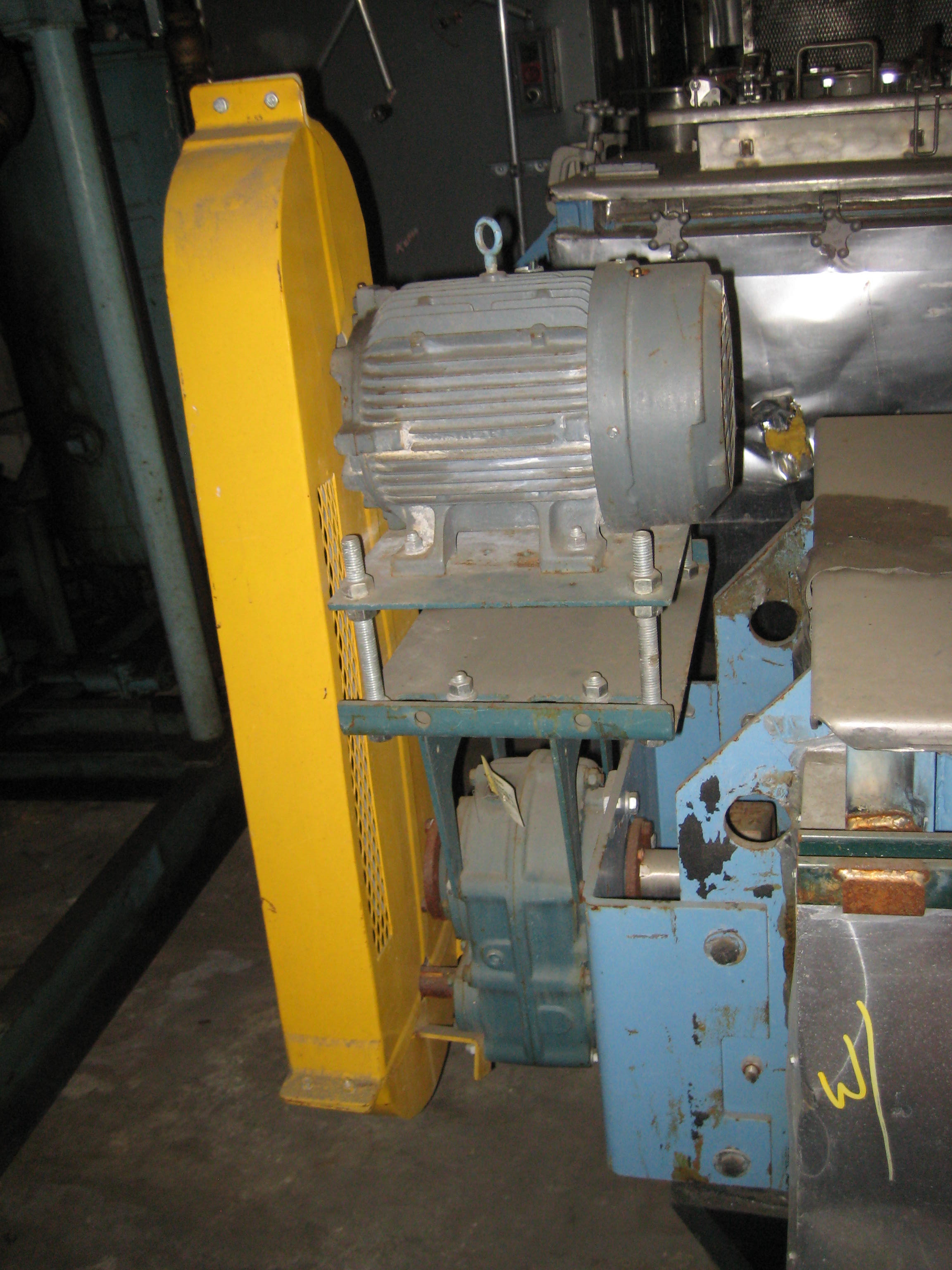

Shaft is driven through a Dodge shaft mounted reducer with a 24.7/1 gear reducer.
Top cover is clamp on removable design.

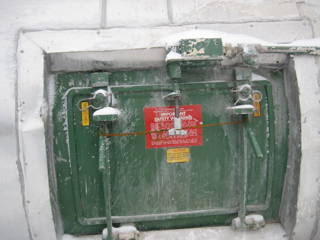

Top cover openings include 2-4", 1-8", 2-1", and 1 top feed/manway opening of 12"x16". Vessel is fully insulated.

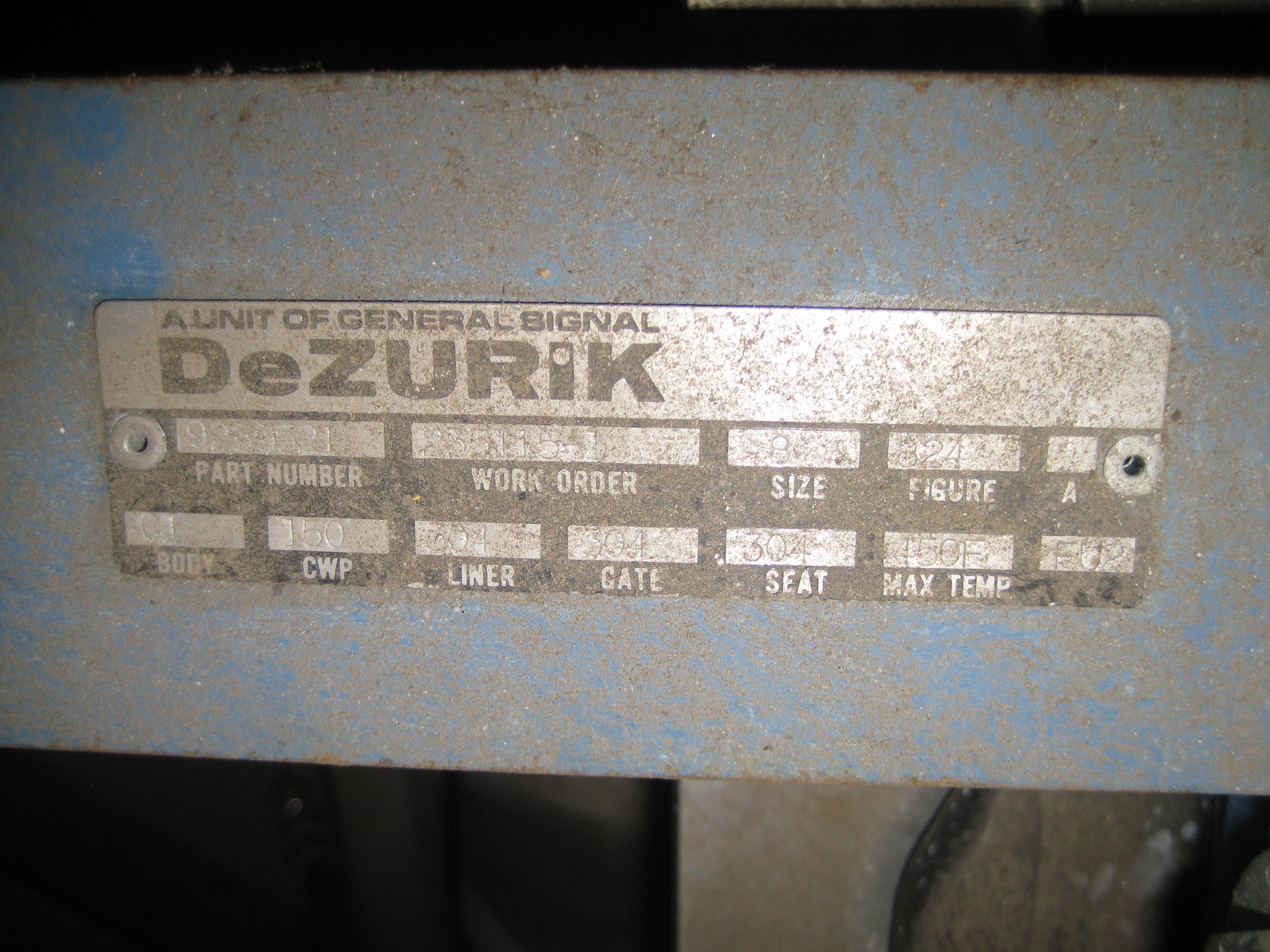

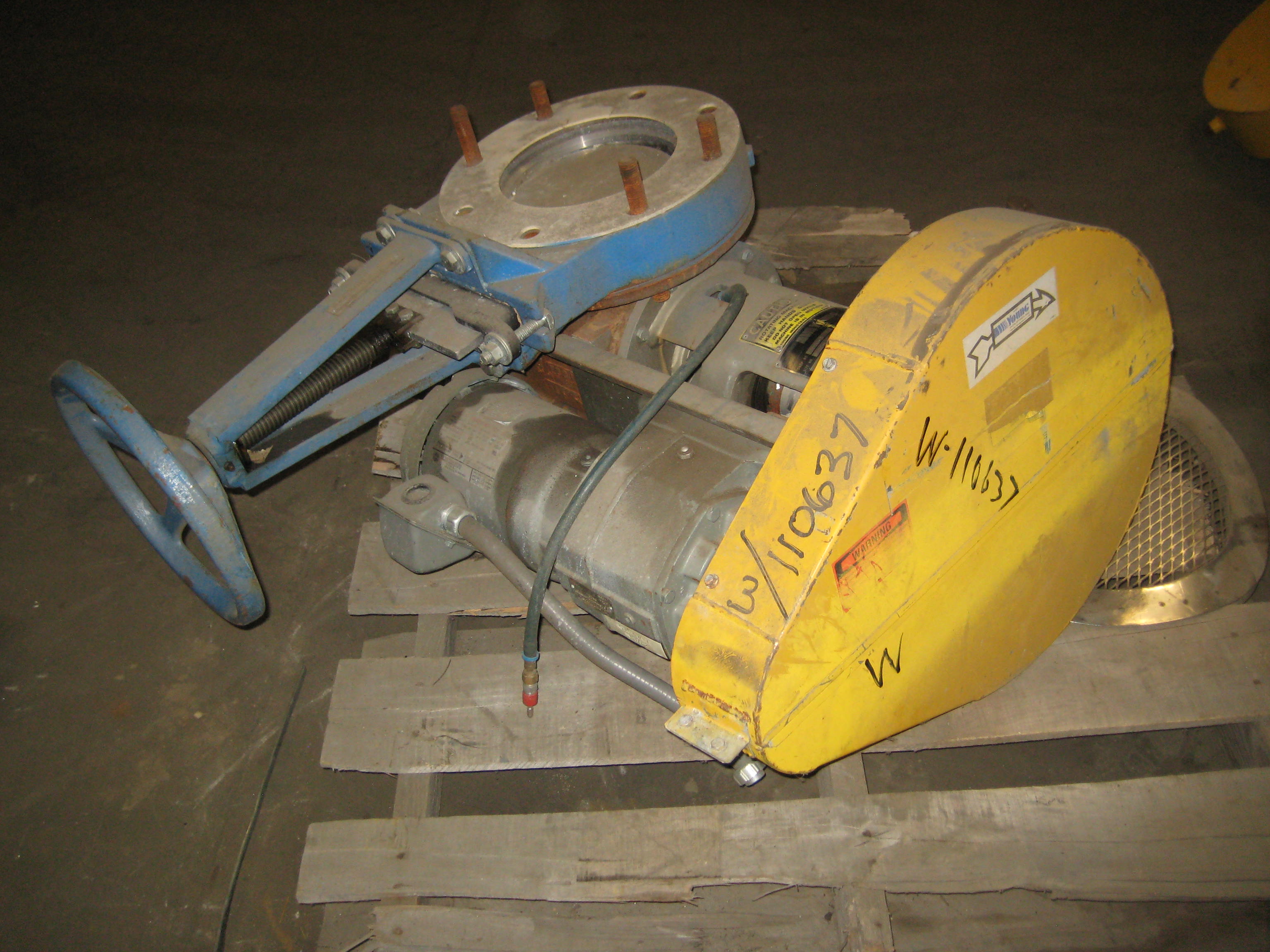

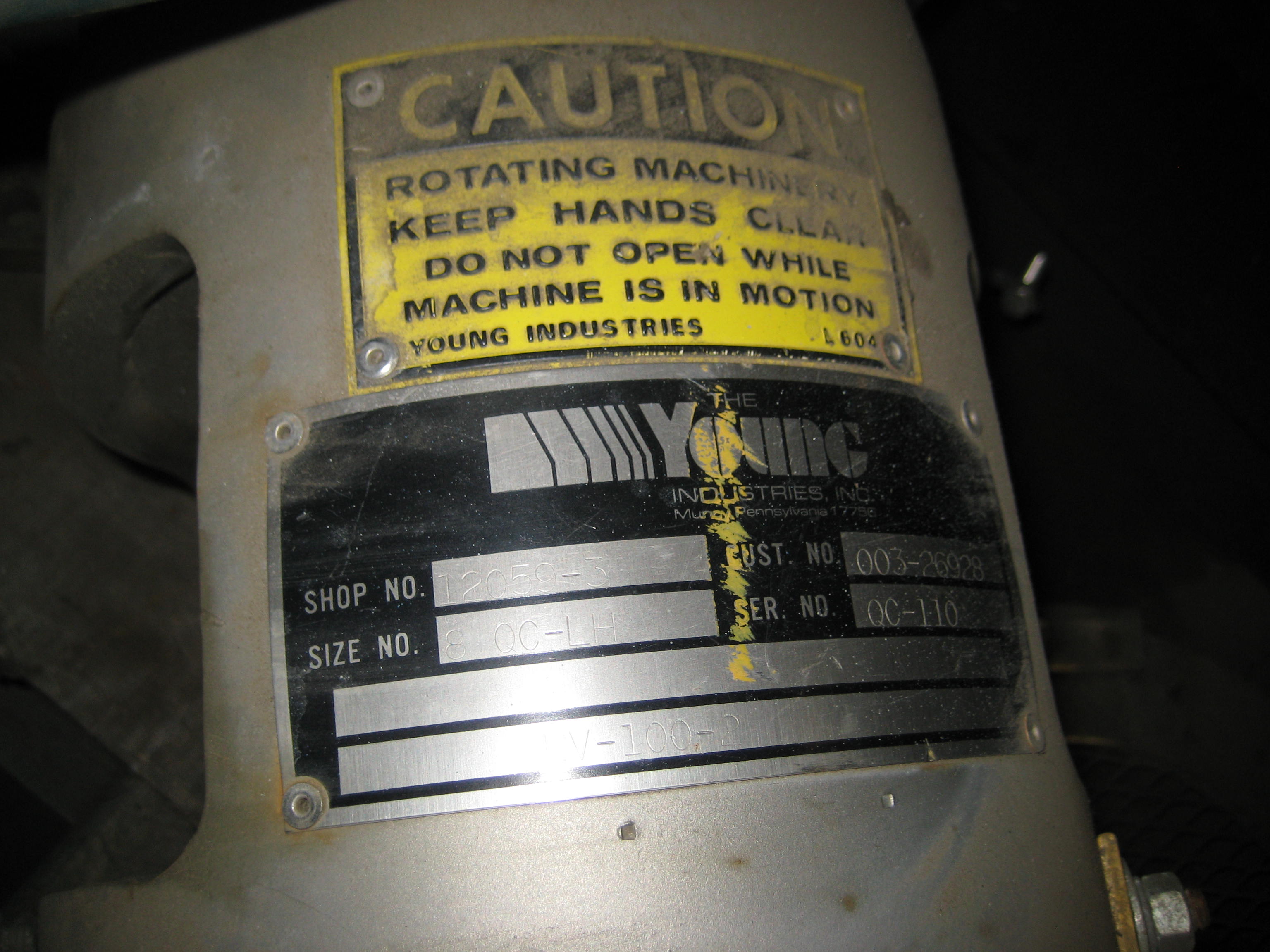

Center bottom outlet is approx. 6" and discharges through a knife gate into a Young motorized 2-3 hp delumper.
Type: Mixer-Ribbon & Paddle
Manufacturer: Patterson Kelly
Condition: Used
Material: Stainless Steel 304
Design Capacity: 12.7 m3 (450 ft3)
Operating Capacity: 8.5 m3 (300 ft3)

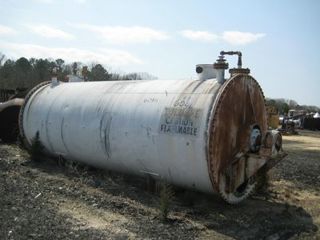

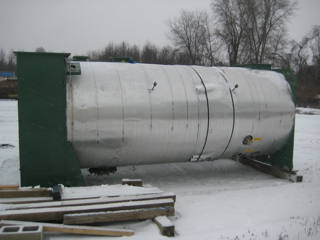

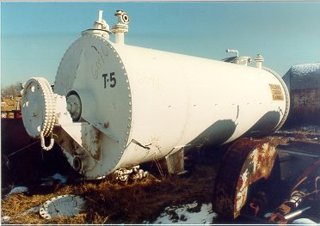

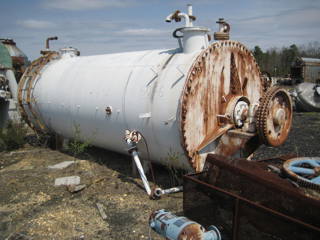

cylindrical slurry blender, Has single shaft agit w/approx (12) paddle arms. Sprocket for chain drive, takes 25 HP. Openings: top 2-12", 2-10", 2-2"; heads 2-20"; 1-6" and 1-2" outlet.
Ribbon Type: Paddles. Length: 4,900 mm (192 in). Width: 1,850 mm (72 in).
Type: Mixer-Ribbon & Paddle
Model: U-700
Condition: Used
Material: Stainless Steel 304
Design Capacity: 1.5 m3 (53 ft3)
Operating Capacity: 1 m3 (35.3 ft3)

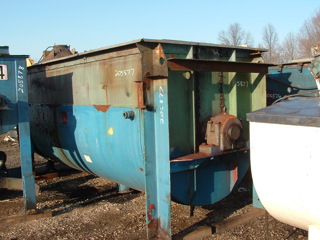

stainless steel ribbon blender. Chamber 60" long x 38" wide x 51" deep, Packing glands. Bolt flat top w/17" x 12" hinged manway. Openings: top 3-9"; btm 1-5" w/valve. worm and worm wheel.
Ribbon Type: Interrupted ribbon. Agitation Shaft Sealing: Packing. Length: 1,500 mm (60 in). Width: 965 mm (38 in). Height: 1,300 mm (51 in).
Type: Mixer-Ribbon & Paddle

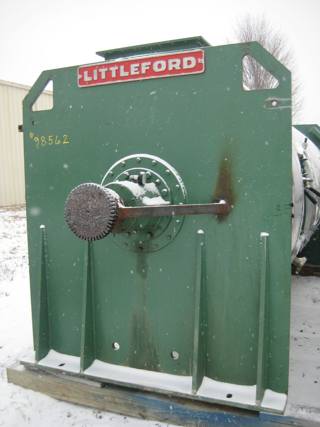

Manufacturer: Littleford Bros, Inc
Model: FKM-600-D
Condition: Used
Material: Stainless Steel 304
Design Capacity: 0.79 m3 (28 ft3)
Vessel Pressure: -0.97 bar (-14 psi)
Jacket Temperature: -16.1 °C (3 °F). Jacket Pressure: 0.48 bar (7 psi). Jacket Type: Standard. Operational mode: Batch. Paddle/Ribbon MOC: Stainless Steel 304. Agitation Shaft Sealing: Packing. Length: 1,200 mm (48 in). Width: 914 mm (36 in). Height: 914 mm (36 in).
Type: Mixer-Ribbon & Paddle
Manufacturer: The Young Industries, Inc.
Model: 300L
Condition: Used
Material: Stainless Steel 304
Design Capacity: 8.5 m3 (300 ft3)
Operating Capacity: 7.8 m3 (275 ft3)

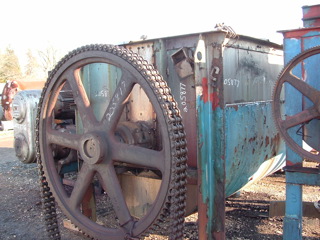

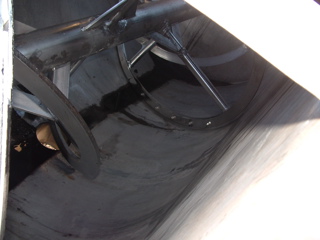

Ribbon Blender Size 300L, Single ribbon design, packing glands on shaft, removable ribbon design. Ribbon has a large sprocket on end of shaft for chain drive, no drive with unit. Blender trough is 60" wide x 144" long x 72" deep, with a bolted on SS cover The shaft measures 7 1/4" od.
Ribbon Type: Single Helix. Paddle/Ribbon MOC: Stainless Steel Other. Agitation Shaft Sealing: Packing. Length: 3,650 mm (144 in). Width: 1,500 mm (60 in). Height: 1,850 mm (72 in).
