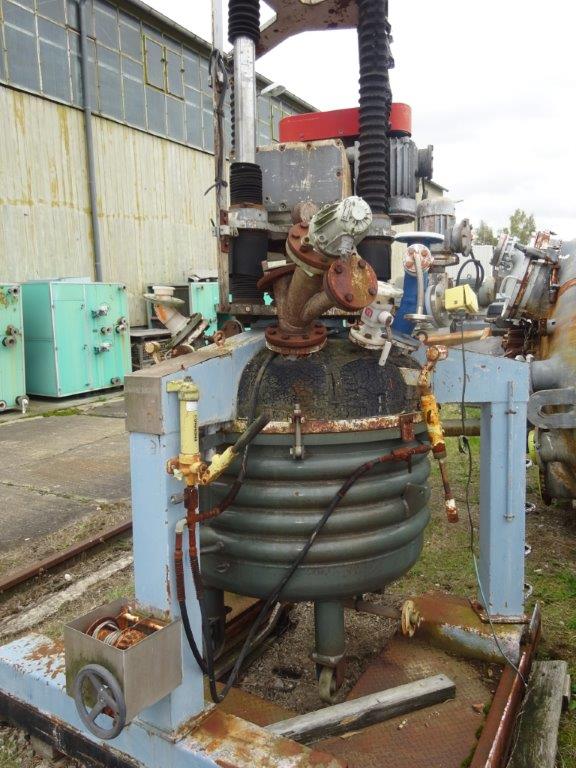

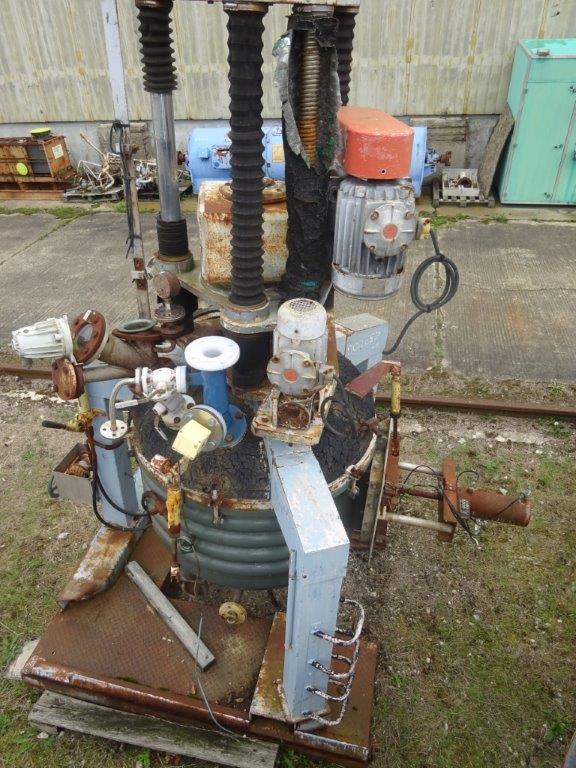

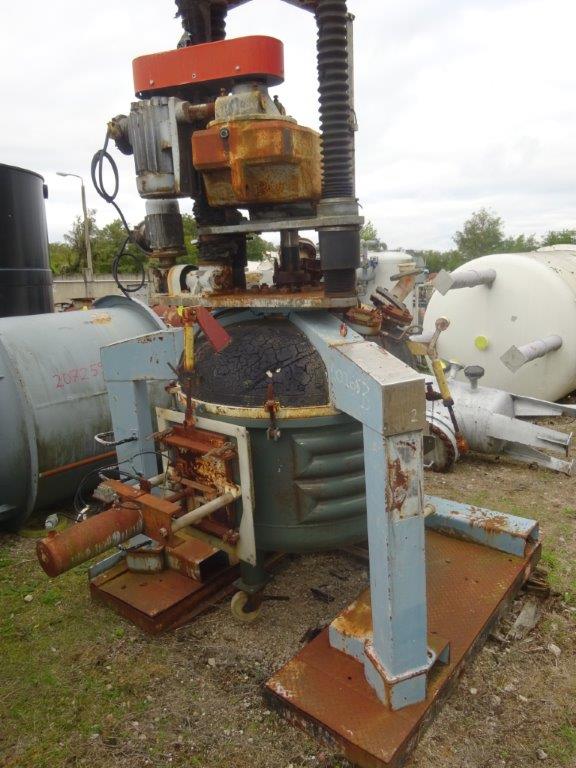

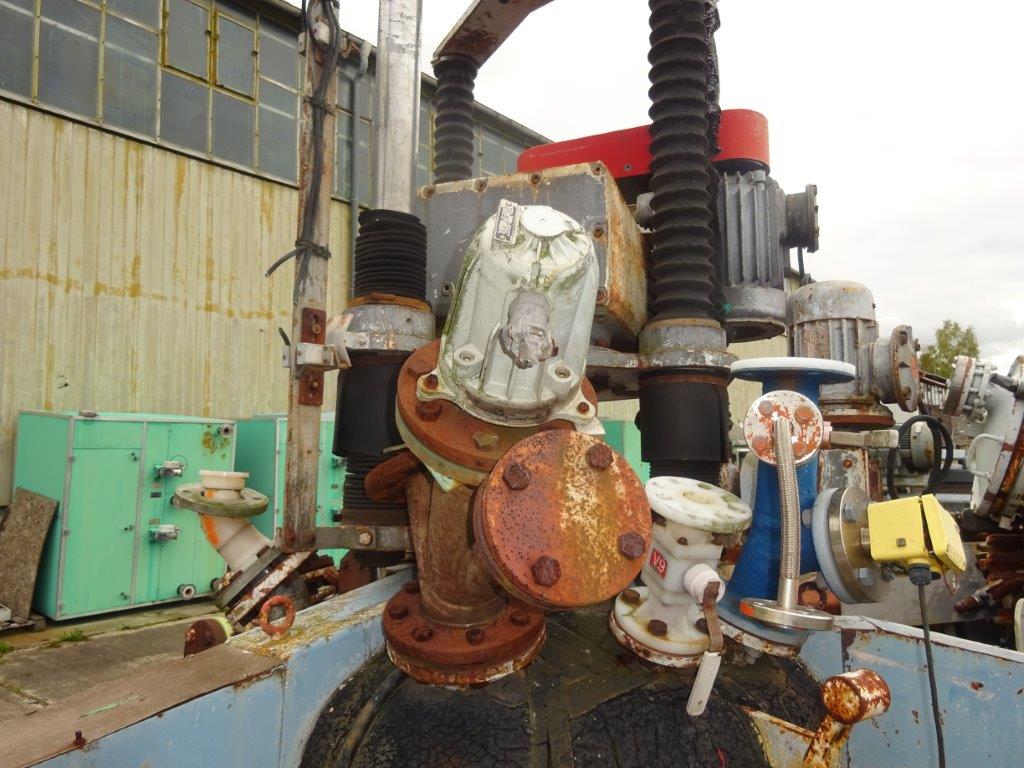

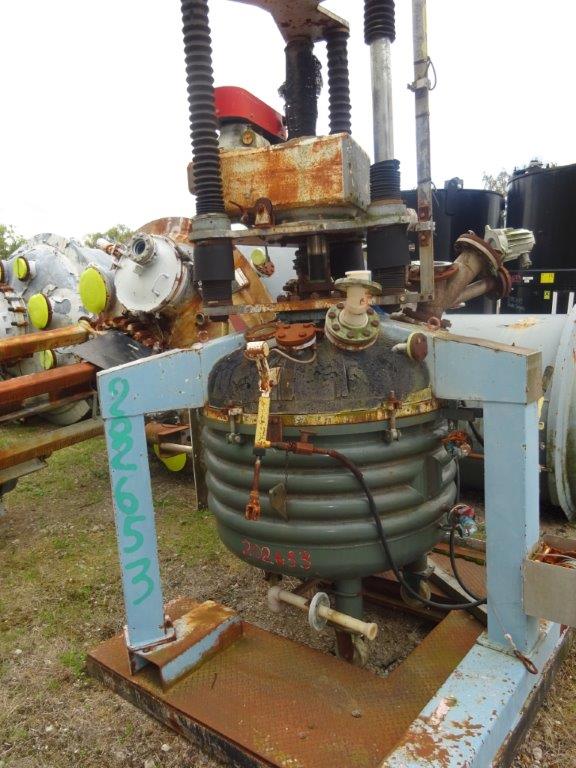

Stainless Steel 316 Franco Montan Rosenmund and Cogiem Filter Dryer - IPP# 202653

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Charles Thompson

Model: CT-2525

Condition: Used

Material: Stainless Steel 316

Filtration Area: 5 m² (53.8 ft²)

Diameter: 2,500 mm (99.4 in)

agitated jacketed pressure filter/dryer 400mm agitator stroke, 400mm product discharge lateral, 15 rpm agitator speed, Zone 2 IIB T3 classification internal wash ring (pipe), clamped flat filter bed with hydraulic raise/lower mechanism and castors for removing, valve and filter bed raise/lower mechanism driven by a power pack, power pack with a 3kw, 3/50/415 volt, 1440 rpm CE IP55 Ex NII T3 motor,

Pressure: 4 bar (58 psi). Temperature: 150 °C (302 °F). Jacket: Yes. Jacket Pressure: 4 bar (58 psi). Jacket MOC: Carbon Steel. Jacket Temperature: 150 °C (302 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RPD 8-398-86

Condition: Used

Material: Stainless Steel 316

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,250 mm (128.3 in)

center bottom discharge design internal pressure -1/3 bar @ -15/165 deg C; jacket -1/5 bar @ -15/165 deg C. Non-cored shaft Designed for cake thickness 500 mm Vessel is 13200 liter volume jacket volume is 75 liters

Pressure: 3 bar (43.5 psi). Temperature: 165 °C (329 °F). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket Temperature: 165 °C (329 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RPD 8-398-86

Condition: Used

Material: Stainless Steel 316

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,250 mm (128.3 in)

CODAP 85, center bottom discharge design Non-cored shaft internal pressure -1/3 bar @ -15/165 deg C;, jacket -1/5 bar @ -15/165 deg C With 316L (1.4435) stainless steel half pipe coil jacket on straight side cover with a shroud Designed for cake thickness 500 mm Vessel is 13200 liter volume Includes hydraulic controls and vacuum pump skid.

Pressure: 0.21 bar (3 psi). Temperature: 73.9 °C (165 °F). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket Temperature: 165 °C (329 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RPD 8-398-86

Condition: Used

Material: Stainless Steel 316

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,250 mm (128.3 in)

Codap85 center bottom discharge design Includes hydraulic controls and vacuum pump skid. 316L stainless steel half pipe coil jacket on straight side cover with a shroud jacket volume is 75 liters. jacket -1/5 bar Non-cored shaft. Rated: internal pressure -1/3 bar Designed for cake thickness 500mm.
Vessel is 13200liter volume Includes hydraulic controls and vacuum pump skid

Pressure: 3 bar (43.5 psi). Temperature: 165 °C (329 °F). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 165 °C (329 °F).
