Used filters for sale: industrial solid-liquid separation for consistent, high-purity output

Shop used, secondhand and surplus filters from IPP – in stock and engineered for chemical, pharmaceutical, and food-grade applications

Streamline your process with IPP’s ready-to-ship filters designed to reduce waste, recover product, and meet regulatory standards

Featured Rosenmund and Cogiem Filters

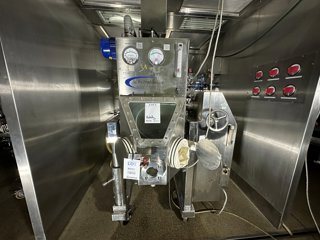

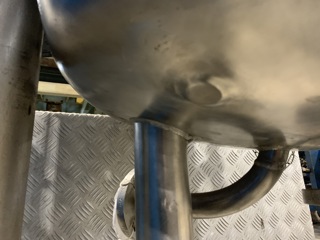

Filter Dryer Rosenmund and Cogiem Charles Thompson Ltd CT350-C22 Hastelloy C22

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Charles Thompson Ltd

Model: CT350-C22

Condition: Used

Material: Hastelloy - C22

Filtration Area: 0.1 m² (1.08 ft²)

Diameter: 350 mm (13.8 in)

  • mobile laboratory filter/dryer with tilting mechanism,
  • design pressure internal 1 bar + full vacuum @ -20/150 degrees C, jacket: 6 bar + full vacuum @ -20/150 degrees C,
  • all wetted parts are Hastelloy C22,
  • 50 liter slurry capacity,
  • 20 liter cake capacity,
  • 350mm diameter x 680mm straight side,
  • 6-30rpm shaft speed,

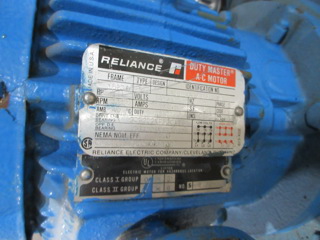

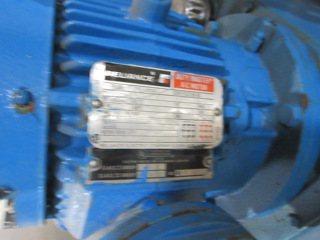

  • agitator driven by 1.5kW, 3/50/230/400 volt, 1420 rpm CE ATEX EExd IIB T4 IP55 motor,

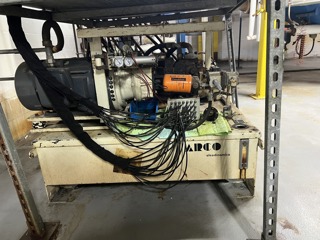

  • hydraulic driven agitator raise/lower mechanism with powerpack,
  • alloy 22 bellows on shaft,

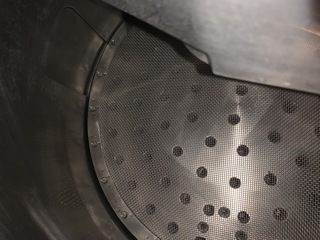

  • flat bottom filter plate with mesh filter and can be rotated for cleaning,
  • manual vessel tilt mechanism,
  • strip sight glass on side for measuring cake depth,
  • approx 100mm side discharge which is fully contained in a glovebox,
  • all mounted on stainless steel frame with wheels for full mobility,
  • design code ASME VIII DIV 1 (1998) + A '00'
  • Can be used with 248331 APOVAC system for vacuum at an additional cost.

Pressure: 10 bar (145 psi). Temperature: 150 °C (302 °F). Vacuum: Yes. Agitation Seal Type: Double Mechanical Seal. Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Type: Standard. Jacket MOC: Stainless Steel 316L. Jacket Temperature: 150 °C (302 °F). Agitator Cored for Heating/Cooling: Yes.

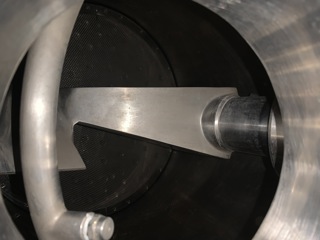

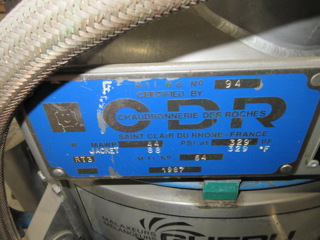

Filter Dryer Rosenmund and Cogiem Filtrodry FPP 100 SD/FM by 3V Cogeim Hastelloy - C276

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: 3V Cogeim

Model: Filtrodry FPP 100 SD/FM

Condition: Used

Material: Hastelloy - C276

Filtration Area: 1 m² (10.8 ft²)

Diameter: 1,200 mm (47.2 in)

  • Side bottom discharge with automatic valve

Pressure: 6.9 bar (100.1 psi). Temperature: 177 °C (350.6 °F). Vacuum: Yes. Internal Finish: Ra 0.5. Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 10.4 bar (150.1 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 177 °C (350.6 °F). Agitator Cored for Heating/Cooling: Yes. Vessel Liquid Capacity: 1,500 L (400 gallons).

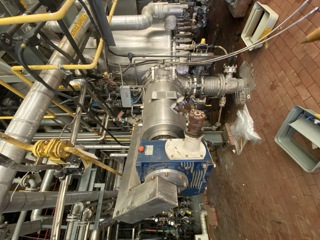

Rosenmund and Cogiem Filter Dryer 3V Cogeim Filtodry FPP XD 400 FM Hastelloy C22

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: 3V Cogeim

Model: Filtodry FPP XD 400 FM

Condition: Used

Material: Hastelloy - C22

Filtration Area: 4.2 m² (44.7 ft²)

Diameter: 2,300 mm (90.6 in)

Alloy C22

Internal finish is a sanitary polish. 304SS sheathing. 304 stainless steel

18.35" Side discharge with discharge valve, 132 gallon Hastelloy C 22 side discharge valve. National Board # 287. rated FV/88 @392 degrees F.

Dryer Dimensions: 90" diameter x 76" length

hydraulic skid. Includes: integral Stock # 241013- Hastelloy C22 pulse jet Dust collector. 8.6" handhole, 4.33" site glass.

Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Internal Finish: #4 Ra50. Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 10.5 bar (152 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.

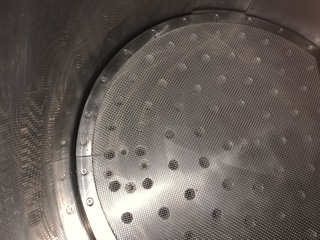

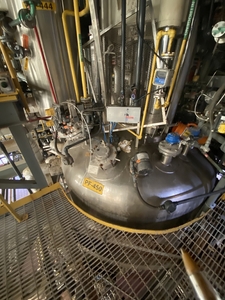

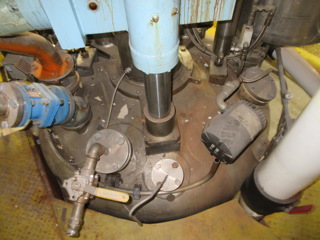

Hastelloy - C22 Rosenmund Rosenmund and Cogiem Filter

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund AG

Condition: Used

Material: Hastelloy - C22

Filtration Area: 6 m² (64.6 ft²)

Diameter: 2,800 mm (110.2 in)

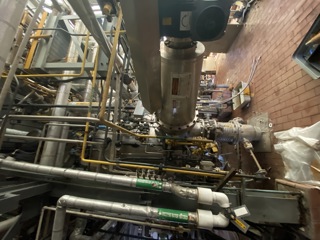

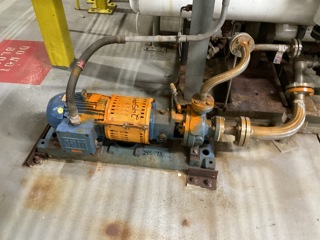

(Wetted parts) filter/dryer system dryer base jacket -1/16 bar @ -25/160 degrees C nominal volume of cake 2400 liter shaft is cored for steam heating gas type double mechanical seal shaft with Hydraulic raise/lower mechanism driven by a hydraulic power pack with a 2.2 kW, 3/50/400 volt 1450 rpm IP55 EExde IIB T4 motor side discharge with hydraulic valve fixed bed design with internal sintered mesh filter bed sampling point/outlet design code: AD 2000 Regelwerk PED 97.23/CE (1) 2 square meter top mounted Hastelloy C22 jacketed reverse jet dust filter, design design pressure internal -1/3.2 bar @ -25/160 degrees C 9230 liter), jacket -1/16 bar @ -25/160 degrees C (24 liter), 316L stainless steel jacket, (1) 1000 Nm3/hr COMBIVAC/APOVAC WKP1000/S/PMZE 2510 D6X6/APO 3.2/80/GK1.8 vacuum pump skid with booster pump, manufactured by NCB Gas Processing, asset #10006707 (1) 220 Nm3/hr liquid ring vacuum pump type WKP-4000-AD, 19kw motor, design pressure 100 mbar, (1) 3.2 square meter liquid ring cooler, (1) 1.8 square meter exhaust gas cooler, (1) 80 liter liquid ring tank, all mounted on a carbon steel skid, (1) 1000 Nm3/hr (working) booster pump, type WKP 4000 AD, serial #21170167, manufactured by Pfeiffer Vacuum, 6075m3/hr (max), 4500 rpm (max), pressure 100mbar, driven by 18.5/21kW, 3/50-60/690-400/660-380/415-440 VOLT, 2934/2924/3524 RPM ATEX EEx de IIB T4 IP55 motor,

Pressure: 3.2 bar (46.4 psi). Temperature: 160 °C (320 °F). Jacket: Yes. Jacket Pressure: 16 bar (232.1 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 160 °C (320 °F).

Used filters are essential components in countless process operations where solids must be separated from liquids. Whether you’re removing fine particulates, clarifying solutions, or recovering valuable materials, industrial filters play a critical role in improving product quality, protecting downstream equipment, and maintaining compliance. With more than 47 years of experience, IPP supplies used, secondhand, and surplus filters from 20 global plant sites and maintains an extensive inventory of 15,000+ process systems.

IPP stocks a wide range of filter types—pressure leaf, plate and frame, cartridge, vacuum drum, nutsche, and candle filters—from leading brands like Sparkler, Pall, Funda, and Millipore.

Primary uses across industries

Types of materials processed

Common materials of construction

Industrial filters are built to resist corrosion, handle pressure, and maintain hygiene:

Key features of process filters

Learn more about industrial filtration technologies and applications from Chemical Processing.

Filter FAQ
Have questions about Filters or our services? Learn more about our products and why customers choose IPP.
Pressure leaf filters offer continuous, enclosed operation ideal for fine filtration, while plate and frame units are great for batch operations and easier cake discharge.
Yes – many are built to sanitary standards and can be revalidated or retrofitted with new filter media and gaskets.
Key factors include particle size, solids concentration, flow rate, operating pressure, temperature, and chemical compatibility.
IPP offers significant savings, reduced lead times, and global support based on more than 47 years of equipment expertise.

Find your industrial filter at IPP

Search the IPP inventory or contact IPP’s filter experts to locate the right used, surplus, or secondhand filter for your process. With trusted manufacturers, quality systems, and rapid delivery, IPP helps you reduce downtime and improve filtration efficiency.
