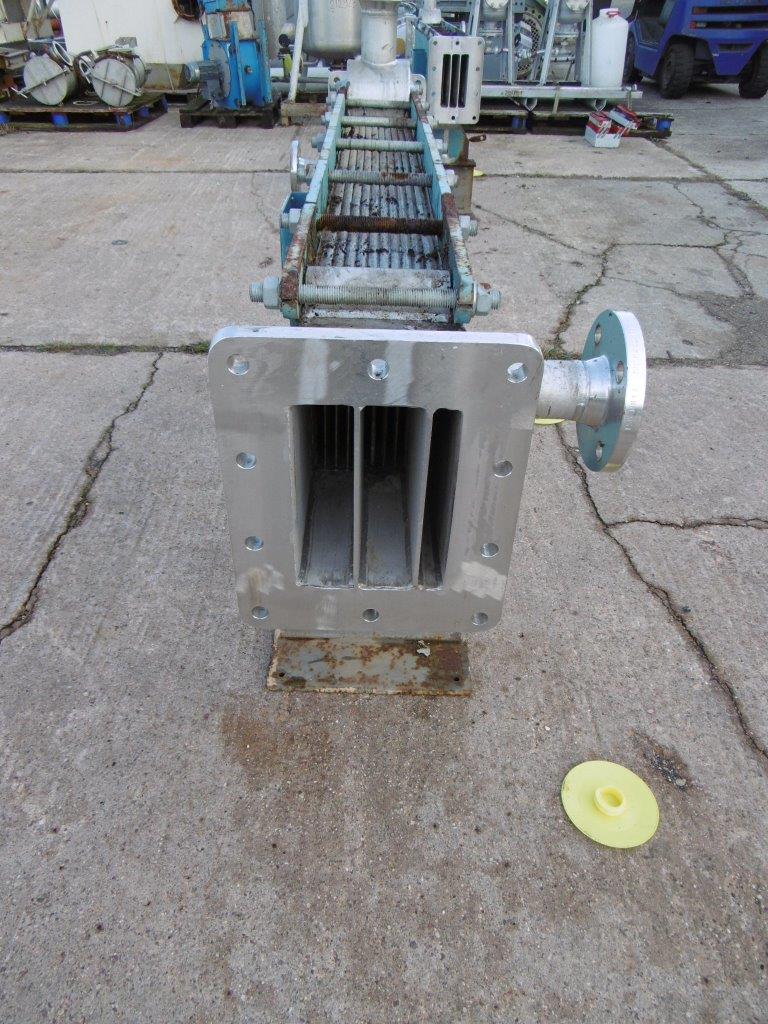

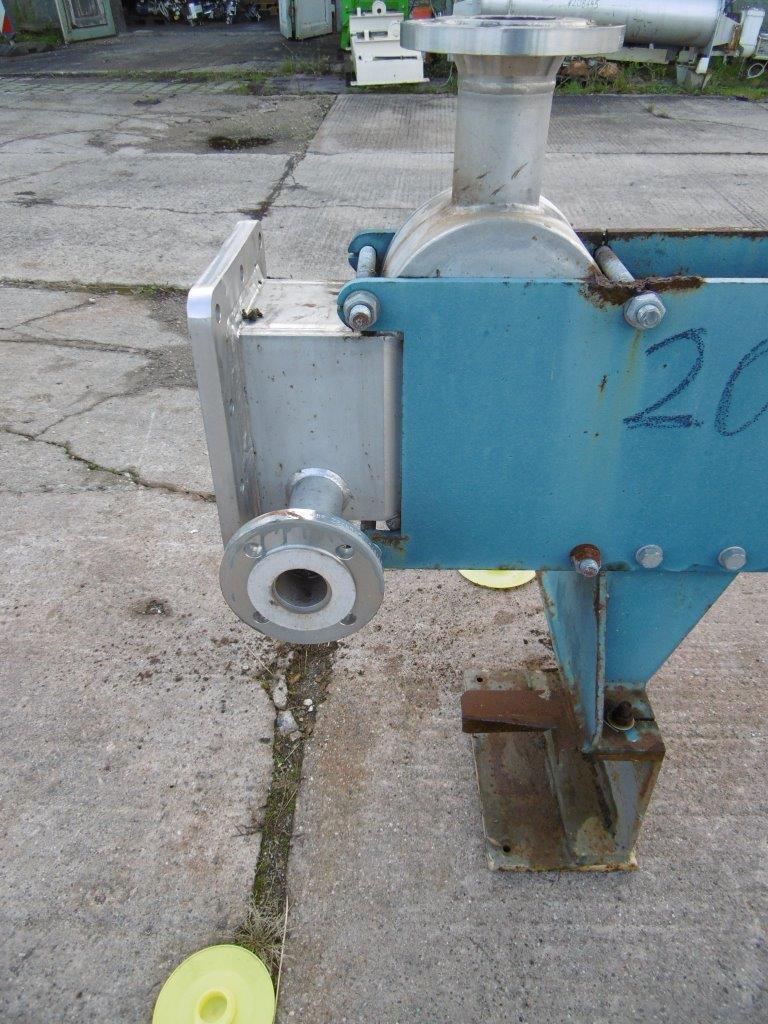

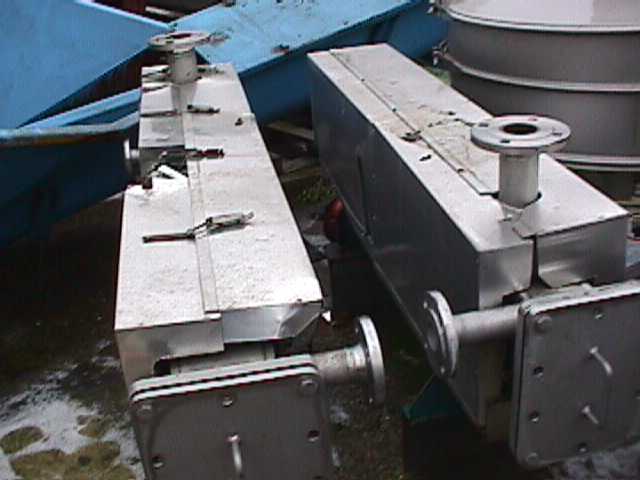

IPP# 203244 - Plate and Frame Heat Exchanger 5.39 m² (58 ft²) Stainless Steel 316 For Sale

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Bariquand Platulaire Heat Exchanger

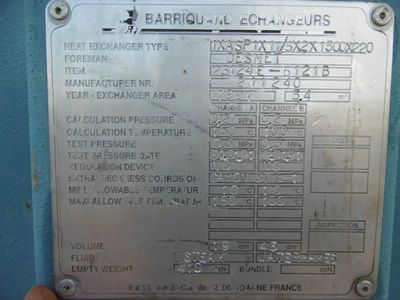

Model: DIXASP 1x16/1x15x2500x280

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 18 m² (194 ft²)

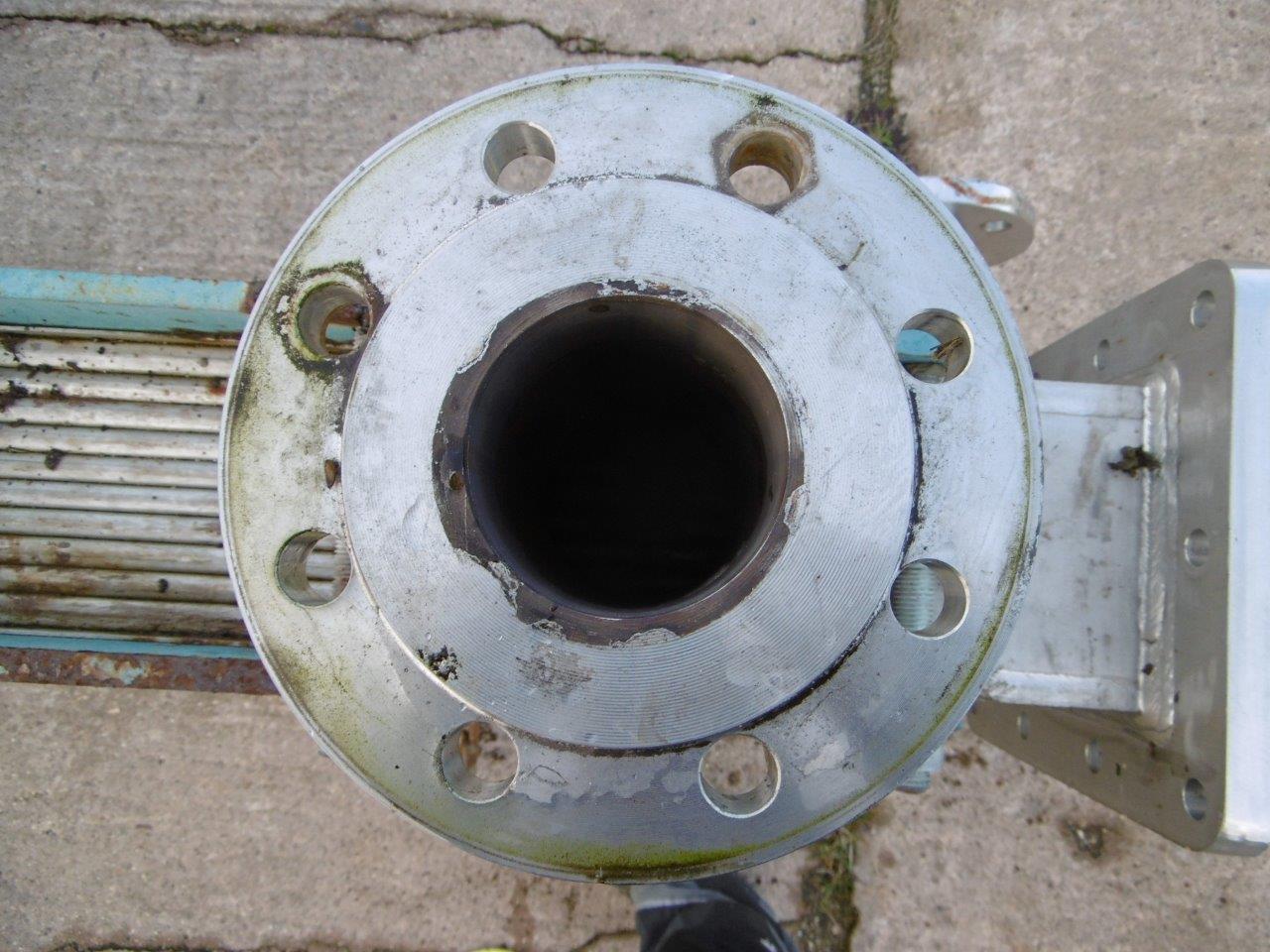

Nozzle Schedule: Openings: Service side (2) 150mm, process side (2) 50mm, (1) 200mm

welded plate heat exchanger
with 316TiSS wetted parts
horizontal design
0.7 bar working pressure 90 dm3 capacity
125 dm3 capacity
All wetted parts are material Z2CND 17-12 France standard, (3156TiSS)

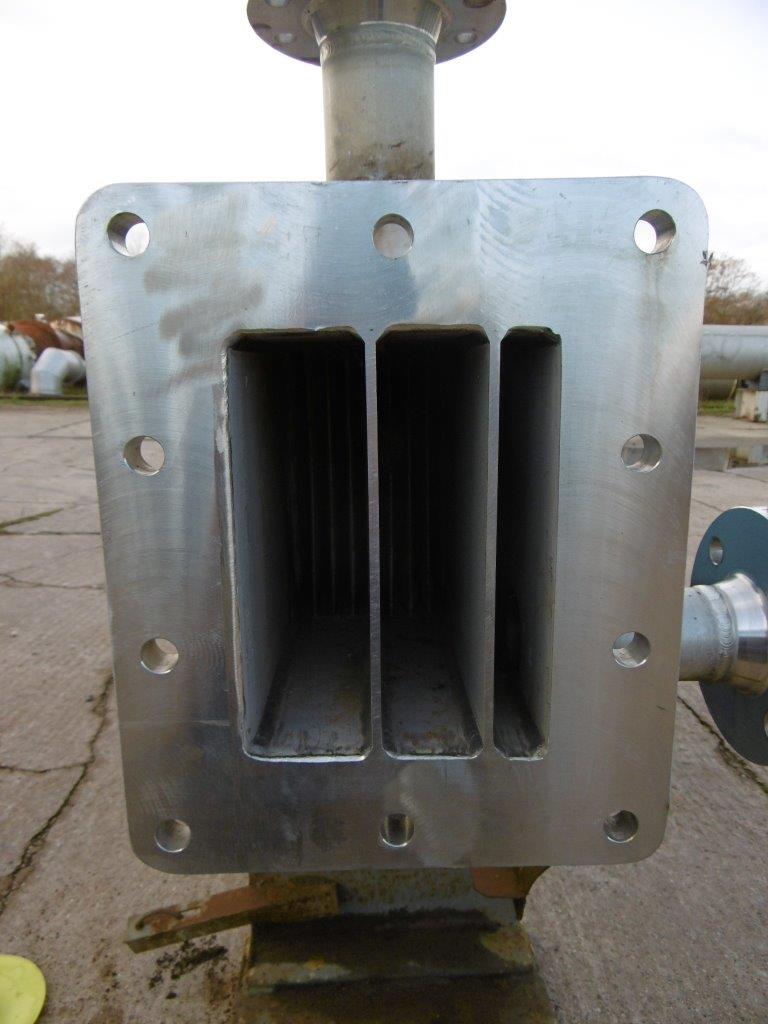

The rectangular housing is 260 mm wide, 3200 mm long
Empty weight 1200 Kg

Cold-side Pressure: 5 bar (72.5 psi). Cold-side Temperature: 50 °C (122 °F). Hot-side Pressure: 3 bar (43.5 psi). Hot-side Temperature: 150 °C (302 °F). Housing Material: Carbon Steel.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Swep

Model: G65

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 15 m² (161 ft²)

Cold-side Pressure: 1 bar (14.5 psi)

Volume: 13 liters on both sides
carbon steel pressure plates.

Cold-side Temperature: 150 °C (302 °F). Hot-side Pressure: 1 bar (14.5 psi). Hot-side Temperature: 150 °C (302 °F). Number of Plates: 40.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: APV Baker

Model: 3HH-208/171

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 0.8 m² (8.61 ft²)

Nozzle Schedule: Openings: tube side 2-2"; shell 2-3"

Unit w/cylindrical shell
(23) 316SS plates (cylindrical, vert) inside shell

Cold-side Pressure: 16 bar (232 psi). Cold-side Temperature: 150 °C (302 °F). Hot-side Pressure: 16 bar (232 psi). Hot-side Temperature: 150 °C (302 °F). Number of Plates: 23.

Type: Heat Exchanger

Subtype: Plate and Frame

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 20.9 m² (225 ft²)

Nozzle Schedule: Opening sizes: service 2-4"; product 2-4"

Number of Plates: 150.
