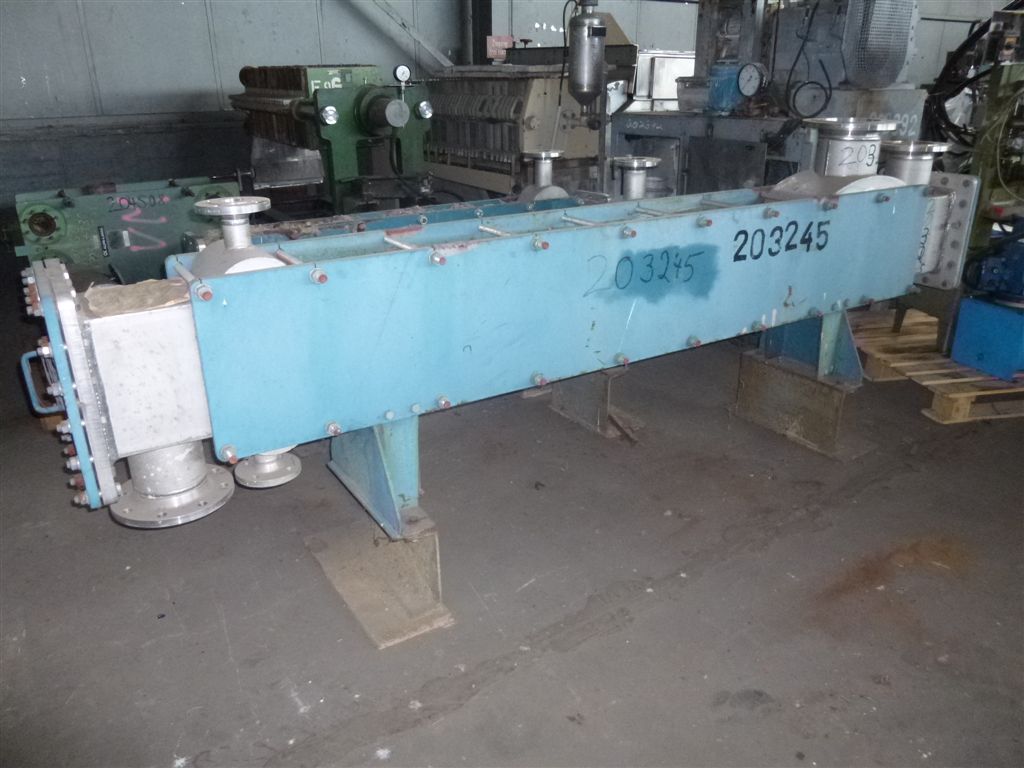

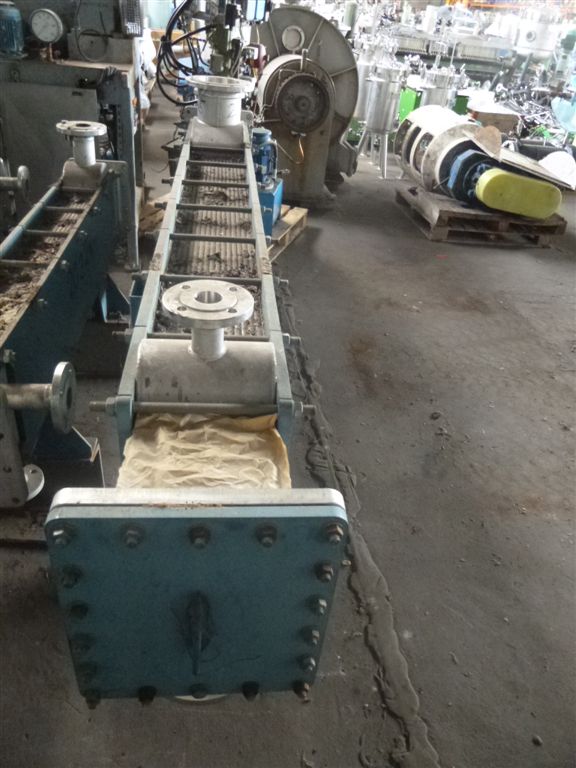

welded plate heat exchanger
with 316TiSS wetted parts
horizontal design
0.7 bar working pressure 90 dm3 capacity
125 dm3 capacity
All wetted parts are material Z2CND 17-12 France standard, (3156TiSS)
The rectangular housing is 260 mm wide, 3200 mm long
Empty weight 1200 Kg
Type: Heat Exchanger
Subtype: Plate and Frame

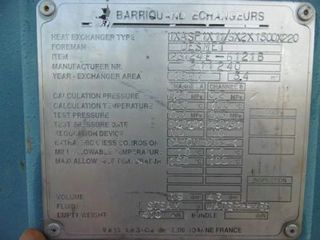

Manufacturer: Bariquand Platulaire Heat Exchanger
Model: IXASP 1x11/5x2x1500x220
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 5.39 m² (58 ft²)
Length: 1,935 mm (76.2 in)

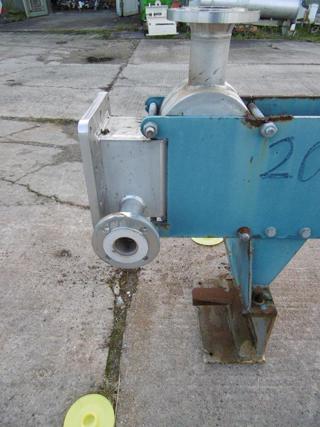

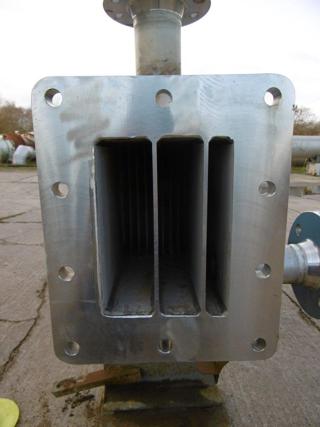

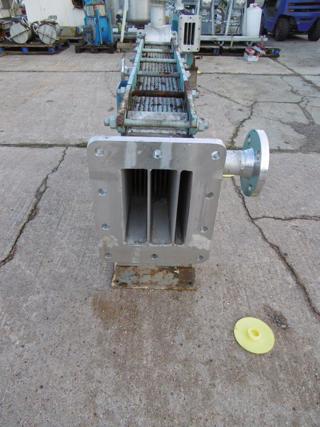

Welded plate heat exchanger type
with 316TiSS wetted parts
horizontal design
reference number 6121B
Process side rated 2 bar @ 150 °C design pressure, 0.5 bar
19 dm3 capacity; service side rated 2 bar @ 100 °C, 43 dm3 capacity.
All wetted parts are material Z2CND 17-12 France standard, (3156TiSS).
Empty weight 410 Kg.

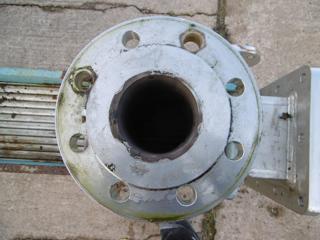

Nozzle Schedule: Openings include service side (2) 50mm, process side (1) 50mm, (1) 80mm. . Cold-side Pressure: 2 bar (29 psi). Cold-side Temperature: 100 °C (212 °F). Hot-side Pressure: 2 bar (29 psi). Hot-side Temperature: 150 °C (302 °F). Housing Material: Carbon Steel.
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Swep
Model: G65
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 15 m² (161 ft²)
Cold-side Pressure: 1 bar (14.5 psi)
Volume: 13 liters on both sides
carbon steel pressure plates.
Cold-side Temperature: 150 °C (302 °F). Hot-side Pressure: 1 bar (14.5 psi). Hot-side Temperature: 150 °C (302 °F). Number of Plates: 40.
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: APV Baker
Model: 3HH-208/171
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 0.8 m² (8.61 ft²)
Nozzle Schedule: Openings: tube side 2-2"; shell 2-3"
Unit w/cylindrical shell
(23) 316SS plates (cylindrical, vert) inside shell
Cold-side Pressure: 16 bar (232 psi). Cold-side Temperature: 150 °C (302 °F). Hot-side Pressure: 16 bar (232 psi). Hot-side Temperature: 150 °C (302 °F). Number of Plates: 23.
Type: Heat Exchanger
Subtype: Plate and Frame
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 20.9 m² (225 ft²)
Nozzle Schedule: Opening sizes: service 2-4"; product 2-4"
Number of Plates: 150.
