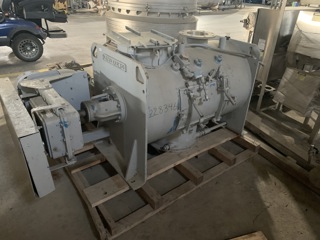

Stainless Steel 304 Bepex JMX JS 250 Mixer-Ribbon & Paddle - IPP# 204772

  • Stainless Steel 304 Bepex JMX JS 250 Mixer-Ribbon & Paddle - IPP# 204772 Stainless Steel 304 Bepex JMX JS 250 Mixer-Ribbon & Paddle - IPP# 204772
  • Stainless Steel 304 Bepex JMX JS 250 Mixer-Ribbon & Paddle - IPP# 204772
Overview
Mixer-Ribbon & Paddle
Bepex
JMX JS 250
Used
Stainless Steel 304
Capacity
9.9 m3 (350 ft3)
7.1 m3 (250 ft3)
Other Specifications
1.01 bar (14.7 psi)
37.8 °C (100 °F)
Batch
Agitation
Double Helix
Carbon Steel
Dimensions
3,900 mm (154 in)
1,550 mm (61 in)
1,700 mm (67 in)
Additional Information

ribbon blender Vessel rated for atmospheric Jacket code stamped designed for batch processing 304 Stainless Steel body with 304 SS dimple jacket Shell rated atmospheric @ 100 degrees F. Jacket rated for 150 psi @ 100 degrees F. Estimated heating surface area is 165 Sq.Ft. AC Reliance High Efficiency XE motor Dodge TM gear reducer Dodge Gear Reducer is a size # 281TU900A2, ID # 40401934PF rated for 30 HP, 24 rpm output with a 47:1 ratio. Chain driven. Two 8" pneumatic discharge gate valves. Closed top with two grated openings.

Similar Equipment

12.7 m3 (450 ft3) Stainless Steel 304 Mixer-Ribbon & Paddle

Type: Mixer-Ribbon & Paddle

Manufacturer: Patterson Kelly

Condition: Used

Material: Stainless Steel 304

Design Capacity: 12.7 m3 (450 ft3)

Operating Capacity: 8.5 m3 (300 ft3)

cylindrical slurry blender, Has single shaft agit w/approx (12) paddle arms. Sprocket for chain drive, takes 25 HP. Openings: top 2-12", 2-10", 2-2"; heads 2-20"; 1-6" and 1-2" outlet.

Ribbon Type: Paddles. Length: 4,900 mm (192 in). Width: 1,850 mm (72 in).

1.5 m3 (53 ft3) Stainless Steel 304 Mixer-Ribbon & Paddle

Type: Mixer-Ribbon & Paddle

Model: U-700

Condition: Used

Material: Stainless Steel 304

Design Capacity: 1.5 m3 (53 ft3)

Operating Capacity: 1 m3 (35.3 ft3)

stainless steel ribbon blender. Chamber 60" long x 38" wide x 51" deep, Packing glands. Bolt flat top w/17" x 12" hinged manway. Openings: top 3-9"; btm 1-5" w/valve. worm and worm wheel.

Ribbon Type: Interrupted ribbon. Agitation Shaft Sealing: Packing. Length: 1,500 mm (60 in). Width: 965 mm (38 in). Height: 1,300 mm (51 in).

Stainless Steel 304 Littleford Bros, Inc FKM-600-D Ribbon Paddle Mixer

Type: Mixer-Ribbon & Paddle

Manufacturer: Littleford Bros, Inc

Model: FKM-600-D

Condition: Used

Material: Stainless Steel 304

Design Capacity: 0.79 m3 (28 ft3)

Vessel Pressure: -0.97 bar (-14 psi)

  • Product contact Designed for batch operation.
  • Designed for vacuum operation to -25 "hg.
  • Internal finish polished to a 120 grit finish.
  • Center bottom discharge 15.5" ID.

Jacket Temperature: -16.1 °C (3 °F). Jacket Pressure: 0.48 bar (7 psi). Jacket Type: Standard. Operational mode: Batch. Paddle/Ribbon MOC: Stainless Steel 304. Agitation Shaft Sealing: Packing. Length: 1,200 mm (48 in). Width: 914 mm (36 in). Height: 914 mm (36 in).

Stainless Steel 304 Mixer-Ribbon & Paddle

Type: Mixer-Ribbon & Paddle

Manufacturer: The Young Industries, Inc.

Model: 300L

Condition: Used

Material: Stainless Steel 304

Design Capacity: 8.5 m3 (300 ft3)

Operating Capacity: 7.8 m3 (275 ft3)

Ribbon Blender Size 300L, Single ribbon design, packing glands on shaft, removable ribbon design. Ribbon has a large sprocket on end of shaft for chain drive, no drive with unit. Blender trough is 60" wide x 144" long x 72" deep, with a bolted on SS cover The shaft measures 7 1/4" od.

Ribbon Type: Single Helix. Paddle/Ribbon MOC: Stainless Steel Other. Agitation Shaft Sealing: Packing. Length: 3,650 mm (144 in). Width: 1,500 mm (60 in). Height: 1,850 mm (72 in).
