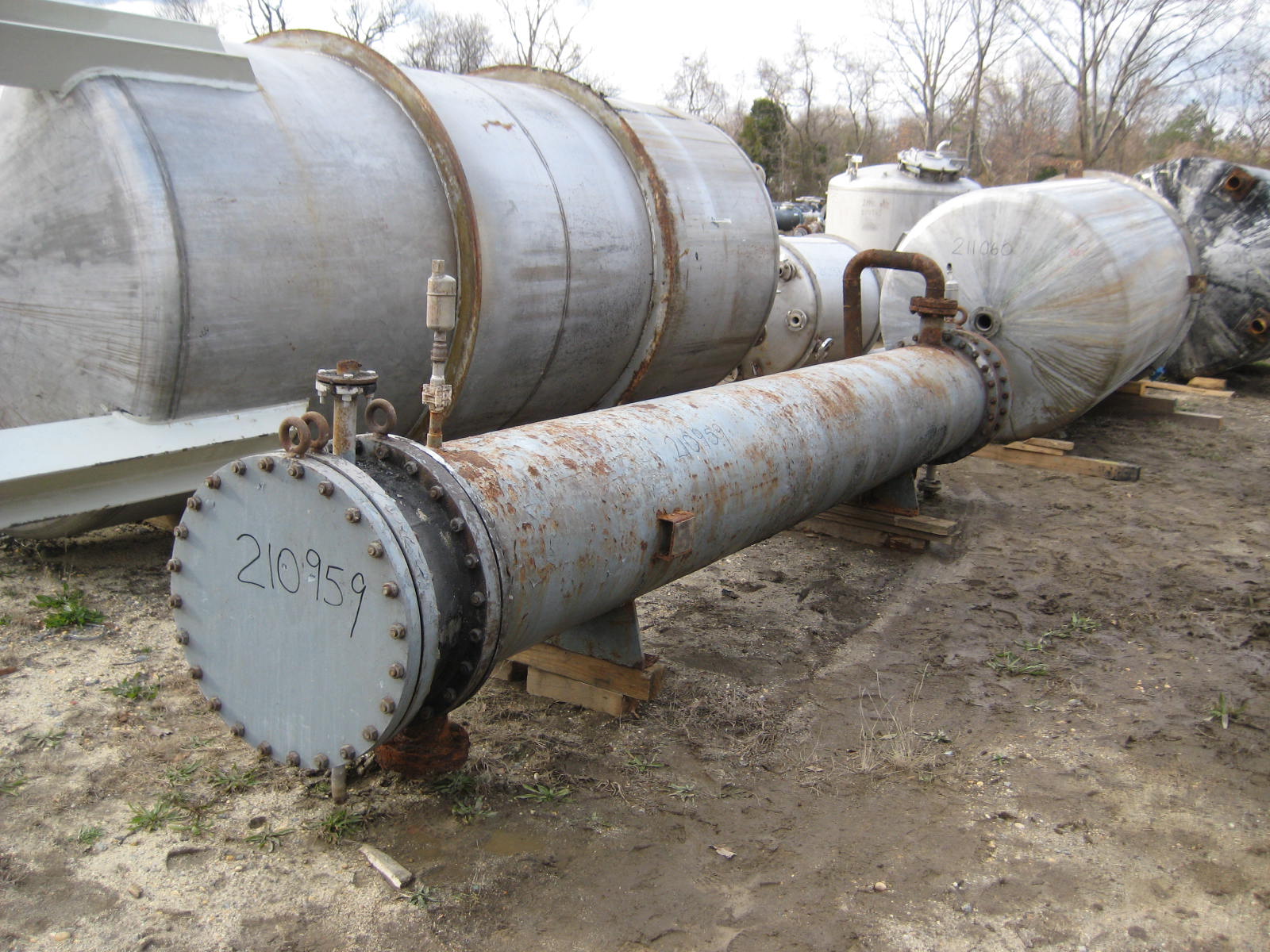

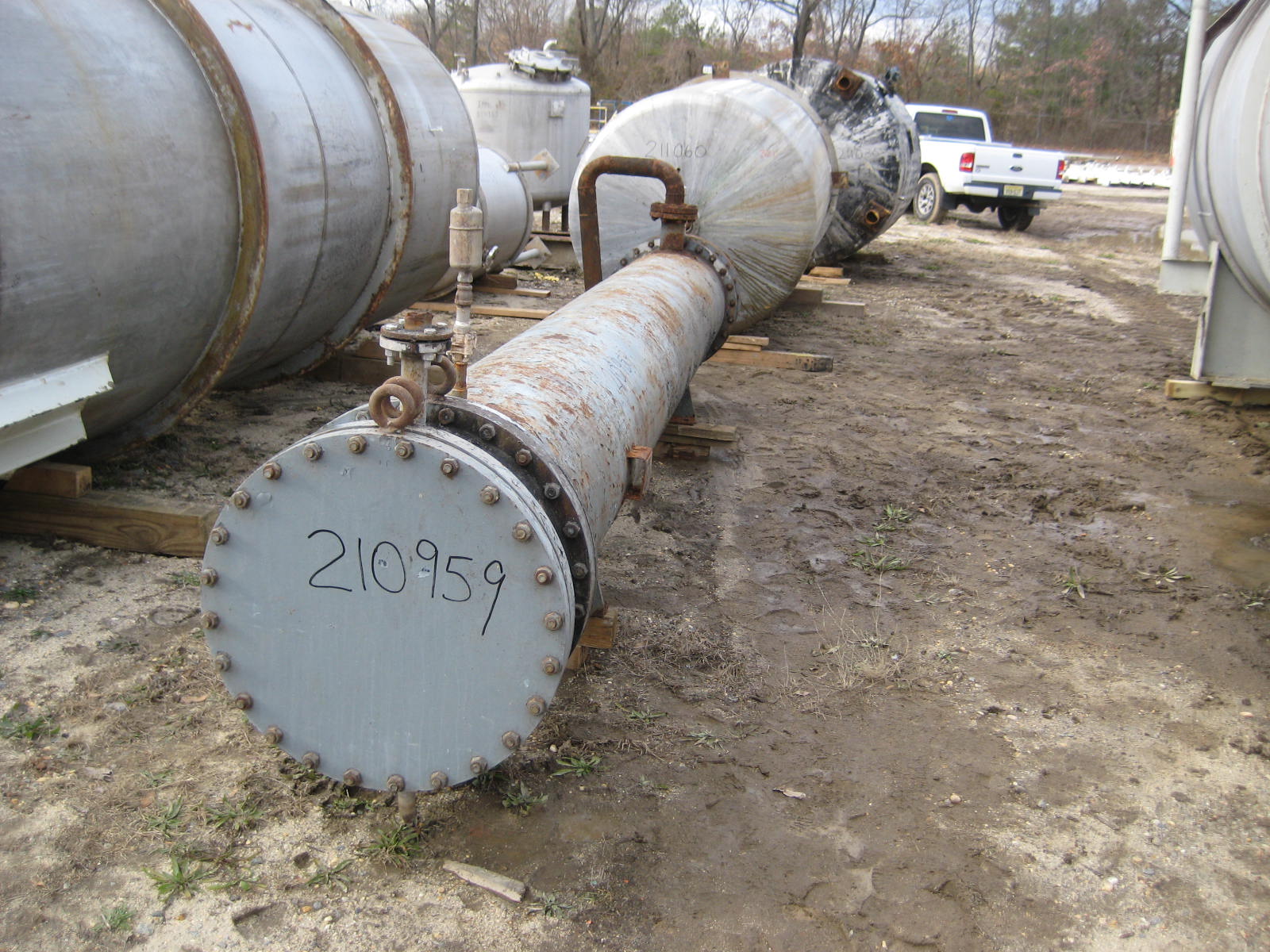

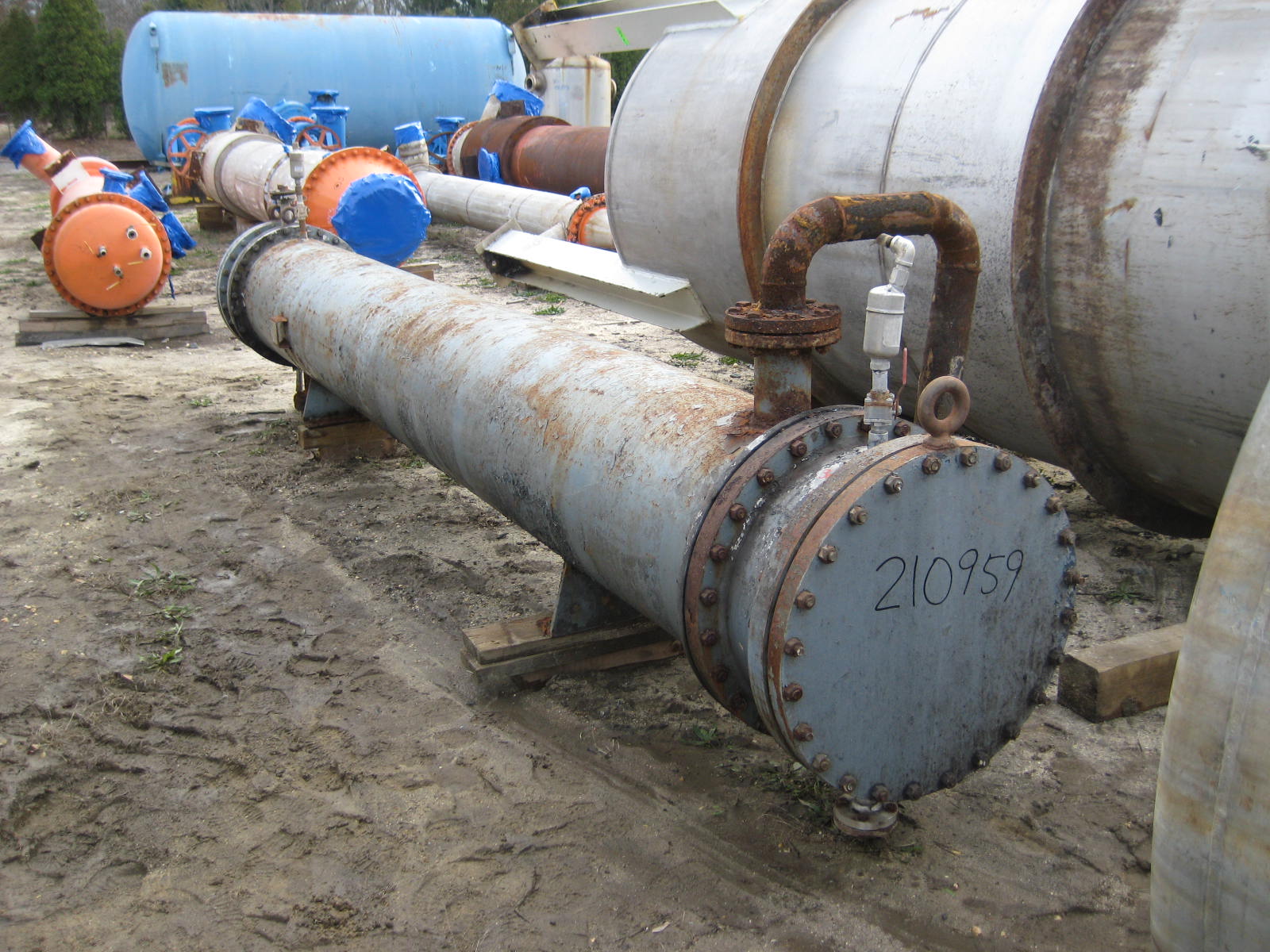

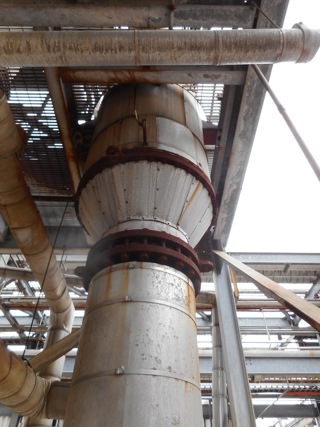

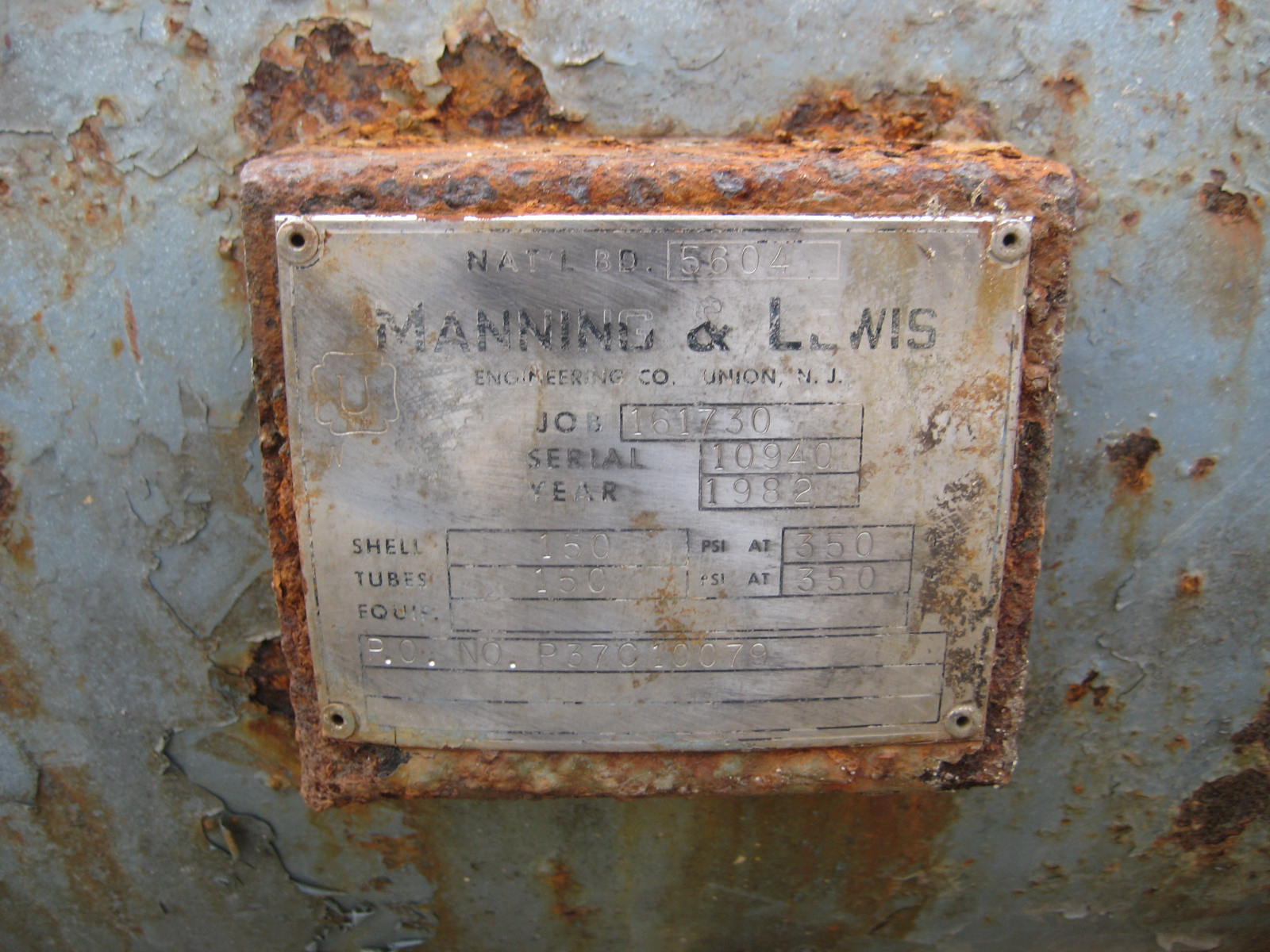

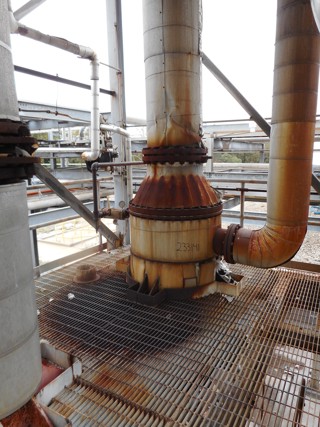

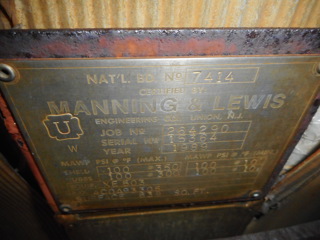

Stainless Steel 304 Manning and Lewis Shell and Tube Heat Exchanger - IPP# 210959

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Manning and Lewis

Condition: Used

Material: Stainless Steel Austenitic

Clad: Yes

Heat Transfer Surface Area: 59.4 m² (639 ft²)

Orientation: Vertical

AL6XN Alloy clad with Zirconium (SB-658) tube sheets 1 7/8" pitch Shell=Steam/Tubes=4% Aqueous Chloride solution.

Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel Austenitic. Length: 2,950 mm (116 in). Tube Type: Straight Tube. Tube Number: 281. Tube Diameter: 38.1 mm (1.5 in). Tube Length: 1,850 mm (72 in). Tube Thickness: 0.76 mm (0.03 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kimura Kakoki

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 149.9 m² (1,600 ft²)

Shell Pressure: 5 bar (72 psi)

(2) 304LSS cone heads

Shell Temperature: -5 °C (23 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: -8.9 °C (16 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,200 mm (48 in). Head Material: Stainless Steel 304. Length: 2,000 mm (78 in). Tube Number: 806. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 2,000 mm (78 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings: tube side 2-8"; shell side 2-4", 1-1", 1-1 1/2"..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kimura Kakoki

Condition: Used

Material: Stainless Steel 304

Clad: Yes

Heat Transfer Surface Area: 255.9 m² (2,750 ft²)

Orientation: Vertical

Shell rated 72 psi @ -19 deg F (5 Kg @ -10 deg C (5 Kg @ -10 deg C) tubes rated 145 psi @ 37 deg F (10 Kg @ 3 deg C) (2) 304LSS cone heads. Single pass design

Shell Pressure: 5 bar (72 psi). Shell Temperature: -28.3 °C (-19 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: 2.8 °C (37 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,500 mm (60 in). Head Material: Stainless Steel 304. Length: 2,450 mm (96 in). Tube Number: 1,078. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 2,450 mm (96 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings: tube side 1-6", 1-8"; shell side 2-4", 1-1", 1-1 1/2"..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart (Process Technology) Ltd

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 9.6 m² (103.3 ft²)

Orientation: Horizontal

('U' bend not included)

Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 330 °C (626 °F). Shell Material: Carbon Steel. Tube Pressure: 7 bar (101.5 psi). Tube Temperature: 330 °C (626 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304L. Shell Diameter: 450 mm (17.7 in). Head Material: Carbon Steel. Tube Type: U-Tube. Tube Number: 84. Tube Diameter: 19 mm (0.75 in). Tube Length: 1,850 mm (72 in). Nozzle Schedule: openings: 2-75mm - Shell side openings: 3-50mm, 1-25mm.
