Stainless Steel 304 Shell and Tube Heat Exchanger 9.6 m² (103.3 ft²) For Sale - IPP# 706628

Type: Heat Exchanger

Subtype: Shell and Tube

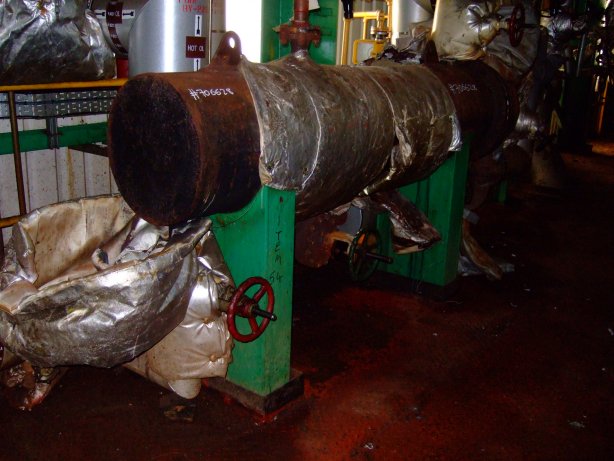

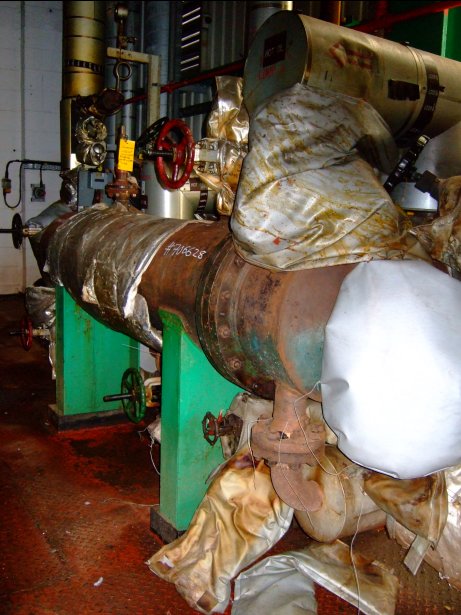

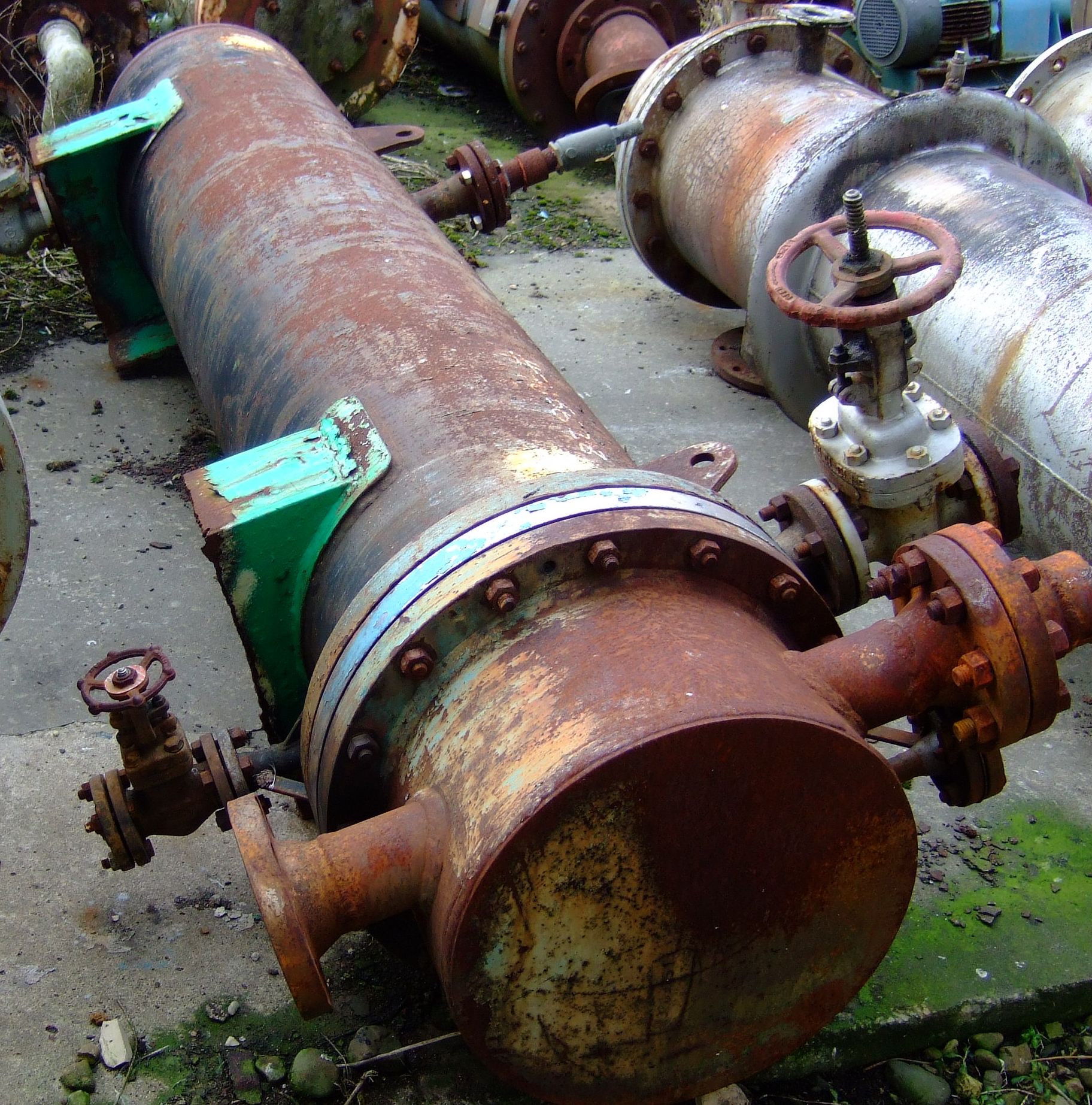

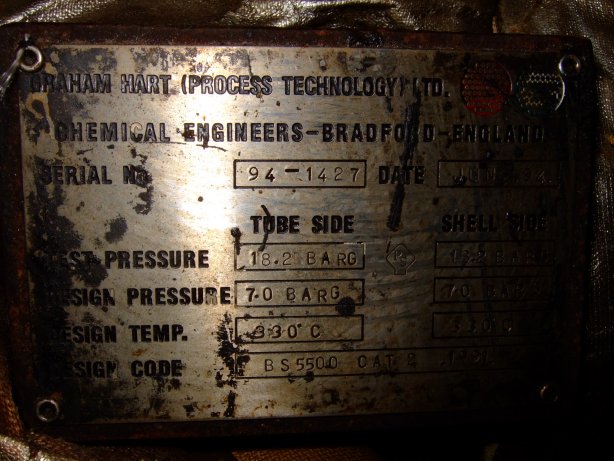

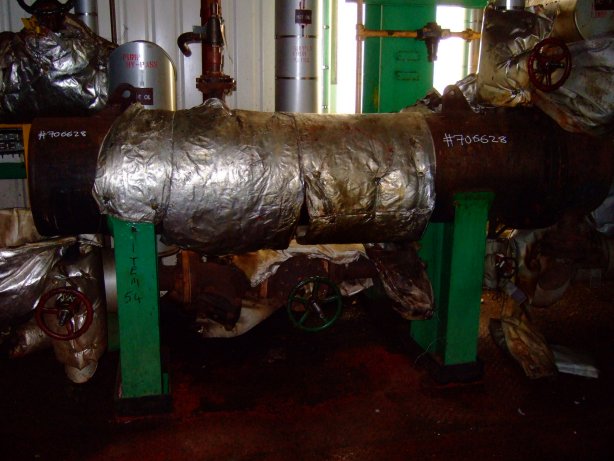

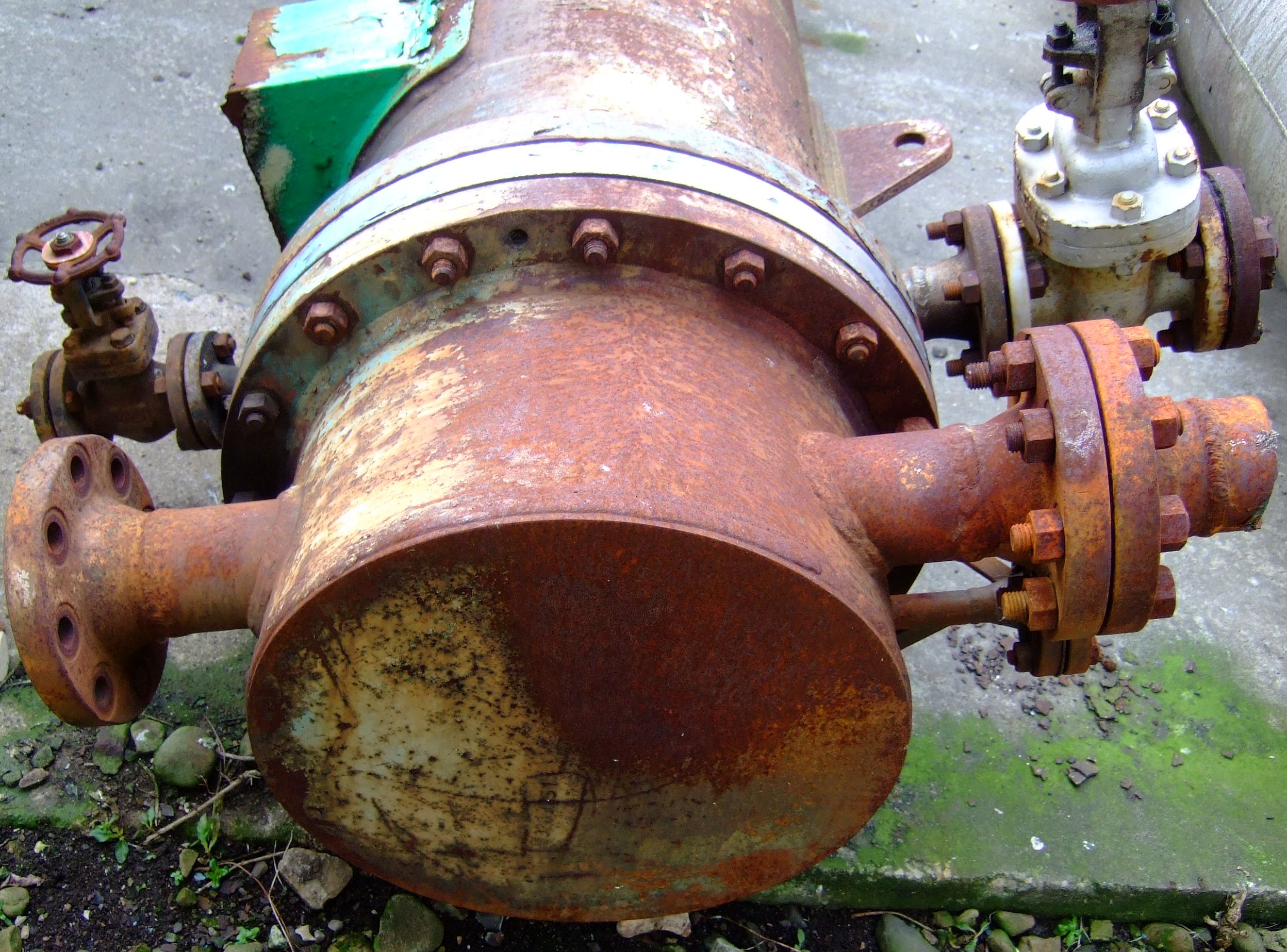

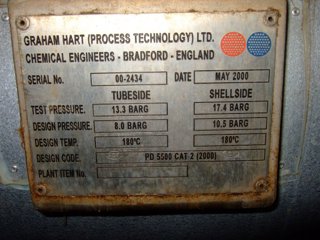

Manufacturer: Graham Hart (Process Technology) Ltd

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 37 m² (398.3 ft²)

Orientation: Horizontal

Shell Pressure: 10.5 bar (152.3 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8 bar (116 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 3,406 mm (134.1 in). Head Material: Stainless Steel 316. Length: 3,900 mm (153.5 in). Tube Type: U-Tube. Tube Number: 80. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,600 mm (141.7 in). Nozzle Schedule: - Openings: tubeside - 2-100mm, shell - 2-75mm, 1-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kimura Kakoki

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 149.9 m² (1,614 ft²)

Shell Pressure: 5 bar (72 psi)

(2) 304LSS cone heads

Shell Temperature: -5 °C (23 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: -8.9 °C (16 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,219 mm (48 in). Head Material: Stainless Steel 304. Length: 1,981 mm (78 in). Tube Number: 806. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 1,981 mm (78 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings: tube side 2-8"; shell side 2-4", 1-1", 1-1 1/2"..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kimura Kakoki

Condition: Used

Material: Stainless Steel 304

Clad: Yes

Heat Transfer Surface Area: 255.9 m² (2,755 ft²)

Orientation: Vertical

Shell rated 72 psi @ -19 deg F (5 Kg @ -10 deg C (5 Kg @ -10 deg C) tubes rated 145 psi @ 37 deg F (10 Kg @ 3 deg C) (2) 304LSS cone heads. Single pass design

Shell Pressure: 5 bar (72 psi). Shell Temperature: -28.3 °C (-19 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: 2.8 °C (37 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,524 mm (60 in). Head Material: Stainless Steel 304. Length: 2,438 mm (96 in). Tube Number: 1,078. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 2,438 mm (96 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings: tube side 1-6", 1-8"; shell side 2-4", 1-1", 1-1 1/2"..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Cosmos Metalurgical (Camarillo CA)

Model: AEL-8-1-96

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 4.6 m² (49.5 ft²)

Orientation: Horizontal

Tantalum/2.5%W (Tungsten) tube Design and fabricated per ASME SECT. V111. DIV. 1 1988 and 1998 ADDENDA TEMA “C” design pressure tube side 6.9 bar + full vacuum (100 psig + full vacuum) @ 204 degrees C (400 degrees F), shell side 6.9 bar + full vacuum (100 psig + full vacuum) @ 204 degrees C (400 degrees F) on a 28.6mm (1 1/8”) triangle pitch, double grooved roller expanded and seal welded tubes, (2) 304L stainless steel tube sheets with Tantalum/2.5% W (Tungsten) lining, (2) Tantalum/2.5%W (Tungsten) lined channel heads with a flat removeable end cover 304L stainless steel shell with expansion bellows (40) Teflon/PTFE internal baffle plates, 39 spaces @ 50.8mm (2”) 39 spaces @ 50.8mm (2”)

Shell Pressure: 6.9 bar (100.1 psi). Shell Temperature: 204 °C (399.2 °F). Shell Material: Stainless Steel 304. Tube Pressure: 6.9 bar (100.1 psi). Tube Temperature: 204 °C (399.2 °F). Tube Material: Tantalum. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 219 mm (8.6 in). Head Material: Tantalum. Length: 3,016 mm (118.7 in). Tube-side Passes: 1. Tube Number: 32. Tube Diameter: 19 mm (0.75 in). Tube Length: 2,438 mm (96 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: Openings: tubes side - 1 head with 1-4”, 1 head with 1-3”, 1-1 ½”, shell side - 2-3”.
