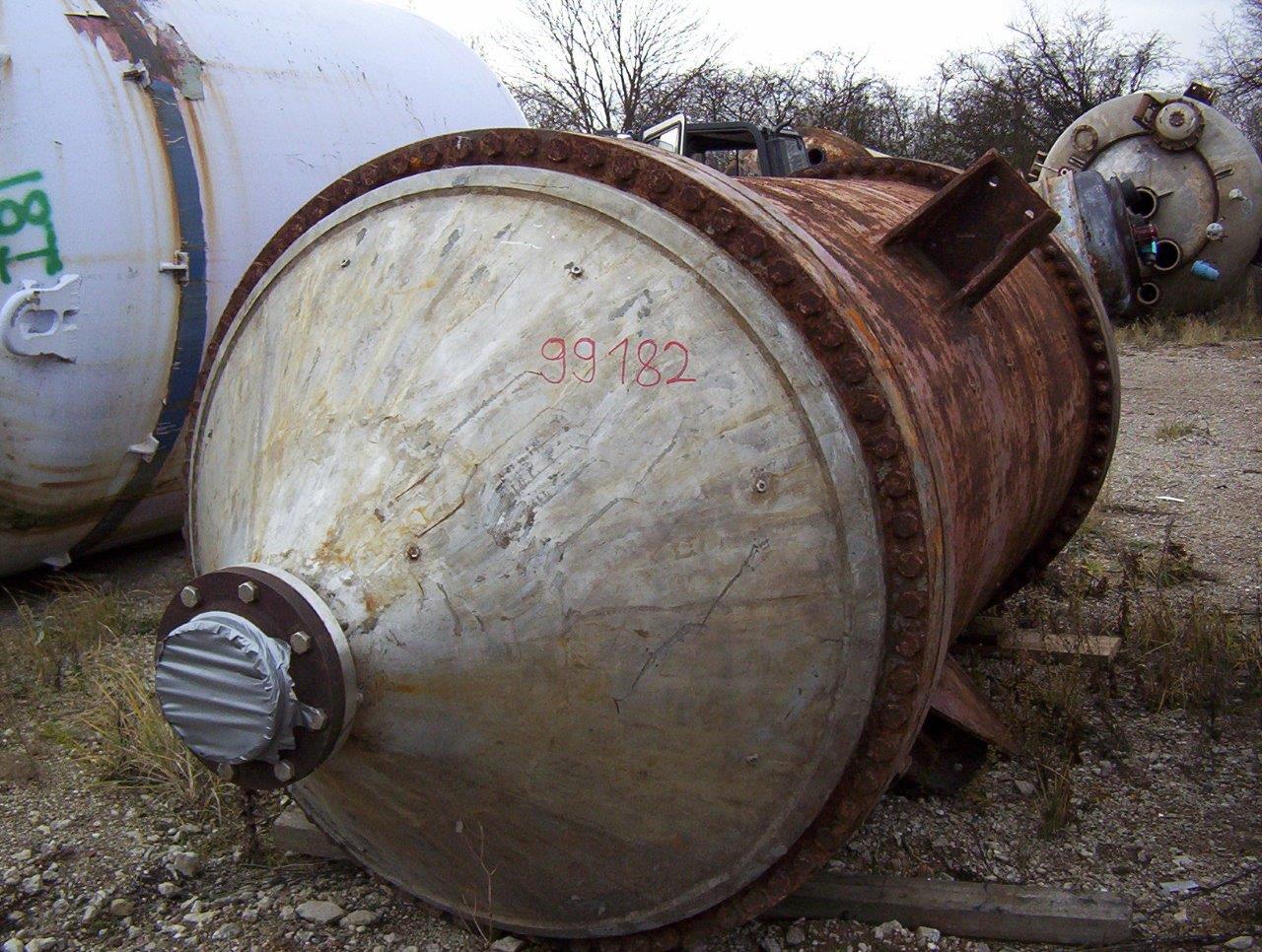

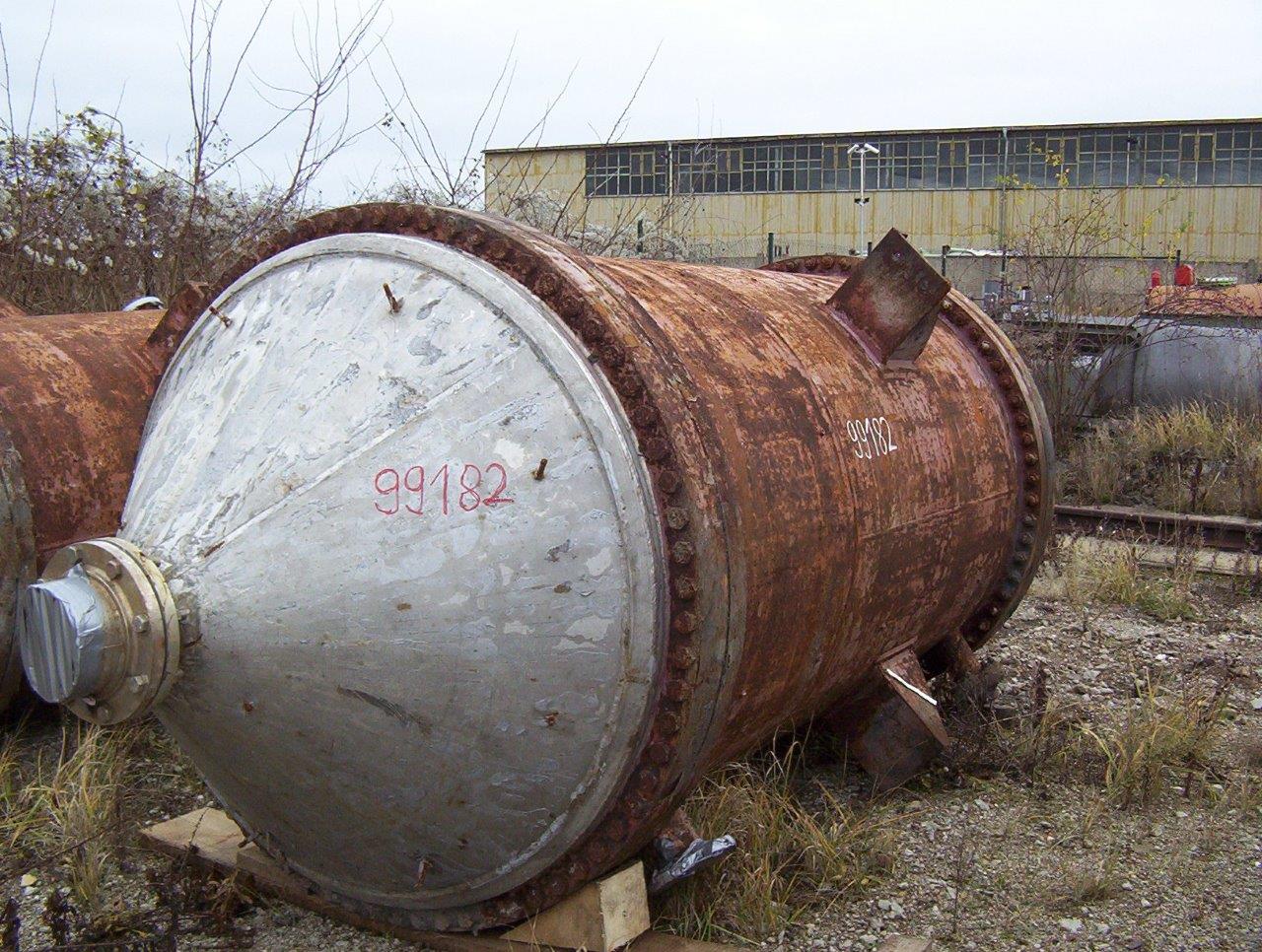

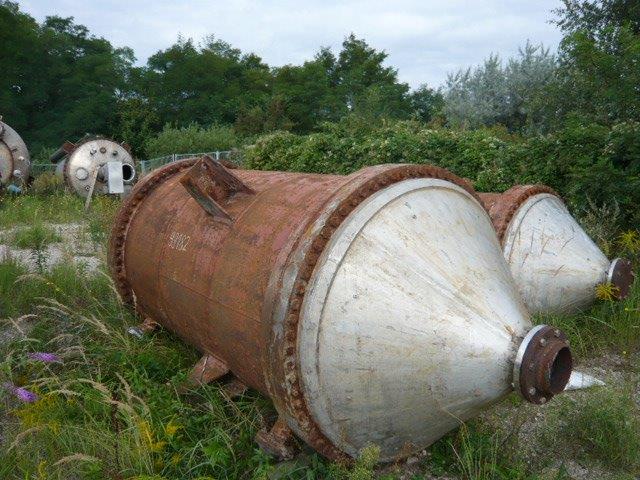

Stainless Steel 304 Shell and Tube Heat Exchanger 255.9 m² (2,755 ft²) For Sale - IPP# 99182

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kimura Kakoki

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 149.9 m² (1,614 ft²)

Shell Pressure: 5 bar (72 psi)

(2) 304LSS cone heads

Shell Temperature: -5 °C (23 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: -8.9 °C (16 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,219 mm (48 in). Head Material: Stainless Steel 304. Length: 1,981 mm (78 in). Tube Number: 806. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 1,981 mm (78 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings: tube side 2-8"; shell side 2-4", 1-1", 1-1 1/2"..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart (Process Technology) Ltd

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 9.6 m² (103.3 ft²)

Orientation: Horizontal

('U' bend not included)

Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 330 °C (626 °F). Shell Material: Carbon Steel. Tube Pressure: 7 bar (101.5 psi). Tube Temperature: 330 °C (626 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304L. Shell Diameter: 450 mm (17.7 in). Head Material: Carbon Steel. Tube Type: U-Tube. Tube Number: 84. Tube Diameter: 19 mm (0.75 in). Tube Length: 1,830 mm (72 in). Nozzle Schedule: openings: 2-75mm - Shell side openings: 3-50mm, 1-25mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Cosmos Metalurgical (Camarillo CA)

Model: AEL-8-1-96

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 4.6 m² (49.5 ft²)

Orientation: Horizontal

Tantalum/2.5%W (Tungsten) tube Design and fabricated per ASME SECT. V111. DIV. 1 1988 and 1998 ADDENDA TEMA “C” design pressure tube side 6.9 bar + full vacuum (100 psig + full vacuum) @ 204 degrees C (400 degrees F), shell side 6.9 bar + full vacuum (100 psig + full vacuum) @ 204 degrees C (400 degrees F) on a 28.6mm (1 1/8”) triangle pitch, double grooved roller expanded and seal welded tubes, (2) 304L stainless steel tube sheets with Tantalum/2.5% W (Tungsten) lining, (2) Tantalum/2.5%W (Tungsten) lined channel heads with a flat removeable end cover 304L stainless steel shell with expansion bellows (40) Teflon/PTFE internal baffle plates, 39 spaces @ 50.8mm (2”) 39 spaces @ 50.8mm (2”)

Shell Pressure: 6.9 bar (100.1 psi). Shell Temperature: 204 °C (399.2 °F). Shell Material: Stainless Steel 304. Tube Pressure: 6.9 bar (100.1 psi). Tube Temperature: 204 °C (399.2 °F). Tube Material: Tantalum. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 219 mm (8.6 in). Head Material: Tantalum. Length: 3,016 mm (118.7 in). Tube-side Passes: 1. Tube Number: 32. Tube Diameter: 19 mm (0.75 in). Tube Length: 2,438 mm (96 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: Openings: tubes side - 1 head with 1-4”, 1 head with 1-3”, 1-1 ½”, shell side - 2-3”.

Type: Heat Exchanger

Subtype: Shell and Tube

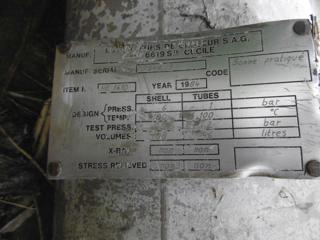

Manufacturer: Exchangeurs De Chaleur S.A.G.

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 16.8 m² (180.8 ft²)

Orientation: Vertical

(1) 304SS bonnet (1) 304SS dish head

Shell Pressure: 6 bar (87 psi). Shell Temperature: 100 °C (212 °F). Shell Material: Stainless Steel 304. Tube Pressure: 1 bar (14.5 psi). Tube Temperature: 100 °C (212 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 300 mm (11.8 in). Head Material: Stainless Steel 304. Tube-side Passes: 4. Tube Number: 56. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 1,829 mm (72 in). Nozzle Schedule: - Openings: - Tube side: 2-75mm, 1-12mm - Shell side: 1-150mm, 1-75mm .
