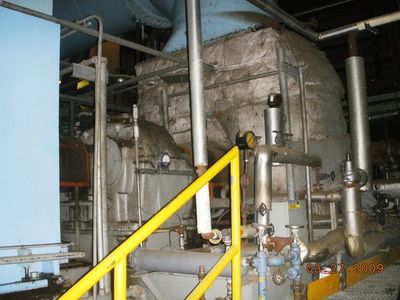

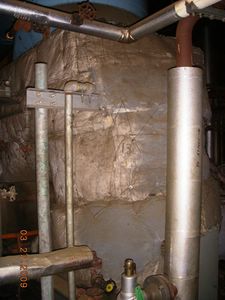

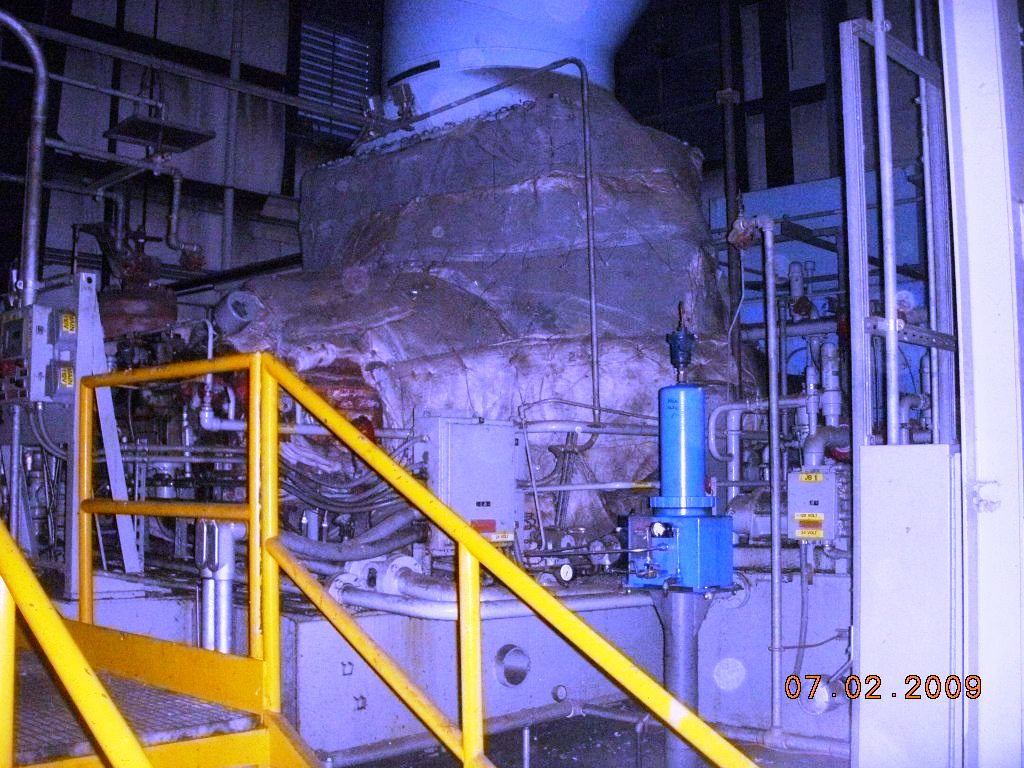

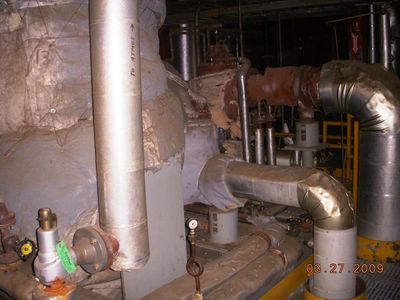

Terry F26-10R Steam Turbine - IPP# 212616

  • Terry F26-10R Steam Turbine - IPP# 212616 Terry F26-10R Steam Turbine - IPP# 212616
  • Terry F26-10R Steam Turbine - IPP# 212616 Terry F26-10R Steam Turbine - IPP# 212616
  • Terry F26-10R Steam Turbine - IPP# 212616 Terry F26-10R Steam Turbine - IPP# 212616
  • Terry F26-10R Steam Turbine - IPP# 212616 Terry F26-10R Steam Turbine - IPP# 212616
  • Terry F26-10R Steam Turbine - IPP# 212616 Terry F26-10R Steam Turbine - IPP# 212616
  • Terry F26-10R Steam Turbine - IPP# 212616 Terry F26-10R Steam Turbine - IPP# 212616
  • Terry F26-10R Steam Turbine - IPP# 212616
  • Terry F26-10R Steam Turbine - IPP# 212616
  • Terry F26-10R Steam Turbine - IPP# 212616
  • Terry F26-10R Steam Turbine - IPP# 212616
  • Terry F26-10R Steam Turbine - IPP# 212616
  • Terry F26-10R Steam Turbine - IPP# 212616
Overview
Turbine
Steam
Terry
F26-10R
Used
Carbon Steel
Capacity
10,150 kW (13,600 HP)
Other Specifications
6300
41.4 bar (600 psi)
398.9 °C (750 °F)
45,800 kg/h (101,000 lb/h)
0.91 bar (13.3 psi)
46.7 °C (116 °F)
Yes
Capable of 15psi (nominal) extraction between 6th & 7th stages.
Yes
Multiple
Counter-Clockwise
2100
6,930
Generator
see stock # 212617

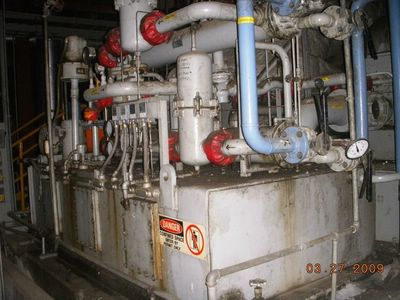

600 gallon lube oil supply system.
Electrical
Woodward 2301A governor with direct actuation.
Yes
152.4 mm (6 in)
1,500 mm (60 in)

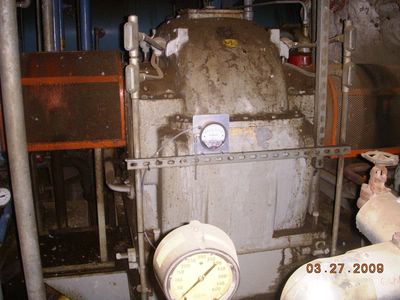

Gearbox
Tacke TNA-500 gear reducer, serial # 336755/17. Input 6200 RPM, output 1800 RPM.
3.44:1
1.3
  • Can be sold separate, and can be used with stock # 212617 generator
  • 101,000 lbs./hr. at 600 psig, 750 degrees F., 2.5 in HGA. Electronic governor with direct actuation manufactured by Woodword. Base mounted on a common plate with a Tacke Gearbox. With 600 gallon lube oil supply system, mechanical drive by a 10 hp AC motor Back up oil lube is by a 1.5 hp, DC electric motor
  • Was originally Part of 10MW Ideal Generator IPP #212617.
