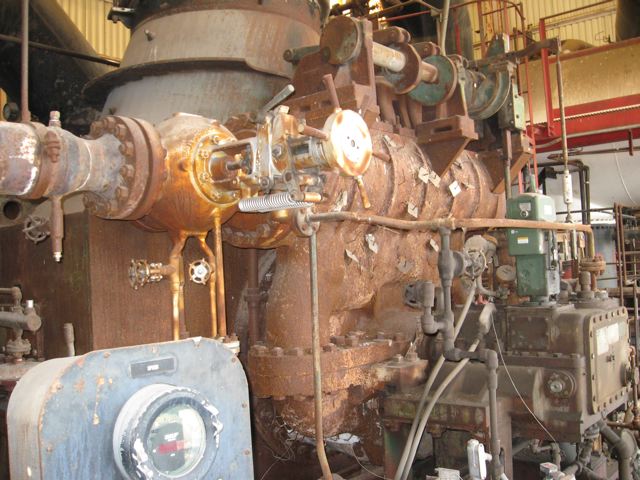

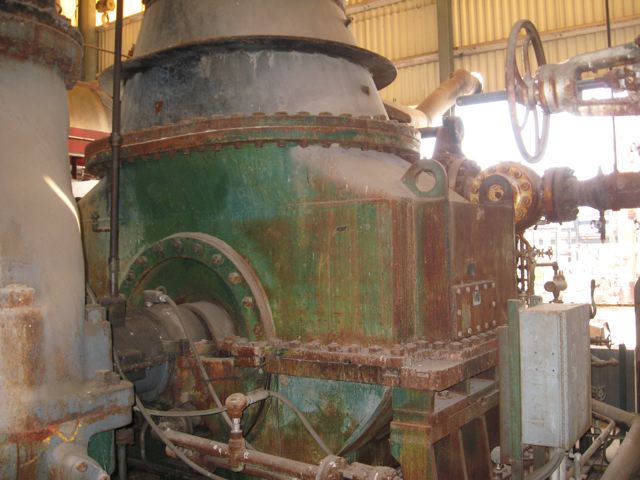

Steam Turbine Worthington 3TDFOV2 - IPP# 212810

Type: Turbine

Subtype: Steam

Manufacturer: Worthington

Model: 3TDFOV2

Condition: Used

Material: Carbon Steel

Power: 7,550 kW (10,100 HP)

Speed (RPM): 6175

condensing turbine SO number U-14351 ( double flow on 4th & 5Th stage) HG. ABS. at 128 degrees F 12" inlet nozzle. Rotation clockwise.

Inlet Pressure: 10.3 bar (150 psi). Inlet Temperature: 232.2 °C (450 °F). Inlet Steam Flow: 5.1 kg/h (11.2 lb/h). Outlet Pressure: 0.14 bar (1.96 psi). Condensing?: Yes. Stages: 5. Rotation Direction: Clockwise.

Type: Turbine

Subtype: Steam

Manufacturer: Worthington

Model: 1SU2

Condition: Used

Material: Cast Iron

Power: 2,450 kW (3,300 HP)

Speed (RPM): 9670

Cast Iron Non-Condensing turbine mounted Horizontally Inlet nozzle is 6" mounted on the side Exhaust pressure is 55 psi exhaust nozzle is 12" and mounted up Designed to drive compressor IPPE # 207980.

Inlet Pressure: 41.4 bar (600 psi). Inlet Temperature: 398.9 °C (750 °F). Outlet Pressure: 3.8 bar (55 psi).

Type: Turbine

Subtype: Steam

Manufacturer: Siemens

Model: EG-400-2

Condition: Unused

Material: Carbon Steel

Power: 8,450 kW (11,350 HP)

Speed (RPM): 6076-7975

• Spare parts & spare rotor available separately.
• With SIHI gland steam condenser.

Single cylinder extraction backpressure of Axial flow type, extraction steam 205 psi (14.2 bar),Steam consumption 130 ton/hr.

Inlet Pressure: 40.7 bar (590 psi). Inlet Temperature: 385 °C (725 °F). Inlet Steam Flow: 132,100 kg/h (291,200 lb/h). Outlet Pressure: 6.4 bar (93 psi). Extraction?: Yes. Extraction Points: 1. Extraction Details: Single cylinder extraction at 205psi.. Backpressure?: Yes. Stages: 1. Rotation Direction: Clockwise.

Type: Turbine

Subtype: Steam

Manufacturer: Terry

Model: F26-10R

Condition: Used

Material: Carbon Steel

Power: 10,150 kW (13,600 HP)

Speed (RPM): 6300

• Can be sold separate, and can be used with stock # 212617 generator
• 101,000 lbs./hr. at 600 psig, 750 degrees F., 2.5 in HGA. Electronic governor with direct actuation manufactured by Woodword. Base mounted on a common plate with a Tacke Gearbox. With 600 gallon lube oil supply system, mechanical drive by a 10 hp AC motor Back up oil lube is by a 1.5 hp, DC electric motor
• Was originally Part of 10MW Ideal Generator IPP #212617.

Inlet Pressure: 41.4 bar (600 psi). Inlet Temperature: 398.9 °C (750 °F). Inlet Steam Flow: 45,800 kg/h (101,000 lb/h). Outlet Pressure: 0.91 bar (13.3 psi). Outlet Temperature: 46.7 °C (116 °F). Extraction?: Yes. Extraction Details: Capable of 15psi (nominal) extraction between 6th & 7th stages.. Condensing?: Yes. Stages: Multiple. Rotation Direction: Counter-Clockwise.
