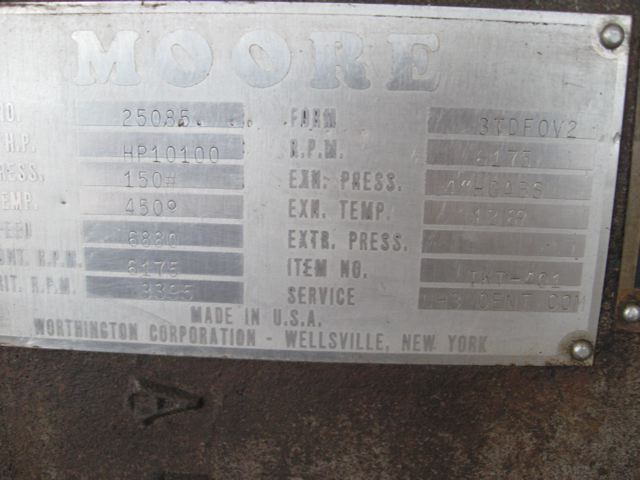

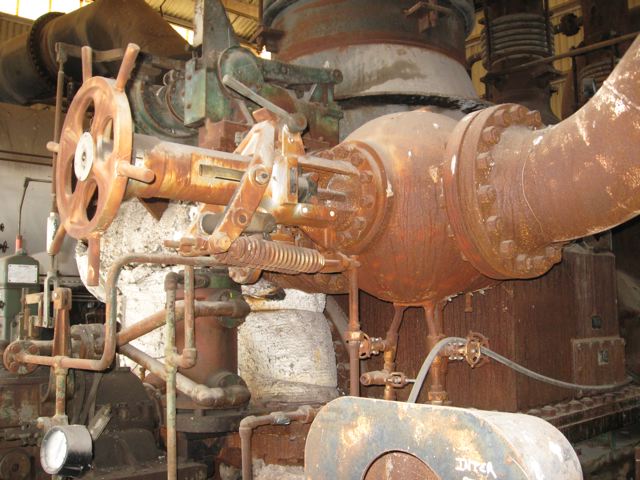

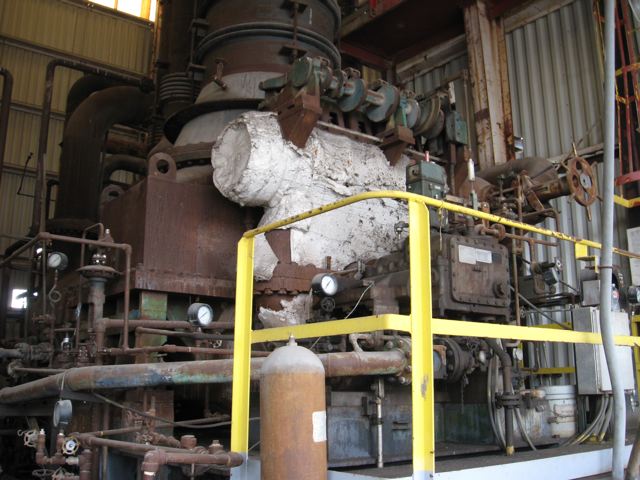

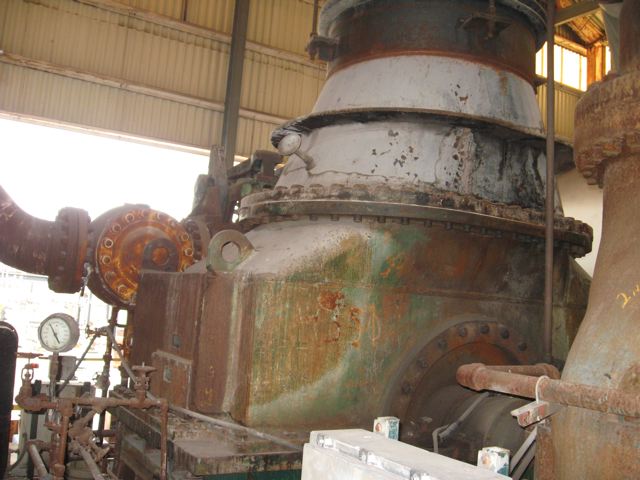

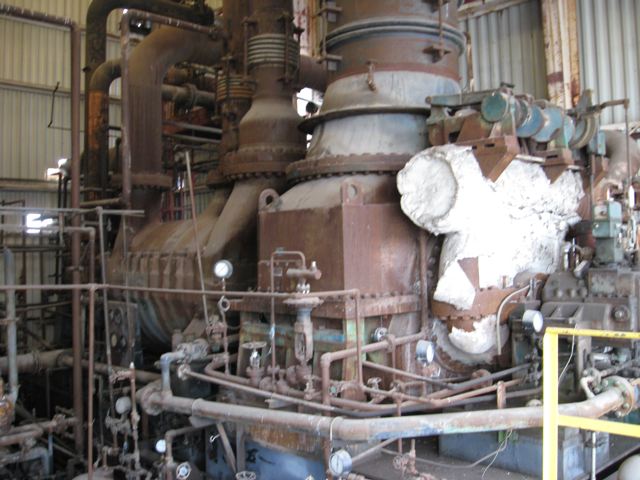

Carbon Steel Worthington 3TDFOV2 Steam Turbine - IPP# 212817

Type: Turbine

Subtype: Steam

Manufacturer: Worthington

Model: 3TDFOV2

Condition: Used

Material: Carbon Steel

Power: 7,308 kW (9,800 HP)

Speed (RPM): 5650

• Turbine with 5 Rateau stages.

Inlet Pressure: 37.2 bar (540 psi). Inlet Temperature: 371 °C (700 °F). Outlet Pressure: 0.135 bar (1.96 psi). Outlet Temperature: 53.3 °C (128 °F). Condensing: Yes. Stages: 5. Rotation Direction: Clockwise.

Type: Turbine

Subtype: Steam

Manufacturer: Worthington

Model: 1SU2

Condition: Used

Material: Cast Iron

Power: 2,461 kW (3,300 HP)

Speed (RPM): 9670

Cast Iron
Non-Condensing turbine
mounted Horizontally
Inlet nozzle is 6" mounted on the side
Exhaust pressure is 55 psi
exhaust nozzle is 12" and mounted up
Designed to drive compressor IPPE # 207980.

Inlet Pressure: 41.4 bar (600 psi). Inlet Temperature: 399 °C (750 °F). Outlet Pressure: 3.79 bar (55 psi).

Type: Turbine

Subtype: Steam

Manufacturer: Siemens

Model: EG-400-2

Condition: Unused

Material: Carbon Steel

Power: 8,457 kW (11,341 HP)

Speed (RPM): 6076-7975

• Spare parts & spare rotor available separately.
• With SIHI gland steam condenser.

Single cylinder extraction backpressure of Axial flow type, extraction steam 205 psi (14.2 bar),Steam consumption 130 ton/hr.

Inlet Pressure: 40.7 bar (590 psi). Inlet Temperature: 385 °C (725 °F). Inlet Steam Flow: 132,086 kg/h (291,200 lb/h). Outlet Pressure: 6.41 bar (93 psi). Extraction: Yes. Extraction Points: 1. Extraction Details: Single cylinder extraction at 205psi.. Backpressure: Yes. Stages: 1. Rotation Direction: Clockwise.

Type: Turbine

Subtype: Steam

Manufacturer: Terry

Model: F26-10R

Condition: Used

Material: Carbon Steel

Power: 10,158 kW (13,622 HP)

Speed (RPM): 6300

• Can be sold separate, and can be used with stock # 212617 generator
• 101,000 lbs./hr. at 600 psig, 750 degrees F., 2.5 in HGA. Electronic governor with direct actuation manufactured by Woodword. Base mounted on a common plate with a Tacke Gearbox. With 600 gallon lube oil supply system, mechanical drive by a 10 hp AC motor Back up oil lube is by a 1.5 hp, DC electric motor
• Was originally Part of 10MW Ideal Generator IPP #212617.

Inlet Pressure: 41.4 bar (600 psi). Inlet Temperature: 399 °C (750 °F). Inlet Steam Flow: 45,813 kg/h (101,000 lb/h). Outlet Pressure: 0.914 bar (13.3 psi). Outlet Temperature: 46.7 °C (116 °F). Extraction: Yes. Extraction Details: Capable of 15psi (nominal) extraction between 6th & 7th stages.. Condensing: Yes. Stages: Multiple. Rotation Direction: Counter-Clockwise.
