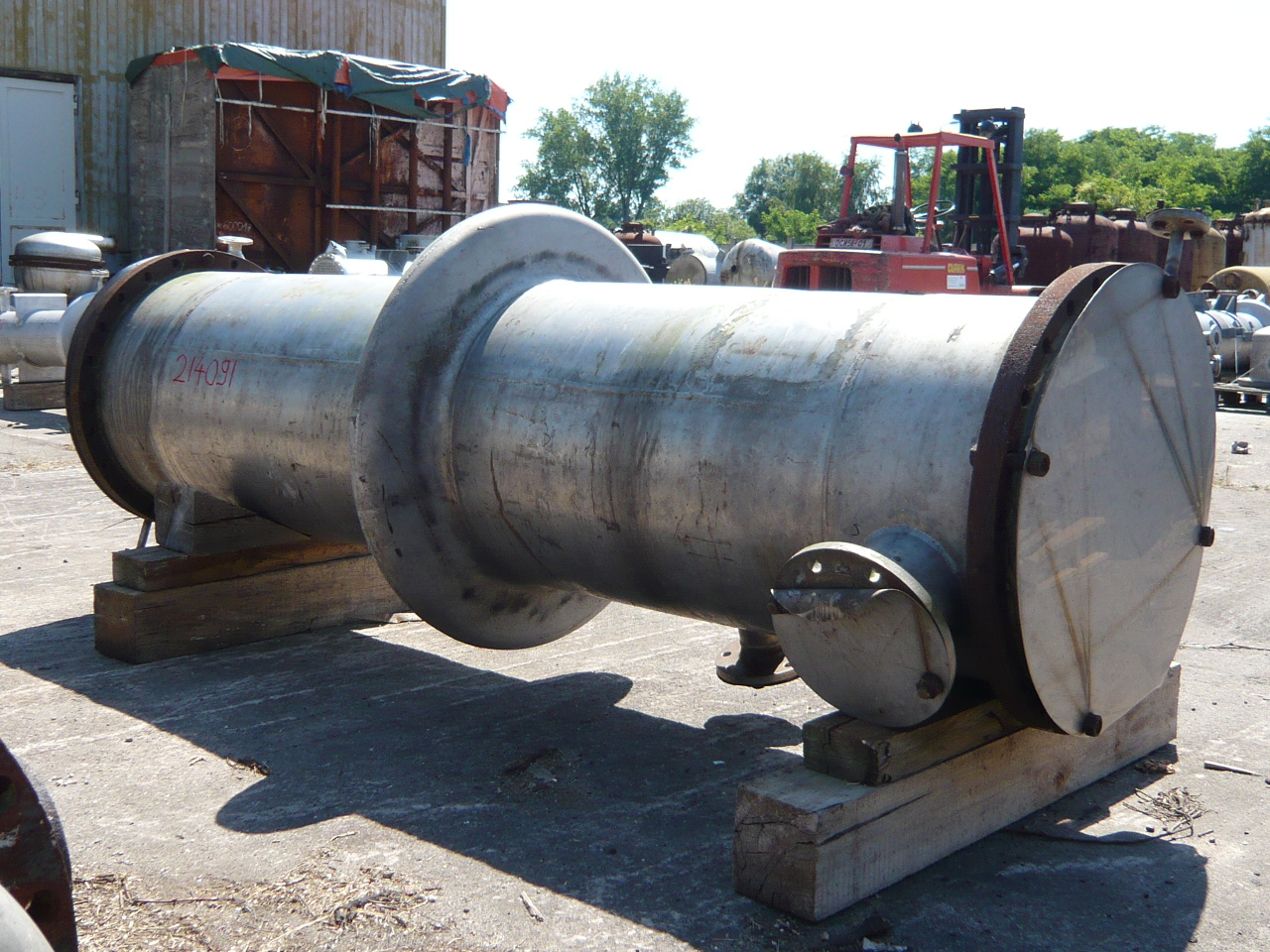

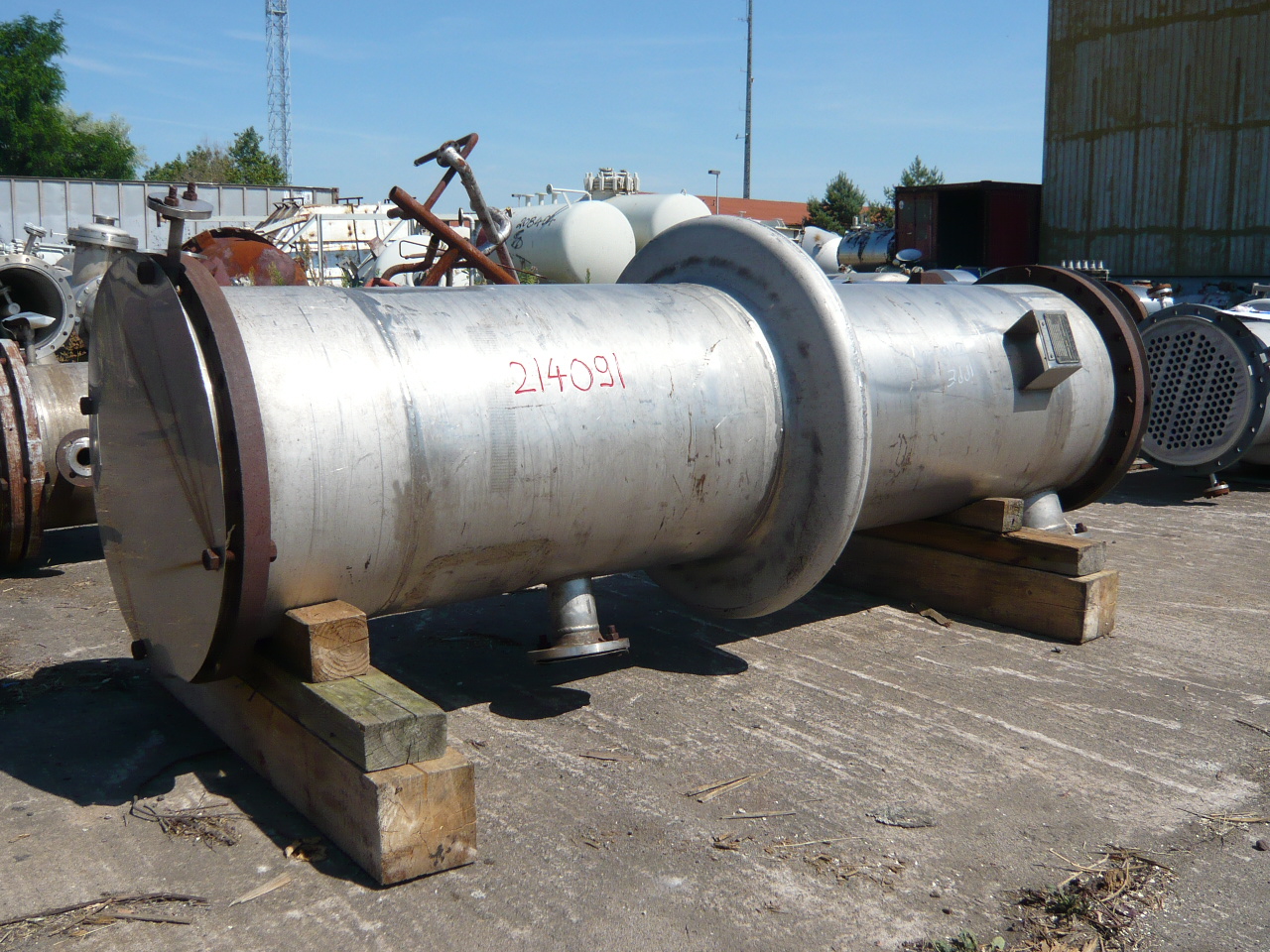

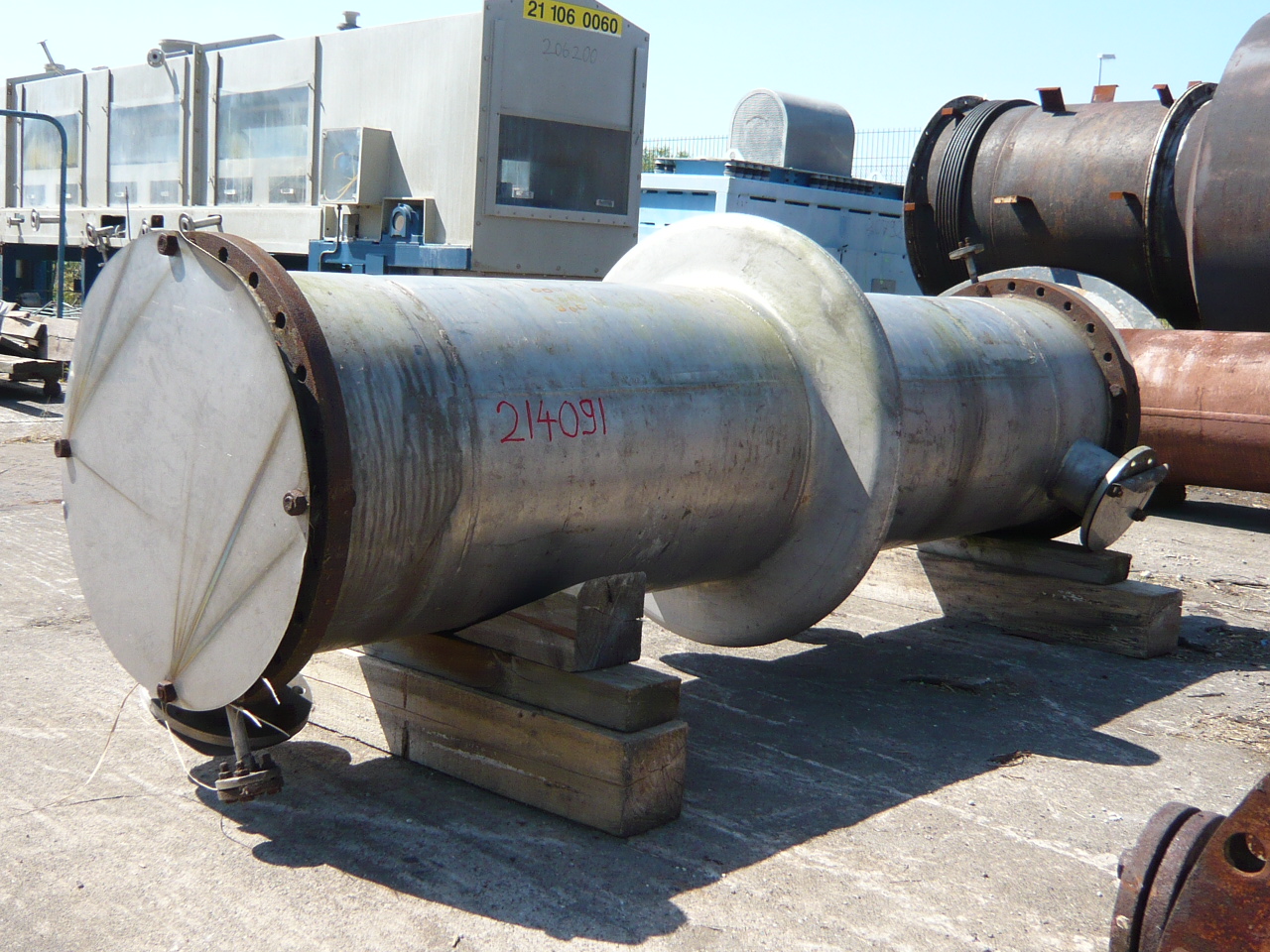

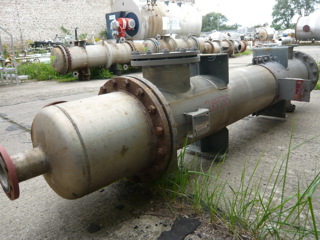

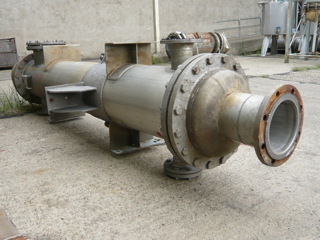

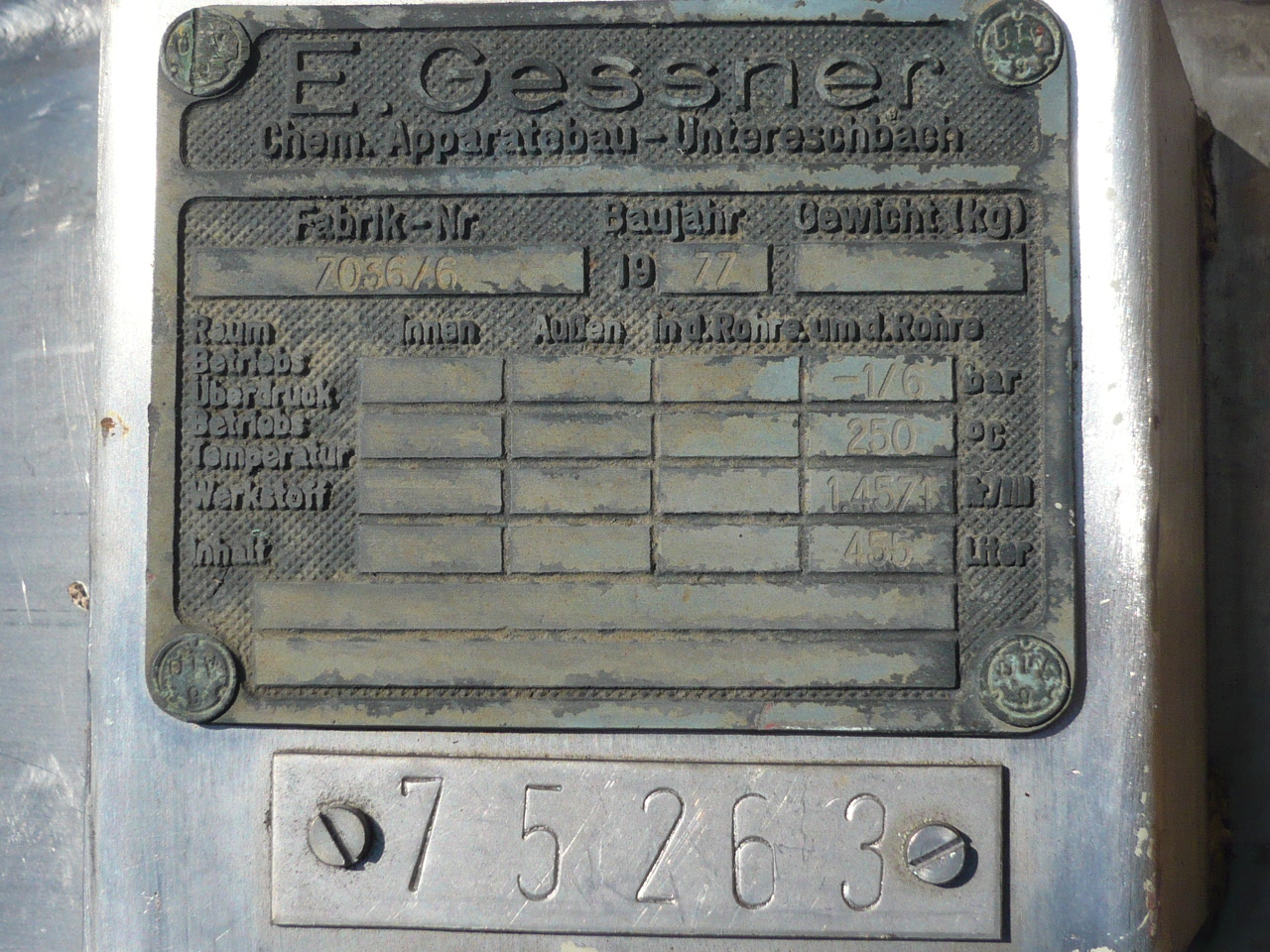

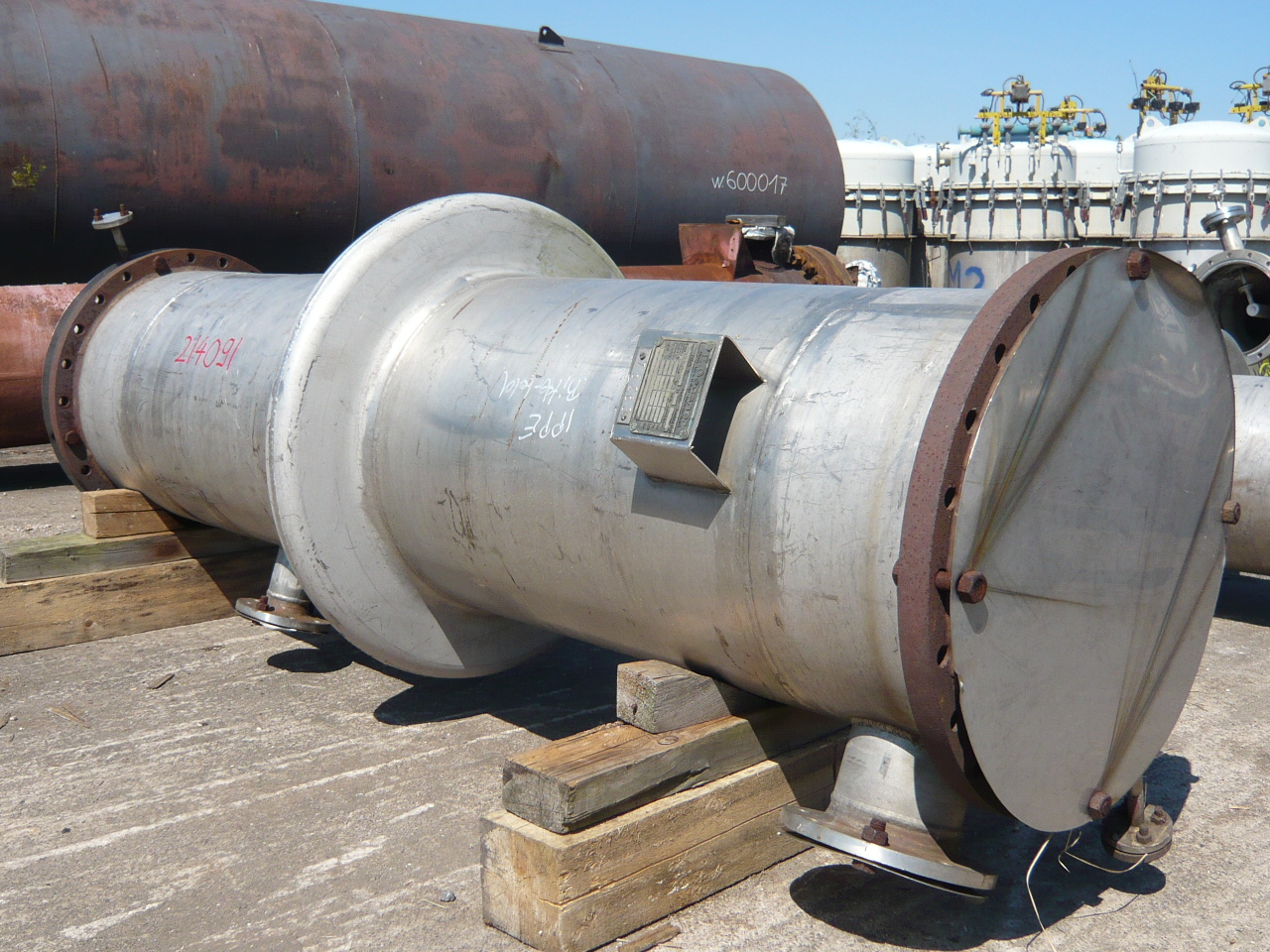

Shell and Tube Heat Exchanger 38 m² (409 ft²) Stainless Steel Austenitic For Sale - IPP# 214091

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GESSNER

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 17 m² (183 ft²)

Shell Pressure: 7 bar (101.5 psi)

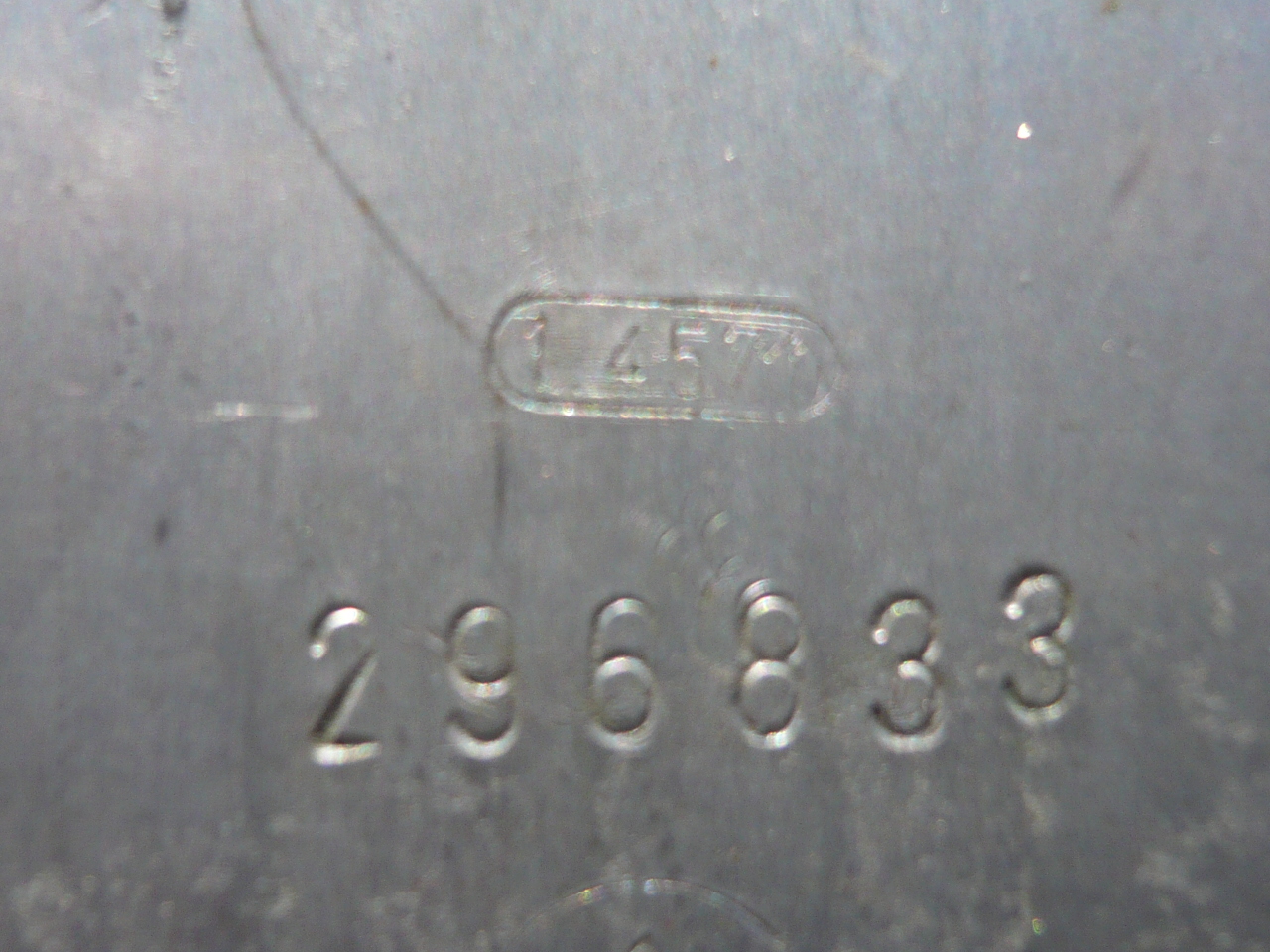

horizontal or vertical heat exchanger Tube side: Multi-pass (total volume 113 Liter) (total volume 216 Liter) (2) 316Ti (1.4571) stainless steel dished heads

Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 7 bar (101.5 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 400 mm (15.7 in). Head Material: Stainless Steel Austenitic. Tube Number: 88. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings Shell side: (2) DN100, (1) DN150, (1) DN250 - Openings first head: (1) DN100, (1) DN200 - Openings second head: (1) DN200. Capacity: 216 L (57.1 gallons).

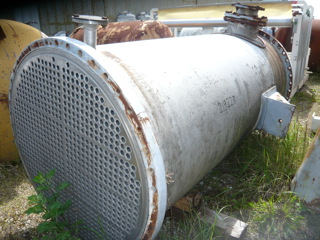

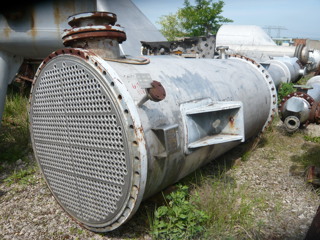

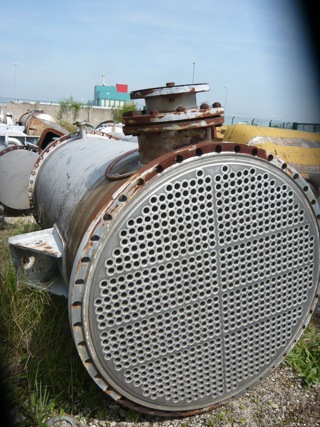

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GESSNER

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 152 m² (1,650 ft²)

Orientation: Vertical

no heads pressure shell side -1/6 bar @ 200 deg C (1409 ltr), tubeside -1/6 bar @ 200 deg C (1567 ltr)

Shell Pressure: 6 bar (87 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel Austenitic. Shell Diameter: 1,100 mm (43.3 in). Tube Number: 778. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings shell: 1-300mm, 1-50mm, 1-25mm.

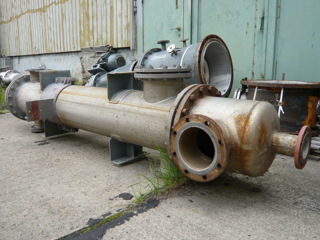

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GESSNER

Condition: Used

Material: Stainless Steel Austenitic

Clad: Yes

Heat Transfer Surface Area: 5.1 m² (54.9 ft²)

Orientation: Horizontal

pressure tube side -1/6 bar @ -10/200 degrees C (33 liter), shell -1/6 bar @ -10/200 degrees C (55 liter) Fully insulated and cladded Built to TUV standards

Shell Pressure: 6 bar (87 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 219 mm (8.6 in). Head Material: Stainless Steel Austenitic. Length: 3,200 mm (125.1 in). Tube-side Passes: 2. Tube Number: 26. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,800 mm (110.2 in). Nozzle Schedule: openings tube side (1) head with 2-100mm, (1) head with 1-25mm (drain), shel side 2-100mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GESSNER

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 11.8 m² (127 ft²)

Shell Material: Stainless Steel Austenitic

Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 300 mm (11.8 in).
